2001 GMC YUKON XL DENALI Owners Manual

5-19 Removing the Spare Tire and Tools
Denali Models (Under Driver's Side Rear Seat)
A. Tool Kit with Jack Tools and Gloves
B. Bracket and Wing Nut
Denali Models (Rear Access Panel)
A. Speaker
B. Bottle Jack
C. Wing Nut
D. Retaining Hook
E. Tire Blocks
F. Cover Panel

5-20
Denali XL Models
A. Bottle Jack
B. Wheel Blocks
C. Wing Nut
D. Mounting Bracket
E. Removable TrayF. Retaining Hook
G. Retaining Bracket
and Wing Nut
H. Tool Kit with Jack
Tools and GlovesDenali: The equipment you'll need is located under the
second row passenger's seat on the driver's side of the
vehicle, and behind the left trim panel on the driver's
side of the vehicle. Skip the first step and follow the
last three.
Denali XL: The equipment you'll need is located
under the storage tray in the rear trim panel on the
driver's side of the vehicle.
1. Remove the tray to access the tools.
2. There is a wing nut used to retain the tool kit.
To remove it, turn the wing nut counterclockwise.
3. To release the bottle jack from its holder, turn
the knob on the bottle jack counterclockwise
to lower the jack head.
4. The wheel blocks and the wheel block
retainer can be removed by turning the
wing nut counterclockwise.
You'll use the jack handle extensions and the wheel
wrench to remove the underbody
-mounted spare tire.

5-21
A. Hoist Assembly
B. Wheel Wrench
C. Jack
Handle Extensions
D. Hoist Shaft
E. Valve Stem,
Pointed Up
F. Spare TireG. Tire Retainer
H. Hoist Cable
I. Hoist Lock
J. Hoist Shaft
Access Hole
K. Hoist End of
Extension ToolFollow these instructions to lower the spare tire:
1. If the vehicle is equipped with a hoist lock (I), open
the spare tire lock cover on the bumper and use the
ignition key to remove the lock.
2. Assemble the wheel wrench (B) and the two jack
handle extensions (C) as shown. Insert the hoist
end (K) (open end) of the extension through the
hole (J) in the rear bumper. Be sure the hoist end
of the extension connects into the hoist shaft (D)
(the ribbed square end of the extension is used to
lower the spare tire).
3. Turn the wheel wrench counterclockwise to lower
the spare tire (F) to the ground. Continue to turn the
wheel wrench until the spare tire can be pulled out
from under the vehicle. The wheel wrench has a
hook that allows you to pull the hoist cable (H)
towards you, to assist in reaching the spare tire.
4. When the tire has been lowered, tilt the retainer at
the end of the cable so it can be pulled up through
the wheel opening.
5. Put the spare tire near the flat tire.

5-22
The tools you'll be using include the bottle jack (A), the
wheel blocks (B), the jack handle (C), the jack handle
extensions (D), and the wheel wrench (E).
If the flat tire is on a rear tire of the vehicle, you'll need
to use both jack handle extensions.Attach the wheel wrench to the jack handle extensions
(as needed). Attach the jack handle to the jack.

5-23

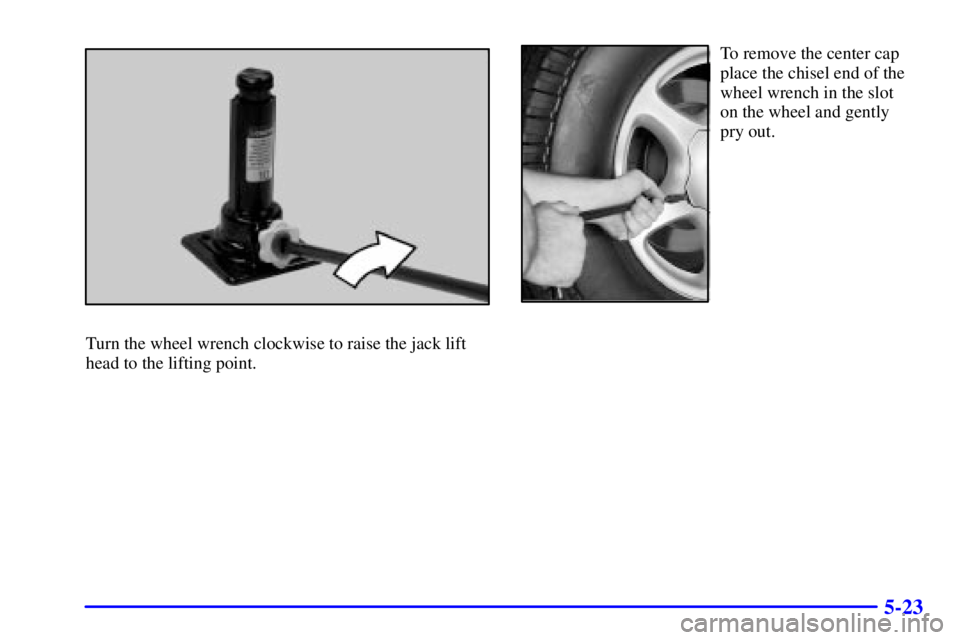

Turn the wheel wrench clockwise to raise the jack lift
head to the lifting point.
To remove the center cap
place the chisel end of the
wheel wrench in the slot
on the wheel and gently
pry out.

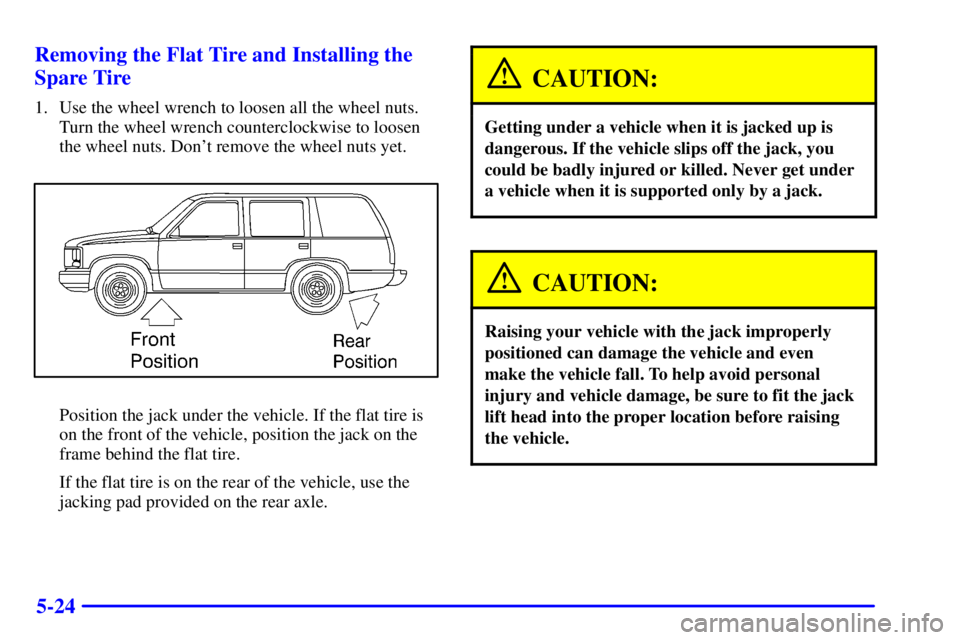

5-24 Removing the Flat Tire and Installing the
Spare Tire
1. Use the wheel wrench to loosen all the wheel nuts.
Turn the wheel wrench counterclockwise to loosen
the wheel nuts. Don't remove the wheel nuts yet.
Position the jack under the vehicle. If the flat tire is
on the front of the vehicle, position the jack on the
frame behind the flat tire.
If the flat tire is on the rear of the vehicle, use the
jacking pad provided on the rear axle.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising
the vehicle.

5-25
Front Position
Rear Position

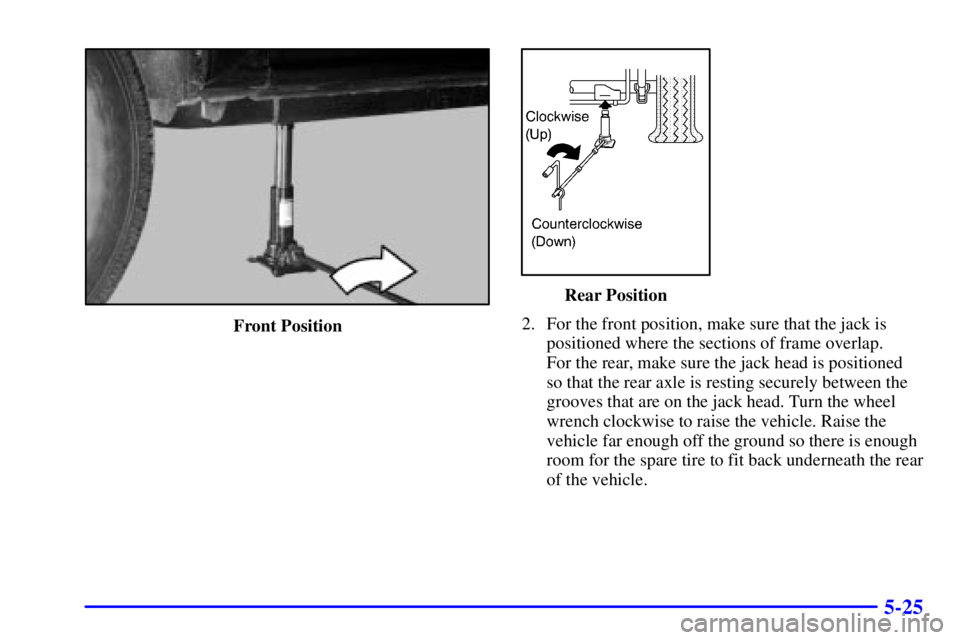

2. For the front position, make sure that the jack is
positioned where the sections of frame overlap.
For the rear, make sure the jack head is positioned
so that the rear axle is resting securely between the
grooves that are on the jack head. Turn the wheel
wrench clockwise to raise the vehicle. Raise the
vehicle far enough off the ground so there is enough
room for the spare tire to fit back underneath the rear
of the vehicle.

5-26
3. Remove all the wheel
nuts and take off the
flat tire.
4. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
