Page 1062 of 2321

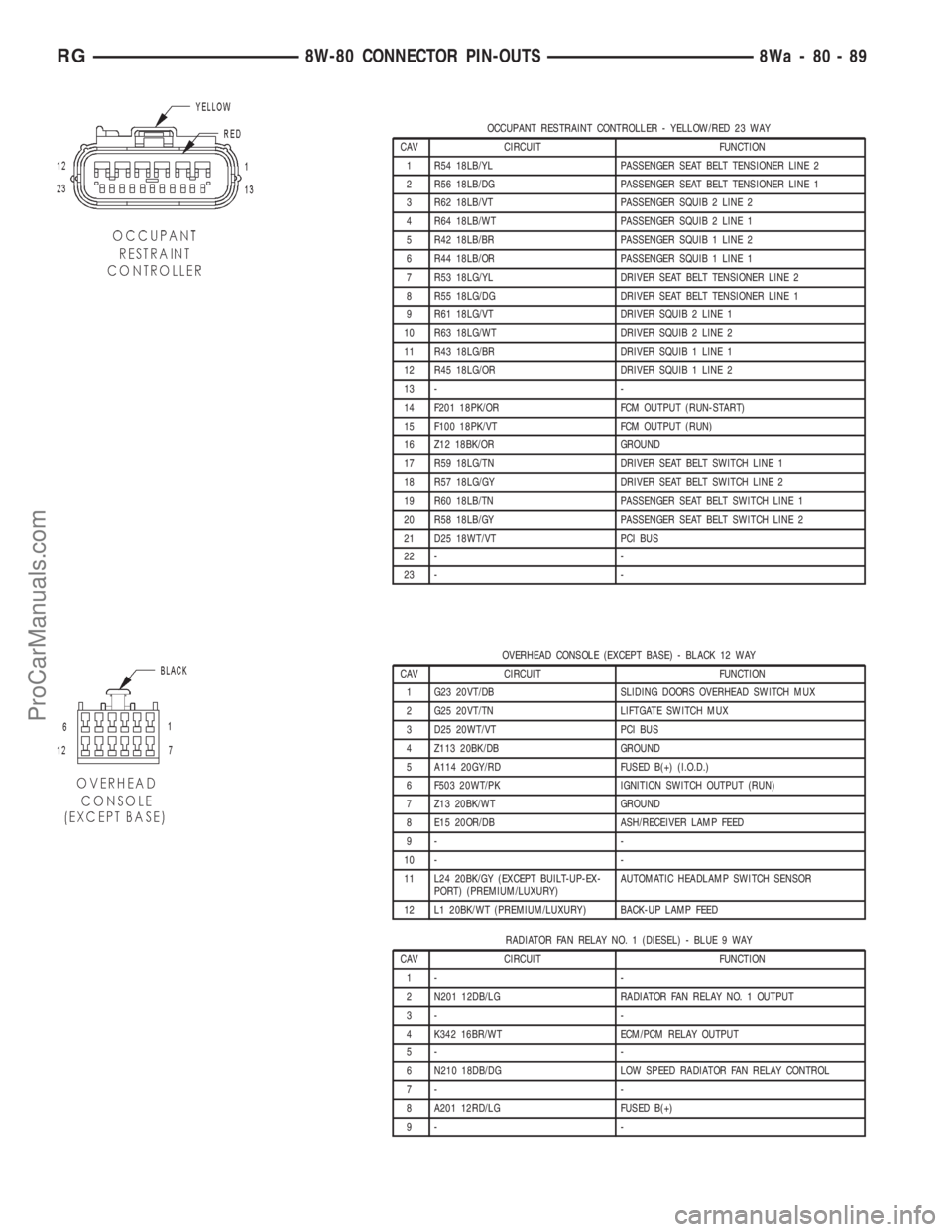

OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/VT DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (RUN-START)
15 F100 18PK/VT FCM OUTPUT (RUN)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT BUILT-UP-EX-
PORT) (PREMIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N210 18DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
7- -
8 A201 12RD/LG FUSED B(+)
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-89
ProCarManuals.com
Page 1063 of 2321

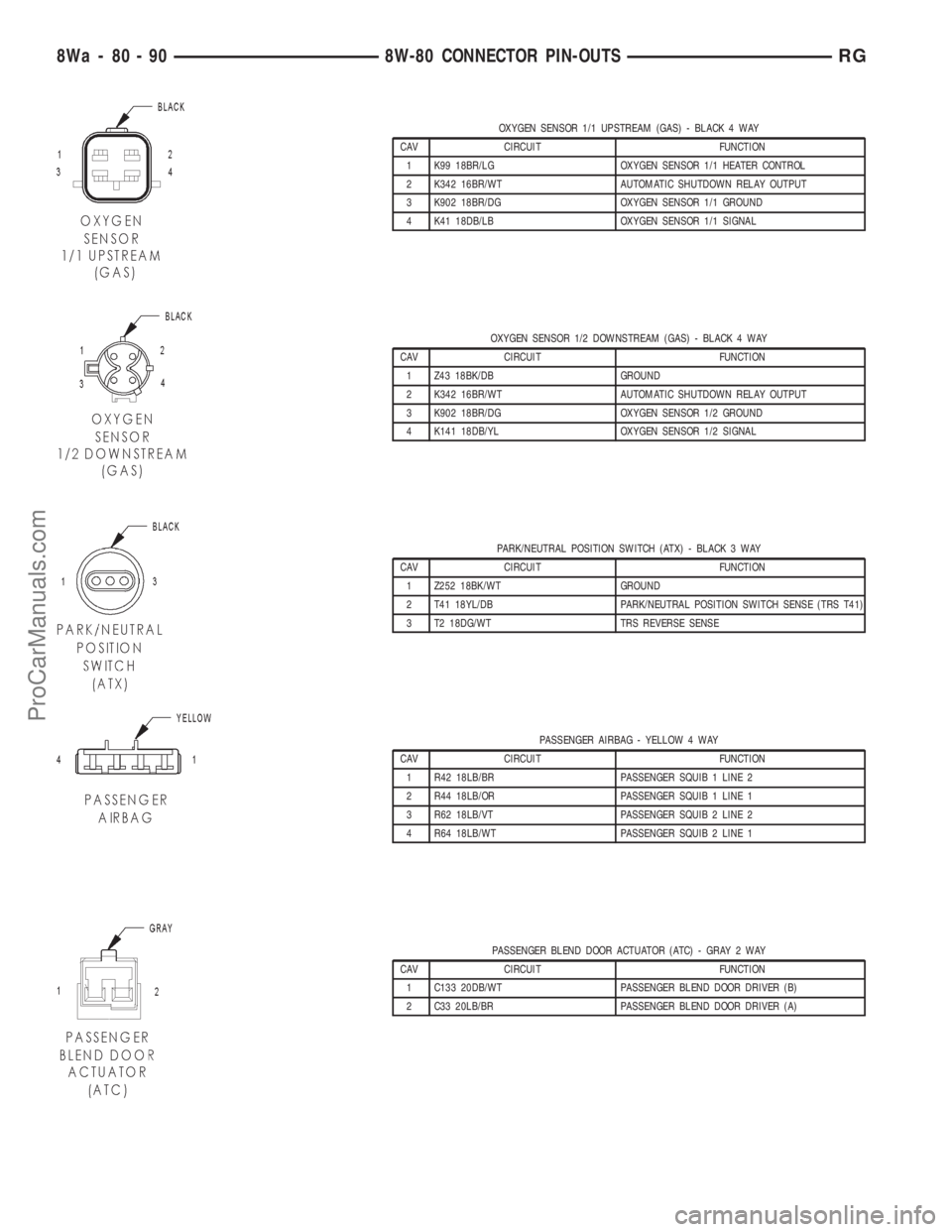

OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUND
4 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z43 18BK/DB GROUND
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/2 GROUND
4 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z252 18BK/WT GROUND
2 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
3 T2 18DG/WT TRS REVERSE SENSE
PASSENGER AIRBAG - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
8Wa - 80 - 90 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1069 of 2321

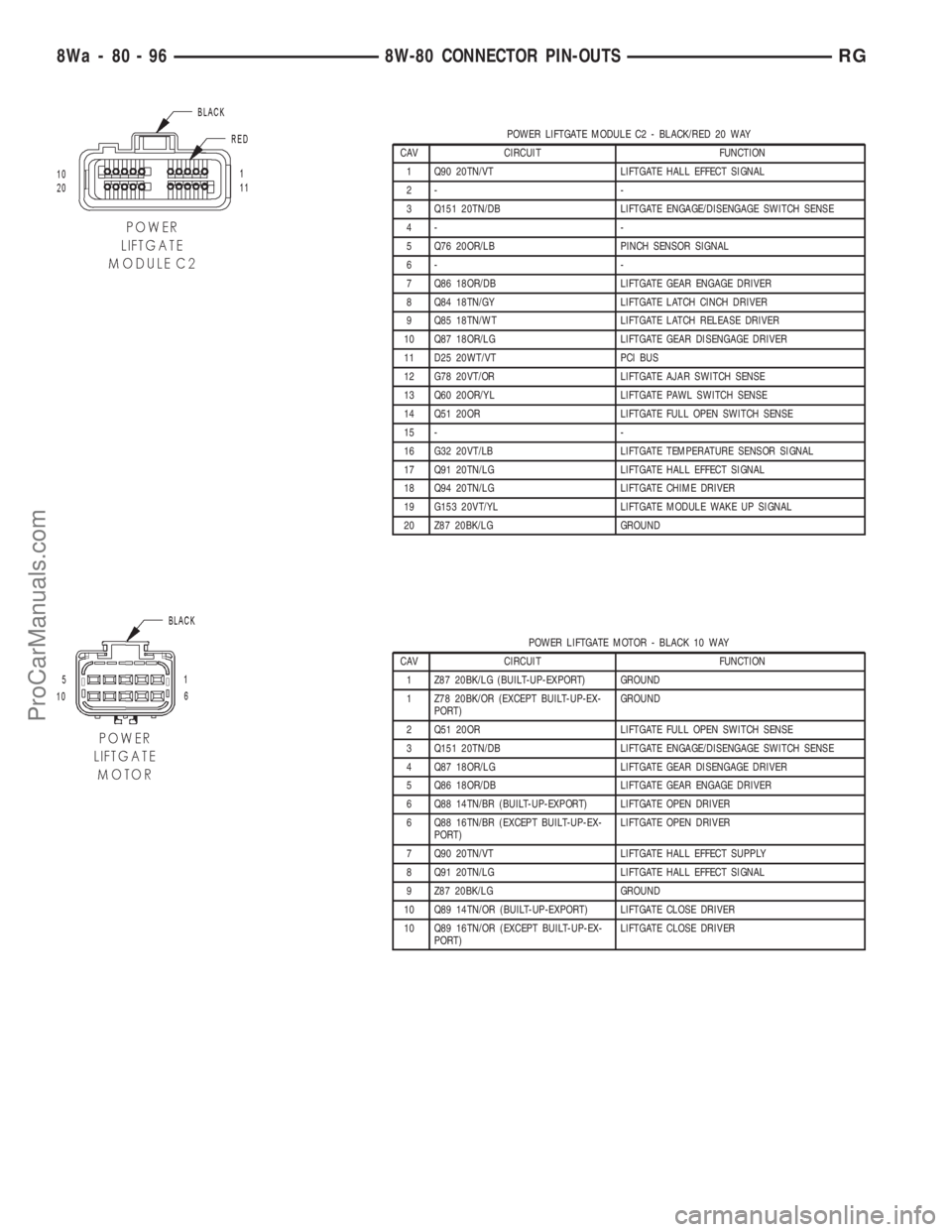

POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG (BUILT-UP-EXPORT) GROUND
1 Z78 20BK/OR (EXCEPT BUILT-UP-EX-
PORT)GROUND
2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
6 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
10 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
8Wa - 80 - 96 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1071 of 2321

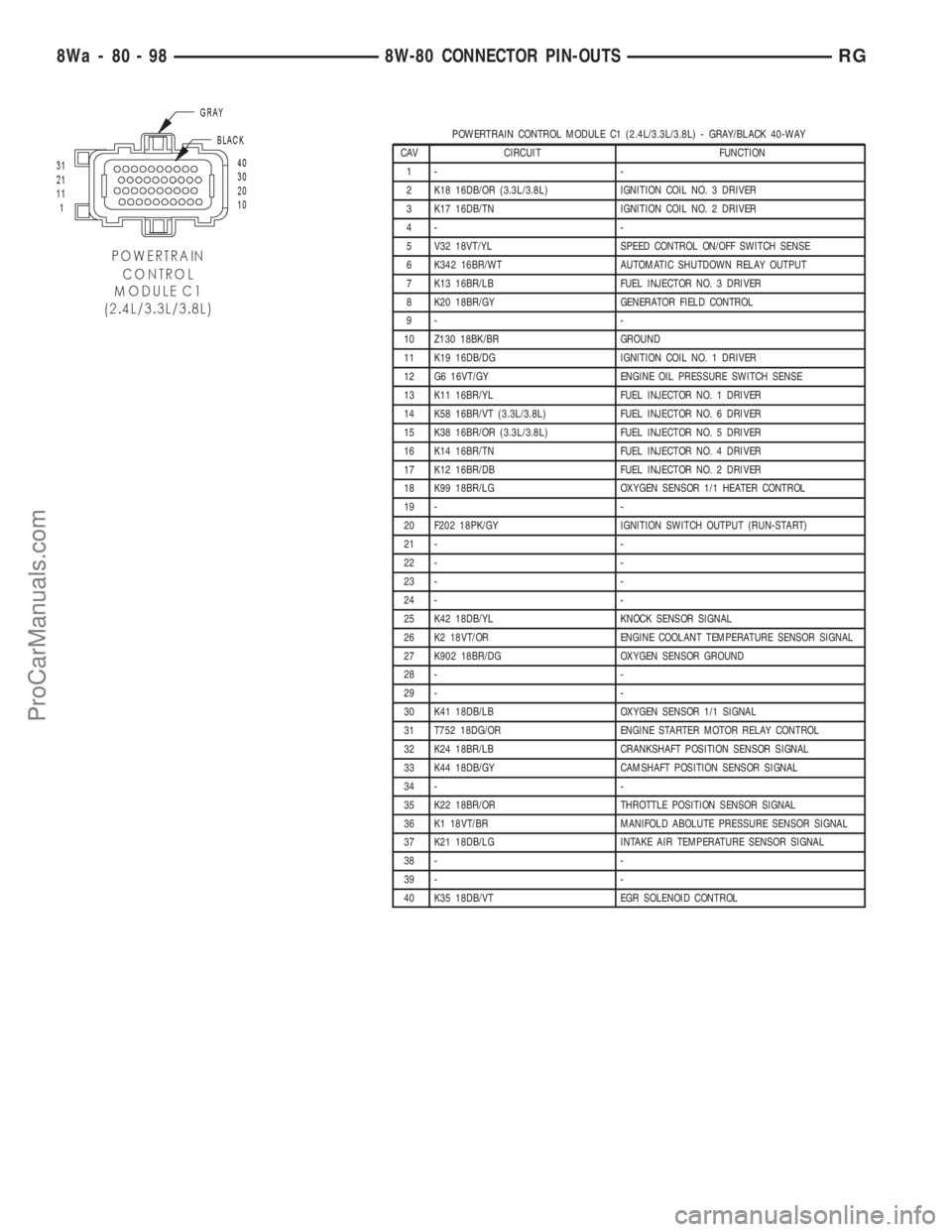

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAY
CAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
8Wa - 80 - 98 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1072 of 2321

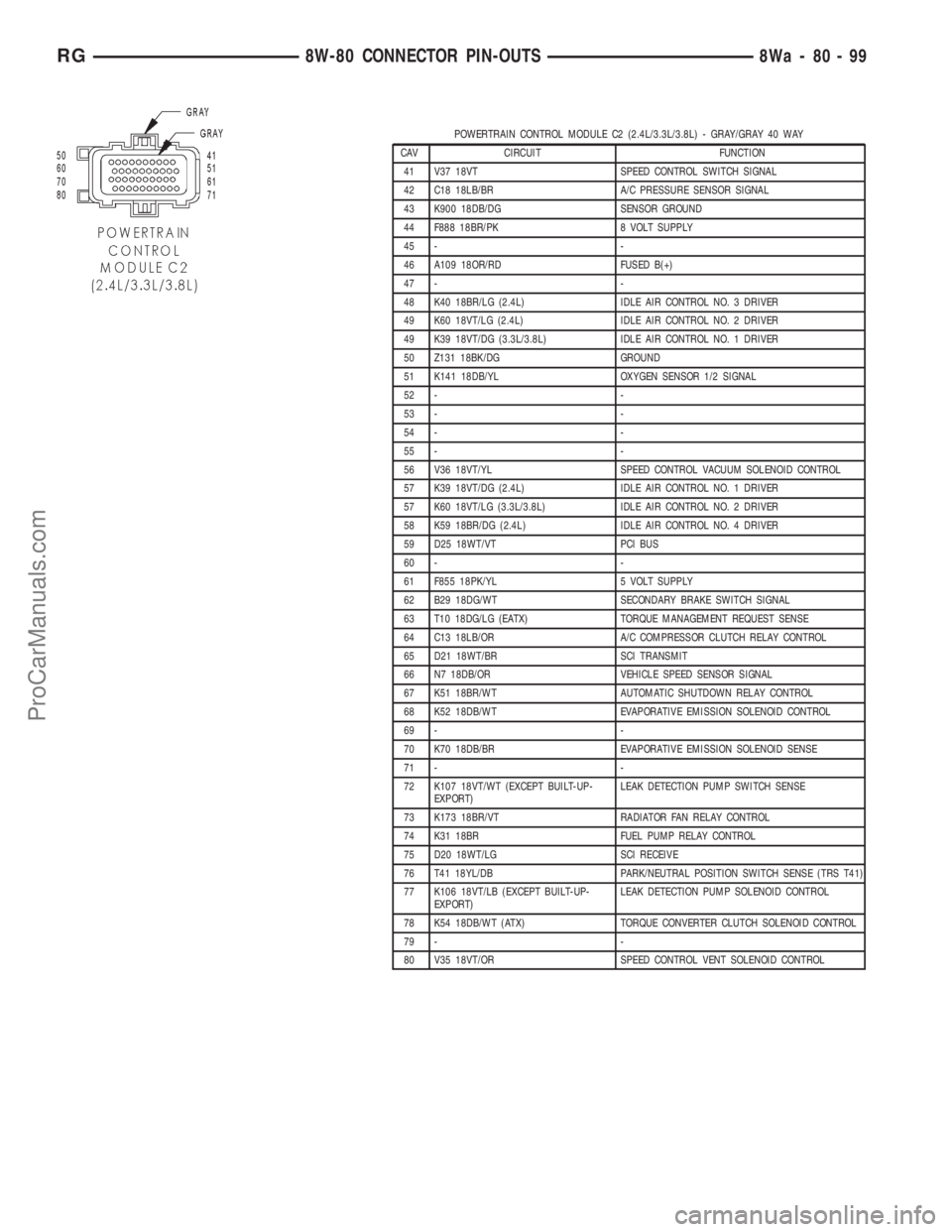

POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAY
CAV CIRCUIT FUNCTION
41 V37 18VT SPEED CONTROL SWITCH SIGNAL
42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL
43 K900 18DB/DG SENSOR GROUND
44 F888 18BR/PK 8 VOLT SUPPLY
45 - -
46 A109 18OR/RD FUSED B(+)
47 - -
48 K40 18BR/LG (2.4L) IDLE AIR CONTROL NO. 3 DRIVER
49 K60 18VT/LG (2.4L) IDLE AIR CONTROL NO. 2 DRIVER
49 K39 18VT/DG (3.3L/3.8L) IDLE AIR CONTROL NO. 1 DRIVER
50 Z131 18BK/DG GROUND
51 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
52 - -
53 - -
54 - -
55 - -
56 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 18VT/DG (2.4L) IDLE AIR CONTROL NO. 1 DRIVER
57 K60 18VT/LG (3.3L/3.8L) IDLE AIR CONTROL NO. 2 DRIVER
58 K59 18BR/DG (2.4L) IDLE AIR CONTROL NO. 4 DRIVER
59 D25 18WT/VT PCI BUS
60 - -
61 F855 18PK/YL 5 VOLT SUPPLY
62 B29 18DG/WT SECONDARY BRAKE SWITCH SIGNAL
63 T10 18DG/LG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 18WT/BR SCI TRANSMIT
66 N7 18DB/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
68 K52 18DB/WT EVAPORATIVE EMISSION SOLENOID CONTROL
69 - -
70 K70 18DB/BR EVAPORATIVE EMISSION SOLENOID SENSE
71 - -
72 K107 18VT/WT (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SWITCH SENSE
73 K173 18BR/VT RADIATOR FAN RELAY CONTROL
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 18WT/LG SCI RECEIVE
76 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
77 K106 18VT/LB (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18DB/WT (ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
79 - -
80 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-99
ProCarManuals.com
Page 1082 of 2321

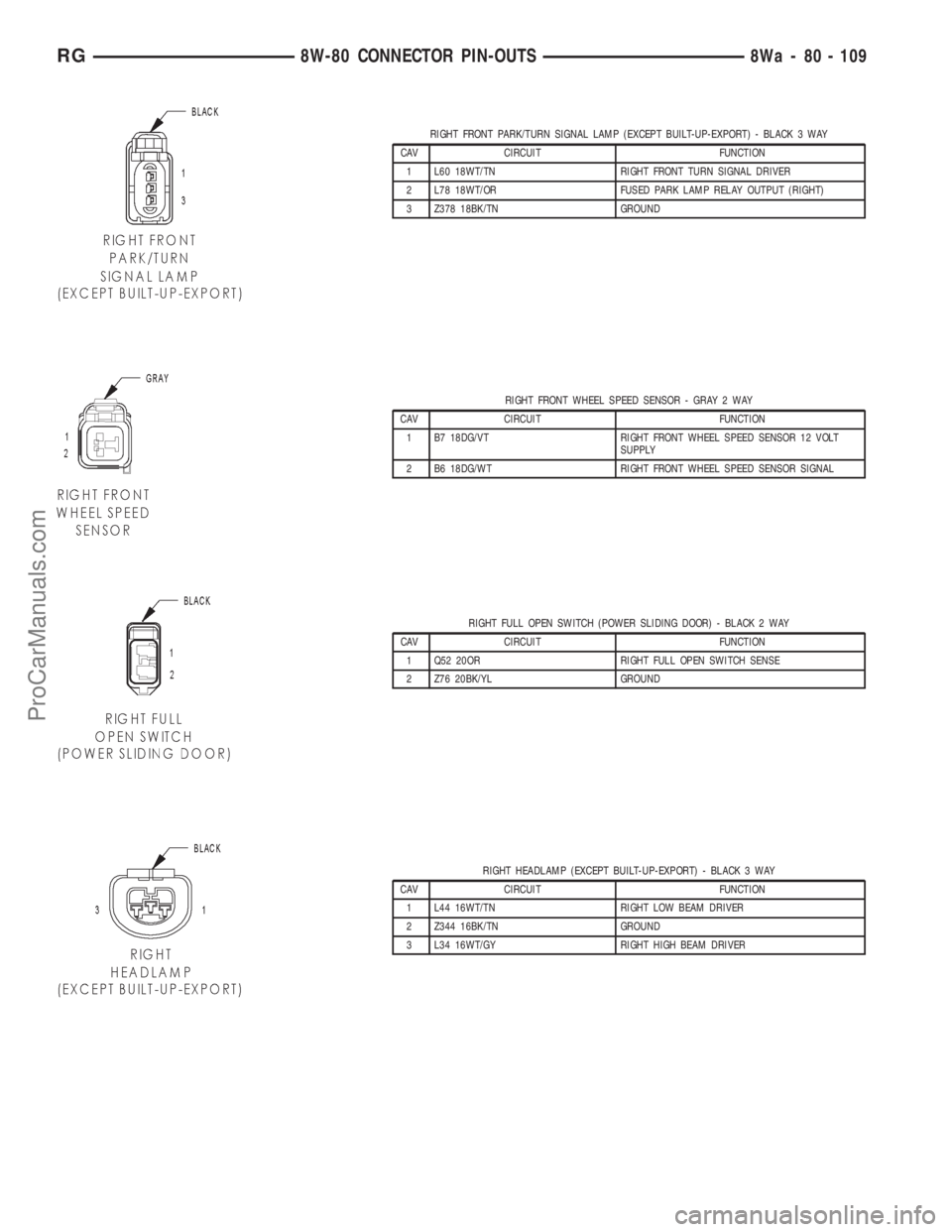

RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 Z378 18BK/TN GROUND
RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RG8W-80 CONNECTOR PIN-OUTS8Wa - 80 - 109
ProCarManuals.com
Page 1084 of 2321

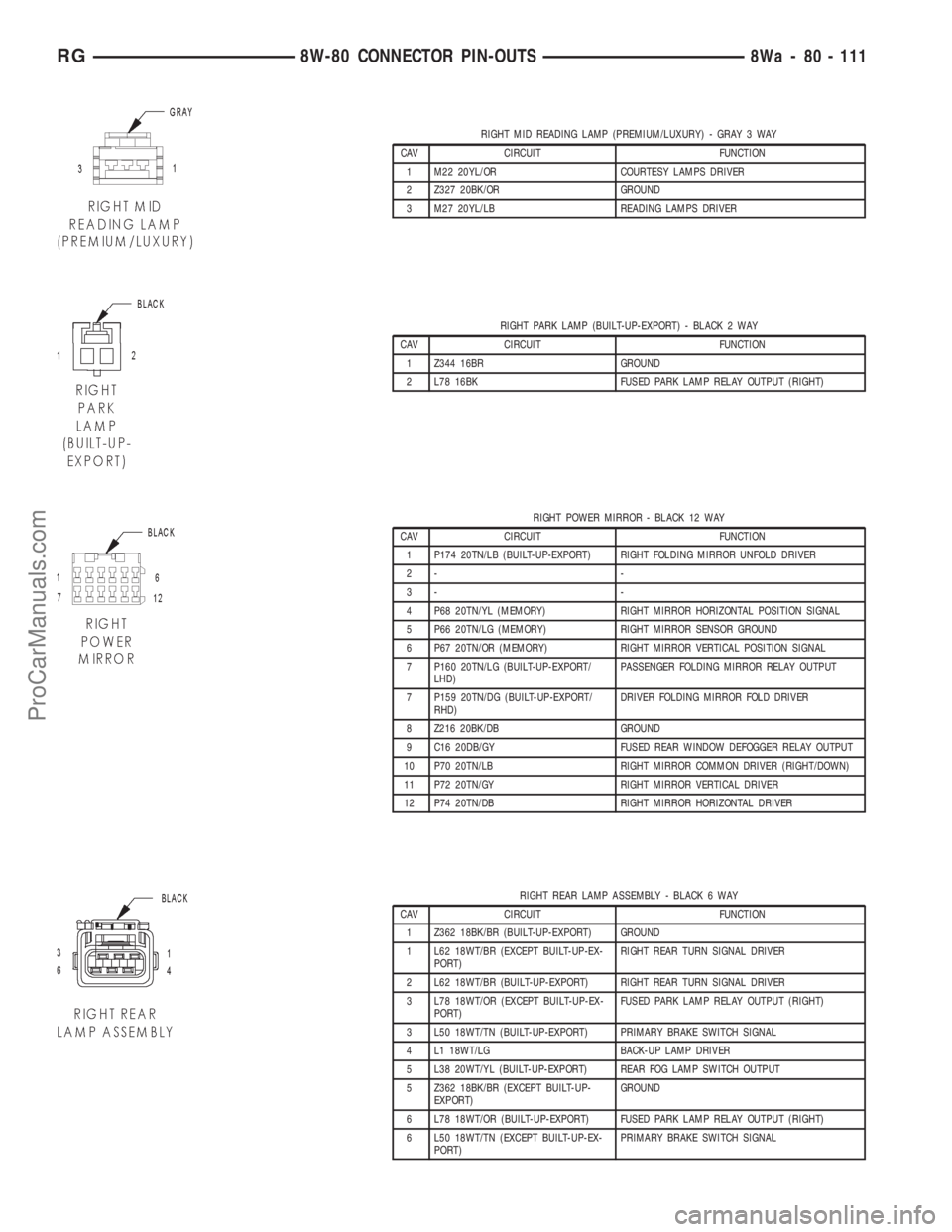

RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (BUILT-UP-EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-EXPORT/
LHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-EXPORT/
RHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
12 P74 20TN/DB RIGHT MIRROR HORIZONTAL DRIVER
RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z362 18BK/BR (BUILT-UP-EXPORT) GROUND
1 L62 18WT/BR (EXCEPT BUILT-UP-EX-
PORT)RIGHT REAR TURN SIGNAL DRIVER
2 L62 18WT/BR (BUILT-UP-EXPORT) RIGHT REAR TURN SIGNAL DRIVER
3 L78 18WT/OR (EXCEPT BUILT-UP-EX-
PORT)FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L50 18WT/TN (BUILT-UP-EXPORT) PRIMARY BRAKE SWITCH SIGNAL
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
5 Z362 18BK/BR (EXCEPT BUILT-UP-
EXPORT)GROUND
6 L78 18WT/OR (BUILT-UP-EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
6 L50 18WT/TN (EXCEPT BUILT-UP-EX-
PORT)PRIMARY BRAKE SWITCH SIGNAL
RG8W-80 CONNECTOR PIN-OUTS8Wa - 80 - 111
ProCarManuals.com
Page 1085 of 2321

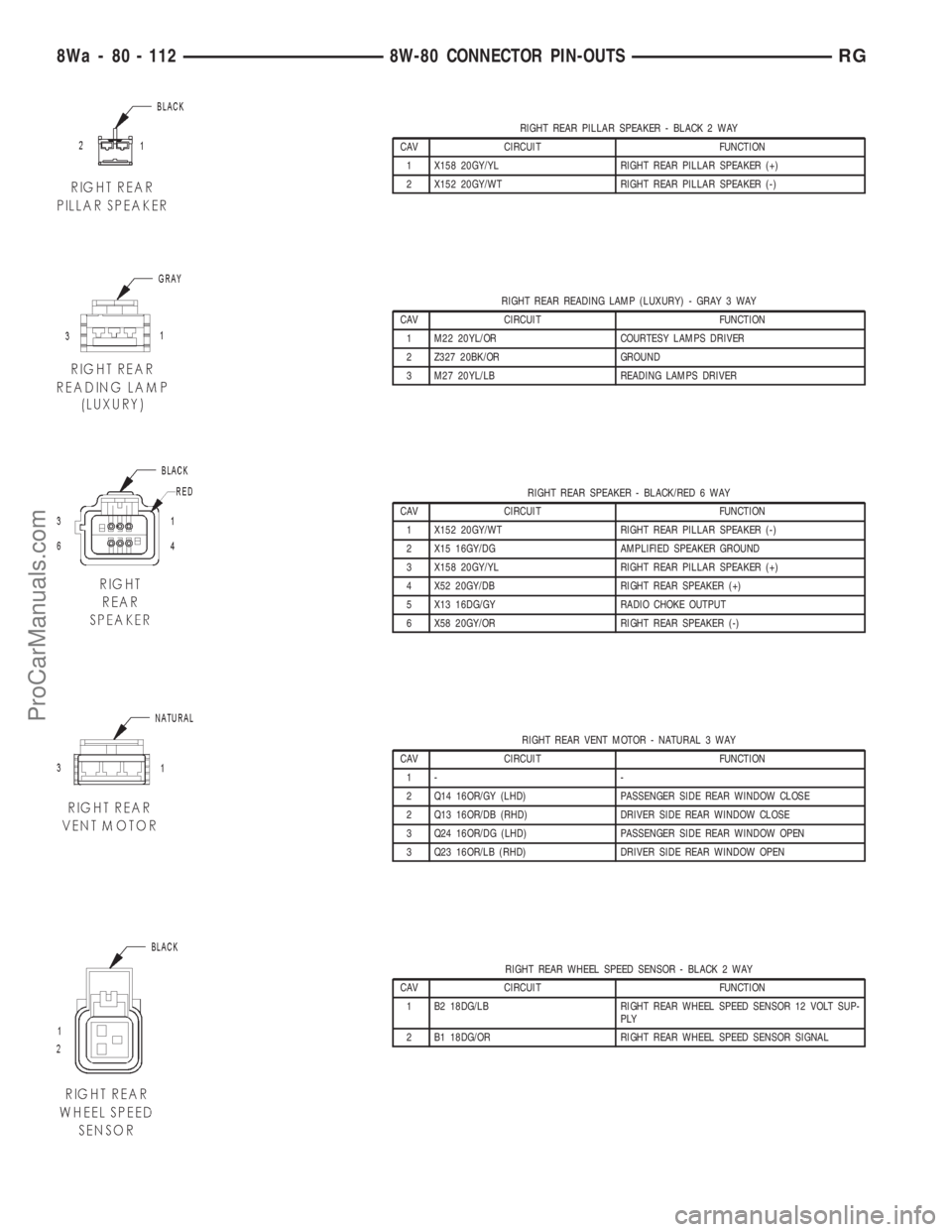

RIGHT REAR PILLAR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (+)
2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (-)
RIGHT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT REAR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG AMPLIFIED SPEAKER GROUND
3 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (+)
4 X52 20GY/DB RIGHT REAR SPEAKER (+)
5 X13 16DG/GY RADIO CHOKE OUTPUT
6 X58 20GY/OR RIGHT REAR SPEAKER (-)
RIGHT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q14 16OR/GY (LHD) PASSENGER SIDE REAR WINDOW CLOSE
2 Q13 16OR/DB (RHD) DRIVER SIDE REAR WINDOW CLOSE
3 Q24 16OR/DG (LHD) PASSENGER SIDE REAR WINDOW OPEN
3 Q23 16OR/LB (RHD) DRIVER SIDE REAR WINDOW OPEN
RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
8Wa - 80 - 112 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
