2001 CHRYSLER VOYAGER remote control

8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch................ 8W-80-6
A/C-Heater Control C1 (MTC)........... 8W-80-6
A/C-Heater Control C2 (MTC)........... 8W-80-6
A/C Pressure Sensor.................. 8W-80-7
Accelerator Pedal Position Sensor (Diesel) . 8W-80-7
Ambient Temp Sensor (Except Base)..... 8W-80-7
ATC Remote Sensor (ATC)............. 8W-80-7
Automatic Day/Night Mirror
(Premium/Luxury)................. 8W-80-8
Autostick Switch (Except Built-Up-Export) . 8W-80-8
Auto Temp Control C1................ 8W-80-8
Auto Temp Control C2................ 8W-80-9
Auto Temp Control C3................ 8W-80-9
Back-Up Lamp Switch (MTX)........... 8W-80-9
Battery Temperature Sensor (Diesel)..... 8W-80-9
Blower Motor Resistor C1 (MTC)....... 8W-80-10
Blower Motor Resistor C2 (MTC)....... 8W-80-10
Body Control Module C1.............. 8W-80-10
Body Control Module C2.............. 8W-80-11
Body Control Module C3.............. 8W-80-12
Body Control Module C4.............. 8W-80-13
Body Control Module C5.............. 8W-80-14
Boost Pressure Sensor (Diesel)......... 8W-80-14
Brake Fluid Level Switch............. 8W-80-15
Brake Lamp Switch................. 8W-80-15
Brake Transmission Shift Interlock Solenoid
(EATX) ......................... 8W-80-15
C100............................. 8W-80-15
C100............................. 8W-80-16
C101............................. 8W-80-16
C101............................. 8W-80-16
C102 (2.4L)........................ 8W-80-17
C102 (2.4L)........................ 8W-80-17
C102 (3.3L/3.8L).................... 8W-80-17
C102 (3.3L/3.8L).................... 8W-80-18
C103 (Diesel)....................... 8W-80-18
C103 (Diesel)....................... 8W-80-18
C106 (Built-Up-Export)............... 8W-80-18
C106 (Built-Up-Export)............... 8W-80-19
C107 (Built-Up-Export)............... 8W-80-19
C107 (Built-Up-Export)............... 8W-80-19
C200............................. 8W-80-20
C200............................. 8W-80-22
C201............................. 8W-80-23
C201............................. 8W-80-24
C202............................. 8W-80-24
C202............................. 8W-80-24
C203 (United Kingdom).............. 8W-80-25
C203 (United Kingdom).............. 8W-80-25
C300 (LHD)........................ 8W-80-25
C300 (LHD)........................ 8W-80-25
C300 (RHD)....................... 8W-80-26Component Page
C300 (RHD)....................... 8W-80-26
C301............................. 8W-80-26
C301............................. 8W-80-27
C302............................. 8W-80-27
C302............................. 8W-80-27
C303 (LHD)........................ 8W-80-28
C303 (LHD)........................ 8W-80-28
C303 (RHD)....................... 8W-80-28
C303 (RHD)....................... 8W-80-29
C304............................. 8W-80-29
C304............................. 8W-80-29
C305............................. 8W-80-29
C305............................. 8W-80-30
C306............................. 8W-80-30
C306............................. 8W-80-30
C307............................. 8W-80-30
C307............................. 8W-80-31
C308............................. 8W-80-31
C308............................. 8W-80-31
C309............................. 8W-80-32
C309............................. 8W-80-32
C310 (Front Console)................ 8W-80-32
C310 (Front Console)................ 8W-80-33
C311 ............................. 8W-80-33
C311 ............................. 8W-80-33
C312............................. 8W-80-34
C312............................. 8W-80-34
C313 (Rear Console)................. 8W-80-35
C313 (Rear Console)................. 8W-80-35
C314 (High Line)................... 8W-80-35
C314 (High Line)................... 8W-80-35
C315 (High Line)................... 8W-80-36
C315 (High Line)................... 8W-80-36
C316 (Power Sliding Door)............ 8W-80-36
C316 (Power Sliding Door)............ 8W-80-37
C317 (Power Sliding Door)............ 8W-80-37
C317 (Power Sliding Door)............ 8W-80-37
C318 (Trailer Tow).................. 8W-80-38
C318 (Trailer Tow).................. 8W-80-38
C319 (Except Built-Up-Export/Low Line) . 8W-80-38
C319 (Except Built-Up-Export/Low Line) . 8W-80-38
C320............................. 8W-80-39
C320............................. 8W-80-39
C321............................. 8W-80-39
C321............................. 8W-80-39
C322 (Memory)..................... 8W-80-39
C322 (Memory)..................... 8W-80-40
C324 (Manual Sliding Door)........... 8W-80-40
C324 (Manual Sliding Door)........... 8W-80-40
C325 (Manual Sliding Door)........... 8W-80-40
C325 (Manual Sliding Door)........... 8W-80-41
C326............................. 8W-80-41
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-1

Component Page
Intelligent Power Module C4.......... 8W-80-69
Intelligent Power Module C5.......... 8W-80-69
Intelligent Power Module C6.......... 8W-80-70
Intelligent Power Module C7.......... 8W-80-70
Intelligent Power Module C8.......... 8W-80-71
Intelligent Power Module C9.......... 8W-80-71
Knock Sensor (2.4L)................. 8W-80-71
Knock Sensor (3.3L/3.8L)............. 8W-80-71
Leak Detection Pump
(Except Built-Up-Export)........... 8W-80-72
Left B-Pillar Switch................. 8W-80-72
Left Cinch/Release Motor
(Power Sliding Door)............... 8W-80-72
Left Combination Relay (Trailer Tow).... 8W-80-72
Left Cylinder Lock Switch............. 8W-80-72
Left Door Speaker................... 8W-80-73
Left Fog Lamp..................... 8W-80-73
Left Front Door Ajar Switch (Base)...... 8W-80-73
Left Front Door Lock Motor/Ajar Switch
(Except Base).................... 8W-80-73
Left Front Park/Turn Signal Lamp (Except
Built-Up-Export).................. 8W-80-74
Left Front Wheel Speed Sensor......... 8W-80-74
Left Full Open Switch (Power Sliding Door). 8W-80-74
Left Headlamp (Except Built-Up-Export) . 8W-80-74
Left Headlamp Leveling Motor
(Built-Up-Export)................. 8W-80-74
Left High Beam Lamp (Built-Up-Export) . 8W-80-75
Left Instrument Panel Speaker......... 8W-80-75
Left Liftgate Flood Lamp............. 8W-80-75
Left Low Beam Lamp (Built-Up-Export) . . 8W-80-75
Left Mid Reading Lamp
(Premium/Luxury)................. 8W-80-75
Left Park Lamp (Built-Up-Export)...... 8W-80-76
Left Power Mirror................... 8W-80-76
Left Rear Lamp Assembly............. 8W-80-76
Left Rear Pillar Speaker.............. 8W-80-77
Left Rear Reading Lamp (Luxury)...... 8W-80-77
Left Rear Speaker................... 8W-80-77
Left Rear Vent Motor................ 8W-80-77
Left Rear Wheel Speed Sensor......... 8W-80-77

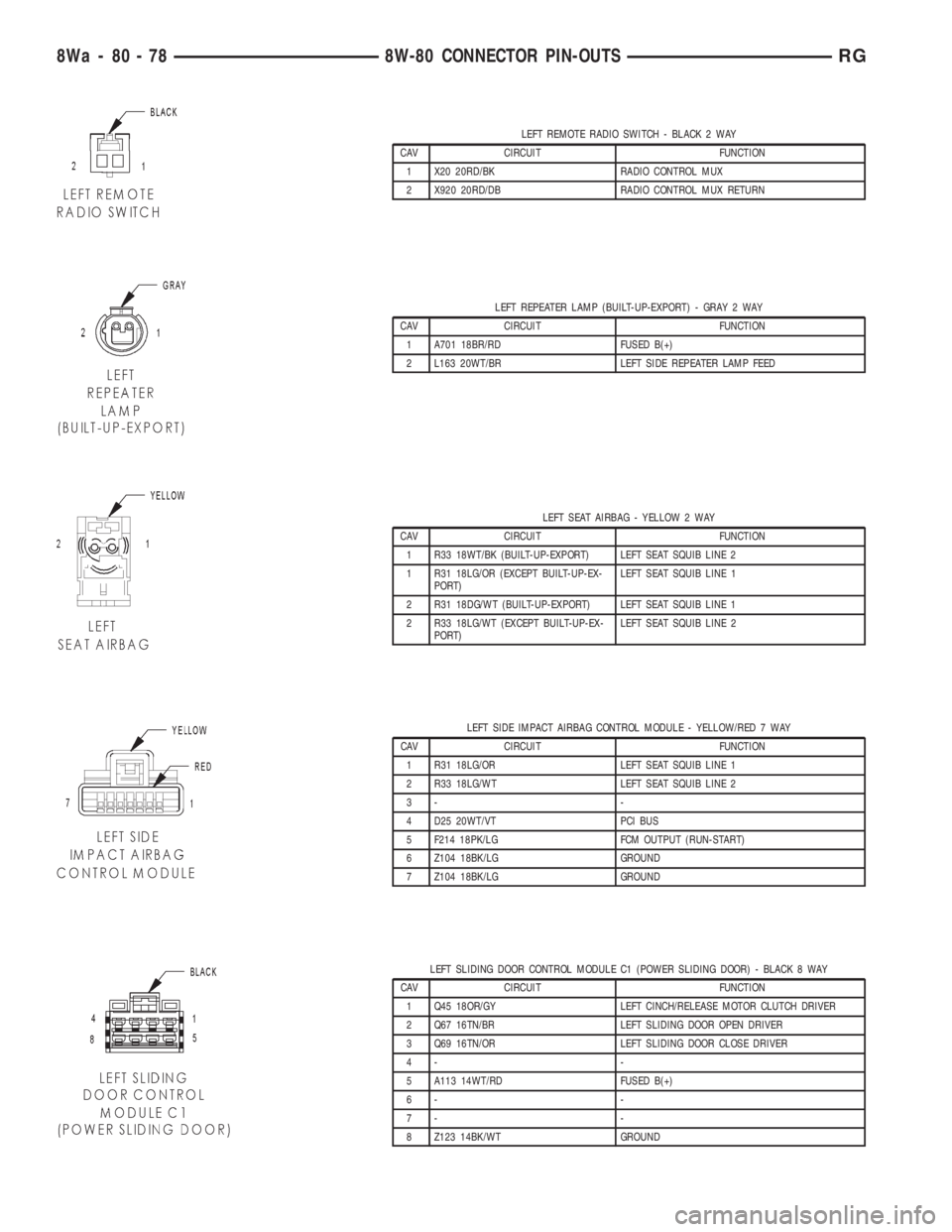

Left Remote Radio Switch............. 8W-80-78
Left Repeater Lamp (Built-Up-Export) . . . 8W-80-78
Left Seat Airbag.................... 8W-80-78
Left Side Impact Airbag Control Module . . 8W-80-78
Left Sliding Door Control Module C1
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Control Module C2
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Latch Sensing Switch
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door).............. 8W-80-80Component Page
Left Sliding Door Motor
(Power Sliding Door)............... 8W-80-80
Left Speed Control Switch............ 8W-80-80
Left Stop/Turn Signal Relay (Trailer Tow) . 8W-80-80
Left Turn Signal Lamp
(Built-Up-Export)................. 8W-80-81
Left Visor/Vanity Lamp
(Premium/Luxury)................. 8W-80-81
License Lamp (Manual Release)........ 8W-80-81
License Lamp (Power Liftgate)......... 8W-80-81
License Lamp (Power Release)......... 8W-80-82
Liftgate Ajar Switch (Manual Release) . . . 8W-80-82
Liftgate Ajar Switch (Power Release).... 8W-80-82
Liftgate Cinch/Release Motor
(Power Liftgate).................. 8W-80-82
Liftgate Cylinder Lock Switch.......... 8W-80-82
Liftgate Left Pinch Sensor
(Power Liftgate).................. 8W-80-83
Liftgate Right Pinch Sensor
(Power Liftgate).................. 8W-80-83
Lift Pump Motor (Diesel)............. 8W-80-83
Low Note Horn..................... 8W-80-83
Manifold Absolute Pressure
Sensor (Gas)..................... 8W-80-83
Mass Air Flow Sensor (Diesel)......... 8W-80-84
Memory Power Seat Switch........... 8W-80-84
Memory Seat/Mirror Module C1........ 8W-80-84
Memory Seat/Mirror Module C2........ 8W-80-85
Memory Seat/Mirror Module C3........ 8W-80-85
Memory Seat/Mirror Module C4........ 8W-80-86
Memory Seat Front Vertical Motor...... 8W-80-86
Memory Seat Front Vertical
Position Sensor................... 8W-80-86
Memory Seat Horizontal Motor......... 8W-80-86
Memory Seat Horizontal
Position Sensor................... 8W-80-86
Memory Seat Rear Vertical Motor....... 8W-80-87
Memory Seat Rear Vertical
Position Sensor................... 8W-80-87
Memory Seat Recliner Motor.......... 8W-80-87
Memory Seat Recliner Position Sensor . . . 8W-80-87
Memory Seat Switch................. 8W-80-87
Message Center (High Line)........... 8W-80-88
Mode Door Actuator (ATC)............ 8W-80-88
Mode Door Actuator (MTC)............ 8W-80-88
Multi-Function Switch............... 8W-80-88
Occupant Restraint Controller......... 8W-80-89
Overhead Console (Except Base)........ 8W-80-89
Oxygen Sensor 1/1 Upstream (Gas)...... 8W-80-90
Oxygen Sensor 1/2 Downstream (Gas) . . . 8W-80-90
Park/Neutral Position Switch (ATX)..... 8W-80-90
Passenger Airbag................... 8W-80-90
Passenger Blend Door Actuator (ATC) . . . 8W-80-90
Passenger Blend Door Actuator (MTC) . . . 8W-80-91
Passenger Door Courtesy Lamp........ 8W-80-91
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-3

Component Page
Passenger Door Lock Switch........... 8W-80-91
Passenger Folding Mirror Relay
(Built-Up-Export)................. 8W-80-91
Passenger Heated Seat Back........... 8W-80-92
Passenger Heated Seat Cushion........ 8W-80-92
Passenger Heated Seat Module C1...... 8W-80-92
Passenger Heated Seat Module C2...... 8W-80-92
Passenger Heated Seat Module C3...... 8W-80-93
Passenger Power Seat Front Riser Motor . 8W-80-93
Passenger Power Seat Horizontal Motor . . 8W-80-93
Passenger Power Seat Rear Riser Motor . . 8W-80-93
Passenger Power Seat Recliner Motor.... 8W-80-93
Passenger Power Seat Switch.......... 8W-80-94
Passenger Power Window Motor........ 8W-80-94
Passenger Power Window Switch....... 8W-80-94
Passenger Seat Belt Switch........... 8W-80-94
Passenger Seat Belt Tensioner......... 8W-80-95
Power Folding Mirror Switch
(Built-Up-Export)................. 8W-80-95
Power Liftgate Module C1............ 8W-80-95
Power Liftgate Module C2............ 8W-80-96
Power Liftgate Motor................ 8W-80-96
Power Mirror Switch................. 8W-80-97
Power Outlet....................... 8W-80-97
Power Seat Circuit Breaker (30A)....... 8W-80-97
Powertrain Control Module C1
(2.4L/3.3L/3.8L)................... 8W-80-98
Powertrain Control Module C2
(2.4L/3.3L/3.8L)................... 8W-80-99
Power Window Circuit Breaker (25A) . . . 8W-80-100
Radiator Fan No. 1 (Diesel)........... 8W-80-100
Radiator Fan No. 1 (Gas)............ 8W-80-100
Radiator Fan No. 2 (Diesel)........... 8W-80-100
Radiator Fan No. 2 (Gas)............ 8W-80-100
Radiator Fan Relay (Gas)............ 8W-80-101
Radiator Fan Relay No. 1 (Diesel)...... 8W-80-101
Radiator Fan Relay No. 2 (Diesel)...... 8W-80-101
Radiator Fan Relay No. 3 (Diesel)...... 8W-80-102
Radio C1......................... 8W-80-102
Radio C2......................... 8W-80-102
Radio C3......................... 8W-80-102
Radio C4......................... 8W-80-103
Radio Choke...................... 8W-80-103
Rear A/C-Heater Unit (3 Zone HVAC) . . . 8W-80-103
Rear Auto Temp Control Switch (ATC) . . 8W-80-104
Rear Blower Front Control Switch
(3 Zone HVAC).................. 8W-80-104
Rear Blower Motor Power Module
C1(ATC) ....................... 8W-80-104
Rear Blower Motor Power Module
C2(ATC) ....................... 8W-80-104
Rear Blower Rear Control Switch
C1 (3 Zone HVAC)................ 8W-80-105
Rear Blower Rear Control Switch C2
(3 Zone HVAC).................. 8W-80-105Component Page
Rear Dome Lamp (Except Luxury)..... 8W-80-105
Rear Mode Motor (ATC)............. 8W-80-105
Rear Power Outlet................. 8W-80-105
Rear Temperature Motor (ATC)........ 8W-80-106
Rear Washer Pump Motor............ 8W-80-106
Rear Wiper Motor.................. 8W-80-106
Recirculation Door Actuator (ATC)..... 8W-80-106
Recirculation Door Actuator (MTC)..... 8W-80-106
Remote Keyless Entry Antenna
(Japan)........................ 8W-80-107
Remote Keyless Entry Module........ 8W-80-107
Right B-Pillar Switch............... 8W-80-107
Right Cinch/Release Motor
(Power Sliding Door).............. 8W-80-107
Right Combination Relay
(Trailer Tow).................... 8W-80-107
Right Cylinder Lock Switch.......... 8W-80-108
Right Door Speaker................. 8W-80-108
Right Fog Lamp................... 8W-80-108
Right Front Door Ajar Switch (Base).... 8W-80-108
Right Front Door Lock Motor/Ajar Switch
(Except Base)................... 8W-80-108
Right Front Park/Turn Signal Lamp
(Except Built-Up-Export).......... 8W-80-109
Right Front Wheel Speed Sensor...... 8W-80-109
Right Full Open Switch
(Power Sliding Door).............. 8W-80-109
Right Headlamp (Except
Built-Up-Export)................. 8W-80-109
Right Headlamp Leveling Motor
(Built-Up-Export)................ 8W-80-110
Right High Beam Lamp
(Built-Up-Export)................ 8W-80-110
Right Instrument Panel Speaker....... 8W-80-110
Right Liftgate Flood Lamp........... 8W-80-110
Right Low Beam Lamp
(Built-Up-Export)................ 8W-80-110
Right Mid Reading Lamp
(Premium/Luxury)................ 8W-80-111
Right Park Lamp (Built-Up-Export).... 8W-80-111
Right Power Mirror................. 8W-80-111
Right Rear Lamp Assembly........... 8W-80-111
Right Rear Pillar Speaker............ 8W-80-112
Right Rear Reading Lamp (Luxury).... 8W-80-112
Right Rear Speaker................. 8W-80-112
Right Rear Vent Motor.............. 8W-80-112
Right Rear Wheel Speed Sensor....... 8W-80-112
Right Remote Radio Switch........... 8W-80-113
Right Repeater Lamp (Built-Up-Export) . 8W-80-113
Right Seat Airbag.................. 8W-80-113
Right Side Impact Airbag
Control Module.................. 8W-80-113
Right Sliding Door Control Module C1
(Power Sliding Door).............. 8W-80-113
8Wa - 80 - 4 8W-80 CONNECTOR PIN-OUTSRG

BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAY
CAV CIRCUIT FUNCTION
1 E18 20OR/LB (POWER MIRRORS) PANEL LAMPS DRIVER (MIRROR SWITCH)
2 E12 20OR/GY PANEL LAMPS DRIVER (HVAC)
3 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
4 D9 20WT/GY RKE MODULE PROGRAM ENABLE
5 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
6 E17 20OR/YL (EXCEPT BUILT-UP-EX-
PORT)PARADE MODE SIGNAL (RADIO)
7 P162 20LG/DG (BUILT-UP-EXPORT) PASSENGER FOLDING MIRROR RELAY CONTROL
8 G69 20VT/WT (HIGH LINE) VTSS INDICATOR DRIVER
9 L161 20WT/LG LEFT TURN INDICATOR DRIVER
10 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
11 E14 20OR/TN PANEL LAMPS DRIVER (RADIO)
12 E13 20OR/YL PANEL LAMPS DRIVER (INSTRUMENT CLUSTER)
13 X920 20GY/OR RADIO CONTROL MUX RETURN
14 G900 20VT/OR IGNITION SWITCH SENSE RETURN
15 - -
16 - -
17 L160 20WT/TN RIGHT TURN INDICATOR DRIVER
18 M26 20YL/DB HALO LAMP DRIVER
19 - -
20 - -
21 - -
22 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
23 - -
24 - -
25 - -
26 M28 20YL/TN GLOVE BOX LAMP DRIVER
27 - -
28 - -
29 - -
30 - -
31 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
32 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
33 P136 20TN/YL (BUILT-UP-EXPORT) FOLDING MIRROR SWITCH SENSE
34 G26 20VT/OR CHIME DRIVER
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-13

LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (BUILT-UP-EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
LEFT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R33 18WT/BK (BUILT-UP-EXPORT) LEFT SEAT SQUIB LINE 2
1 R31 18LG/OR (EXCEPT BUILT-UP-EX-
PORT)LEFT SEAT SQUIB LINE 1
2 R31 18DG/WT (BUILT-UP-EXPORT) LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT (EXCEPT BUILT-UP-EX-
PORT)LEFT SEAT SQUIB LINE 2
LEFT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAY
CAV CIRCUIT FUNCTION
1 R31 18LG/OR LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT LEFT SEAT SQUIB LINE 2
3- -
4 D25 20WT/VT PCI BUS
5 F214 18PK/LG FCM OUTPUT (RUN-START)
6 Z104 18BK/LG GROUND
7 Z104 18BK/LG GROUND
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND

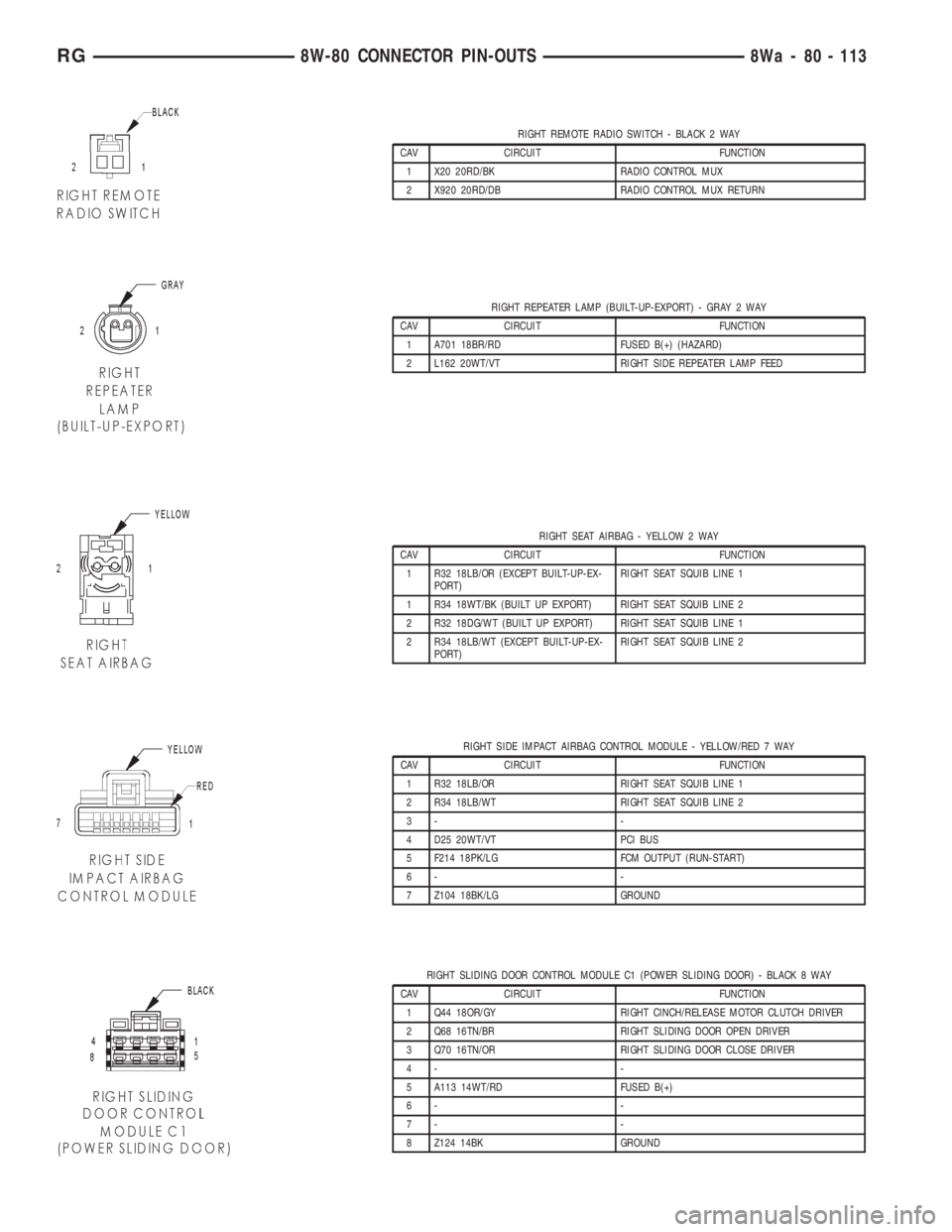

8Wa - 80 - 78 8W-80 CONNECTOR PIN-OUTSRG

RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
RIGHT REPEATER LAMP (BUILT-UP-EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+) (HAZARD)
2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED
RIGHT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR (EXCEPT BUILT-UP-EX-
PORT)RIGHT SEAT SQUIB LINE 1
1 R34 18WT/BK (BUILT UP EXPORT) RIGHT SEAT SQUIB LINE 2
2 R32 18DG/WT (BUILT UP EXPORT) RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT (EXCEPT BUILT-UP-EX-
PORT)RIGHT SEAT SQUIB LINE 2
RIGHT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT RIGHT SEAT SQUIB LINE 2
3- -
4 D25 20WT/VT PCI BUS
5 F214 18PK/LG FCM OUTPUT (RUN-START)
6- -
7 Z104 18BK/LG GROUND
RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
3 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z124 14BK GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa - 80 - 113

8W-90 CONNECTOR/GROUND LOCATIONS BUX
TABLE OF CONTENTS
page
CONNECTOR/GROUND LOCATIONS BUX
DESCRIPTION............................1
CONNECTOR/GROUND
LOCATIONS BUX
DESCRIPTION
This section provides illustrations identifying con-
nector and ground locations in the vehicle. A connec-tor and ground index is provided. Use the wiring
diagrams in each section for connector and ground
identification. Refer to the index for the proper figure
number. For items that are not shown in this section
N/S is placed in the Fig. column.
Component/Ground Color Location Fig.
A/C Compressor Clutch LTGY Top of A/C Compressor 10, 11, 12,
14, 15
A/C-Heater Control C1 (MTC) BK/RD Rear of Control 16, 19, 21
A/C-Heater Control C2 (MTC) BK/BL Rear of Control 16, 19, 21
A/C Pressure Sensor GY At Throttle Body 10, 12, 13,
14
Accelerator Pedal Position
Sensor (Diesel)BK At Accelerator Pedal 32
Ambient Temperature Sensor BK On Radiator Closure Panel 1
ATC Remote Sensor Above ATC Control N/S
Automatic Day/Night Mirror BK At Mirror N/S
Autostick Switch BK Rear of Switch 17, 18, 19
Auto Temperature Control C1
(ATC)WT Rear of Control N/S
Auto Temperature Control C2
(ATC)BK Rear of Control N/S
Auto Temperature Control C3
(ATC)Rear of Control N/S
Back-Up Lamp Switch BK On Transmission 13
Battery Temperature Sensor
(Diesel)BK At Battery N/S
Blower Motor Resistor Block C1
(MTC)BK Right Side of HVAC N/S
Blower Motor Resistor Block C2
(MTC)Right Side of HVAC N/S
Body Control Module C1 BK Under Left Instrument Panel 31, 32
Body Control Module C2 BK/GN Under Left Instrument Panel 31, 32
Body Control Module C3 BK/WT Under Left Instrument Panel 31, 32
Body Control Module C4 BK/GY Under Left Instrument Panel 16, 17, 25
Body Control Module C5 BK Under Left Instrument Panel 16, 17, 25
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-1

Component/Ground Color Location Fig.
Left Remote Radio Switch Steering Wheel N/S
Left Repeater Lamp GY Left Front Fender 5
Left Seat Airbag YL Left Seat N/S
Left Side Impact Airbag Control
ModuleYL Left B Pillar 30
Left Sliding Door Control Module
C1BK Left Sliding Door N/S
Left Sliding Door Control Module
C2BK/RD Left Sliding Door N/S
Left Sliding Door Latch Sensing
SwitchBK Left Sliding Door N/S
Left Sliding Door Lock Motor BK Left Sliding Door N/S
Left Sliding Door Lock Motor/Ajar
SwitchBK Left Sliding Door N/S
Left Sliding Door Motor BK Left Sliding Door N/S
Left Speed Control Switch BK Steering Wheel N/S
Left Stop/Turn Signal Relay BK Left Quarter Panel N/S
Left Turn Signal Lamp BK AT Lamp N/S
Left Visor/Vanity Lamp BK At Lamp N/S
License Lamp DKGY At Lamp 38
Lift Pump Motor BK Left Rear Engine Compartment N/S
Liftgate Ajar Switch (Manual
Release)BK At Latch 38
Liftgate Ajar Switch (Power
Release)BK Lower Liftgate 38
Liftgate Cinch/Release Motor BL Liftgate N/S
Liftgate Cylinder Lock Switch BK At Switch 38
Liftgate Left Pinch Sensor BK Left Side of Liftgate N/S
Liftgate Right Pinch Sensor BK Right Side of Liftgate N/S
Low Note Horn BK Left Frame Rail 6
Manifold Absolute Pressure
SensorBK On Intake 11
Mass Air Flow Sensor (Diesel) OR Top of Engine 12, 13
Memory Power Seat Switch GN On Seat N/S
Memory Seat/Mirror Module C1 GY Under Driver Seat N/S
Memory Seat/Mirror Module C2 GY Under Driver Seat N/S
Memory Seat/Mirror Module C3 GY Under Driver Seat N/S
Memory Seat/Mirror Module C4 WT Under Driver Seat N/S
Memory Seat Front Vertical Motor RD Under Seat N/S
Memory Seat Front Vertical
Position SensorBK Under Seat N/S
Memory Seat Horizontal Motor BK Under Seat N/S
Memory Seat Horizontal Position
SensorBK Under Seat N/S
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-7
CONNECTOR/GROUND LOCATIONS BUX (Continued)
