TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the ECM harness connectors.
Using a 12-volt test light connected to 12-volts, check all of the ECM Ground circuits.
Does the test light illuminate brightly for each circuit?All
Ye s®Go To 4
No®Repair the Ground circuit(s) for high resistance.
Perform CHARGING VERIFICATION - VER-3.
4 Turn the ignition off.
Disconnect the ECM harness connectors.
Using a 12-volt test light connected to ground, check all of the ECM Battery Supply
circuits.
Does the test light illuminate brightly for each circuit?All
Ye s®Go To 5
No®Repair the Battery Supply circuit(s) for high resistance.
Perform CHARGING VERIFICATION - VER-3.
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform CHARGING VERIFICATION - VER-3.
No®Test Complete.
6 Turn the ignition off.
Disconnect ECM harness connectors.
Disconnect the Generator Field harness connector.
Measure the resistance between ground and the Generator Field Driver circuit.
Is the resistance above 100k ohms?All
Ye s®Go To 7
No®Repair the Generator Field Driver circuit for a short to ground.
Perform CHARGING VERIFICATION - VER-3.
11 8
DRIVEABILITY - DIESEL
P0560-SYSTEM VOLTAGE TOO HIGH ÐContinued

Symptom:
P0627-FUEL LIFT PUMP RELAY CONTROL CIRCUIT OPEN CIR-
CUIT
POSSIBLE CAUSES
INTERMITTENT CONDITION
IGNITION SWITCH (RUN/START) CIRCUIT OPEN
FUEL LIFT PUMP RELAY
FUEL LIFT PUMP RELAY CONTROL CIRCUIT SHORTED TO GROUND
FUEL LIFT PUMP RELAY CONTROL CIRCUIT OPEN
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, actuate the Fuel Lift Pump Relay.
Does the Fuel Lift Pump Relay cycle on and off?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
3 Turn the ignition off.
Remove the Fuel Lift Pump Relay from the IPM.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Ignition Switch (RUN/
START) circuit.
Did the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Ignition Switch (RUN/START) circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
129
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY
11 Disconnect the Brake Lamp Switch harness connector.
Using a 12-volt test light connected to ground, check the Fused B+ circuit.
Does the test light illuminate brightly?All
Ye s®Go To 12
No®Repair the Brake Lamp Switch Fused B+ circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
12 Disconnect the Brake Lamp Switch harness connector.
Turn the ignition on.
While monitoring the PRIM BRAKE SWITCH status with the DRB, connect a
jumper wire between the Primary Brake Switch Signal circuit and the Fused B(+)
circuit.
Does the DRB display change from RELEASED to PRESSED?All
Ye s®Adjust or replace the Brake Lamp Switch in accordance with the
Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 13
13 Turn the ignition off.
Disconnect the Brake Lamp Switch harness connector.
Disconnect the ECM harness connectors.
Turn the ignition on.
Measure the voltage between the Primary Brake Switch Signal circuit and ground.
Is the voltage above 1.0 volt?All
Ye s®Repair the Primary Brake Switch Signal circuit for a short to
voltage.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 14
14 Turn the ignition off.
Disconnect the Brake Lamp Switch harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Primary Brake Switch Signal circuit.
Is the resistance below 5.0 ohms?All
Ye s®Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No®Repair the Primary Brake Switch Signal circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
152
DRIVEABILITY - DIESEL
P0703-BRAKE SWITCH SIGNAL CIRCUITS PLAUSIBILITY WITH RE-
DUNDANT CONTACT Ð
Continued

TEST ACTION APPLICABILITY
1WARNING: THE FUEL INJECTION PUMP SUPPLIES HIGH PRESSURE
FUEL TO EACH INDIVIDUAL INJECTOR THROUGH HIGH-PRESSURE
FUEL LINES. FUEL UNDER HIGH PRESSURE CAN PENETRATE SKIN
AND CAUSE PERSONAL INJURY. WEAR SAFETY GOGGLES AND ADE-
QUATE PROTECTIVE CLOTHING.
Turn the ignition on.
With the DRB, erase ECM DTCs.
Start the engine several times, turning the ignition off for at least 30 seconds
between each run cycle.
Monitor the DRB for ECM DTCs.
Did this DTC reset?All
Ye s®Go To 2
No®Go To 8
2 Turn the ignition off.
Disconnect the Fuel Pressure Solenoid harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the ECM/PCM Relay Output
circuit.
Does the test light illuminate brightly?All
Ye s®Go To 3
No®Repair the ECM/PCM Relay Output circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
3 Turn the ignition off.
Disconnect the Fuel Pressure Solenoid harness connector.
Disconnect the ECM harness connectors.
Remove the ECM/PCM Relay from the PDC.
Connect a jumper wire between cavity 30 and cavity 87 of the ECM/PCM Relay
connector.
Turn the ignition on.
Measure the voltage of the Fuel Pressure Solenoid Control circuit.
Is the voltage below 1.0 volt?All
Ye s®Go To 4
No®Repair the Fuel Pressure Solenoid Control circuit for a short to
voltage.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Disconnect the Fuel Pressure Solenoid harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the Fuel Pressure Solenoid Control
circuit.
NOTE: The Fuel Pressure Solenoid Control circuit is duplicated at ECM
cavities C2-80 and C2-81.
Is the resistance above 100k ohms?All
Ye s®Go To 5
No®Repair the Fuel Pressure Solenoid Control circuit for a short to
ground.
Perform ROAD TEST VERIFICATION - VER-2.
159
DRIVEABILITY - DIESEL
P1131-FUEL PRESSURE SOLENOID OPEN CIRCUIT ÐContinued

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Install a substitute relay in place of the Fuel Heater Relay.
Disconnect the ECM harness connectors.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fuel Heater Relay Output
circuit.
Is the test light on?All
Ye s®Replace the initial Fuel Heater Relay.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 5
5 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Crankcase Vent Heater harness connector.
Disconnect the Fuel Heater harness connector.
Remove the Fuel Heater Relay from the IPM.
Measure the resistance between ground and the Battery(+) Sense circuit.
Is the resistance above 100k ohms?All
Ye s®Go To 6
No®Repair the Battery(+) Sense circuit for a short to ground.
Perform ROAD TEST VERIFICATION - VER-2.
6 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
7WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running and at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
165
DRIVEABILITY - DIESEL
P1511-BATTERY SENSE LINE 1 VOLTAGE TOO LOW ÐContinued

Symptom:
*CHECKING THE EGR SYSTEM
POSSIBLE CAUSES
ECM/PCM RELAY OUTPUT CIRCUIT OPEN
EGR SOLENOID CONTROL CIRCUIT OPEN
EGR VALVE
VACUUM SUPPLY HOSE
TEST ACTION APPLICABILITY
1 Disconnect the Vacuum Supply Hose at the EGR solenoid.
Connect a vacuum gauge to the Vacuum Supply Hose.
Start the engine and allow the engine to idle.
Is the vacuum above 10 inches of mercury at idle?All
Ye s®Go To 2
No®Repair leaking or restricted Vacuum Supply Hose or faulty
Vacuum Supply Pump.
Perform ROAD TEST VERIFICATION - VER-2.
2 Turn the ignition off.
Disconnect the EGR Solenoid harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the ECM/PCM Relay Output
circuit at the EGR Solenoid harness connector.
Is the test light on?All
Ye s®Go To 3
No®Repair the ECM/PCM Relay Output circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
3 Turn the ignition off.
Disconnect the EGR Solenoid harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the EGR Solenoid Control circuit.
Is the resistance below 10.0 ohms?All
Ye s®Go To 4
No®Repair the EGR Solenoid Control circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
4NOTE: The Vacuum Output Hose must not be leaking or restricted for the
result of this test to be valid.
Turn the ignition off.
Disconnect the Vacuum Supply and Vacuum Output Hoses in the EGR Solenoid
vacuum connector.
Connect the Vacuum Supply Hose to the Vacuum Output Hose.
Test drive the vehicle and observe vehicle performance.
Is there a power reduction on vehicle acceleration?All
Ye s®Test Complete.
No®Replace the EGR Valve.
Perform ROAD TEST VERIFICATION - VER-2.
185
DRIVEABILITY - DIESEL

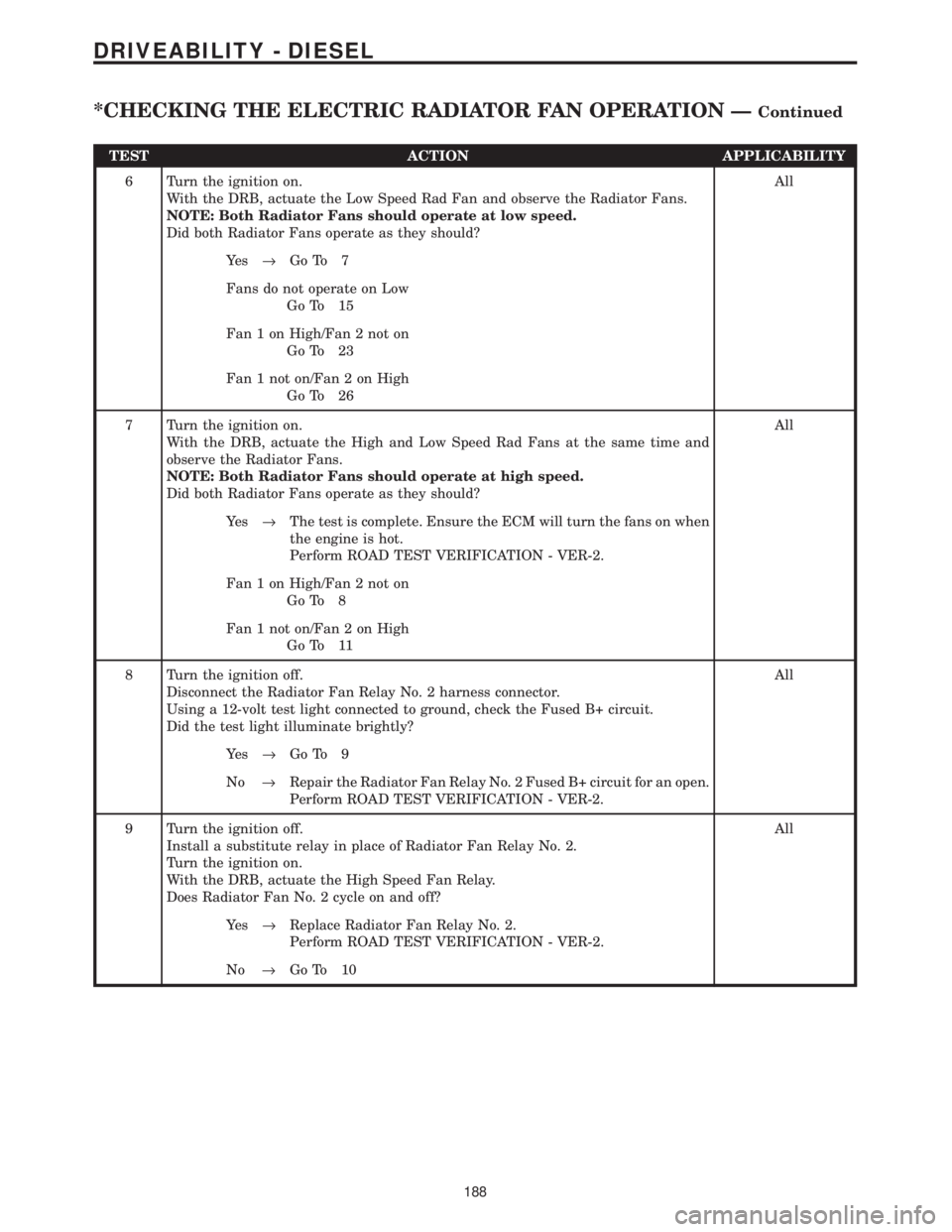

TEST ACTION APPLICABILITY
6 Turn the ignition on.
With the DRB, actuate the Low Speed Rad Fan and observe the Radiator Fans.
NOTE: Both Radiator Fans should operate at low speed.
Did both Radiator Fans operate as they should?All
Ye s®Go To 7
Fans do not operate on Low
Go To 15
Fan 1 on High/Fan 2 not on
Go To 23
Fan 1 not on/Fan 2 on High
Go To 26
7 Turn the ignition on.
With the DRB, actuate the High and Low Speed Rad Fans at the same time and
observe the Radiator Fans.
NOTE: Both Radiator Fans should operate at high speed.
Did both Radiator Fans operate as they should?All
Ye s®The test is complete. Ensure the ECM will turn the fans on when
the engine is hot.
Perform ROAD TEST VERIFICATION - VER-2.
Fan 1 on High/Fan 2 not on
Go To 8
Fan 1 not on/Fan 2 on High
Go To 11
8 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 2 harness connector.
Using a 12-volt test light connected to ground, check the Fused B+ circuit.
Did the test light illuminate brightly?All
Ye s®Go To 9
No®Repair the Radiator Fan Relay No. 2 Fused B+ circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
9 Turn the ignition off.
Install a substitute relay in place of Radiator Fan Relay No. 2.
Turn the ignition on.
With the DRB, actuate the High Speed Fan Relay.
Does Radiator Fan No. 2 cycle on and off?All
Ye s®Replace Radiator Fan Relay No. 2.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 10
188
DRIVEABILITY - DIESEL
*CHECKING THE ELECTRIC RADIATOR FAN OPERATION ÐContinued

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Remove the Starter Relay from the PDC.
WARNING: THE TRANSMISSION MUST BE IN NEUTRAL AND THE PARK
BRAKE MUST BE SET FOR THIS TEST.
WARNING: THE ENGINE MAY CRANK IN THE NEXT STEP. WHEN THE
ENGINE IS CRANKING, DO NOT STAND IN A DIRECT LINE WITH THE
FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN.
DO NOT WEAR LOOSE CLOTHING.
Momentarily jumper Starter Relay connector cavities 30 and 87 in the IPM
connector.
Did the engine crank?All
Ye s®Go To 4
No®Go To 11
4 Remove the Starter Relay from the PDC.
Using a 12-volt test light connected to ground, check the Ignition Switch Start
Output circuit while fully depressing the clutch pedal and turning the ignition switch
to the START position.
Does the test light illuminate with the ignition switch in the START position?All
Ye s®Go To 5
No®Go To 9
5 Turn the ignition off.
Remove the Starter Relay From the PDC.
Install a substitute relay in place of the Starter Relay.
Attempt to start the engine.
Does the engine crank?All
Ye s®Replace the Starter Relay.
Perform NO START VERIFICATION - VER-1.
No®Go To 6
6 Turn the ignition off.
Disconnect the ECM harness connectors.
Using a 12-volt test light connected to ground, probe ECM harness connector cavity
49 while fully depressing the clutch pedal and turning the ignition switch to the
START position.
Does the test light illuminate while the ignition is in the Start position.All
Ye s®Go To 7
No®Repair the Ignition Switch Start Output circuit to the ECM.
Perform NO START VERIFICATION - VER-1.
211
DRIVEABILITY - DIESEL
*ENGINE WILL NOT CRANK ÐContinued
