2001 CHEVROLET IMPALA Owners Manual

2-11
If your vehicle has the optional content theft-deterrent
system, the first time the remote unlock is received,
three flashes and chirps will be seen to indicate an alarm
condition has occurred since last arming. See ªContent
Theft
-Deterrent Systemº in the Index.
Illumination on Remote Activation
This feature provides interior illumination when a
remote keyless entry unlock command is received and
executed, the trunk release button is pressed or when
the panic alarm is activated. The interior lamps will
illuminate until the ignition is turned to ON or until an
illumination period of 40 seconds has elapsed or the
doors are locked with the power lock switch or the
remote keyless entry transmitter. If a door is opened
during the illumination period, the timed illumination
will be canceled, and the interior lamps will remain on
since a door is open.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
If you prefer, you can complete this procedure yourself.
See ªVehicle Customization Settingsº in the Index for
more information.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-12
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery do the following:
1. Insert a flat object like a coin into the slot on the
back of the transmitter. Gently pry apart the front
and back.
2. Gently pry the battery out of the transmitter. Do not
use a metal object.
3. Put the new battery into the transmitter as shown
on the transmitter (use type CR2032 battery
or equivalent).
4. Put the two halves back together. Make sure the
halves are together tightly so water won't get in.
5. Resynchronize and then test the transmitter.
Resynchronization
After you have changed the battery in your transmitter,
you will need to resynchronize the transmitter.
To do this, press the LOCK and UNLOCK buttons
on the transmitter together and hold for approximately
seven seconds or until one brief horn chirp is heard.

2-13

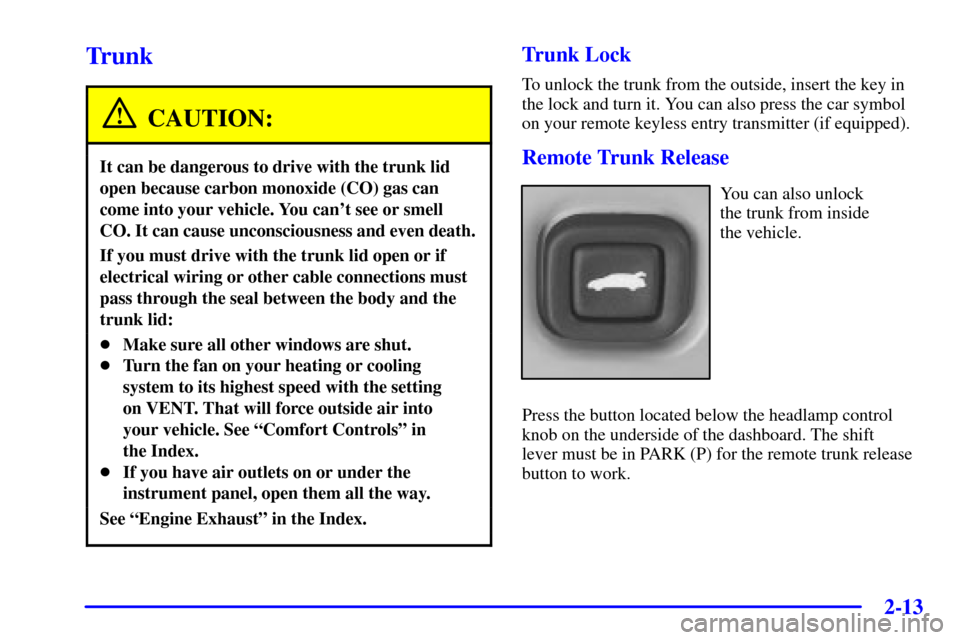

Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock
To unlock the trunk from the outside, insert the key in
the lock and turn it. You can also press the car symbol
on your remote keyless entry transmitter (if equipped).
Remote Trunk Release
You can also unlock
the trunk from inside
the vehicle.
Press the button located below the headlamp control
knob on the underside of the dashboard. The shift
lever must be in PARK (P) for the remote trunk release
button to work.

2-14 Trunk Assist Handle
NOTICE:
The trunk assist handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk assist handle could damage it.
Your vehicle has an assist handle located on the inside of
the trunk lid toward the driver's side of the vehicle.
Pull down on the handle to lower the trunk lid. Then
close the trunk with your other hand. If the trunk is
not properly closed, the TRUNK OPEN message will
appear in the message center of your instrument panel
cluster. See ªTrunk Open Messageº in the Index for
more information.

2-15
Trunk Release Handle
NOTICE:
The trunk release handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk release handle could damage it.
There is a glow-in-the-dark trunk release handle located
inside the trunk on the latch. This handle will glow
following exposure to light. Pull the release handle up
to open the trunk from the inside.
Trap-Resistant Trunk Kit
To help prevent a child from becoming trapped in your
trunk, you can order a trap
-resistant trunk kit from
your dealer. This kit includes:

a modified trunk latch,

a lighted release handle, and

seatback tethers (for vehicles with folding
rear seatbacks).
See your dealer for additional information.

2-16 Trunk Release Sensor TrapAlert
System
(If Equipped)
Your vehicle may have a sensor located on the underside
of the filler panel inside the trunk.The sensor is designed to open the trunk automatically.
If the sensor detects motion and a difference in
temperature in the trunk, the sensor will sound the horn
if the ignition is in OFF. There will be three short chirps
and a pause repeated for up to two minutes. After one
minute, the trunk latch will release. If the ignition is not
in OFF, the trunk latch will not release automatically
and the horn will not sound.
To cancel the horn alarm and automatically release the
trunk lid before two minutes are up, turn the ignition
to ON.
Do not cover the sensor with items you put into the
trunk or with add
-on accessory equipment. If the
sensor's field of view is blocked, it will not detect
motion and will not function properly.
Be sure to secure items in your trunk so that they
won't move around and cause the trunk to open.

2-17
Disabling the Trunk Release Sensor
A. Sensor Lens
B. Disable Switch
Because the sensor detects motion, there are times when
you may want to turn off the trunk sensor so that the
motion of your vehicle or items in the trunk won't cause
the trunk to open, such as the following:

when your vehicle is transported on a car ferry,

when your vehicle is towed, or

when you will be loading items through the opening
in the split folding rear seat (if equipped).Next to the sensor lens, there is a disable switch you can
use to turn off the trunk release sensor. To turn off the
sensor, turn the ignition to ON and press the switch next
to the lens for two seconds. The horn will chirp once
when the sensor is turned off. When the sensor is off,
the light in the switch will flash. The TRUNK OPEN
message in the message center will flash for one minute
each time the ignition is turned on as a reminder that
the sensor is turned off. See ªTrunk Open Messageº in
the Index.
To turn the sensor on again, press the switch again or
open the trunk. When the trunk is opened, the sensor is
automatically turned back on. If the sensor is turned back
on with the disable switch, the horn will chirp once.
Servicing the Trunk Release Sensor
The sensor lens should be inspected periodically.
If the lens is dirty, wipe it gently with a clean, soft
cotton cloth.
If there is an electrical problem with the sensor, the
SERVICE VEHICLE SOON message will appear in the
message center. There are other possible reasons for this
message to appear. Be sure to see your dealer as soon as
possible. See ªService Vehicle Soon Messageº in the
Index for more information.

2-18
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your ignition and transaxle will be locked.
And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your
ignition key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Lock the glove box.

Lock all the doors except the driver's.

Then take the door key and remote keyless entry
transmitter with you.
