2001 CADILLAC DEVILLE Owners Manual

6-13 What Kind of Engine Oil to Use
Oils recommended for your vehicle can be identified by
looking for the starburst symbol.
This symbol indicates that the oil has been certified by
the American Petroleum Institute (API). Do not use any
oil which does not carry this starburst symbol.
If you change your own oil,
be sure you use oil that has
the starburst symbol on the
front of the oil container. If
you have your oil changed
for you, be sure the oil put
into your engine is
American Petroleum
Institute certified for
gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:

6-14
As in the chart shown previously, SAE 5W-30 is best for
your vehicle. However, you can use SAE 10W
-30 if it's
going to be 0F (
-18C) or above. These numbers on an
oil container show its viscosity, or thickness. Do not use
other viscosity oils, such as SAE 20W
-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
starburst symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench
oil meets all the requirements for
your vehicle.
If you are in an area where the temperature falls below
-20F (-29C), consider using either an SAE 5W-30
synthetic oil or an SAE 0W
-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
Engine Oil Additives
Don't add anything to your oil. The recommended oils
with the starburst symbol are all you will need for good
performance and engine protection.
When to Change Engine Oil
Your vehicle has a computer that lets you know when to
change your engine oil. This is not based on mileage,
but on engine revolutions and engine operating
temperature. When the computer has calculated that the
oil needs changing, the GM Oil Life System will
indicate that a change is necessary. The mileage between
oil and filter changes will vary depending on how you
drive your vehicle
-- usually between 3,000 miles
(5 000 km) and 10,000 miles (16 000 km) since your
last oil and filter change. Under severe conditions, the
system may come on before 3,000 miles (5 000 km).
Never drive your vehicle more than 10,000 miles
(16 000 km) or 12 months (whichever occurs first)
without an oil change.
The system won't detect dust in the oil. So, if you drive
in a dusty area, be sure to change your oil and filter
every 3,000 miles (5 000 km) or sooner. Remember to
reset the Oil Life Indicator whenever the oil is changed.

6-15
How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE
message by pressing the INFO button. Then press and
hold the RESET button until the display shows 100%
ENGINE OIL LIFE. This resets the oil life index. The
percentage of oil life remaining may be checked at any
time by pressing the INFO button several times until the
OIL LIFE message appears. For more information on
the oil life feature, see ªOil Life Indicatorº in the Index.What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don't let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. See
the manufacturer's warnings about the use and disposal
of oil products.
Used oil can be a real threat to the environment. If you
change your own oil, be sure to drain all free
-flowing oil
from the filter before disposal. Don't ever dispose of oil
by putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.

6-16
Engine Air Cleaner/Filter
The engine air cleaner/filter is located on the driver's
side of the engine. Be sure the engine has cooled before
following these steps to replace the air cleaner filter:
For more information on location, see ªEngine
Compartment Overviewº in the Index.
1. Loosen both wing screws on the top of the engine air
cleaner/filter assembly.2. Lift up the outboard side of the engine air
cleaner/filter cover at an angle while pulling toward
you. This is necessary due to the three tabs located
on the rear of the engine air cleaner/filter cover.
3. Remove the engine air cleaner/filter element and any
loose debris that may be found lying in the air
cleaner base.
4. Replace the air filter element.

6-17
Follow these steps to reinstall the air cleaner cover to the
engine air cleaner/filter housing:
1. When installing the engine air cleaner/filter cover, be
sure to align the three tabs located on the back of the
cover with the three slots on the back of the housing.
2. After aligning the tabs with the slots, push the cover
slightly down and towards the engine to engage the
tabs in the slots and align the two wing screws.
3. Engage and tighten the two wing screws on the top
of the air cleaner cover assembly.
Refer to the Maintenance Schedule to determine when to
replace the air filter.
See ªScheduled Maintenance Servicesº in the
Maintenance Schedule booklet.
CAUTION:
Operating the engine with the air cleaner/filter
off can cause you or others to be burned. The air
cleaner not only cleans the air, it stops flame if
the engine backfires. If it isn't there, and the
engine backfires, you could be burned. Don't
drive with it off, and be careful working on the
engine with the air cleaner/filter off.
NOTICE:
If the air cleaner/filter is off, a backfire can
cause a damaging engine fire. And, dirt can easily
get into your engine, which will damage it.
Always have the air cleaner/filter in place when
you're driving.

6-18
Passenger Compartment Air
Filter Replacement
The passenger compartment air filter traps most of the
pollen from the air entering your vehicle. Like your
vehicle's air cleaner filter, it may need to be changed
periodically. For how often to change the passenger
compartment air filter, see your Maintenance
Schedule booklet.
The access panel for the passenger compartment air
filter is located under the hood near the windshield, on
the passenger's side of the vehicle.
1. To access the passenger compartment air filter, insert
the flat tip of a screwdriver into the outer edge of the
cover and gently pry the cover up. (If your vehicle
has tabs that allow you to unlatch the cover with
your fingers, you will not need a screwdriver for
this step.)

6-19

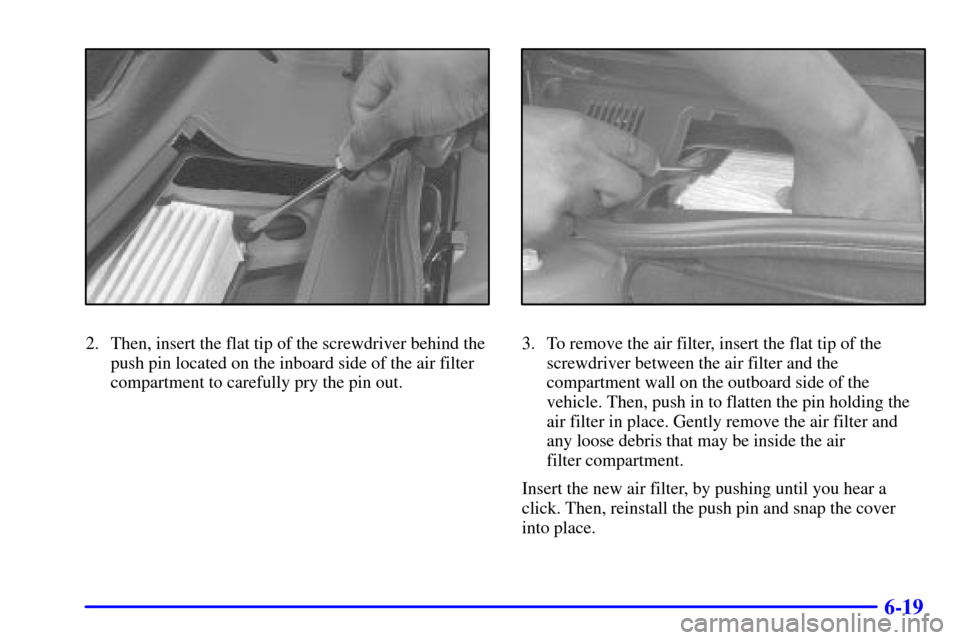

2. Then, insert the flat tip of the screwdriver behind the
push pin located on the inboard side of the air filter
compartment to carefully pry the pin out.3. To remove the air filter, insert the flat tip of the
screwdriver between the air filter and the
compartment wall on the outboard side of the
vehicle. Then, push in to flatten the pin holding the
air filter in place. Gently remove the air filter and
any loose debris that may be inside the air
filter compartment.
Insert the new air filter, by pushing until you hear a
click. Then, reinstall the push pin and snap the cover
into place.

6-20
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level is when the engine oil is changed.
Change both the fluid and filter every 50,000 miles
(83 000 km) if the vehicle is mainly driven under one or
more of these conditions:

In heavy city traffic where the outside temperature
regularly reaches 90F (32C) or higher.

In hilly or mountainous terrain.

When doing frequent trailer towing.

Uses such as found in taxi, police or delivery service.

Use such as limousine service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require change
until the message CHANGE TRANS FLUID appears on
the Driver Information Center.
See ªScheduled Maintenance Servicesº in the
Maintenance Schedule booklet.
How to Check
Because this operation can be a little difficult, you
may choose to have this done at the dealership
service department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading on
the dipstick.
NOTICE:
Too much or too little fluid can damage your
transaxle. Too much can mean that some of the
fluid could come out and fall on hot engine parts
or exhaust system parts, starting a fire. Be sure to
get an accurate reading if you check your
transaxle fluid.
