2001 CADILLAC DEVILLE Owners Manual

3-36
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL
and DSP controls just as you do for the radio. Other
controls may have different functions when a tape is
inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.If an error occurs while trying to play a cassette tape, it
could be that:

The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat. If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try a new tape to be sure your
player is working properly.

The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)
RW: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station
while in RW mode. Press the left arrow again to return
to playing speed.

3-37
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in FF mode. Press the right arrow
again to return to playing speed.
TUNE SEEK: When this button is pressed, it has
two positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for TUNE
-SEEK to work.
The sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.
EJECT: Press the upward triangle button to the
right of the cassette tape player to remove a tape. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you
clean the player, press and hold the eject button for
three seconds to reset the CLEAN TAPE indicator. The
radio will display CLEAN TAPE MSG CLEARED to
show that the indicator was reset.
Your cassette tape player automatically reduces
background noise. Dolby Noise Reduction is
manufactured under a license from Dolby Laboratories
Licensing Corporation. Dolby and the double
-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Auto CrO
2 allows the cassette tape player to adjust
to the type of cassette tape for clearer sound for
CrO
2 cassette tapes.

3-38
Playing a MiniDisc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined MiniDisc symbol appears on the
display, the disc will begin playing. MiniDiscs may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a disc when
the ignition is off, first press the eject button.
While a MiniDisc is playing, MD TRACK number will
appear on the display followed by ALBUM title, then
TRACK title. The display then reverts back to showing
MD TRACK number.
If you're driving on a very rough road or if it's very
hot, the disc may not play. If the disc comes out, it
could be that:

It is dirty, scratched or wet.

The air is very humid. (If so, wait about an hour and
try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.RW: Press and hold the left arrow to reverse the
MiniDisc. Release it to return to playing speed.
FF: Press and hold the right arrow to fast forward to
another part of the MiniDisc. Release it to return to
playing speed.
TUNE SEEK: When this button is pressed, it has
two positions. This button works the same, whether it
is pressed to the first or second position. Press this
button to seek to the next or previous selection on
the MiniDisc.
SCAN: Press this button to listen to selections for a few
seconds. The MiniDisc will go to a selection, stop for a
few seconds, then go on to the next selection. Press this
button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press RDM again to turn
off random play.
EJECT: Press the upward triangle button to the
right of the MiniDisc player to remove a MiniDisc. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.

3-39 Radio Data Systems (RDS) Program
Type (PTY) Selections
PTY List Description
Adlt Hit Adult Hits. . . . . . . . . . . . . . . . . . . . . . . . . . .
Any Any. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Classicl Classical. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cls Rock Classical Rock. . . . . . . . . . . . . . . . . . . . . . .
College College. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Country Country. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Info Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jazz Jazz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Language Language. . . . . . . . . . . . . . . . . . . . . . . . . . .
News News. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nostalga Nostalgia. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oldies Oldies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Persnlty Personality. . . . . . . . . . . . . . . . . . . . . . . . . .
Public Public. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
R & B Rhythm and Blues. . . . . . . . . . . . . . . . . . . . . . .
Rel Musc Religious Music. . . . . . . . . . . . . . . . . . . . .
Rel Talk Religious Talk. . . . . . . . . . . . . . . . . . . . . . . . PTY List Description
Rock M Rock Music. . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Soft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Rock Soft Rock. . . . . . . . . . . . . . . . . . . . . . . . . .
Sports Sports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Talk Talk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top 40 Top 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weather Weather. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory PTY Presets
PresetFM1FM2
Preset 1Adult HitsJazz
Preset 2ClassicalOldies
Preset 3NewsReligious Music
Preset 4PublicSoft Rock
Preset 5RockR & B
Preset 6CountryTop 40

3-40
Navigation/Radio System (Option)
Navigation/Radio Display and Controls
The display screen is located in the center of the
instrument panel. There are seven ªhardº buttons and a
touch sensitive screen.Your vehicle may be equipped with an AM
-FM stereo
navigation radio system that includes digital sound
processing (DSP), a Radio Data System (RDS) with
program ªtypeº selections (PTY) that will seek out the
kind of music you want to listen to. The radio system
can also communicate with your navigation system to
broadcast announcements on traffic, weather and
emergency alert communications. For information on
how to use this system, see ªNavigation/Radio
Systemº supplement.
CD Adapter Kits
It is possible to use a portable CD player adapter kit
with your cassette tape player after activating the bypass
feature on your tape player.
To activate the bypass feature, use the following steps:
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature is active.
4. Insert the adapter into the cassette slot.
This override routine will remain active until the eject
button is pressed.

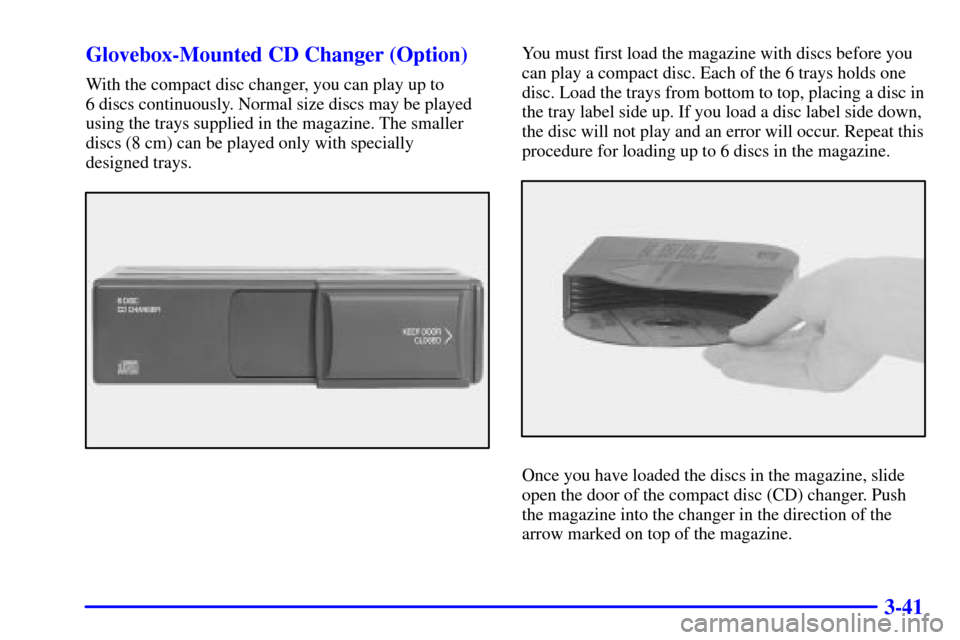

3-41 Glovebox-Mounted CD Changer (Option)
With the compact disc changer, you can play up to
6 discs continuously. Normal size discs may be played
using the trays supplied in the magazine. The smaller
discs (8 cm) can be played only with specially
designed trays.
You must first load the magazine with discs before you
can play a compact disc. Each of the 6 trays holds one
disc. Load the trays from bottom to top, placing a disc in
the tray label side up. If you load a disc label side down,
the disc will not play and an error will occur. Repeat this
procedure for loading up to 6 discs in the magazine.
Once you have loaded the discs in the magazine, slide
open the door of the compact disc (CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top of the magazine.

3-42
Close the door by sliding it all the way to the right.
When the door is closed, the changer will begin
checking for discs in the magazine. This will continue
for up to one and a half minutes, depending on the
number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. Press the EJECT button
and the magazine will eject. Remember to keep the door
closed whenever possible to keep dirt and dust from
getting inside the changer.Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a CD
begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of
the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to go
from one compact disc to another that is loaded in the
changer. These pushbuttons represent the order of the
discs loaded in the changer.
RW: Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.

3-43
TUNE-SEEK: Press the upward arrow to the first
detent to seek to the next selection on the compact disc.
If playing last track of disc, pressing the upward arrow
will seek to the first track of disc. Press the downward
arrow to the first detent to seek to the previous selection
on the compact disc. If playing the first track of disc,
pressing the downward arrow will seek to the last track
of disc. The sound will mute while seeking.
SCAN: Press this button. You will hear the first few
seconds of the first track on each disc. Press this button
again to stop scanning. The CD will mute while
scanning and SCAN will appear on the display.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. RDM will appear on the
display. Press TUNE
-SEEK while RDM is on the
display to randomly seek through discs. Press RDM
again to turn off random play. This feature may not be
available on your radio.
SIDE: Press this button to select the next disc in the
changer. Each time you press this button, LOADING
will appear on the display and the disc number on the
radio display will go to that of the next available CD.SOURCE: Press this button if you have a disc loaded in
the changer and the radio is on, to play a compact disc.
To return to playing the radio, press BAND. Pressing
source also switches between a tape or compact disc
(or mini disc) if both are loaded (if equipped).
EJECT: Slide the CD changer door all the way open.
Press the EJECT button and the magazine will eject.
Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for
the following:

The road is too rough. The disc should play when the
road is smoother.

The disc is dirty, scratched, wet or loaded label
side up.

The air is very humid. If so, wait about an hour and
try again.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer. If your radio
displays an error number, write it down and provide this
information to your dealer when reporting the problem.
