2001 BMW Z8 Owners Manual

129n
IndexDataTechnologyRepairsCar careControlsOverview
Lamps and bulbs The lamps and bulbs make essential
contributions to the safety of your
vehicle. Therefore, comply fully with the
following instructions during bulb
replacement. If you are not familiar with
any of the procedures, consult your
BMW center.
Do not touch the glass portion of
a new bulb with your bare hands
since even small amounts of impurities
burn into the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar material,
or hold the bulb by its metallic base.<
A replacement bulb set is available from
your BMW center.
Whenever working on the elec-
trical system, switch off the elec-
trical accessory you are working on or
disconnect the cable from the negative
terminal of the battery. Failure to do this
could result in short circuits.
To prevent injuries and damage,
comply with any instructions provided
by the bulb manufacturer.<
When cleaning the headlamps,
please observe the following:
>Do not wipe dry (scratches). Never
use abrasives or strong solvents to
clean the covers
>Remove dirt and contamination (such
as insects) by soaking with BMW Car
Shampoo and then rinsing with plenty
of water
>Always use a deicer spray to remove
accumulated ice and snow Ð never
use a scraper.<
Xenon lamps

The main headlamps for your BMW
Z8 roadster have been designed using
xenon-light technology. The service life
of these bulbs is very long and the
probability of a failure is very low,
provided that they are not switched on
and off an unusual number of times.
Should a lamp ever fail, however,
please contact your BMW center for
assistance.
The xenon light unit operates at
extremely high voltages; contact
with the unit's electrical components
can be fatal. We therefore urge you to
refer all service and repairs, including
bulb changes, to qualified professional
technicians.<
Neon lampsThe front turn signal indicators (side
marker lamps), the rear turn signal indi-
cators, the rear and brake lamps, as
well as the high-mount brake lamp, are
of neon-light technology. The service
life for these lamps is very high and the
likelihood of failure very minimal.
Should a lamp ever fail, however,
please contact your BMW center for
assistance.

130n
Lamps and bulbsSide turn signal indicators10 watt bulb
Please contact a BMW center in the
event of a malfunction.Side lamps5 watt bulb
Please contact a BMW center in the
event of a malfunction.

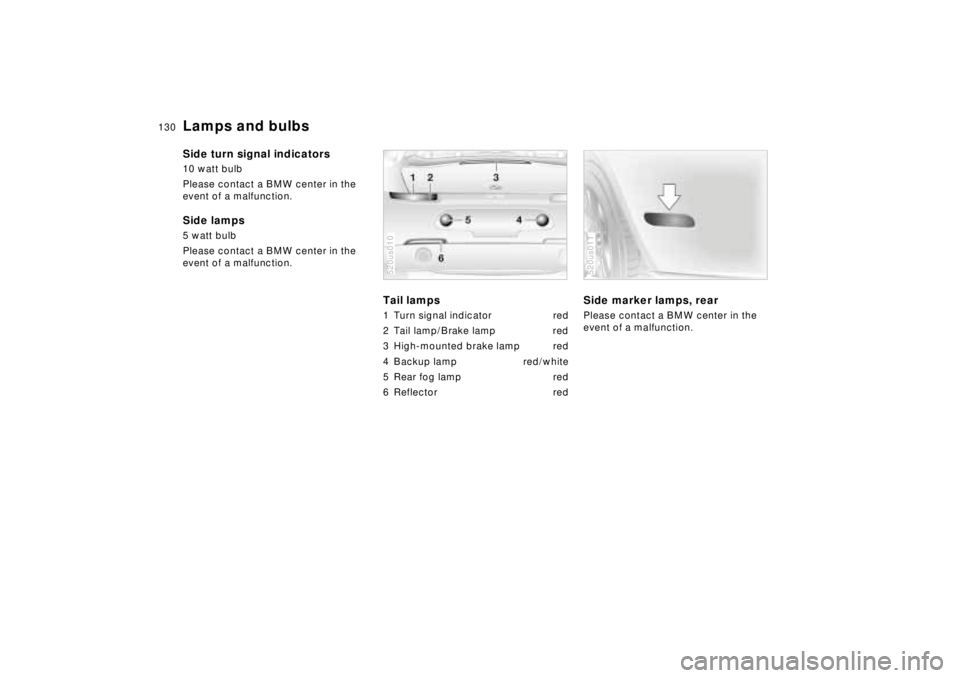

Tail lamps 1 Turn signal indicator red
2 Tail lamp/Brake lamp red
3 High-mounted brake lamp red
4 Backup lamp red/white
5 Rear fog lamp red
6 Reflector red520us010
Side marker lamps, rearPlease contact a BMW center in the
event of a malfunction.520us011

131n
IndexDataTechnologyRepairsCar careControlsOverview

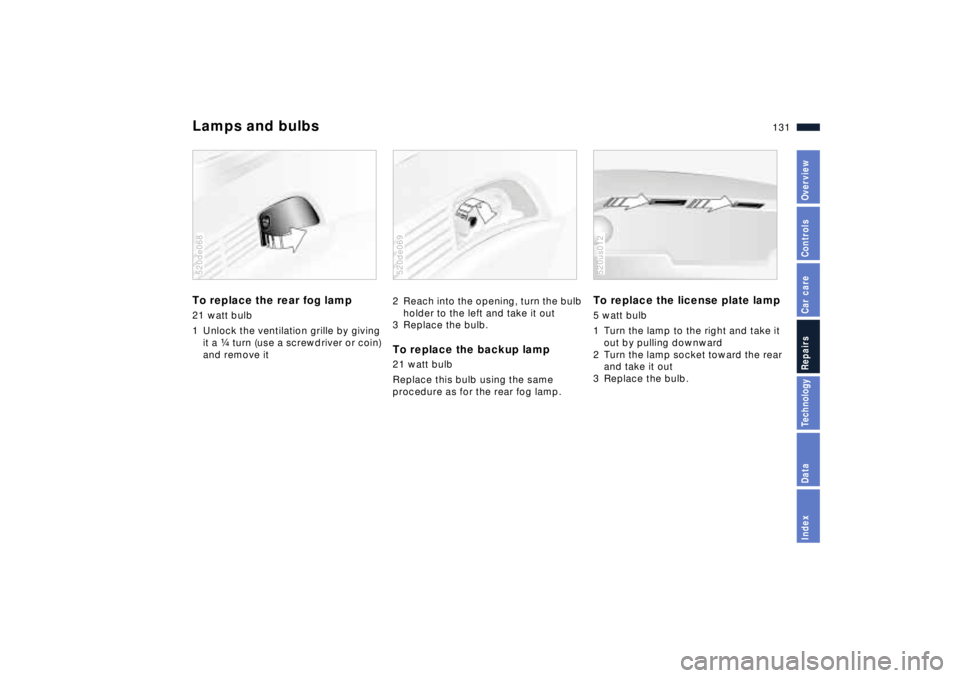

Lamps and bulbsTo replace the rear fog lamp 21 watt bulb
1 Unlock the ventilation grille by giving
it a f turn (use a screwdriver or coin)
and remove it520de068
2 Reach into the opening, turn the bulb
holder to the left and take it out
3 Replace the bulb.To replace the backup lamp 21 watt bulb
Replace this bulb using the same
procedure as for the rear fog lamp.520de069
To replace the license plate lamp5 watt bulb
1 Turn the lamp to the right and take it
out by pulling downward
2 Turn the lamp socket toward the rear
and take it out
3 Replace the bulb.520us012

132n

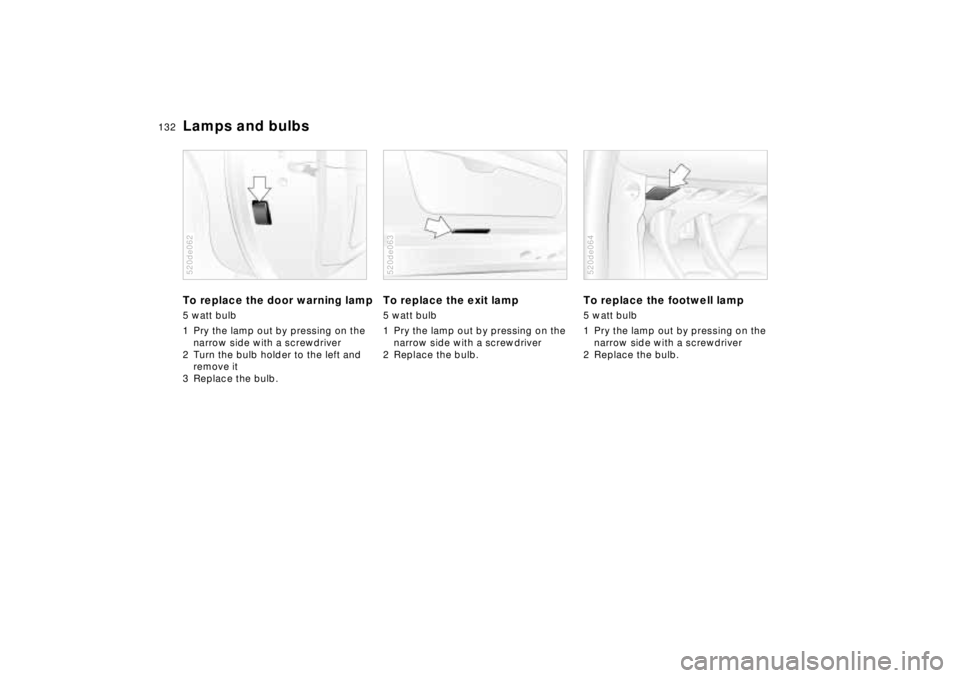

Lamps and bulbsTo replace the door warning lamp5 watt bulb
1 Pry the lamp out by pressing on the
narrow side with a screwdriver
2 Turn the bulb holder to the left and
remove it
3 Replace the bulb.520de062
To replace the exit lamp5 watt bulb
1 Pry the lamp out by pressing on the
narrow side with a screwdriver
2 Replace the bulb.520de063
To replace the footwell lamp 5 watt bulb
1 Pry the lamp out by pressing on the
narrow side with a screwdriver
2 Replace the bulb.520de064

133n
IndexDataTechnologyRepairsCar careControlsOverview

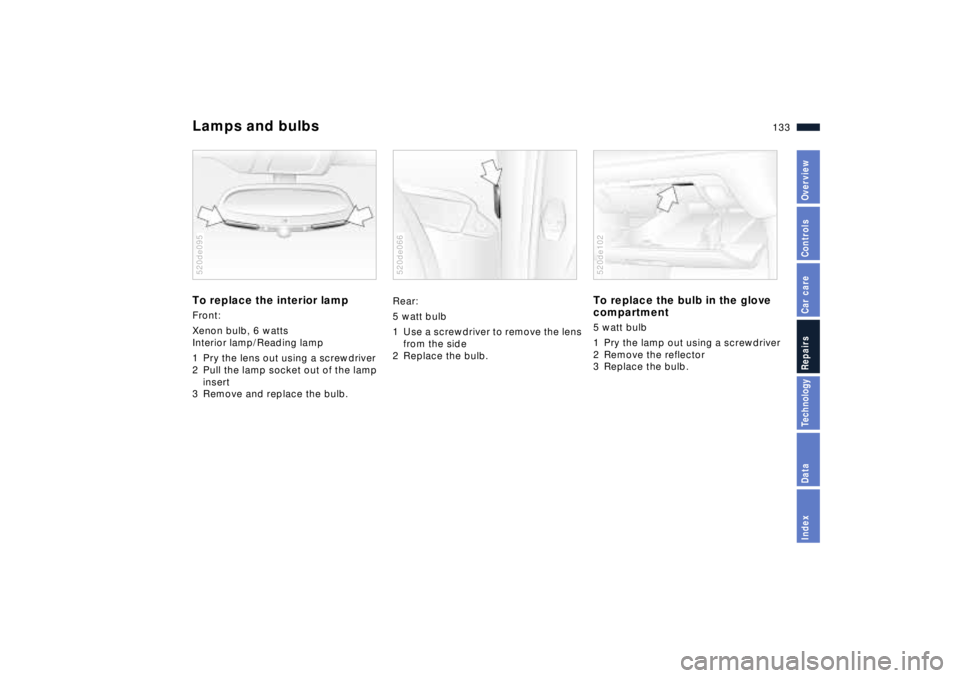

Lamps and bulbsTo replace the interior lampFront:
Xenon bulb, 6 watts
Interior lamp/Reading lamp
1 Pry the lens out using a screwdriver
2 Pull the lamp socket out of the lamp
insert
3 Remove and replace the bulb.520de095
Rear:
5 watt bulb
1 Use a screwdriver to remove the lens
from the side
2 Replace the bulb.520de066
To replace the bulb in the glove
compartment5 watt bulb
1 Pry the lamp out using a screwdriver
2 Remove the reflector
3 Replace the bulb.520de102

134n
Lamps and bulbsTo replace the luggage
compartment lamp 6 watt bulb
1 Pry the lamp out using a screwdriver
2 Remove the reflector
3 Replace the bulb.520de150
To replace the engine
compartment lamp 10 watt bulb
1 Using a screwdriver, press on the
black detent and remove the lamp
lens
2 Replace the bulb.520de101

135n
IndexDataTechnologyRepairsCar careControlsOverview
Changing a wheel Run-flat tiresYour BMW Z8 roadster is equipped
with run-flat tires.
The assembly consists of self-support-
ing tires mounted on specially-designed
wheel rims. Special reinforcement
elements support the sidewalls in the
event of pressure loss. Although tire
performance is then restricted, the
vehicle can still be driven on the
deflated tire for a limited distance. Your
vehicle is equipped with a tire pressure
monitor that signals you in case of a flat
tire.
In the event of a flat tire The red indicator lamp on the instru-
ment panel will flash in the event of a
flat tire. In addition, a gong will sound.
Refer to page 67.
Carefully reduce speed to less than
50 mph (80 km/h), avoiding any hard
braking or steering maneuvers while
doing so.
You will still be able to drive approx.
155 miles (250 km) on your run-flat tire,
until you can get to a safe place to park,
a gas station, or to the nearest BMW
center. Under minimum vehicle loading,
it could conceivably last more than
155 miles (250 km).
If you cannot immediately determine
which tire is defective just by looking
at it, then check the tire pressure in all
four tires.Have your BMW center replace
your tires. For safety reasons, do
not have run-flat tires repaired. Your
BMW center has been trained to work
with the run-flat tires and is equipped
with the necessary special tools.<
If necessary, please have your
BMW center switch the tires on
your vehicle from summer to winter
tires, or the reverse.<

136n
Battery
Battery posts, terminals, and
related accessories contain lead
and lead compounds. Wash hands after
handling.<
Installation location The battery is located under the
luggage compartment's floor panel.Charge conditionYou can read the charge condition
of the battery with the "Magic Eye"
hydrometer (arrow):
>Green: adequate charge
>Black: not charged adequately. The
battery must be recharged. Please
contact your BMW center for addi-
tional information
>Yellow: replace the battery.520de076
The service life specified for the
battery can be achieved only if it is
always kept adequately charged. If the
vehicle is primarily used for stop-and-
go traffic, be sure to check the charge
state often.<
MaintenanceThe battery is completely maintenance-
free. That means that the original
battery acid will normally last for the
service life of the battery under
moderate climate conditions.
For all questions regarding the
battery, please consult your BMW
center. Since the battery is absolutely
maintenance-free, the following is for
your information only. your vehicle battery. To avoid injury,
please comply with the following
precautions whenever you work with or
near the battery.
Before handling the battery,
please read the following infor-
mation.
Wear eye protection. Do not
allow particles containing
battery acid or lead to come into
contact with eyes, skin, or clothing.
Battery acid is extremely corro-
sive. Wear eye protection and
protective gloves. Do not tip the
battery. Battery acid can leak from the
ventilation openings.
Be sure that children keep well
away from batteries and battery
acid.
Never allow sparks or open
flame near the battery. Do not
smoke in the vicinity of the
battery. Avoid creating sparks when
working around electrical cables or
equipment. Turn the key to position 0 in
the ignition when disconnecting or
connecting the battery. Do not short-
circuit the battery terminals. This
creates a risk of injury from high-energy
sparks.
