Engine and gearbox
In order to initiate pre-injection for cold and
warm engines, the solenoid valve dynamics
have been significantly increased.
The associated increased heat generation in
the solenoid valve, is compensated by
improved fuel flow and optimal filling of the
high pressure section is achieved.
Noise levels have been significantly improved
by the pre-injection for cold and warm opera-
tion and the use of dual-spring nozzle hold-
ers.
Injection pump VP 44 S3.5
Previously, pre-injection via the solenoid
valve was only realised during the engine
warm-up phase. The high pressure section of the injection
pump has been redesigned with regard to
pressure levels and quicker solenoid valve
actuation.
The injection pressure at part throttle has
been increased by the following measures:
– increased cam stroke from 3.5 to 4.0 mm
– more stable support structure for high
pressure section on pump body
– conversion from 3 pistons with a diameter
of 6.0 mm, to 2 pistons with a diameter of
7.0 mm.
By reducing the number of high-pressure pis-
tons from 3 to 2, it was possible to reduce
high-pressure leakage via the sealing sur-
faces.
Forced flush
return
Distributor bushing
Distributor shaft
Supply piston
Thermal shoulder
Forced flush feed
Solenoid valve

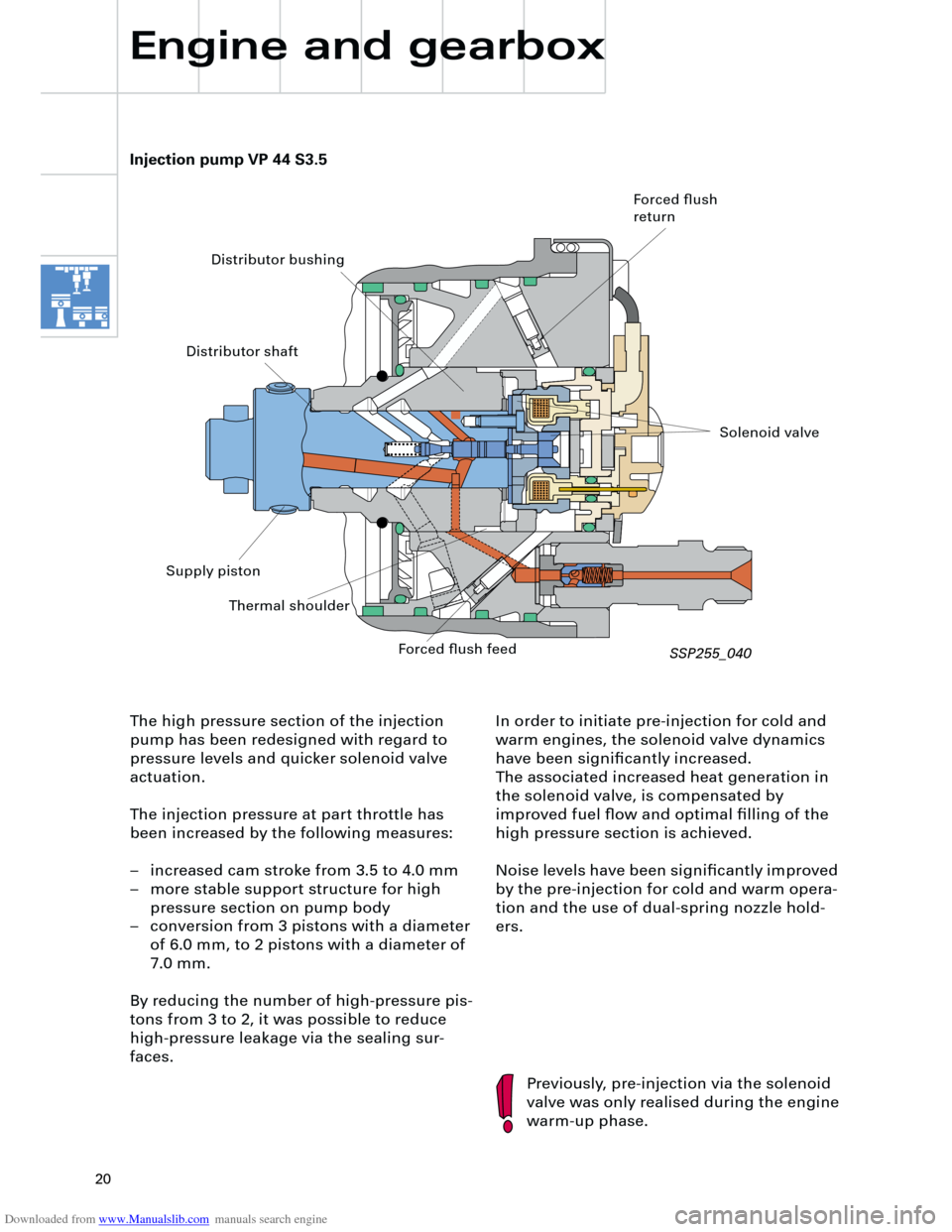

SSP255_040
Downloaded from www.Manualslib.com manuals search engine
86
+ -
K
Additional heater
Heater/AC
The Audi A4 can optionally be equipped with
an additional heater for coolant.
Its mode of operation corresponds to the
systems in use previously.
The additional heater warms the heating-
system heat exchanger in the air conditioner
unit via the cooling-water circuit.
The cut-in time is ”programmed” via the dash
panel insert.
Flame sensor
Fan
driveDiffuser
Fuel tank Combus-
tion air Control and heater
unit for heating
system J162
Heating system
heat exchanger
Exhaust
gas Combustion chamber Glow plug
Fuel pump
SSP254_023
