PRACTICAL ASPECTS OF YOUR VEHICLE113

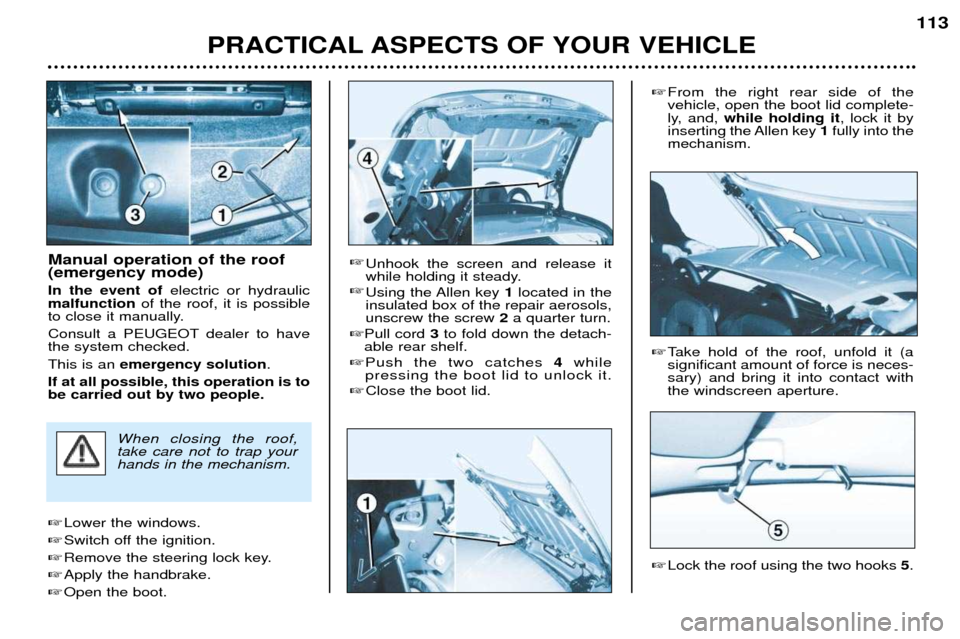

Manual operation of the roof (emergency mode) In the event of
electric or hydraulic
malfunction of the roof, it is possible
to close it manually.
Consult a PEUGEOT dealer to have the system checked. This is an emergency solution .
If at all possible, this operation is to be carried out by two people. Lower the windows.
Switch off the ignition.
Remove the steering lock key.
Apply the handbrake.
Open the boot.
Unhook the screen and release it
while holding it steady.
Using the Allen key 1located in the
insulated box of the repair aerosols,unscrew the screw 2a quarter turn.
Pull cord 3to fold down the detach-
able rear shelf.
Push the two catches 4while
pressing the boot lid to unlock it.
Close the boot lid.
From the right rear side of the vehicle, open the boot lid complete-
ly, and, while holding it , lock it by
inserting the Allen key 1fully into the
mechanism.
Lock the roof using the two hooks 5.
When closing the roof, take care not to trap yourhands in the mechanism.
Take hold of the roof, unfold it (a significant amount of force is neces-sary) and bring it into contact withthe windscreen aperture.
PRACTICAL ASPECTS OF YOUR VEHICLE
114
Take out the Allen key 1 while
holding the boot lid , then fold it
down slowly and steadily, without trying to lock it.
Open the boot.
Pull both white clips 6located
above the catches, and turn themdownwards a quarter turn, while atthe same time keeping the boot lidclosed.
Push the two white clips 6into their
locking holes.
Close the boot.
Contact a PEUGEOT dealer to havethe system checked.
The roof must not be ope- rated while a loaded lug-gage-holder is fitted onthe boot lid.
When closing the roof, to prevent
risk of injury, ensure that no-one isin the proximity of the movingparts.
In the event of danger, release the control button; the opera-
tion will stop immediately.Closing the roof in the event of the windows malfunctioning When the side windows cannot open
completely, the roof operation is
impossible; however, it is possible toclose it by carrying out the followingoperations simultaneously: with the ignition switched off, press or pull both control buttons for thewindows (2nd notch);
place the ignition key in position M,
without releasing the window con-trol buttons;
after four seconds, when an audiblesignal is heard, press the roof con-trol button;
when the roof control button hasbeen pressed for six seconds. theroof closes; the end of the operationis indicated by an audible signal;
lock the roof using the two hooks 5.
Contact a PEUGEOT dealer to havethe system checked.
