Page 83 of 123
YOUR 206 CC IN DETAIL83
Areas for toll cards / car park tickets* The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
Courtesy lights
Off Lights when one of the doors is opened. In this position thecourtesy light flashes whenthe vehicle is moving, if a dooris not correctly closed*. Permanently on when the igni- tion key is in the accessoriesposition or the ignition is on. Sun visor The sun visors are fitted with a vanity
mirror, with a concealing flap on the
driverÕs side. Front ashtray
To empty, close the cover. Pull the lug and release the ashtray upwards.
Lighter Press and wait a few minutes until it
springs out automatically.
* According to specification.
Page 88 of 123
YOUR 206 CC IN DETAIL
88
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. Theyare deployed simultaneously except incases where the air bag is disarmed. Front air bag fault If this warning light comes on, accom- panied by an audible signal and themessage
"Air bag fault" on the multi-
function display, contact a PEUGEOTdealer to have the system checked.
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions. Itworks in conjunction with the force-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration of thevehicle: if the triggering threshold isreached the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not
serious, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the
cushion can be a minor irritant. Disarming the passenger* air bag
To ensure the safety of your child, it is essential to disarm the passen-ger air bag when you install a rear-facing child seat on the front pas-senger seat.
Remove the ignition key, insert it into the passenger airbag switch 1
and turn it to the "OFF"position,
then remove it, maintaining thisposition. The ''OFF''warning light
switches on.
The air bag warning light onthe instrument panel is litthroughout the disarmingprocess.
* According to specification.
Page 89 of 123
YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 91 of 123
YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification
Page 95 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE93
Checking levels Engine Oil level Carry out this check regularly and top up between oil changes
(the
maximum consumption is 0.5 litre per
600 miles (1000 km)). The check mustbe carried out with the vehicle leveland the engine cold.
There are two levelmarks on the dips-tick: A= maximum.
B = minimum. Viscosity grade selectionThe oil selected must always meet the
manufacturerÕs requirements. Oil filter Change the cartridge regularly in accordance with the recommenda-tions of the servicing schedule. Used oil
Avoid any prolonged contact of used oil with the skin. Do not discard used oil down drains or on the ground.
To maintain the reliability of the engines and emission control sys-tems, the use of additives in the oil isprohibited. Brake fluid reservoir
- The level must always be above the
DANGER mark on the tank.
- In the event of a significant drop in the level, contact a PEUGEOT dealer
immediately. Fluid change
- Always to be carried out at the inter-
vals given in the manufacturer's ser- vicing schedule.
- Use fluids approved by the manu- facturer which comply with DOT4.
Coolant reservoir Use a coolant approved by the manu-
facturer. When the engine is warm, the coolant temperature is controlled by the engi-
ne fan. As this fan can operate with theignition key removed and because thecooling circuit is pressurised, wait at
least an hour after switching off theengine before carrying out any work. In the event of a breakdown and to avoid any risk of burns, unscrew thecap two turns to let the pressure drop.When the pressure has dropped,remove the cap and top up the level.
Oil change: in accordance with the
manufacturer's servicing schedule.
- Dipstick: never exceed the maxi- mum mark A.
- Instrument dial gauge.
Page 100 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
98
Special features of alloy wheels* Bolt covers The bolts on the alloy wheels are cov- ered with chrome-plated trim caps. Remove them using tool
4before
slackening the bolts. Refitting the spare wheel** If your vehicle is fitted with a metal spare wheel, when fitting the wheel itis
normal to notice that the bolt wash-
ers do not come into contact with the
wheel. The spare wheel is held inplace by the conical support of eachbolt. Fitting snow tyres If your vehicle has tyres fitted to steel wheels, it is essentialto use special
bolts available from a PEUGEOT dealer. Wheel anti-theft bolts** If your wheels are fitted with anti-theft bolts (one per wheel), the chrome trimand then the plastic cover must beremoved, using tool
4, before the bolt
is unscrewed using one of the twoanti-theft sockets (which were given toyou on delivery of your vehicle alongwith the duplicate keys and the confi-dential card) and the wheelbrace 1.
Note: take a careful note of the code
number engraved on the top of the
anti-theft socket. This will enable youto obtain a duplicate anti-theft socket
from a PEUGEOT dealer.
* According to specification.
** According to model and destination.
Page 111 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE107
Battery
To charge the battery using a battery charger:
Ð Disconnect the battery.
Ð Follow the instructions for use given by the battery charger manufacturer.
Ð Reconnect starting with the negative (-) terminal.
Ð Check that the terminals and connectors are clean. If they are covered with sul-
phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle and charge the battery from another battery:
Ð Connect the red cable to the positive (+) terminals of the two batteries.
Ð Connect one end of the green or black cable to the negative (-) terminal of the slave battery.
Ð Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery.
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables. Economy mode function After the engine has stopped, with the key in the accessories position, cer-
tain functions (windscreen wiper, elec-tric windows, courtesy lights, audioequipment etc.) can only be used forthirty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
A flat battery will prevent the engine from starting.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initiali- sed. If slight difficulties are experienced after this, please contact a
PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.
Page 116 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
112

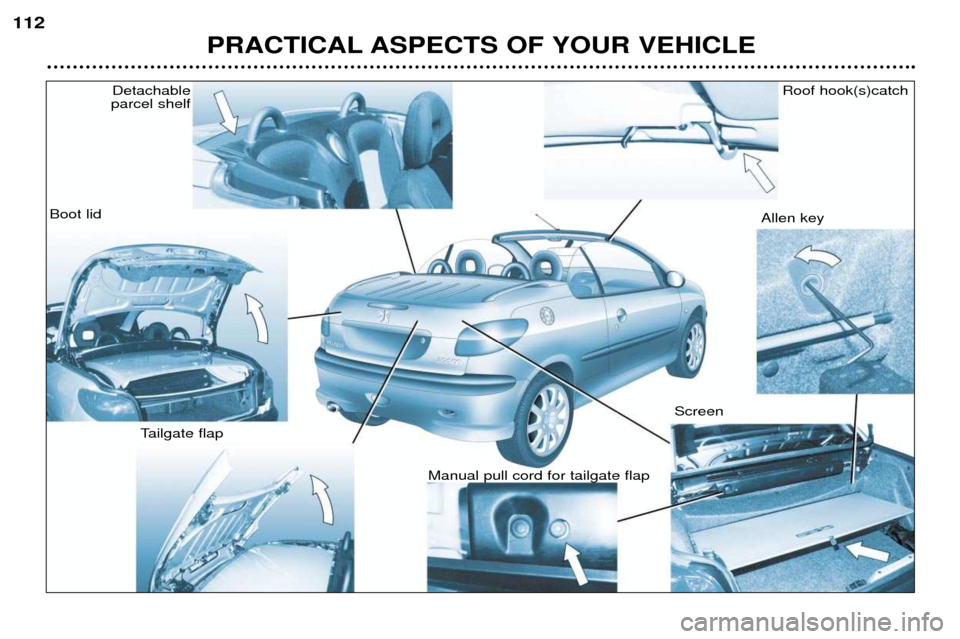

Detachable
parcel shelf
Boot lid
Tailgate flap Manual pull cord for tailgate flapScreenAllen key
Roof hook(s)catch
