2001.5 Peugeot 206 CC Dag mirror

1Bonnet opening control
2 Fuse box
3 Storage
4 Steering wheel height adjust- ment control
5 Headlamp height adjustment
6 Lights and fog lamps stalk
7 Adjustable side vent
8 Heated seats switch*
9 Side windows demisting vents
10 Passenger air bag disarmingswitch*
11 Driver's air bag / horn
12 Instrument panel lighting rheostat
13 Windscreen wash/wipe stalk 14
Radio steering column stalk
15 Steering lock
16 Central adjustable vents
17 Hazard warning lights switch
18 Multifunction display
19 Audio equipment
20 Windscreen demisting vents
21 Passenger air bag
22 Glove box
23 Controls for heating, ventila-tion, air conditioning and rearscreen and mirrors demisting
24 Front ashtray
25 Gear lever
26 Lighter
27 Electric mirrors switch 28
Electric windows switch
29 Handbrake
30 Retractable roof switch
* According to specification.
3YOUR AT A GLANCE

5YOUR AT A GLANCE
ELECTRIC WINDOWS
1. Driver's electric windows
switch
2. Passenger's electric win- dows switch
These control, each on its respective side, the front windowand the rear quarter panel win-
dow. Manual operation  Press the switch (to open) or pull it (to close) without goingbeyond the point of resistance.The window stops as soon asyou release the switch. The rear quarter panel window can only open when the frontwindow is completely open,after being inactive for onesecond.
Automatic operation ¥ OpeningThe windows open automatically (with the ignition key in theRunning or Engine on position)
Press the switch past the pointof resistance:
Ð a brief press opens the front window completely; thenanother brief press completelyopens the rear quarter panel
window,
Ð a long press opens the front window completely, then the
rear quarter panel window.
¥ Closing
Only the front window on the driv-er's side closes automatically(engine running or vehicle beingdriven), when the rear quarterpanel window is closed.  Briefly pull the switch past the point of resistance to com-pletely close the front windowon the driver's side.
Note : the window switches are
inoperative when the roof isbeing adjusted. ELECTRIC MIRRORS
Turn knob
3to the right or to the
left to select the corresponding
mirror. Move knob 3in all four directions
to adjust.
Electrically folding mirrors With the ignition on, turn knob 3
to position A.
8180

12YOUR AT A GLANCE12

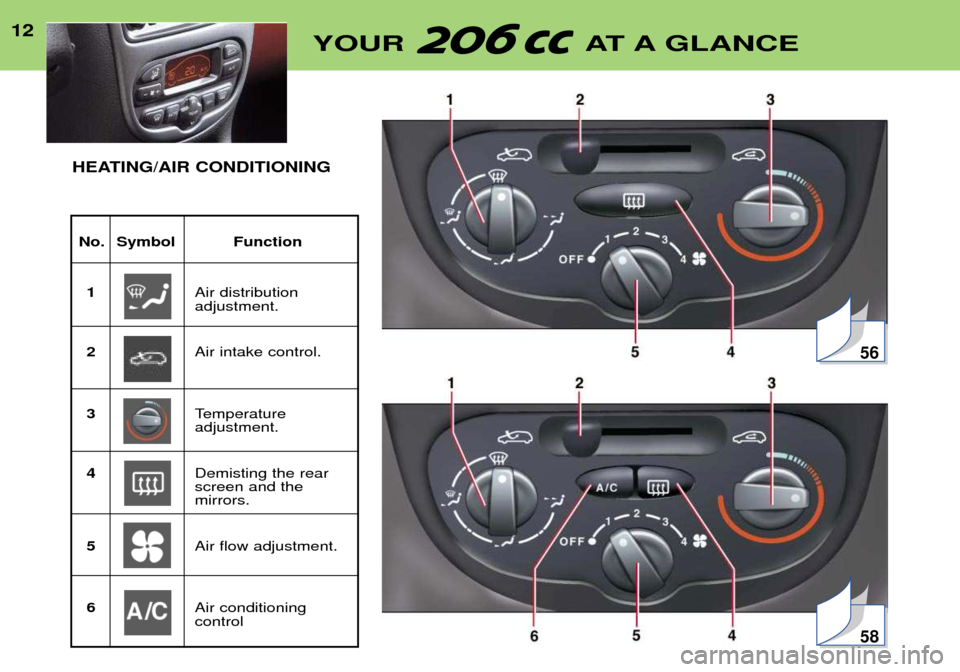

No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rearscreen and the mirrors.
5 Air flow adjustment.
6 Air conditioningcontrol
HEATING/AIR CONDITIONING
56
58

PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st
service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oIf there are specific conditions.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT

YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen,
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes. from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. De-icing the rear window Press this button to de-ice therear screen and the mirrors*.The de-icing system switches
off automatically after a peri-
od which varies depending on the out-side temperature. It is possible to stop
the de-icing before it switches off auto-matically by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed auto-
matically. Press the "AUTO" button toreturn to completely automatic opera-tion.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or - respectively.
* According to specification.
Note
The condensation created by the air con- ditioning causes a normal flow of waterunder the vehicle when it stops.

YOUR 206 CC IN DETAIL75
*According to specification
AUTOMATIC SWITCHING ON OF LIGHTS* Side lights and dipped beam head- lamps switch on automatically if the
light is poor. They switch off as soonas the light becomes bright enough orthe windscreen wipers stop. Note:
In foggy weather the brightness
sensor can detect sufficient light. As a consequence, the lights will not come
on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accessories
position (1st notch),
- Press the end of the stalk for more than two seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
Comment: The brightness sensor,
coupled with the rain sensor, is loca-ted in the centre of the windscreen,
behind the interior mirror. It is usedfor automatic switching on of thelights. Operating check Activation Acivation of this function is accompanied by an audible signal
"Automatic ligh-
ting'' on the multifunction display.
Disarming of the function is not accom-panied by any audible signal Note: the function is temporarily disar-
med when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audiblesignal, accompanied by the message"switching on of lights faulty" .
Contact a PEUGEOT dealer to have thesystem checked.

YOUR 206 CC IN DETAIL81

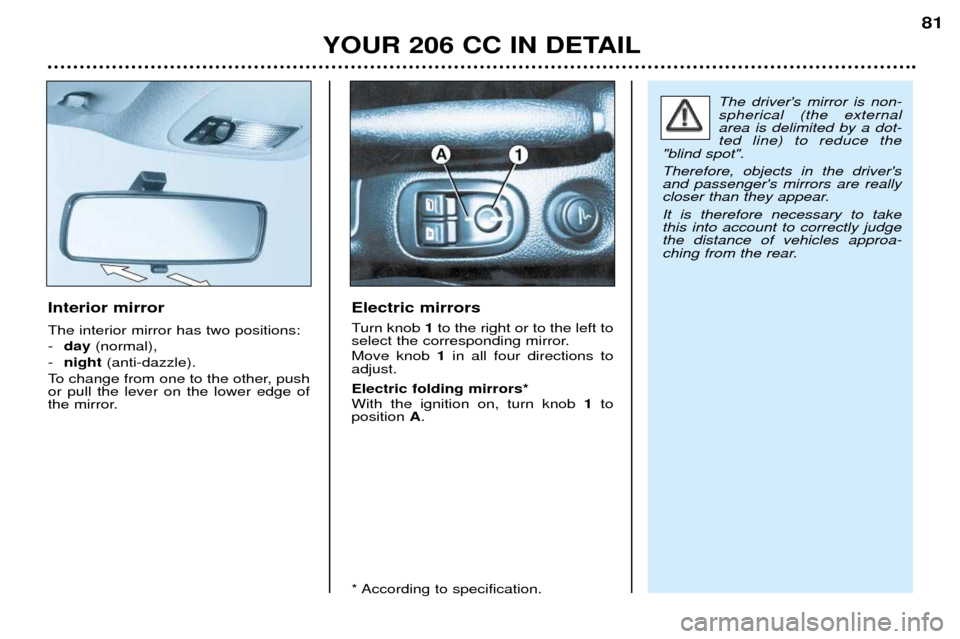

Interior mirror The interior mirror has two positions: -
day (normal),
- night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower edge of
the mirror. Electric mirrors
Turn knob
1to the right or to the left to
select the corresponding mirror. Move knob 1in all four directions to
adjust. Electric folding mirrors* With the ignition on, turn knob 1to
position A.
The driver's mirror is non- spherical (the externalarea is delimited by a dot-ted line) to reduce the
"blind spot". Therefore, objects in the driver's and passenger's mirrors are really
closer than they appear. It is therefore necessary to take this into account to correctly judgethe distance of vehicles approa-
ching from the rear.
* According to specification.

YOUR 206 CC IN DETAIL83

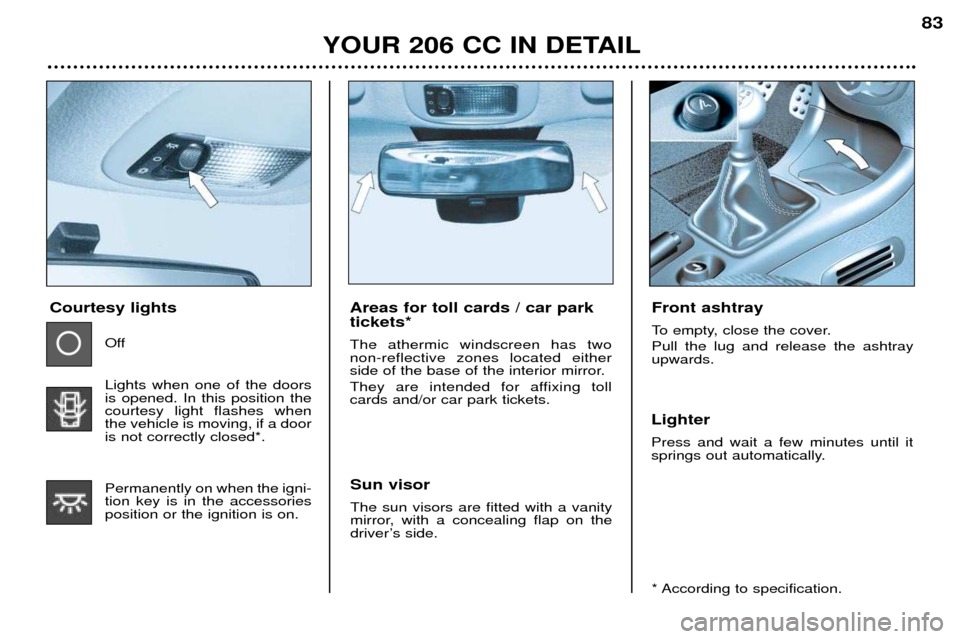

Areas for toll cards / car park tickets* The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
Courtesy lights
Off Lights when one of the doors is opened. In this position thecourtesy light flashes whenthe vehicle is moving, if a dooris not correctly closed*. Permanently on when the igni- tion key is in the accessoriesposition or the ignition is on. Sun visor The sun visors are fitted with a vanity
mirror, with a concealing flap on the
driverÕs side. Front ashtray
To empty, close the cover. Pull the lug and release the ashtray upwards.
Lighter Press and wait a few minutes until it
springs out automatically.
* According to specification.
