PEUGEOT SERVICING25
Recommendations for approved lubricants The oils which appear in the table opposite are suitable for most purposes. The diagram opposite states the opti- mum range of viscosity depending onthe temperatures at which the oils areto be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quali-ty may be used by following the "ardu-ous conditions" servicing schedulewhich specifies shorter service inter-vals. Do not hesitate to ask for advice from
an approved PEUGEOT dealer tomaintain driving pleasure and to min-imise the maintenace cost of yourvehicle. For vehicles outside Europe, please
contact a local PEUGEOT dealer.
0W20 3040
50
20W
15W
10W
5W
ONLY ONLY
Manual gearbox ESSO GEAR OIL BV TOTAL TRANSMISSION BV 75W-80 PR 9736.41 75W-80
ONLY
AL4 Automatic ATF 4HP20-AL4
gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluide PEUGEOT DOT4
Coolant PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000 ONLYProtection to minus Ð 35¡C
Other approved products

INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat
24. Fuel gauge
25. Low fuel level warning light
* According to specification
Instrument panel

INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light
17. Programmes de fonctionnement
18. Indicateur de position de vitesse 19.
Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat
25. Fuel gauge
26. Fuel low warning light
* According to specification.
Instrument panel: Automatic gearbox

INSTRUMENTS AND CONTROLS
28
Handbrake and low brake fluid level or fault inElectronic Brake ForceDistribution system
warning light
Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- a fault in the Electronic Brake Force Distribution system if lit simultane-
ously with the ABS warning light.
Stop immediately.
Contact a PEUGEOT dealer.
Instruments and controls
A permantly lit warning light or one that flashes with the engine run-ning, indicates an operating fault inthe relevant unit. Some warninglights may be accompanied by anaudible signal and a message onthe multifunction screen. Do notignore this warning: contact a PEUGEOT dealer as soon as possi-
ble. If the Central STOP warninglight comes on when you are dri-ving, stop immediately where it issafe to do so.
Anti-lock brake system (ABS) warning light*
When this is lit continuously, it
indicates a malfunction of the ABS system.
However, the vehicle retains con- ventional servo-assisted braking.
Contact a PEUGEOT dealer.
* According to specification
Engine oil pressure warning light
Linked with the central STOP
warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature, reduceyour speed.
Contact a PEUGEOT dealer as soonas possible.
Temperature and coolant low level warning light
Linked with the the central STOP warning light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to pre-
vent the risk of scalding , turn the
cap twice to allow the pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warning
light for the "engine oil pressure", the "coolant temperature and low levelgauge", the "handbrake", the "brakefluid low level" and ''electronic brakingsystem fault'' as well as the "dooropen" warning indicated by a symbol
on the multifunction display. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.

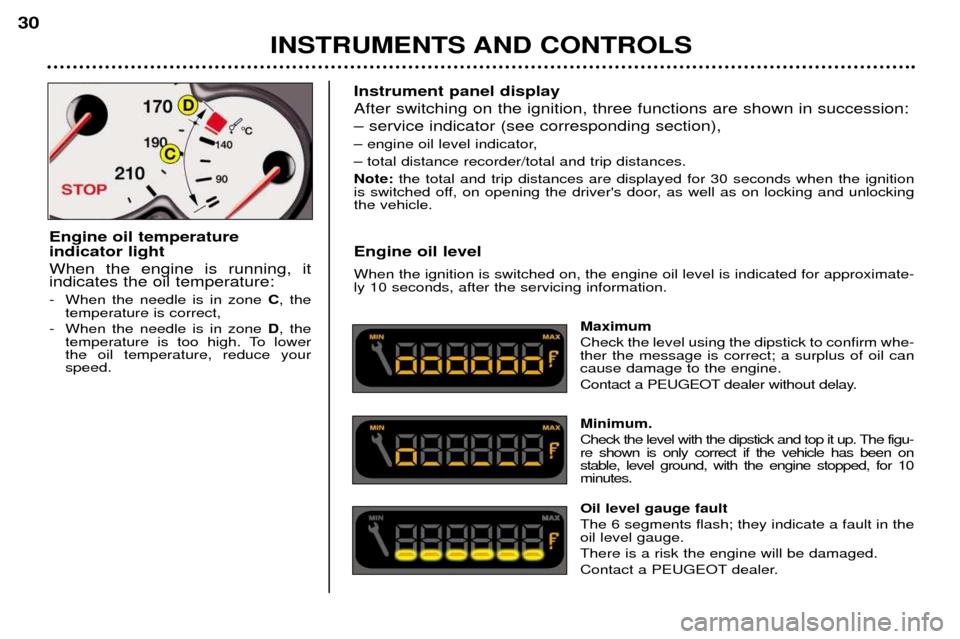

Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.

INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.

PRACTICAL ASPECTS OF YOUR VEHICLE93
Checking levels Engine Oil level Carry out this check regularly and top up between oil changes
(the
maximum consumption is 0.5 litre per
600 miles (1000 km)). The check mustbe carried out with the vehicle leveland the engine cold.
There are two levelmarks on the dips-tick: A= maximum.
B = minimum. Viscosity grade selectionThe oil selected must always meet the
manufacturerÕs requirements. Oil filter Change the cartridge regularly in accordance with the recommenda-tions of the servicing schedule. Used oil
Avoid any prolonged contact of used oil with the skin. Do not discard used oil down drains or on the ground.
To maintain the reliability of the engines and emission control sys-tems, the use of additives in the oil isprohibited. Brake fluid reservoir
- The level must always be above the
DANGER mark on the tank.
- In the event of a significant drop in the level, contact a PEUGEOT dealer
immediately. Fluid change
- Always to be carried out at the inter-
vals given in the manufacturer's ser- vicing schedule.
- Use fluids approved by the manu- facturer which comply with DOT4.
Coolant reservoir Use a coolant approved by the manu-
facturer. When the engine is warm, the coolant temperature is controlled by the engi-
ne fan. As this fan can operate with theignition key removed and because thecooling circuit is pressurised, wait at
least an hour after switching off theengine before carrying out any work. In the event of a breakdown and to avoid any risk of burns, unscrew thecap two turns to let the pressure drop.When the pressure has dropped,remove the cap and top up the level.
Oil change: in accordance with the
manufacturer's servicing schedule.
- Dipstick: never exceed the maxi- mum mark A.
- Instrument dial gauge.
