INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU01779

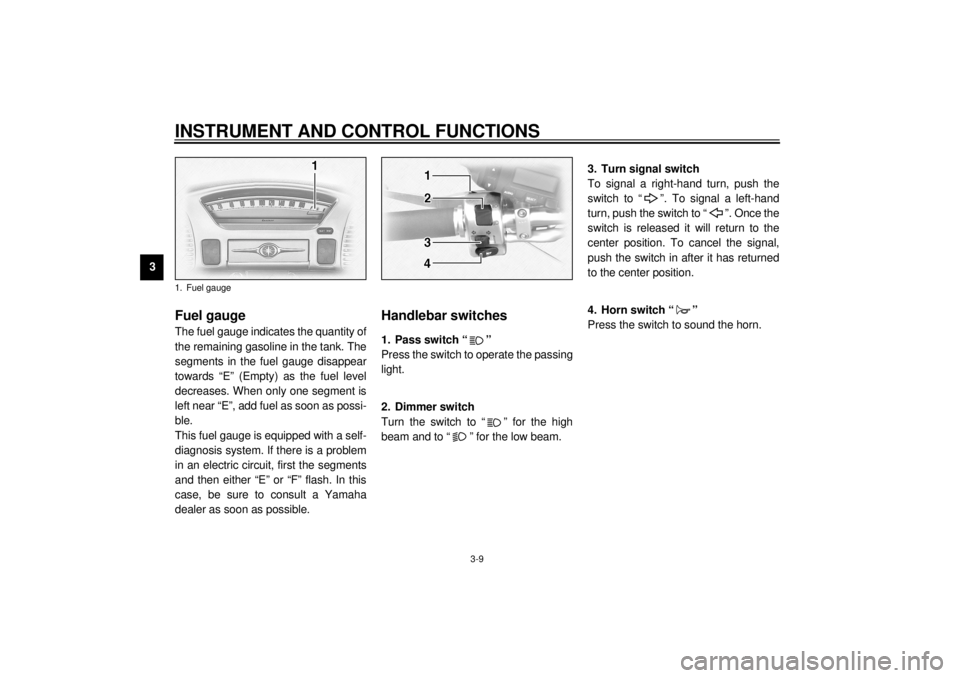

Fuel gaugeThe fuel gauge indicates the quantity of
the remaining gasoline in the tank. The
segments in the fuel gauge disappear
towards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, add fuel as soon as possi-
ble.
This fuel gauge is equipped with a self-
diagnosis system. If there is a problem
in an electric circuit, first the segments
and then either “E” or “F” flash. In this
case, be sure to consult a Yamaha
dealer as soon as possible.
EAU00118
Handlebar switches
EAU00119
1. Pass switch “ ”
Press the switch to operate the passing
light.
EAU00121
2. Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
3. Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
4. Horn switch “ ”
Press the switch to sound the horn.
1. Fuel gaugeE_5jc_Functions.fm Page 9 Saturday, October 16, 1999 1:08 PM
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU01215
Shift pedalThe shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
Use your toe or heel to shift up and
your toe to shift down.
EAU00158
Front brake leverThe front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. Shift pedal
1. Front brake lever
1. Rear brake pedal
