Page 17 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU01734
SpeedometerThis speedometer is equipped with an
odometer and a twin trip meter. Push-
ing the mode button (left) will change
the display from one mode to the other
as follows.In the odometer mode “ODO”, the
motorcycle’s total mileage is displayed.
In the trip meter modes “TRIP A” or
“TRIP B”, the motorcycle’s mileage
since the trip meter was last reset is
displayed. Use the trip meter to esti-
mate how far you can ride on a tank of
fuel. This information will enable you to
plan fuel stops in the future.
To reset the trip meter to 0, push the
mode button (left) until “TRIP A” or
“TRIP B” is displayed, then push the
set button (right) and hold it down for at
least one second.
NOTE:@ This motorcycle does not have a ta-
chometer. However, it is equipped with
an engine revolution limiter, which pre-
vents the engine revolution from ex-
ceeding approximately 4,400 r/min. @
1. Odometer/tripmeter/clock
2. Speedometer
3. Fuel gauge
4. Set button
5. Mode button
ODO TRIP A TRIP B
E_5ja_Functions.fm Page 3 Saturday, October 16, 1999 10:10 AM
Page 18 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00113
Fuel gaugeThe fuel gauge indicates the quantity of
the remaining gasoline in the tank. The
gauge needle moves from “F” (Full) to
“E” (Empty) as the fuel level decreases.
When the needle moves to the “E” po-
sition, add fuel as soon as possible.
EAU01735*
Diagnosis deviceThis model is equipped with a self-di-
agnosis device for the electrical cir-
cuits.
If some trouble should occur in a cir-
cuit, the engine trouble indicator light
will come on or the fuel indicator light
will start flashing.
To prevent engine damage, have your
motorcycle serviced by a Yamaha
dealer as soon as possible if either of
these conditions occur.
EC000004*
CAUTION:@ To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs. @
EAU00109
Antitheft alarm (optional)An antitheft alarm can be equipped to
this motorcycle. Consult your Yamaha
dealer to obtain and install the alarm.
E_5ja_Functions.fm Page 4 Saturday, October 16, 1999 10:10 AM
Page 19 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU01736
Digital clockThis digital clock always shows the
time regardless of the main switch po-
sition.Setting the clock
1. Turn the main switch to “ON”.
2. Press both the set button (right)
and the mode button (left) simulta-
neously until the hours and min-
utes flash.
3. Push the left button and only the
hour display will flash.4. Push the right button to change
the hours.
5. Push the left button and only the
minute display will flash.
6. Push the right button to change
the minutes.
7. Push the left button and both the
hours and minutes will flash.
8. Push the right button for two sec-
onds to set the clock.1. Clock
2. Set button
3. Mode buttonE_5ja_Functions.fm Page 5 Saturday, October 16, 1999 10:10 AM
Page 20 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00118
Handlebar switches
EAU00119
1. Pass switch “ ”
Press the switch to operate the passing
light.
EAU00121
2. Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
3. Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
4. Horn switch “ ”
Press the switch to sound the horn.
EAU00138
5. Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
6. Lights switch
Turning the light switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
“ ” turns the headlight on also.
E_5ja_Functions.fm Page 6 Saturday, October 16, 1999 10:10 AM
Page 21 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU00143
7. Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:@ See starting instructions prior to
starting the engine. @
EAU00152
Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)
EAU01215
Shift pedalThe shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
Use your toe or heel to shift up and
your toe to shift down.
1. Clutch lever
1. Shift pedal
E_5ja_Functions.fm Page 7 Saturday, October 16, 1999 10:10 AM
Page 22 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU00158
Front brake leverThe front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. Front brake lever
1. Rear brake pedal
E_5ja_Functions.fm Page 8 Saturday, October 16, 1999 10:10 AM
Page 23 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU02917

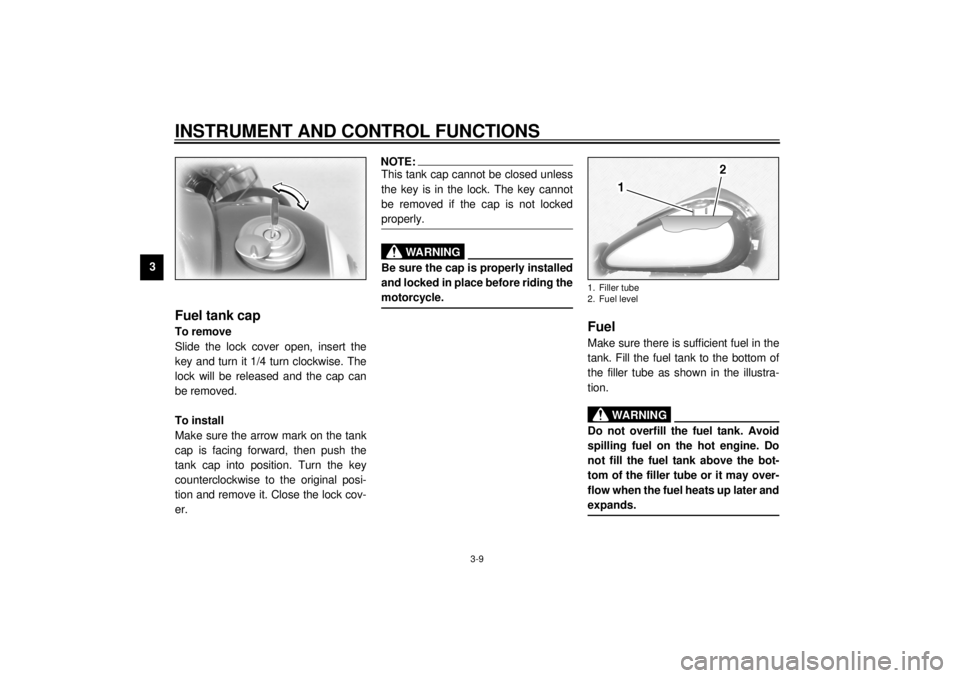

Fuel tank capTo remove
Slide the lock cover open, insert the
key and turn it 1/4 turn clockwise. The
lock will be released and the cap can
be removed.
To install
Make sure the arrow mark on the tank
cap is facing forward, then push the
tank cap into position. Turn the key
counterclockwise to the original posi-
tion and remove it. Close the lock cov-
er.
NOTE:@ This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly. @
EW000023
WARNING
@ Be sure the cap is properly installed
and locked in place before riding the
motorcycle. @
EAU01183
FuelMake sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the illustra-
tion.
EW000130
WARNING
@ Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may over-
flow when the fuel heats up later and
expands. @1. Filler tube
2. Fuel level
E_5ja_Functions.fm Page 9 Saturday, October 16, 1999 10:10 AM
Page 24 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU00185
CAUTION:@ Always wipe off spilled fuel immedi-
ately with a dry and clean soft cloth.
Fuel may deteriorate painted surfac-
es or plastic parts. @
EAU00191
NOTE:@ If knocking or pinging occurs, use a dif-
ferent brand of gasoline or higher oc-
tane grade. @
EAU02955

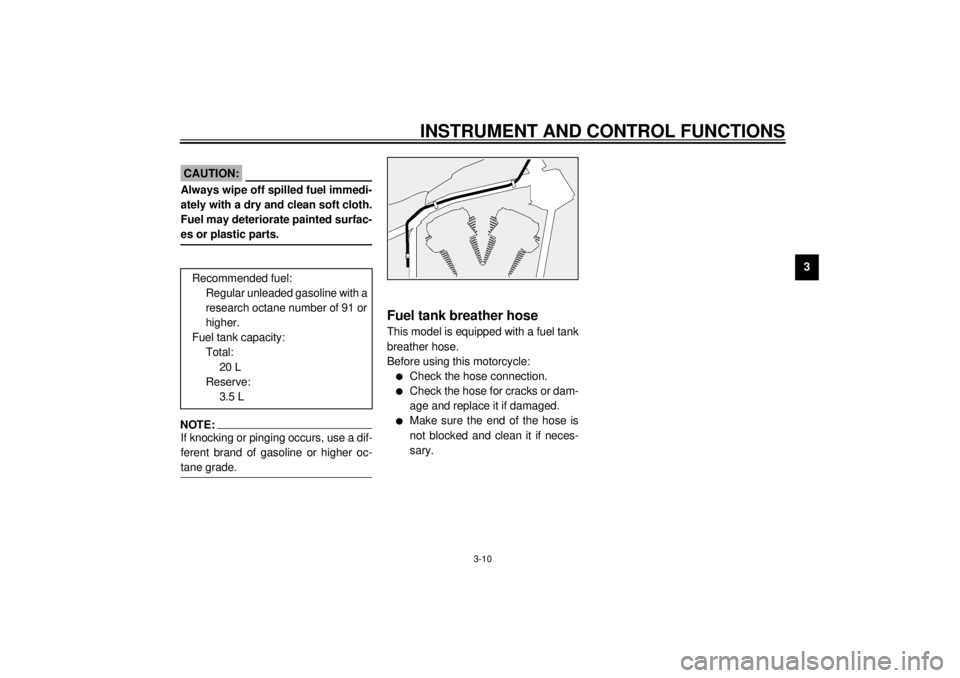

Fuel tank breather hoseThis model is equipped with a fuel tank
breather hose.
Before using this motorcycle:l
Check the hose connection.
l
Check the hose for cracks or dam-
age and replace it if damaged.
l
Make sure the end of the hose is
not blocked and clean it if neces-
sary. Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher.
Fuel tank capacity:
Total:
20 L
Reserve:
3.5 L
