Vehicle Symbols
These are some of the symbols you may find on your vehicle.

yellowblue
2-44
Exterior Lamps
The lamp controls are located on the instrument panel.
They control these systems:

Headlamps

Taillamps

Parking Lamps

License Lamps

Instrument Panel Lights

Dome Lamp

Fog Lamps
If you pull the knob out
halfway, it will turn on your
parking lamps and your
other operating lamps. If
you pull the knob all the
way out, your headlamps
will then come on.
Push the knob in all the way to turn off the lamps.
A warning chime will sound if you open the driver's
door when you turn the ignition switch to OFF or ACC
with the lamps on.

yellowblue
2-46 Fog Lamps (If Equipped)
To turn the fog lamps on, press the fog lamps switch
located next to the exterior lamp control on the left side
of the steering column.
A light will glow on the switch to let you know that they
are on. (Your parking lamps must be on or your fog
lamps won't come on.) Press the switch again to turn the
fog lamps off. The fog lamps will go off whenever you
change to high
-beam headlamps. When you return to
low beams, the fog lamps will come on again.
Interior Lamps
Instrument Panel Brightness Control
You can brighten or dim the instrument panel lights by
turning the panel light thumbwheel. Turn the control
clockwise to increase the brightness of the instrument
panel, and counterclockwise to decrease the brightness.
Courtesy Lamps
When any door is opened, several lamps come on. These
lamps are courtesy lamps. They make it easy for you to
enter and leave your vehicle. You can also turn these
lamps on by moving the panel light thumbwheel all the
way to the right.Some of the lamps have switches so you can turn them
on, even when the doors are closed. These lamps are
reading lamps.
Illuminated Entry (If Equipped)
Your courtesy lamps will come on and stay on for a set
time whenever you press UNLOCK on the remote
keyless entry transmitter.
If you open a door, the lamps will stay on while it's open
and then turn off automatically about 25 seconds after
you close it. If you press UNLOCK and don't open a
door, the lamps will turn off after about 40 seconds.
Illuminated entry includes a feature called theater
dimming. With theater dimming, the lamps don't just
turn off at the end of the delay time. Instead, they slowly
dim after the delay time until they go out. The delay
time is canceled if you turn the ignition key to ON,
START or press the power door lock switch so the
lamps will dim right away.
When the ignition is on, illuminated entry is inactive,
which means the courtesy lamps won't come on unless a
door is opened.

yellowblue
3-3

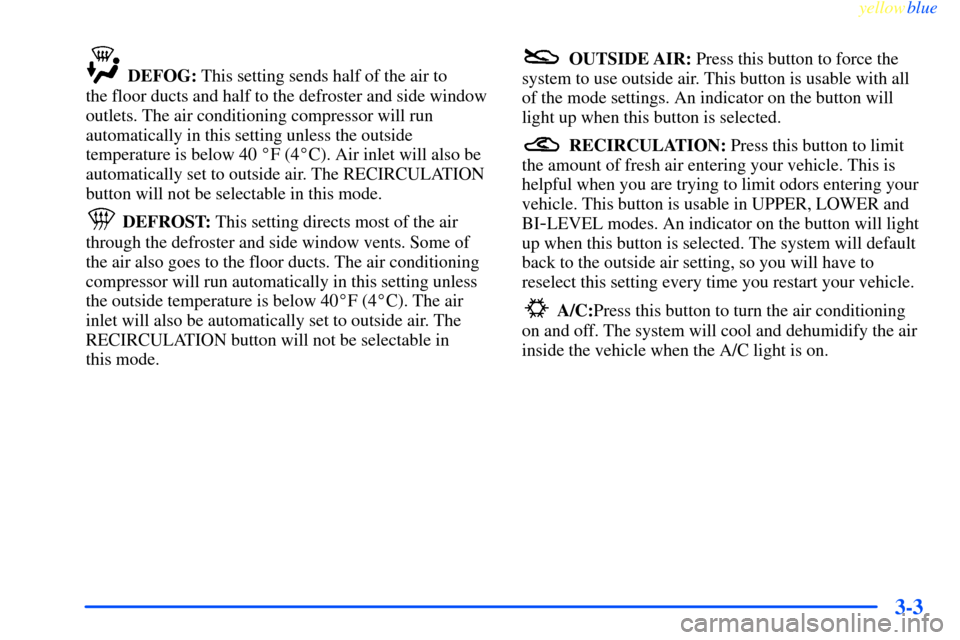

DEFOG: This setting sends half of the air to
the floor ducts and half to the defroster and side window
outlets. The air conditioning compressor will run
automatically in this setting unless the outside
temperature is below 40
F (4
C). Air inlet will also be
automatically set to outside air. The RECIRCULATION
button will not be selectable in this mode.
DEFROST: This setting directs most of the air
through the defroster and side window vents. Some of
the air also goes to the floor ducts. The air conditioning
compressor will run automatically in this setting unless
the outside temperature is below 40
F (4
C). The air
inlet will also be automatically set to outside air. The
RECIRCULATION button will not be selectable in
this mode.
OUTSIDE AIR: Press this button to force the
system to use outside air. This button is usable with all
of the mode settings. An indicator on the button will
light up when this button is selected.
RECIRCULATION: Press this button to limit
the amount of fresh air entering your vehicle. This is
helpful when you are trying to limit odors entering your
vehicle. This button is usable in UPPER, LOWER and
BI
-LEVEL modes. An indicator on the button will light
up when this button is selected. The system will default
back to the outside air setting, so you will have to
reselect this setting every time you restart your vehicle.
A/C:Press this button to turn the air conditioning
on and off. The system will cool and dehumidify the air
inside the vehicle when the A/C light is on.

yellowblue
3-5
Mode Knob
The knob on the right side of the control panel has
several settings to control the direction of airflow:
UPPER: This setting directs air through the
instrument panel outlets.
BI-LEV: This setting directs air two ways.
Half of the air is directed through the instrument panel
outlets. Most of the remaining air is directed through the
floor vents and a little to the windshield defroster and
side window outlets.
LOWER: This setting sends most of the air
through the ducts near the floor. The remaining air
comes out of the defroster and side window outlets.
DEFOG: This setting sends half of the air to
the floor ducts and half to the defroster and side window
outlets. The air conditioning compressor will run
automatically in this setting unless the outside
temperature is below 40
F (4
C). Air inlet will also be
automatically set to outside air. The RECIRCULATION
button will not be selectable in this mode.
DEFROST: This setting directs most of the air
through the defroster and side window vents. Some of
the air also goes to the floor ducts. The air conditioning
compressor will run automatically in this setting unless
the outside temperature is below 40
F (4
C).
The air inlet will also be automatically set to outside air.
The RECIRCULATION button will not be selectable
in this mode.
OUTSIDE AIR: Press this button to force the
system to use outside air. This button is usable in all of
the mode settings. An indicator on the button will light
up when this button is selected.
RECIRCULATION: Press this button to limit
the amount of fresh air entering your vehicle. This is
helpful when you are trying to limit odors entering your
vehicle. This button is usable in UPPER, LOWER and
BI
-LEVEL modes. An indictor on the button will light
up when this button is selected.
A/C: Press this button to turn the air conditioning
on and off. The system will cool and dehumidify the air
inside the vehicle when the A/C light is on.

yellowblue
3-7 Rear Window Defogger
The rear window
defogger uses a
warming grid to
remove fog from
the rear window.
Press the button
marked REAR to
turn the defogger on.
An indicator on the
button will light.
The rear window defogger will turn itself off after about
15 minutes. If you turn it on again, the defogger will
only run for about 7.5 minutes before turning off. You
can also turn the defogger off by turning the ignition off
or by pressing the button again.
Do not attach anything like a temporary vehicle license
or decal across the defogger grid.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
Don't put decals there because you might have to
scrape them off.

yellowblue
6-65
Circuit Relay Description
BATT RUN
DOWN
PROTECTION
RELAYBattery Run Down
Protection Relay
REAR
DEFOG RELAYRear Defog Relay,
Heated Mirror Relay
Circuit Breaker Description
POWER
SEATS BRKRPower Seat Circuit Breaker
REAR
DEFOG BRKRRear Defog Breaker
Mini Fuses Description
RH HTD ST Passenger Heated Seat
PWR DROP Accommodated Device
B/U LP Back
-Up Lamps
DIC/RKE Driver Information Center,
Remote Keyless Entry, HVACMini Fuses Description
TRK/ROOF
BRPTrunk Lamps, Headliner Lamps
HVAC BLO HVAC Blower Relay
I/P BRP Instrument Panel Footwell Lamps,
Glovebox Lamps
HTD MIR Heated Mirrors
BRK SW Brake Switch
HAZ SW Hazard Switch
FRT PRK LP Front Parking Lamps
AUX PWR Auxiliary Power Outlet (Battery)
C/LTR Cigarette Lighter
RADIO Radio, Radio Amplifier
REAR
PARK LPRear Parking Lamps,
Instrumentation Lighting
Underhood Fuse Block #1
Some fuses are in a fuse block on the passenger's side of
the engine compartment.
