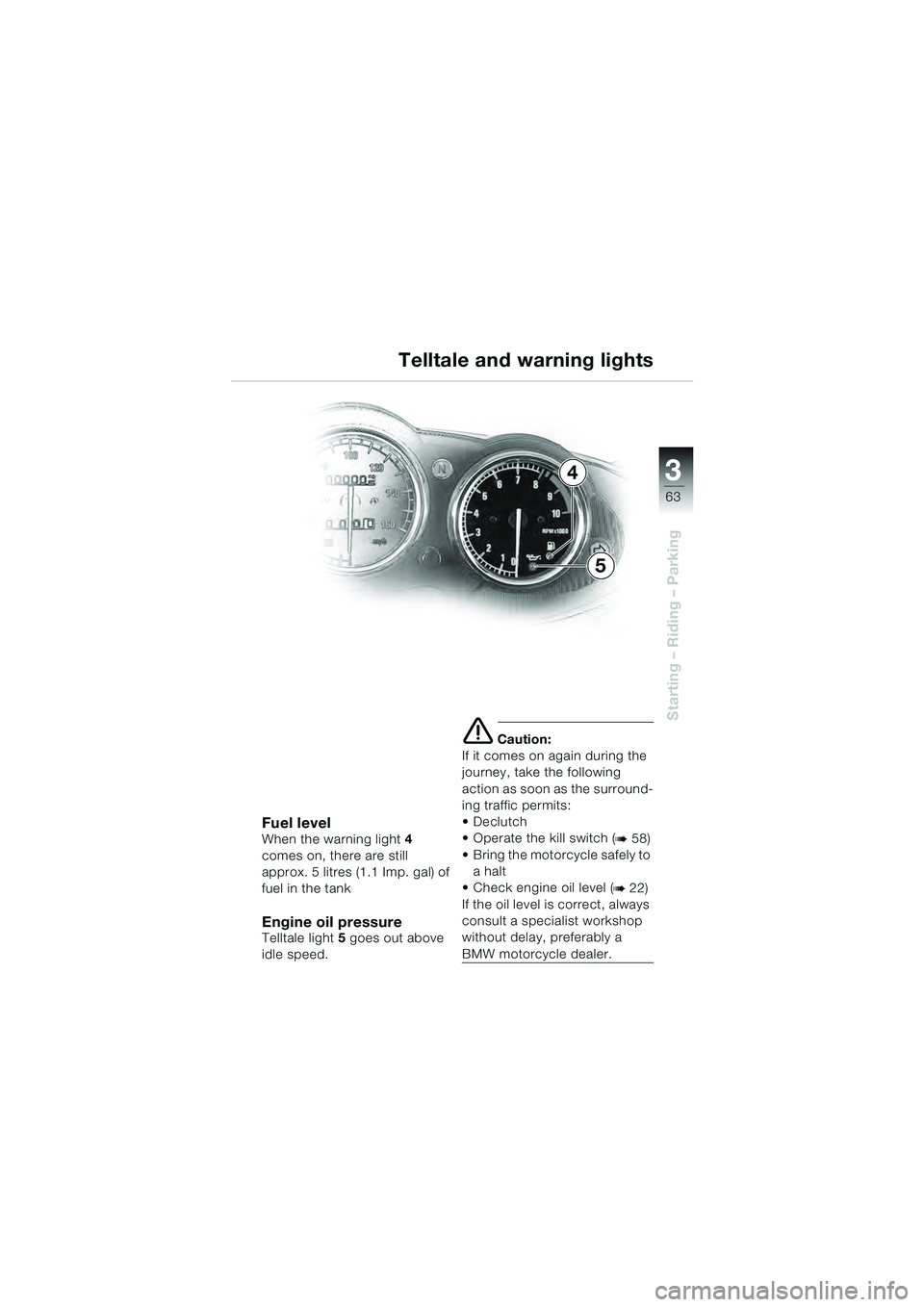

Page 65 of 92
3
63
Starting – Riding – Parking
Fuel levelWhen the warning light4
comes on, there are still
approx. 5 litres (1.1 Imp. gal) of
fuel in the tank
Engine oil pressureTelltale light 5 goes out above
idle speed.
e Caution:
If it comes on again during the
journey, take the following
action as soon as the surround-
ing traffic permits:
Operate the kill switch (
b 58)
Bring the motorcycle safely to a halt
Check engine oil level (
b 22)
If the oil level is correct, always
consult a specialist workshop
without delay, preferably a
BMW motorcycle dealer.
Telltale and warning lights
4
5
10sbkg4.bk Seite 63 Dienstag, 29. Juni 2010 9:21 09
Page 66 of 92
64
Starting – Riding – Parking
3
Engine speedLimit engine speed in accord-
ance with engine temperature,
using the highest engine
speeds only when the engine
has reached its regular operat-
ing temperature.
When the rev. counter needle
enters the red zone on the dial,
the fuel supply is interrupted in
order to protect the engine
against overspeeding.
L Note:
The governor cuts in at
8,200 rpm.
Opening and closing
throttle
d Warning:
Try not to open or close the
throttle abruptly, particularly
on wet or slippery roads.
Gear shifts
L Note:
Never slip the clutch excessive-
ly when changing gear. Vary
your speed only by using the
throttle in a suitable gear, not by
slipping the clutch.
Riding and changing gear
10sbkg4.bk Seite 64 Dienstag, 29. Juni 2010 9:21 09

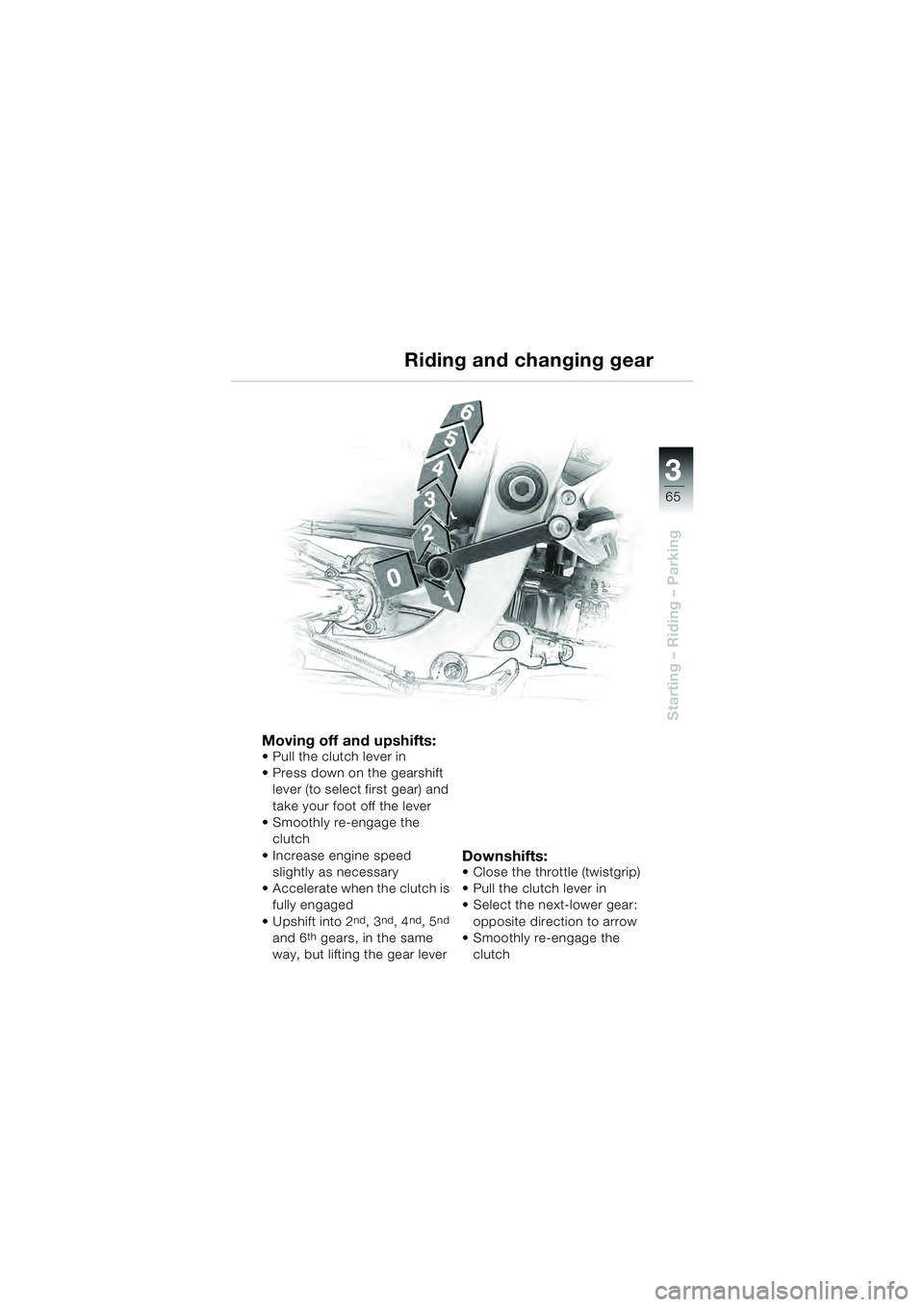

Page 67 of 92
3
65
Starting – Riding – Parking
Moving off and upshifts: Pull the clutch lever in
Press down on the gearshift lever (to select first gear) and
take your foot off the lever
Smoothly re-engage the
clutch
Increase engine speed slightly as necessary
Accelerate when the clutch is fully engaged
nd, 3nd, 4nd, 5nd
and 6th gears, in the same
way, but lifting the gear lever
Downshifts: Close the throttle (twistgrip)
Pull the clutch lever in
Select the next-lower gear: opposite direction to arrow
Smoothly re-engage the
clutch
Riding and changing gear
10sbkg4.bk Seite 65 Dienstag, 29. Juni 2010 9:21 09
Page 68 of 92
66
Starting – Riding – Parking
3
Brake system - general
Wet bra kesAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet
(or iced-over in winter), and
may not take effect immedi-
ately.
d Warning:
The brakes have to dry before
they start to bite.
Salt on brakesThe full braking effect can be
delayed if the motorcycle is
ridden on salt-covered roads
and the brakes are not applied
for some time.
d Warning:
The layer of salt on the brake
discs and pads must first be
worn away.
10sbkg4.bk Seite 66 Dienstag, 29. Juni 2010 9:21 09

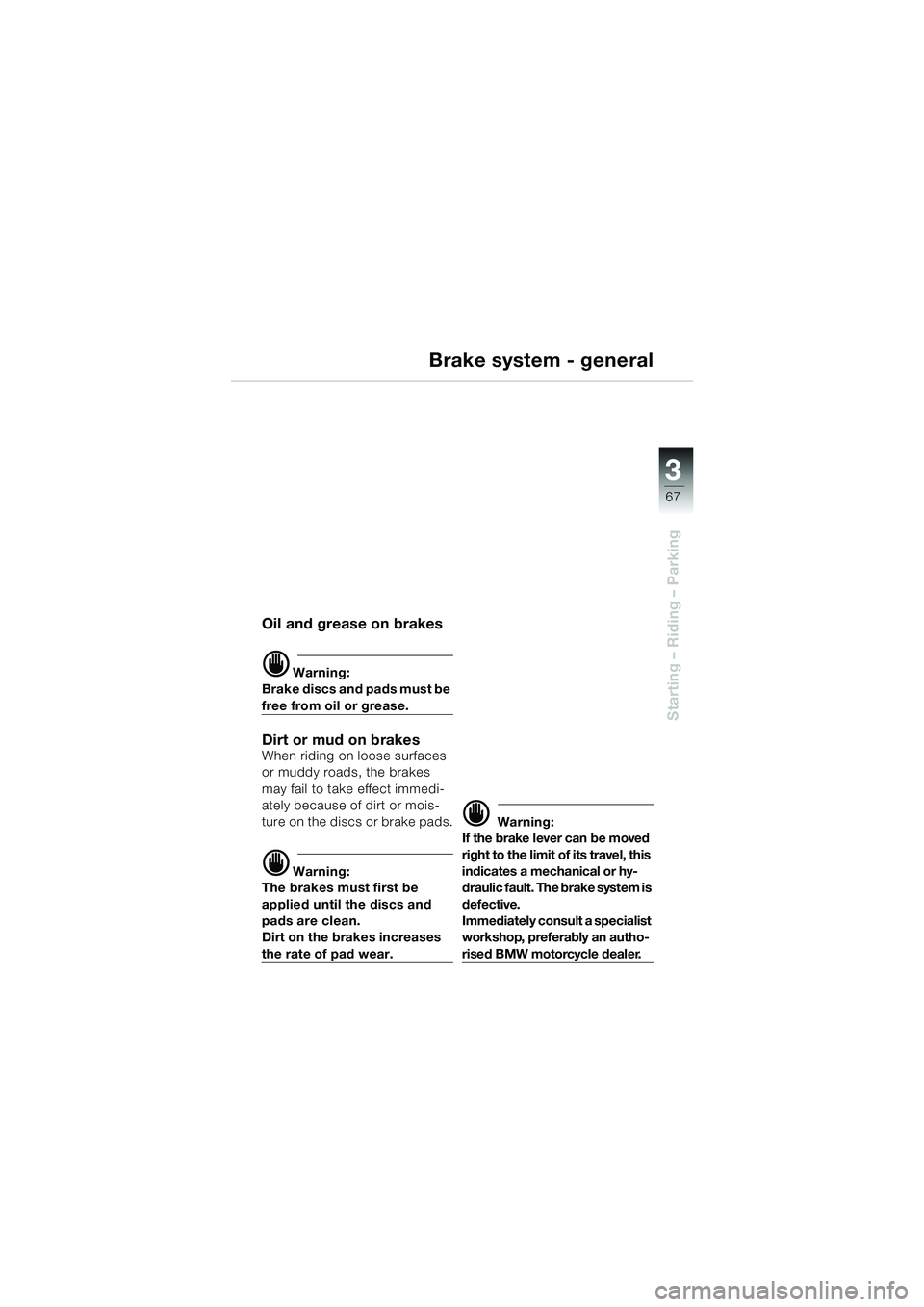

Page 69 of 92
3
67
Starting – Riding – Parking
Brake system - general
Oil and grease on brakes
d Warning:
Brake discs and pads must be
free from oil or grease.
Dirt or mud on brakesWhen riding on loose surfaces
or muddy roads, the brakes
may fail to take effect immedi-
ately because of dirt or mois-
ture on the discs or brake pads.
d Warning:
The brakes must first be
applied until the discs and
pads are clean.
Dirt on the brakes increases
the rate of pad wear.
d Warning:
If the brake lever can be moved
right to the limit of its travel, this
indicates a mechanical or hy-
draulic fault. The brake system is
defective.
Immediately consult a specialist
workshop, preferably an autho-
rised BMW motorcycle dealer.
10sbkg4.bk Seite 67 Dienstag, 29. Juni 2010 9:21 09
Page 70 of 92
68
Starting – Riding – Parking
3

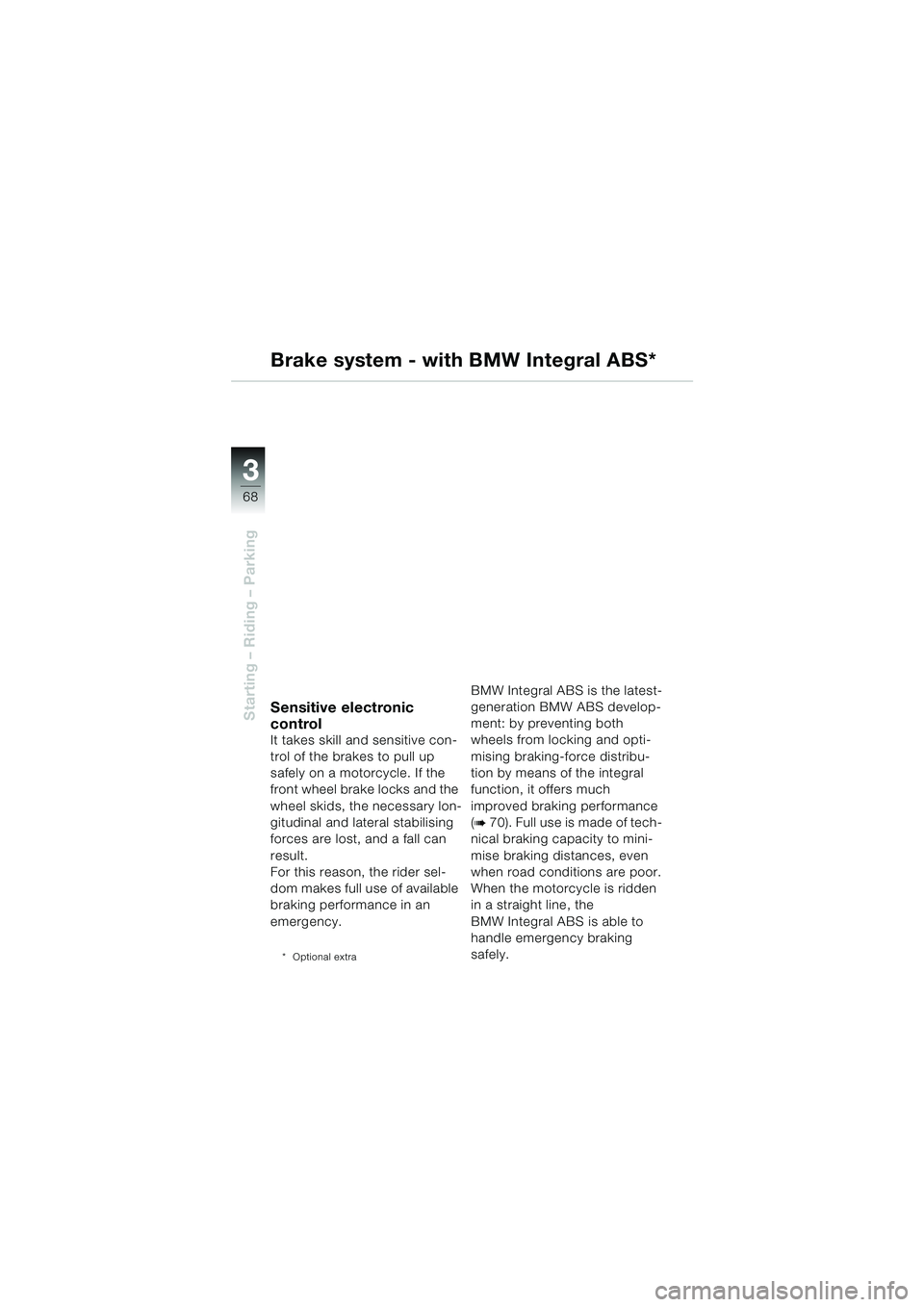

Brake system - with BMW Integral ABS*
Sensitive electronic
control
It takes skill and sensitive con-
trol of the brakes to pull up
safely on a motorcycle. If the
front wheel brake locks and the
wheel skids, the necessary lon-
gitudinal and lateral stabilising
forces are lost, and a fall can
result.
For this reason, the rider sel-
dom makes full use of available
braking performance in an
emergency.
* Optional extra
BMW Integral ABS is the latest-
generation BMW ABS develop-
ment: by preventing both
wheels from locking and opti-
mising braking-force distribu-
tion by means of the integral
function, it offers much
improved braking performance
(
b 70). Full use is made of tech-
nical braking capacity to mini-
mise braking distances, even
when road conditions are poor.
When the motorcycle is ridden
in a straight line, the
BMW Integral ABS is able to
handle emergency braking
safely.
10sbkg4.bk Seite 68 Dienstag, 29. Juni 2010 9:21 09

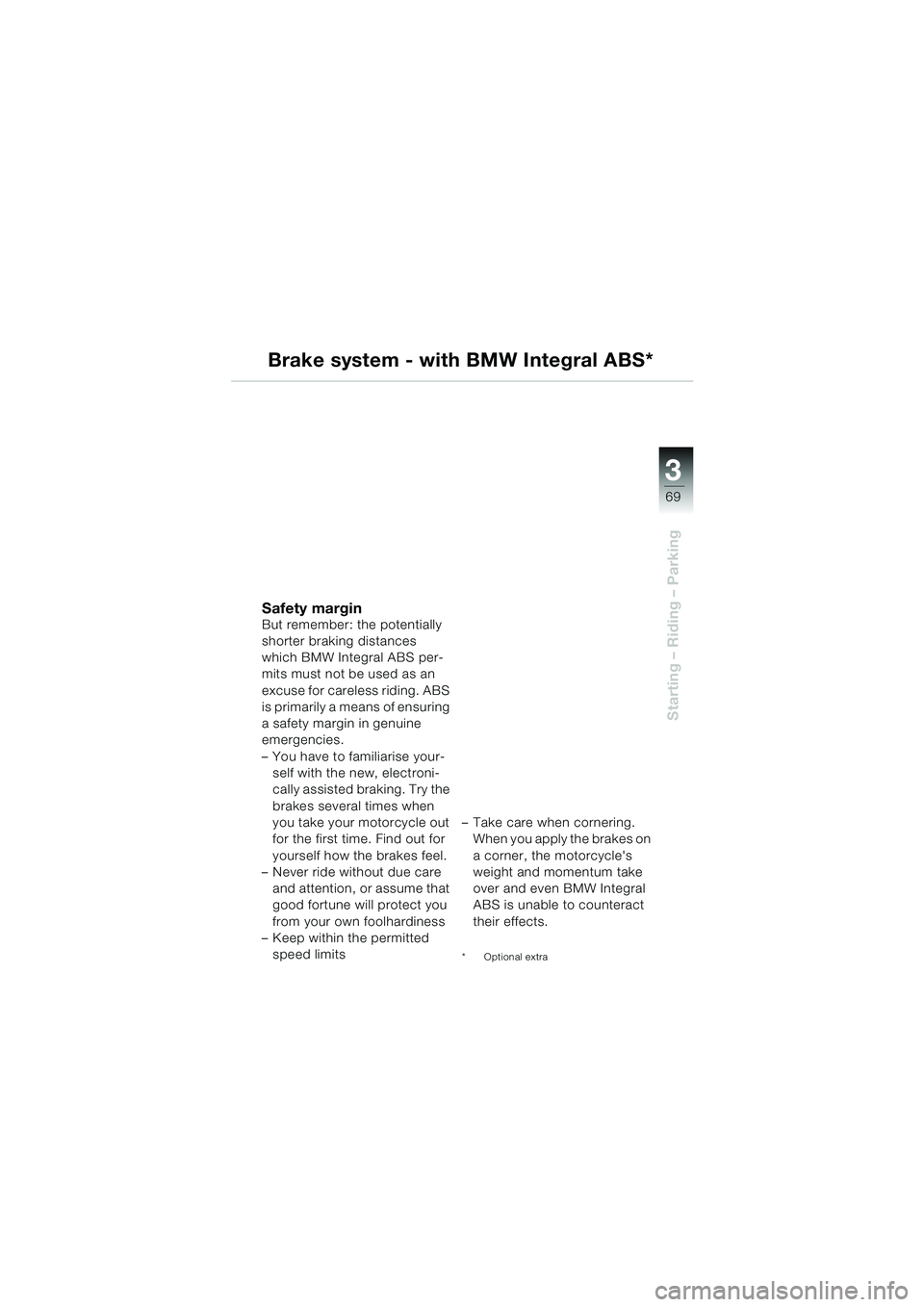

Page 71 of 92
3
69
Starting – Riding – Parking
Brake system - with BMW Integral ABS*
Safety marginBut remember: the potentially
shorter braking distances
which BMW Integral ABS per-
mits must not be used as an
excuse for careless riding. ABS
is primarily a means of ensuring
a safety margin in genuine
emergencies.
– You have to familiarise your-self with the new, electroni-
cally assisted braking. Try the
brakes several times when
you take your motorcycle out
for the first time. Find out for
yourself how the brakes feel.
– Never ride without due care
and attention, or assume that
good fortune will protect you
from your own foolhardiness
– Keep within the permitted
speed limits – Take care when cornering.
When you apply the brakes on
a corner, the motorcycle's
weight and momentum take
over and even BMW Integral
ABS is unable to counteract
their effects.
* Optional extra
10sbkg4.bk Seite 69 Dienstag, 29. Juni 2010 9:21 09

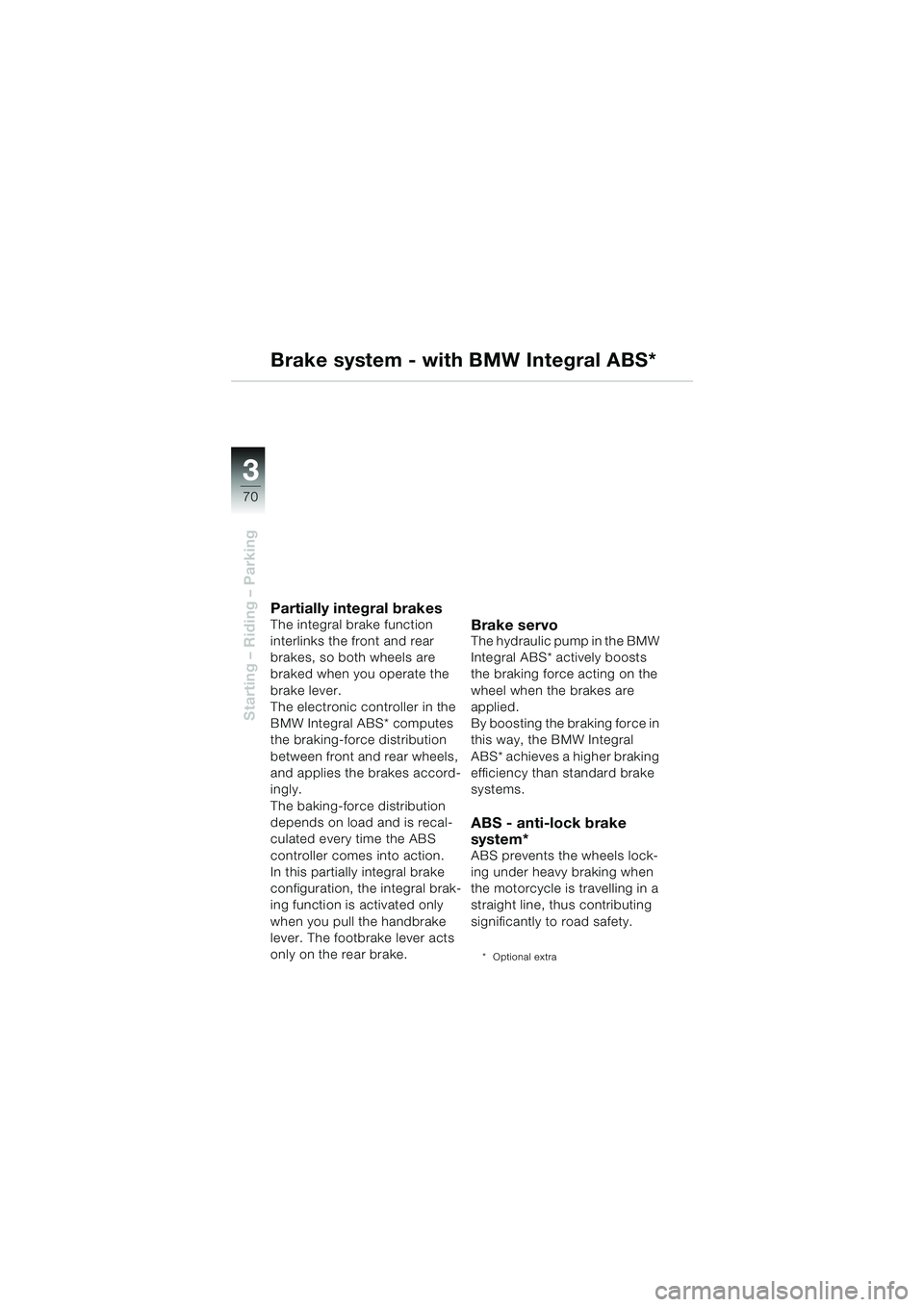

Page 72 of 92
70
Starting – Riding – Parking
3
Brake system - with BMW Integral ABS*
Partially integral brakesThe integral brake function
interlinks the front and rear
brakes, so both wheels are
braked when you operate the
brake lever.
The electronic controller in the
BMW Integral ABS* computes
the braking-force distribution
between front and rear wheels,
and applies the brakes accord-
ingly.
The baking-force distribution
depends on load and is recal-
culated every time the ABS
controller comes into action.
In this partially integral brake
configuration, the integral brak-
ing function is activated only
when you pull the handbrake
lever. The footbrake lever acts
only on the rear brake.Brake servoThe hydraulic pump in the BMW
Integral ABS* actively boosts
the braking force acting on the
wheel when the brakes are
applied.
By boosting the braking force in
this way, the BMW Integral
ABS* achieves a higher braking
efficiency than standard brake
systems.
ABS - anti-lock brake
system*
ABS prevents the wheels lock-
ing under heavy braking when
the motorcycle is travelling in a
straight line, thus contributing
significantly to road safety.
* Optional extra
