2000 BMW MOTORRAD R 1100 S Rider's Manual (in English)

Rider's Manual
R 1100 S
TIT_S_BA.fm5 Seite 4 Montag, 28. Juni 2010 4:15 16

1

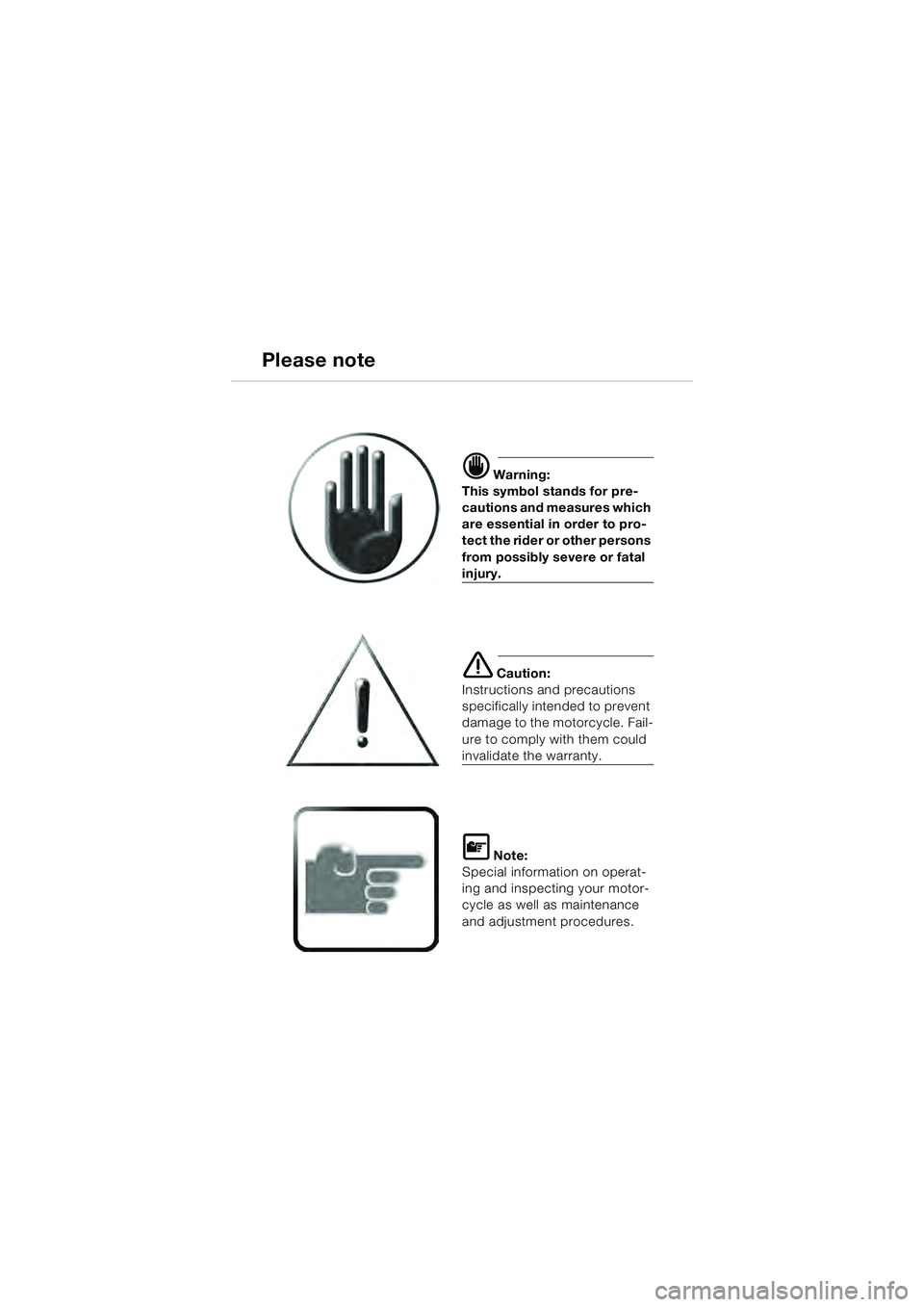

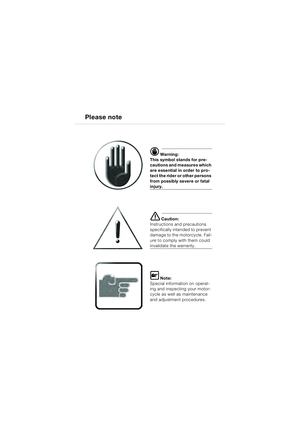

Please note
d Warning:
This symbol stands for pre-
cautions and measures which
are essential in order to pro-
tect the rider or other persons
from possibly severe or fatal
injury.
e Caution:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle. Fail-
ure to comply with them could
invalidate the warranty.
L Note:
Special information on operat-
ing and inspecting your motor-
cycle as well as maintenance
and adjustment procedures.
10sbkg4.bk Seite 92 Dienstag, 29. Juni 2010 9:21 09

i
1
Introduction
i

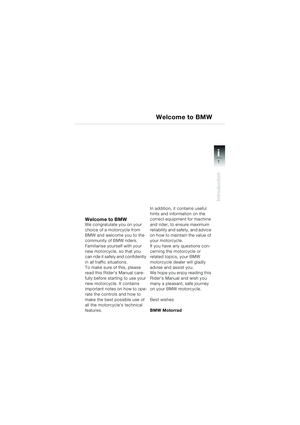

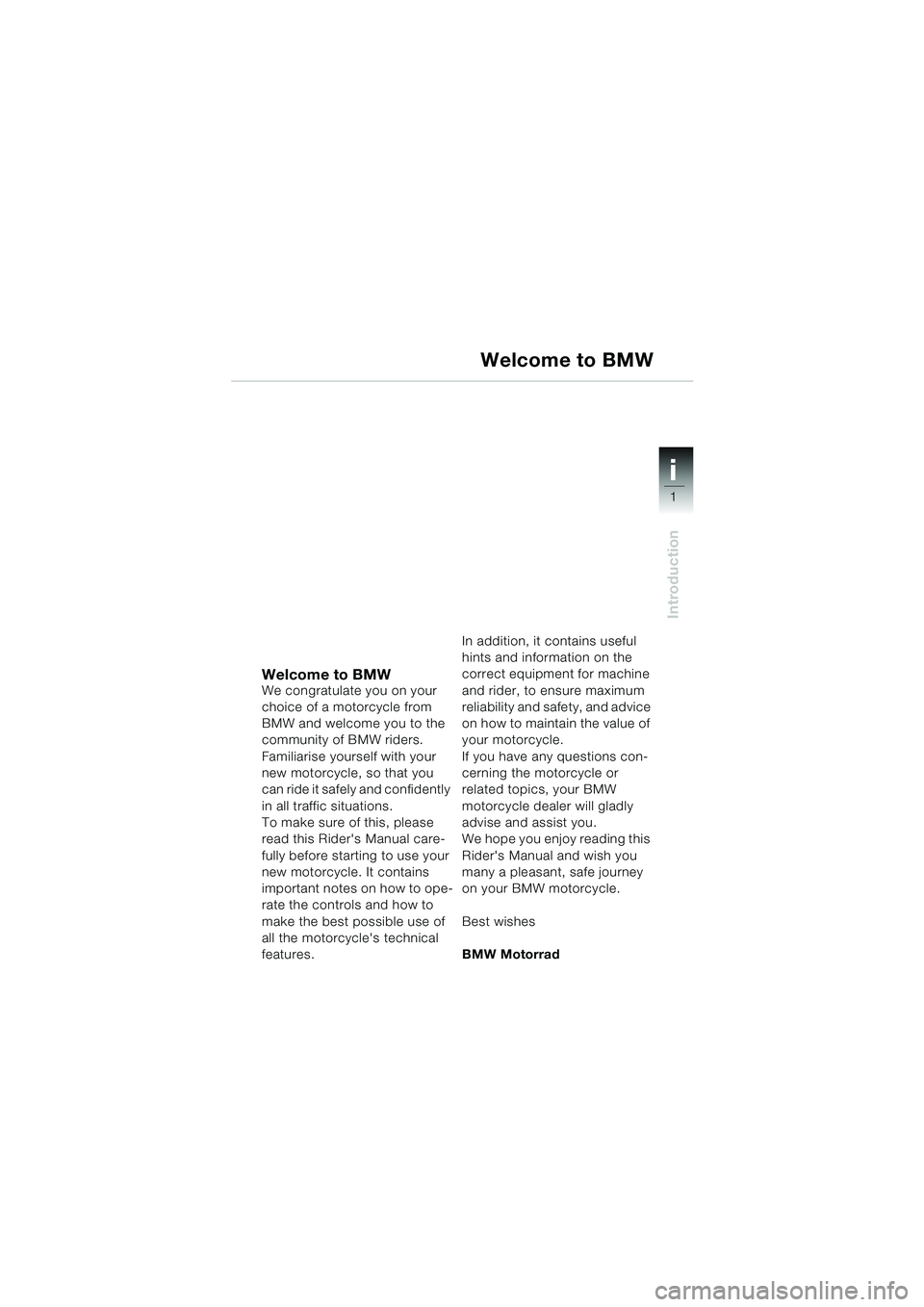

Welcome to BMWWe congratulate you on your
choice of a motorcycle from
BMW and welcome you to the
community of BMW riders.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider's Manual care-
fully before starting to use your
new motorcycle. It contains
important notes on how to ope-
rate the controls and how to
make the best possible use of
all the motorcycle's technical
features.In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.
If you have any questions con-
cerning the motorcycle or
related topics, your BMW
motorcycle dealer will gladly
advise and assist you.
We hope you enjoy reading this
Rider's Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes
BMW Motorrad
Welcome to BMW
10sbkg4.bk Seite 1 Dienstag, 29. Juni 2010 9:21 09

i
Introduction
12
2
12
i

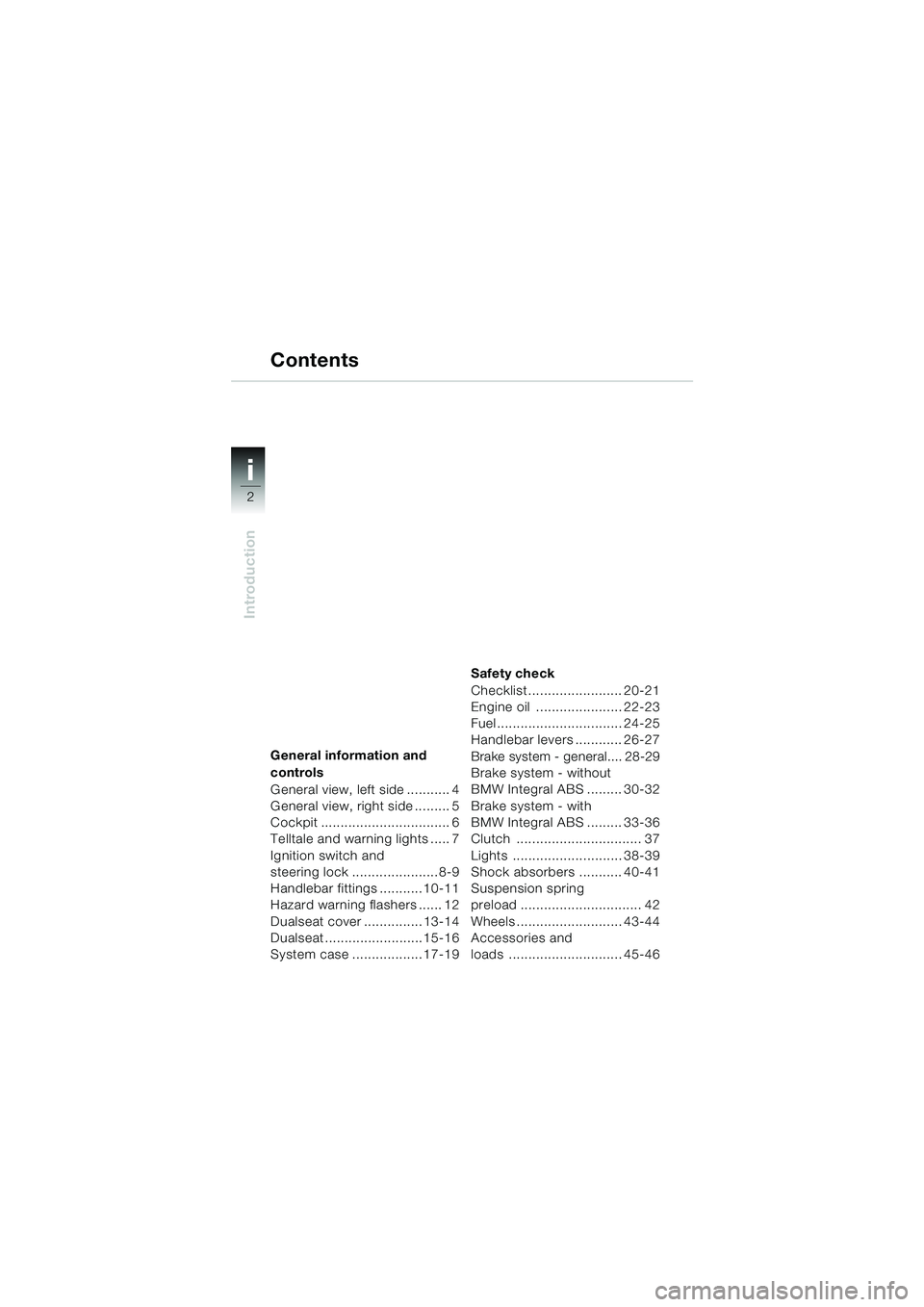

General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6

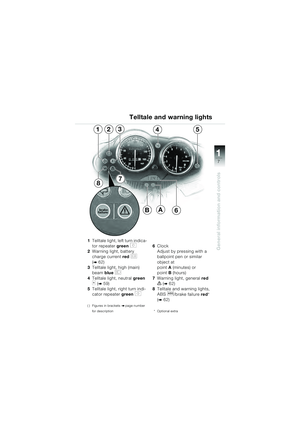

Telltale and warning lights ..... 7

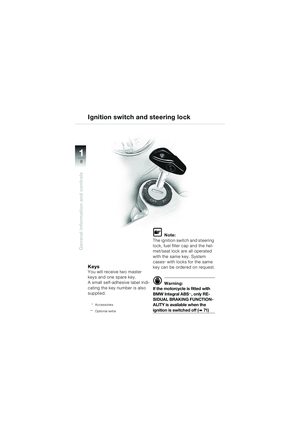

Ignition switch and
steering lock ...................... 8-9

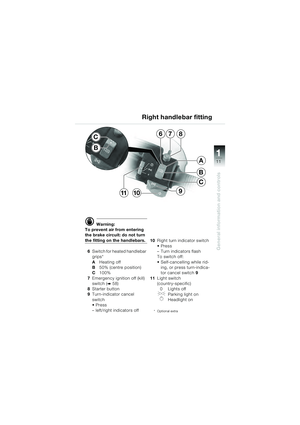

Handlebar fittings ........... 10-11

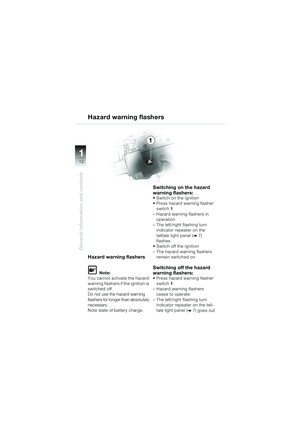

Hazard warning flashers ...... 12

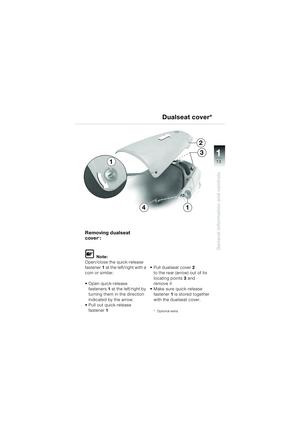

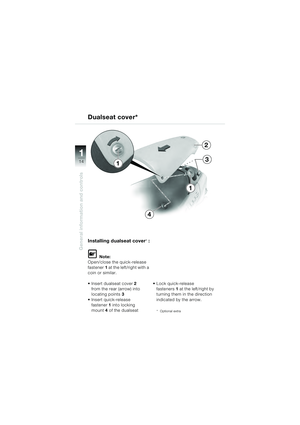

Dualseat cover ............... 13-14

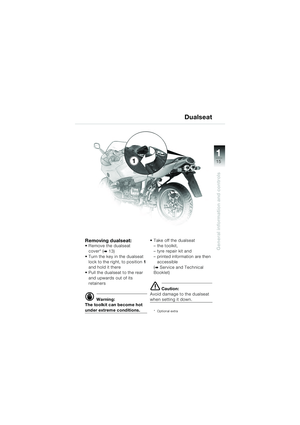

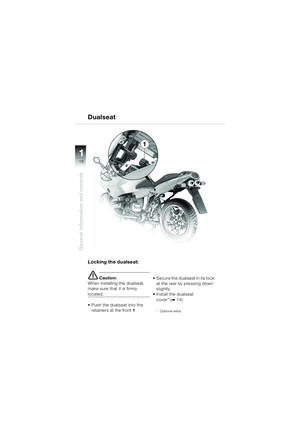

Dualseat .........................15-16

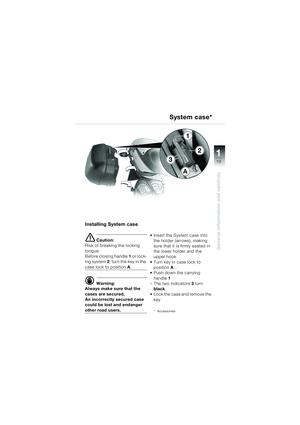

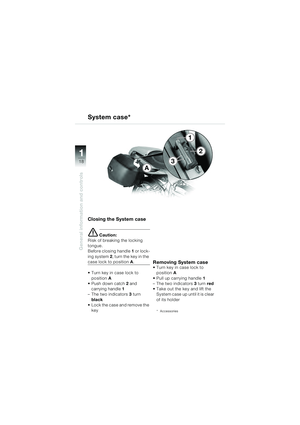

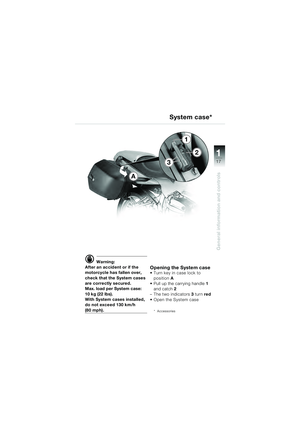

System case .................. 17-19 Safety check

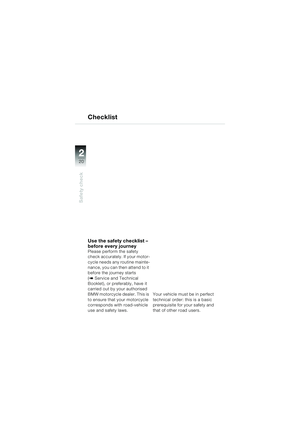

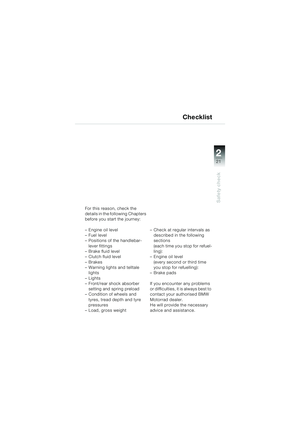

Checklist ........................ 20-21

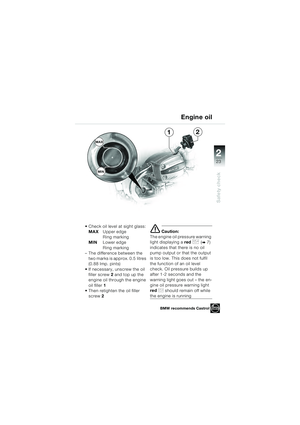

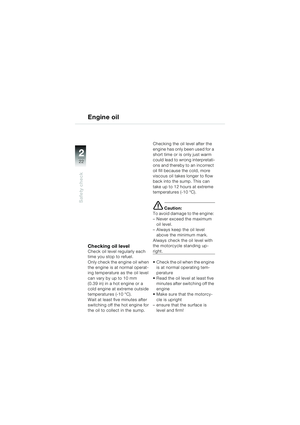

Engine oil ...................... 22-23

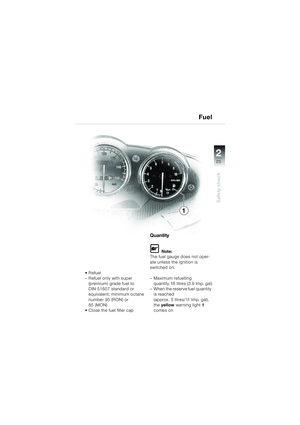

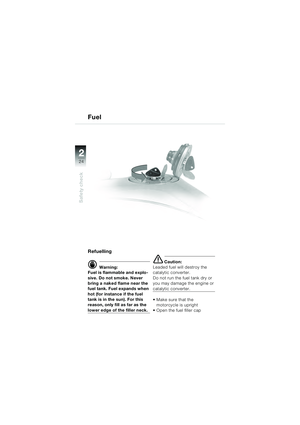

Fuel ................................ 24-25

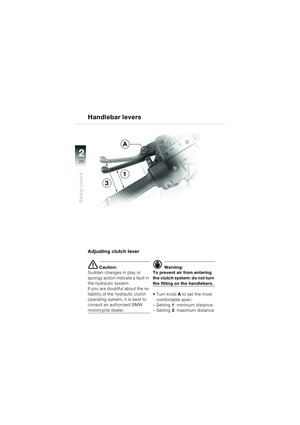

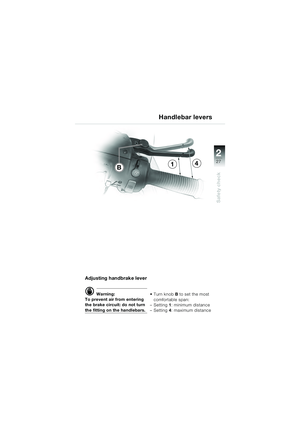

Handlebar levers ............ 26-27

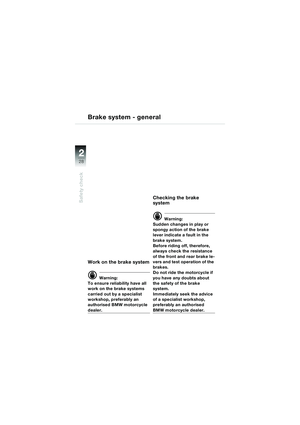

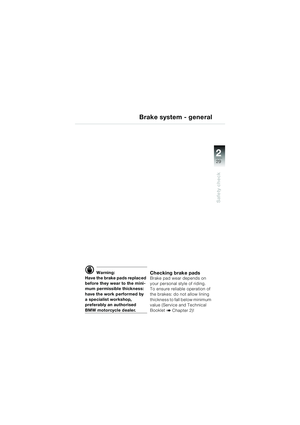

Brake system - general.... 28-29

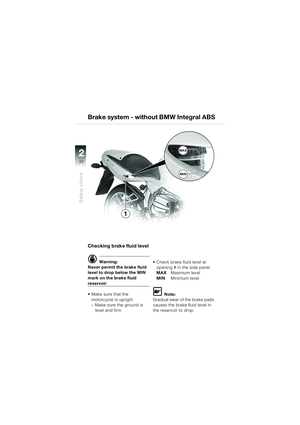

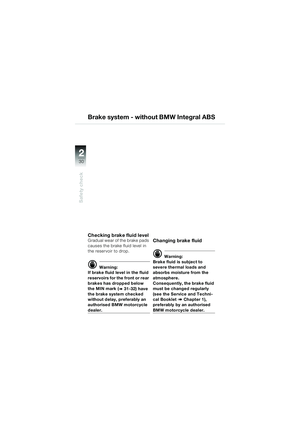

Brake system - without
BMW Integral ABS ......... 30-32

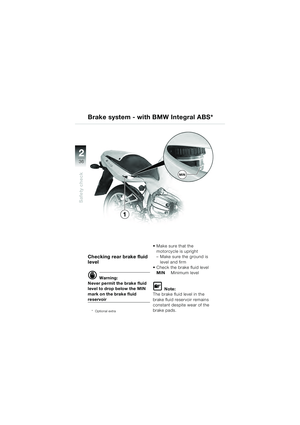

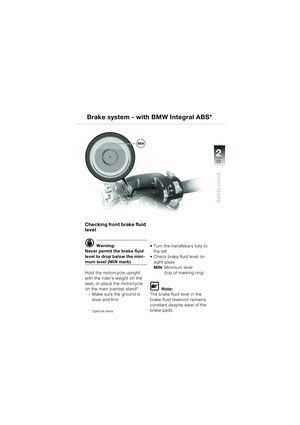

Brake system - with
BMW Integral ABS ......... 33-36

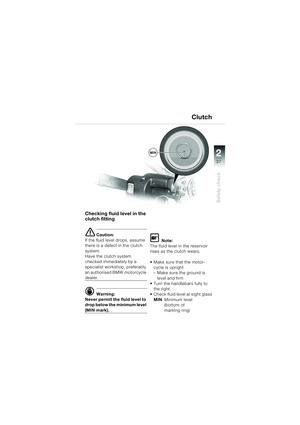

Clutch ................................ 37

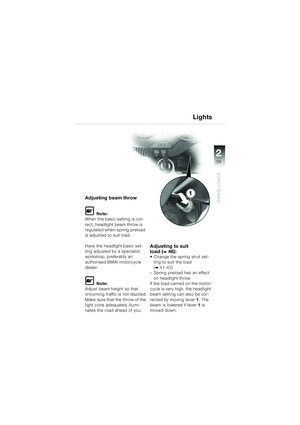

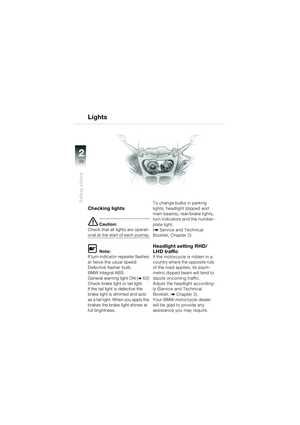

Lights ............................ 38-39

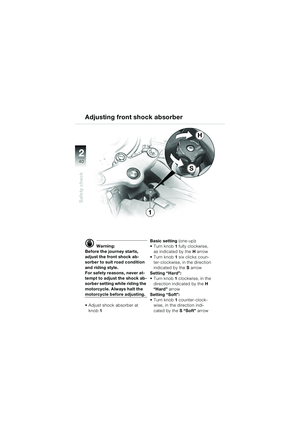

Shock absorbers ........... 40-41
Suspension spring
preload ............................... 42

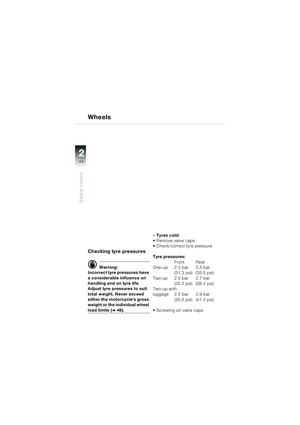

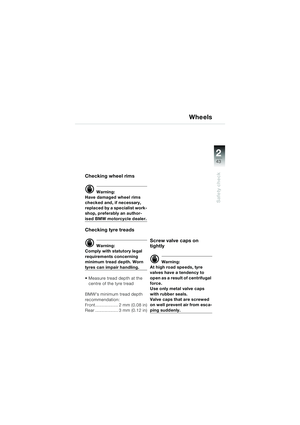

Wheels ........................... 43-44

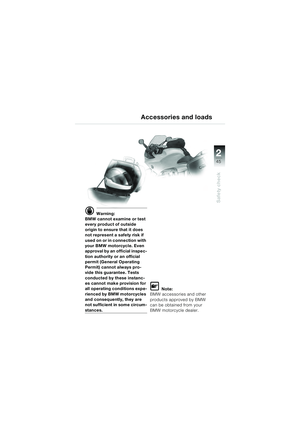

Accessories and
loads ............................. 45-46

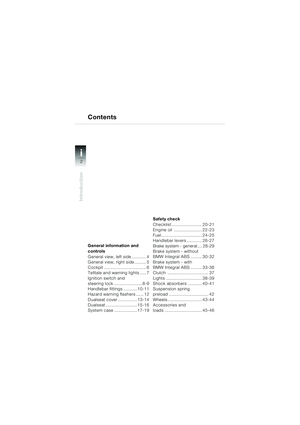

Contents
10sbkg4.bk Seite 2 Dienstag, 29. Juni 2010 9:21 09

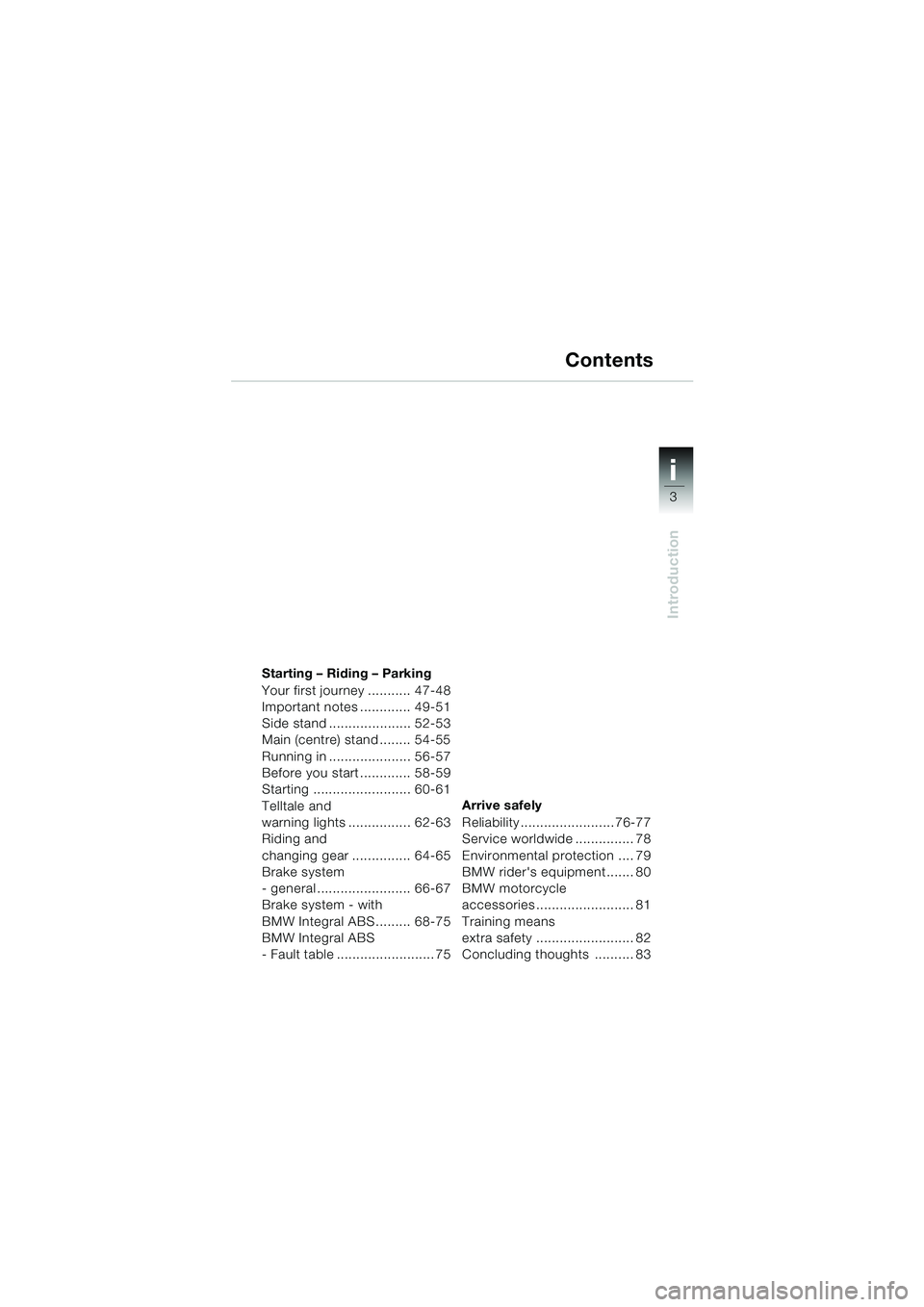

i
3
Introduction
34 34
i

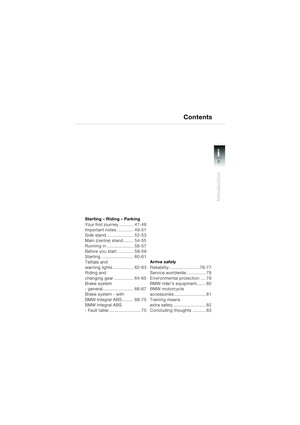

Starting – Riding – Parking

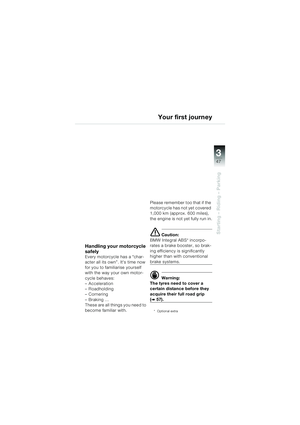

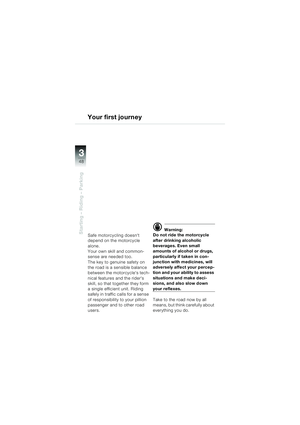

Your first journey ........... 47-48

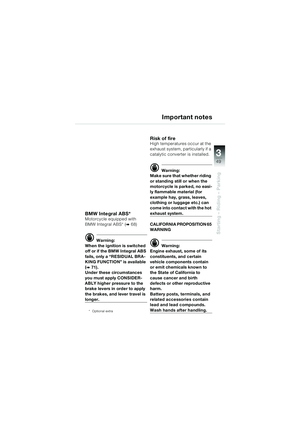

Important notes ............. 49-51

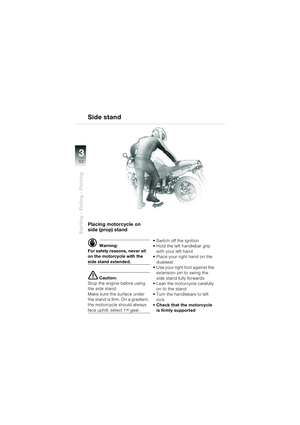

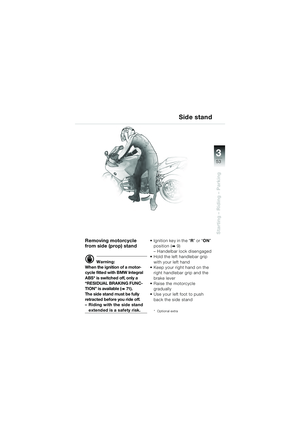

Side stand ..................... 52-53

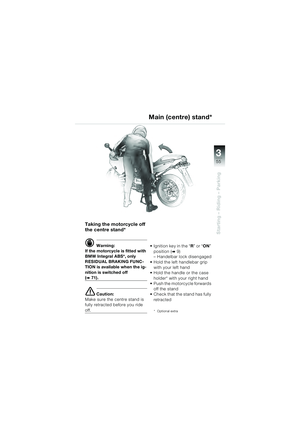

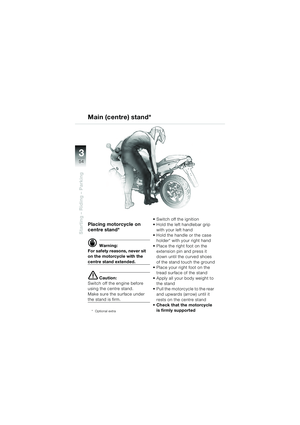

Main (centre) stand ........ 54-55

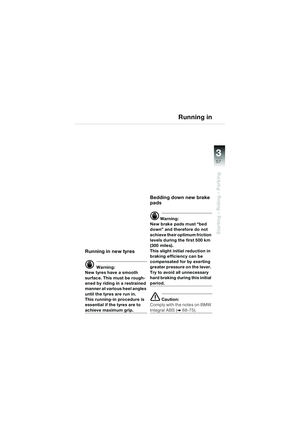

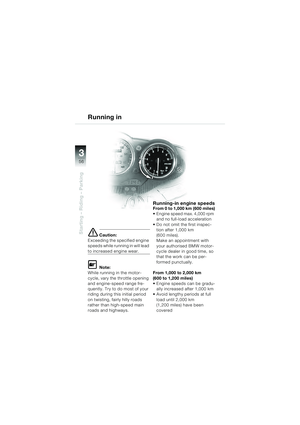

Running in ..................... 56-57

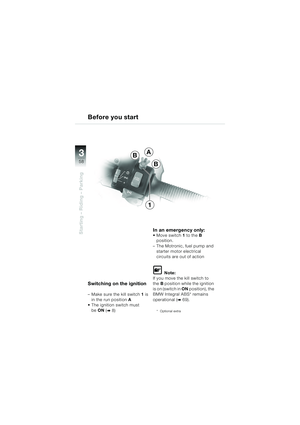

Before you start ............. 58-59

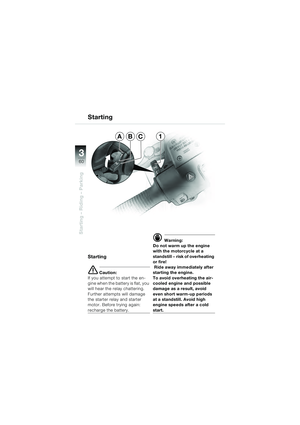

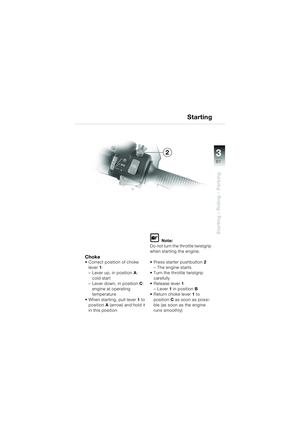

Starting ......................... 60-61

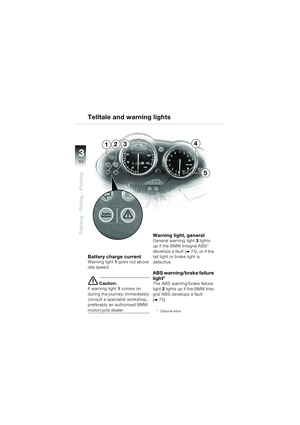

Telltale and
warning lights ................ 62-63

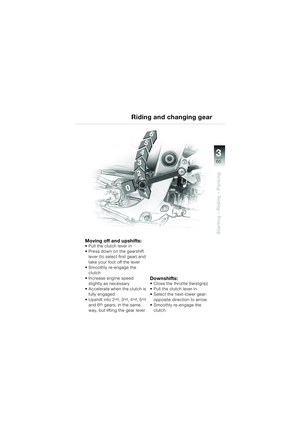

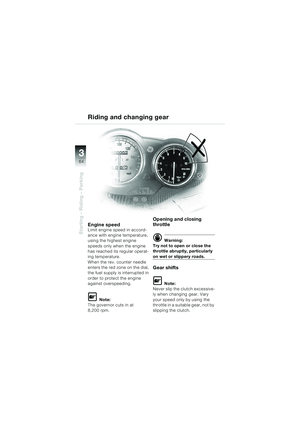

Riding and
changing gear ............... 64-65

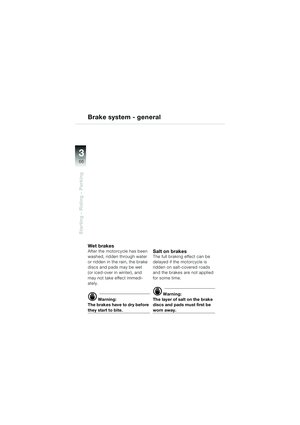

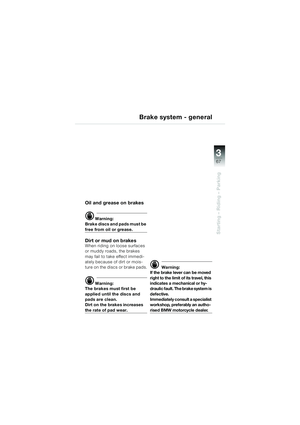

Brake system
- general ........................ 66-67

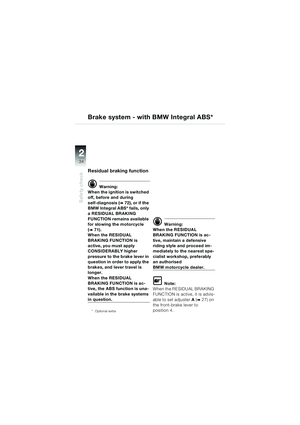

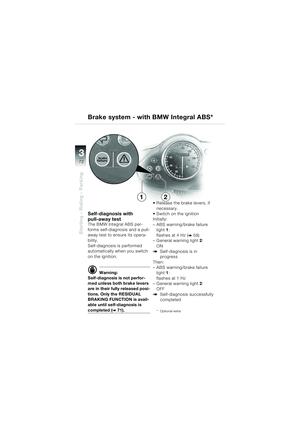

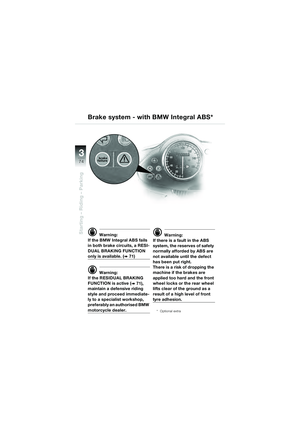

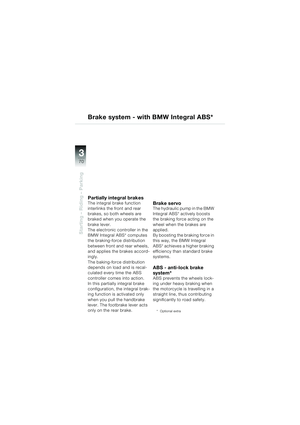

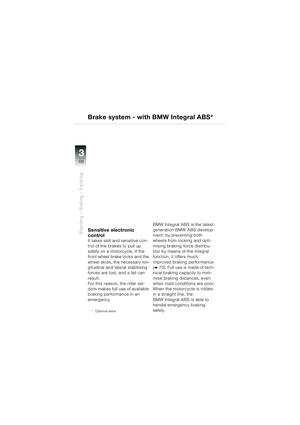

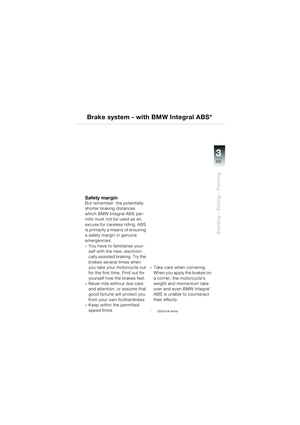

Brake system - with
BMW Integral ABS......... 68-75

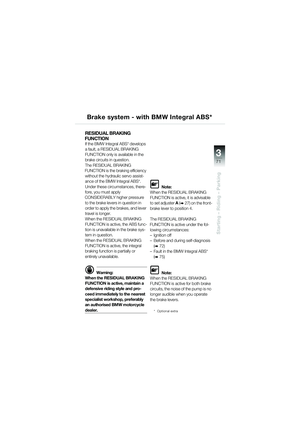

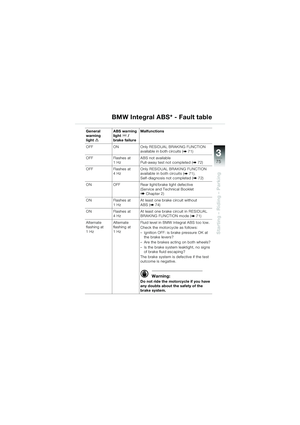

BMW Integral ABS
- Fault table ......................... 75Arrive safely

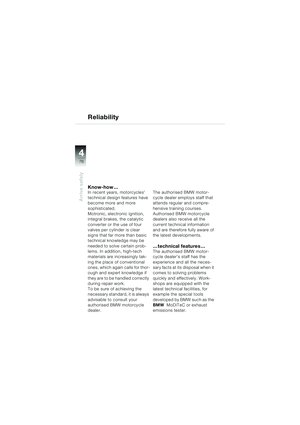

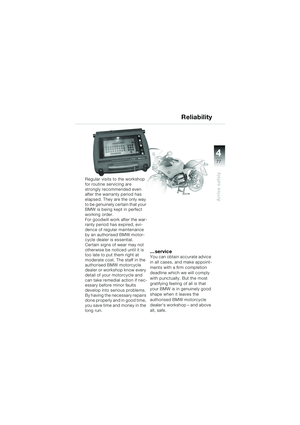

Reliability ........................76-77

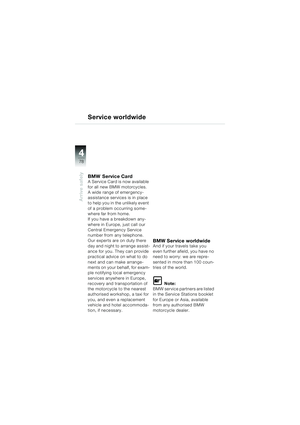

Service worldwide ............... 78

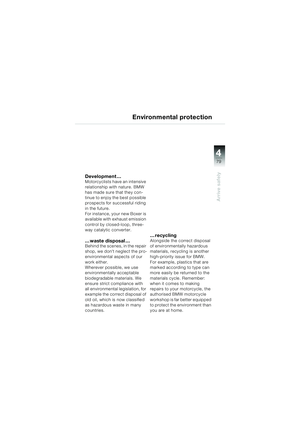

Environmental protection .... 79

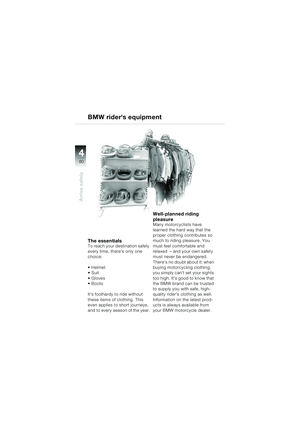

BMW rider's equipment ....... 80

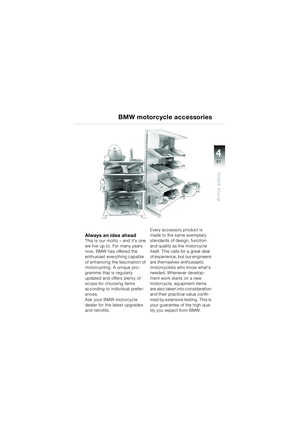

BMW motorcycle
accessories ......................... 81

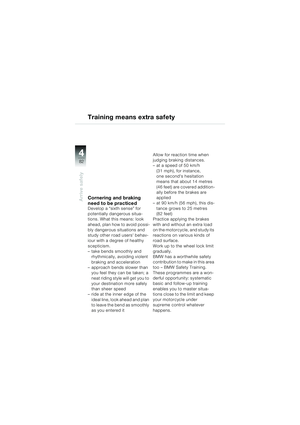

Training means
extra safety ......................... 82

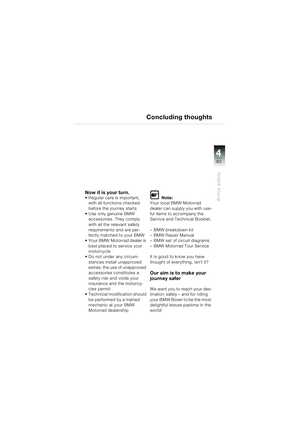

Concluding thoughts .......... 83
Contents
10sbkg4.bk Seite 3 Dienstag, 29. Juni 2010 9:21 09

11
4

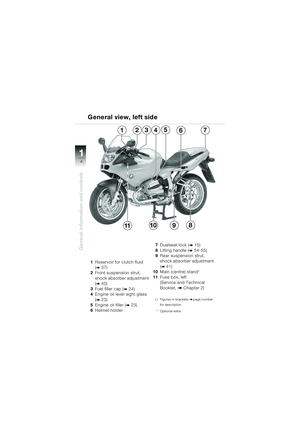

General information and controls
1Reservoir for clutch fluid
(
b 37)
2 Front suspension strut,
shock absorber adjustment
(
b 40)
3 Fuel filler cap (
b 24)
4 Engine oil level sight glass
(
b 23)
5 Engine oil filler (
b 23)
6 Helmet holder 7
Dualseat lock (
b 15)
8 Lifting handle (
b 54-55)
9 Rear suspension strut,
shock absorber adjustment
(
b 41)
10 Main (centre) stand*
11 Fuse box, left
(Service and Technical
Booklet,
b Chapter 2)
( ) Figures in brackets bpage number
for description
* Optional extra

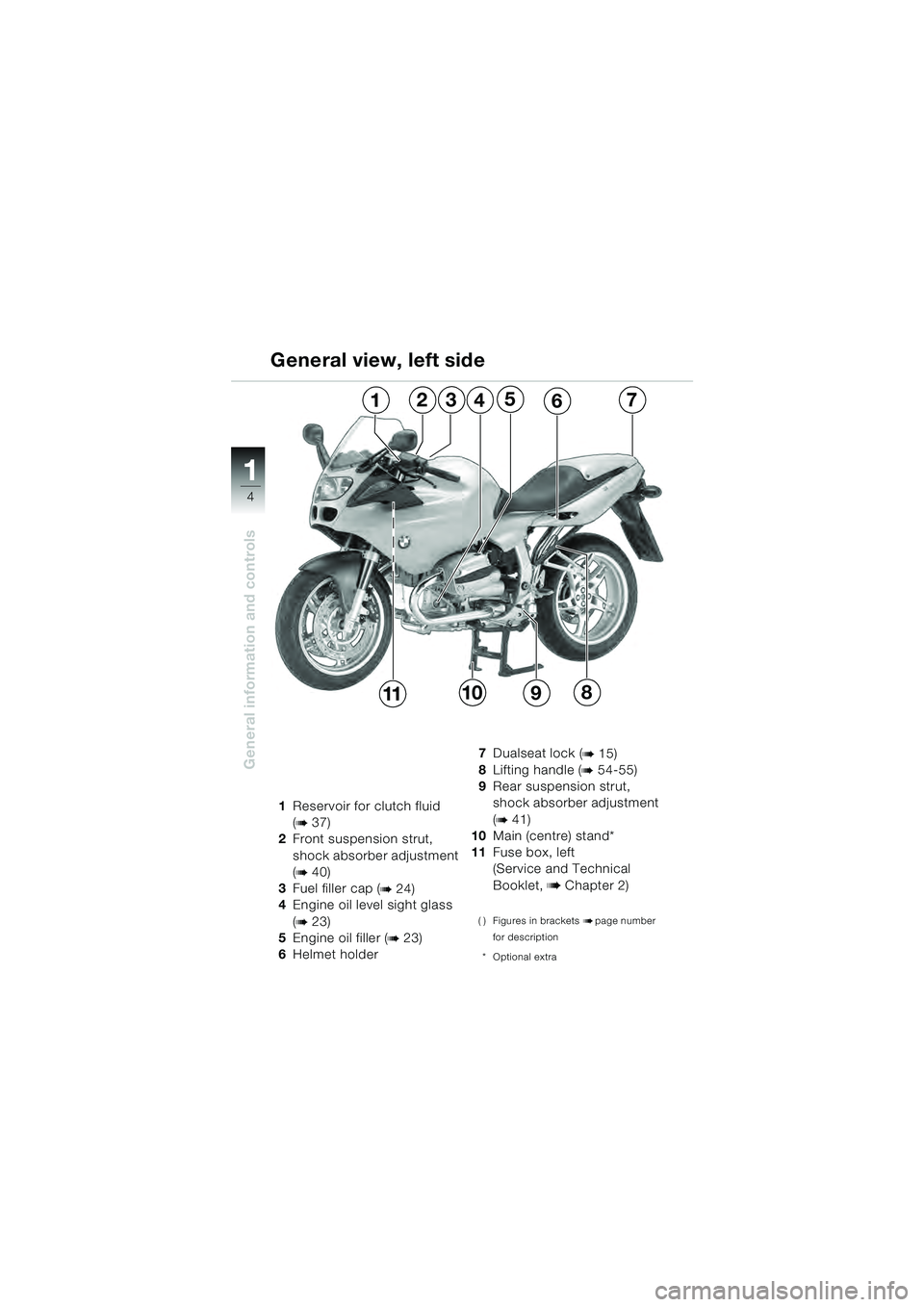

General view, left side
1234675
119108
10sbkg4.bk Seite 4 Dienstag, 29. Juni 2010 9:21 09

11
5
General information and controls
12Dualseat cover*
(
b 13, 14)
13 Storage compartment for
– Toolkit (
b 15)
– Repair kit for tubeless tyres (
b 15)
– Printed information (
b 15)
14 Helmet holder
15 Brake fluid reservoir for front
brake (
b 31, 35)
16 Fuse box, right
for optional extras
(Service and Technical
Booklet,
b Chapter 2) 17
Type plate
18 Vehicle identification
number
19 Power socket**, 12 V
Provision for connecting
additional equipment –
with fuse, 15 A
20 Rear suspension strut,
spring preload (
b 42)
21 Brake fluid reservoir for rear
brake (
b 32, 36)
( ) Figures in brackets bpage number
for description
* Optional extra
** Accessories

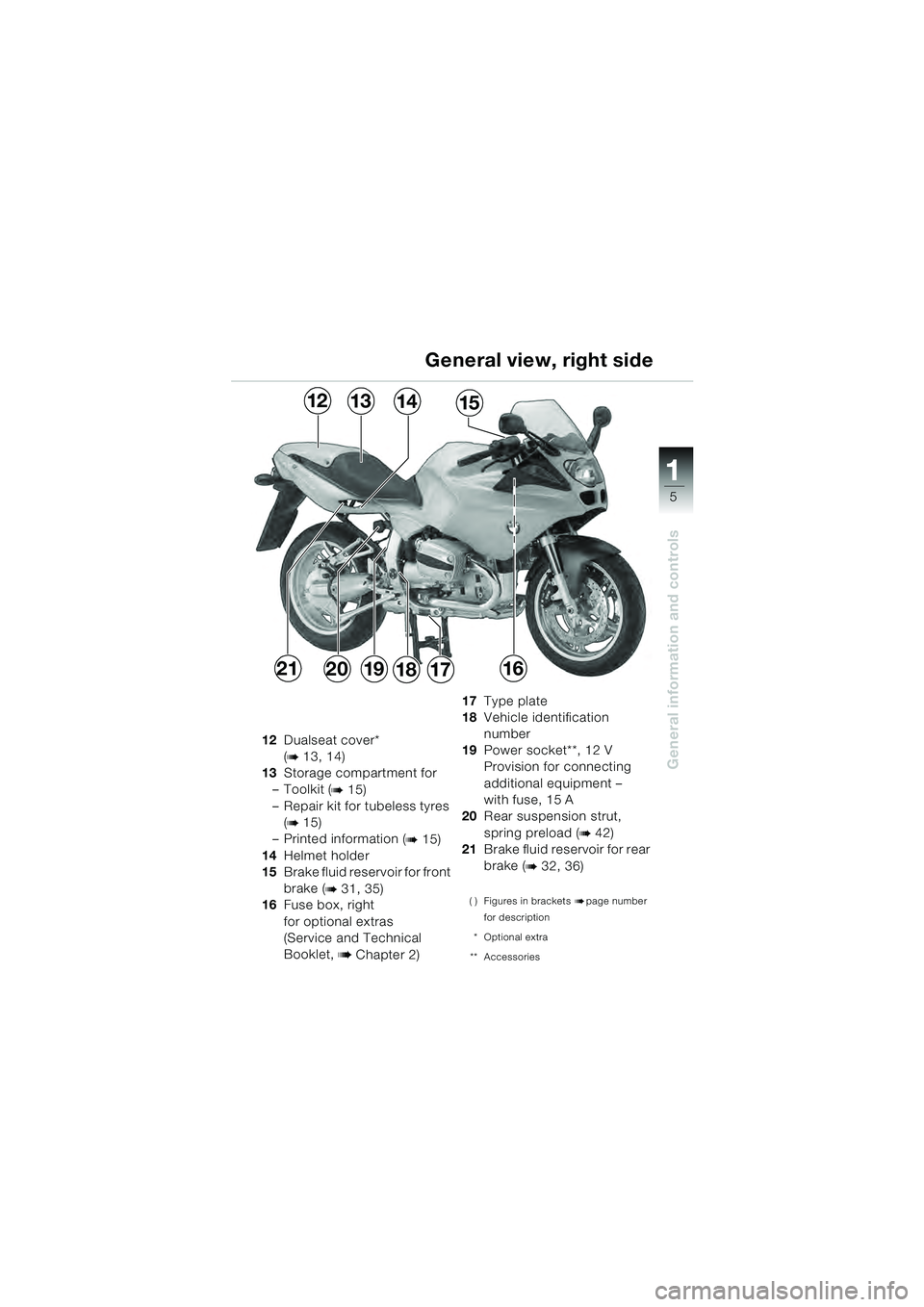

General view, right side
21
15141312
2019171618
10sbkg4.bk Seite 5 Dienstag, 29. Juni 2010 9:21 09

11

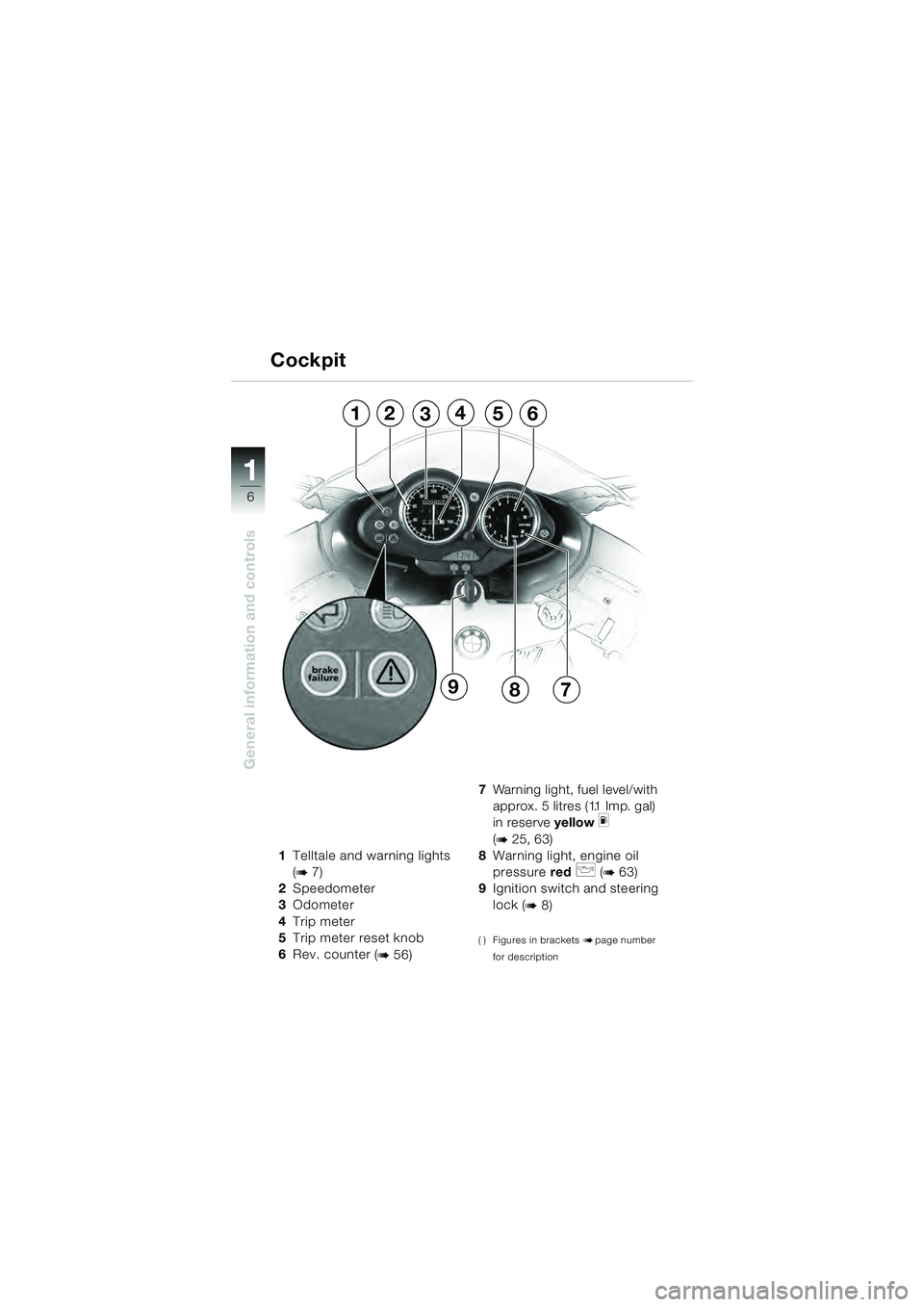

6
General information and controls
1Telltale and warning lights
(
b 7)
2 Speedometer
3 Odometer
4 Trip meter
5 Trip meter reset knob
6 Rev. counter (
b 56) 7
Warning light, fuel level/with
approx. 5 litres (1. 1 Imp. gal)
in reserve yellow
m
(
b 25, 63)
8 Warning light, engine oil
pressure red
p (b 63)
9 Ignition switch and steering
lock (
b 8)
( ) Figures in brackets bpage number
for description

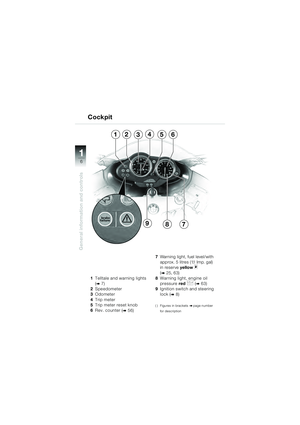

Cockpit
2356
79
4
8
1
