2000 BMW 323Ci COUPE Owner's Manual

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

RepairsIndexOverview Controls Car care Technology Data

Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multi-function steering wheel24
Hazard warning flashers25
Warning triangle25
First-aid kit25
Refueling26
Fuel specifications26
Tire inflation pressure27

16n
462us001

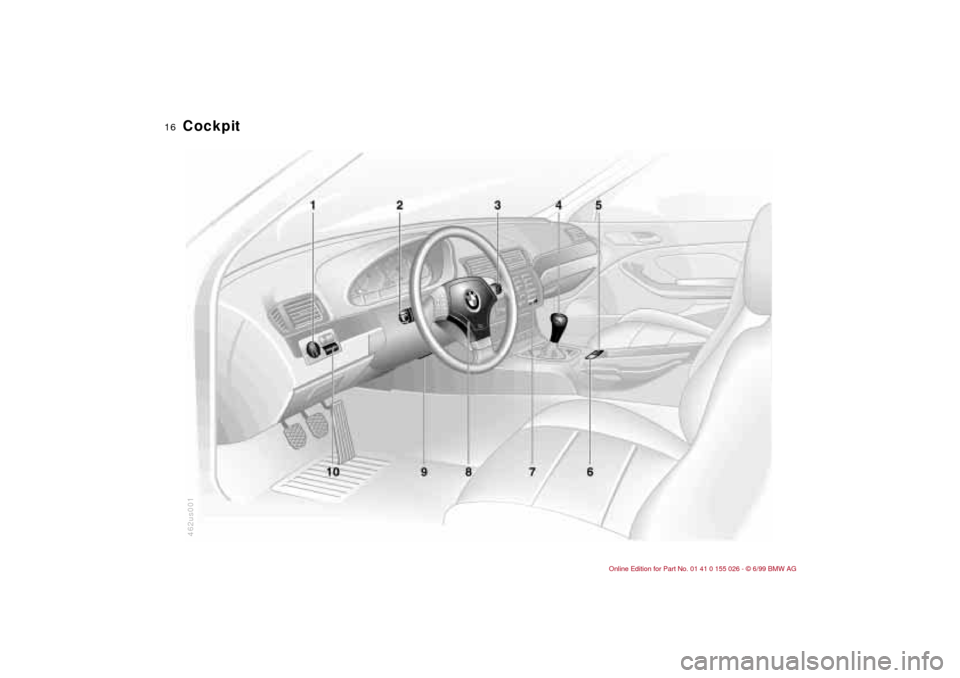

Cockpit

17n

RepairsIndexOverview Controls Car care Technology Data

Cockpit

1 Headlamp switch84
2

d

Turn signal69

>

Parking lamp85

>

High beam85

>

Headlamp flasher69

>

Onboard computer

*
77
3 Wiper/washer system69
4 Shift lever/Selector lever

*
65
For vehicles equipped with manual
transmission: Press the lever to the
left to overcome the slight resis-
tance to engage reverse gear
5 Central locking system34
6 Hazard warning flashers25
7 Rear window defroster71
8 Horn: The entire surface
9 Adjusting steering wheel51
10 Fog lamps

*
85

18n

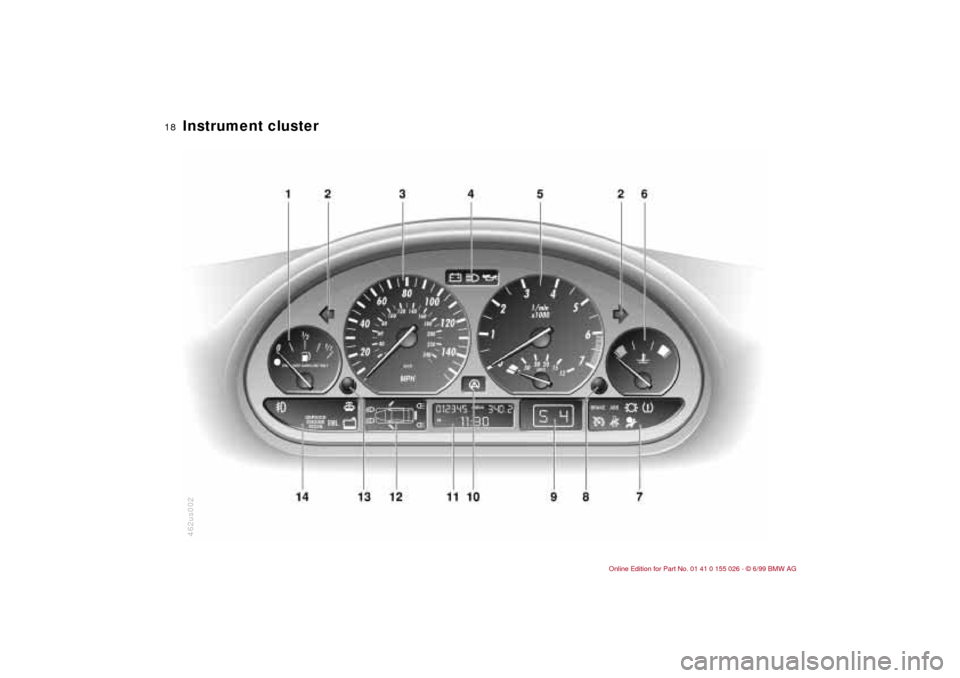

Instrument cluster 462us002

19n

RepairsIndexOverview Controls Car care Technology Data

Instrument cluster

1 Fuel gauge with indicator lamp for
fuel reserve75
2 Turn signal indicator23
3 Speedometer
4 Indicator lamp for

>

Battery charge current20

>

High beam23

>

Engine oil pressure/
Engine oil level20, 22
5 Tachometer and
Energy control74
6 Engine coolant thermometer with
"Coolant temperature too
high" indicator75
7 Indicator and warning lamps
(clockwise) for

>

Parking brake/
Brake hydraulic system/
Cornering Brake Control
(CBC)20

>

ABS22

>

Brake pads22

>

Tire Pressure Control
(RDC)

*
20, 22

>

Airbags21

>

Please fasten safety belts21

>

Cruise control

*
23
8 Clock reset

>

Clock77

>

Service Interval 769 Program display for automatic
transmission

*
68
Indicator lamp for automatic
transmission

*
22, 68
10 Indicator lamp for Dynamic Stability
Control (DSC)22
11 Indicator for

>

Odometer74

>

Trip odometer74

>

Clock77

>

Service Interval76
Indicator for onboard computer,
for operation via the turn signal lever,
refer to page 77:

>

Clock

>

Outside temperature

>

Average fuel consumption

>

Range

>

Average speed
12 Indicator for Check Control77
13 Trip odometer, reset to zero7414 Indicator and warning lamps
(clockwise) for

>

Fog lamps

*
23

>

Add washer fluid22

>

Coolant level23

>

Electronic Engine Power
Control (EML)

*
23

>

Engine Management system22
You can display the outside tem-
perature and distance driven in
different units of measurement.

<

20n

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW mon-
itor themselves automatically, both dur-
ing engine starts and while you are driv-
ing. Indicator and warning lamps that
are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: Stop immediately

Battery charge current



l


The battery is no longer being
charged. There is a malfunction
of the alternator ribbed V-belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the ribbed V-belt is defective, do
not continue driving. The engine
could be damaged due to overheating.
If the ribbed V-belt is defective, in-
creased steering effort is also re-
quired.

<

Engine oil pressure


l


Stop vehicle and switch off en-
gine immediately. Check level of
oil in engine, top up as required. If oil
level is correct: Please contact the
nearest BMW center.
Do not continue driving. The en-
gine could be damaged because
of inadequate lubrication.

<
Tire Pressure Control (RDC)
* l
In addition, there is an acousti-
cal warning signal: A tire failure
has occurred. Reduce vehicle speed
immediately and stop the vehicle. Avoid
hard brake applications. Do not over-
steer.
For additional information: Refer to
page 82.
Brake hydraulic system l
If the lamp comes on when the
parking brake is not engaged:
Check the brake fluid level. Before driv-
ing further, be sure to read the notes on
pages 109 and 127.
Brake-warning lamp for Cana-
dian models.

21n
RepairsIndexOverview Controls Car care Technology Data
Indicator and warning lampsYellow: Stop immediately
Engine oil level

Comes on while driving: Stop
vehicle and switch off engine
immediately. The oil level is at the abso-
lute minimum.
Do not continue driving. The en-
gine could be damaged because
of inadequate lubrication.<
Red and yellow: Continue driving
cautiously
Cornering Brake Control (CBC) l
Comes on together with the yel-
low indicator lamps for ABS and
DSC:
The entire ABS, CBC and DSC

system has been deactivated.
Continue driving cautiously and
defensively. Avoid hard brake
applications. Please have the system
checked by your authorized BMW cen-
ter as soon as possible.
For additional information: Refer to
page 81, 107.
Warning lamps CBC, ABS and
DSC for Canadian models.
Red: An important reminder
Parking brake
Comes on when the parking
brake is applied – an additional
acoustical signal sounds when starting
off.
For additional information: Refer to
page 64.
Parking brake lamp for Cana-
dian models.
Please fasten safety belts l
An acoustical warning signal
sounds simultaneously. Lights
up for a few seconds or until the safety
belt is fastened.
For additional information on safety
belts: Refer to page 55.
Airbags l
Please have the system in-
spected by your authorized
BMW center.
For additional information: Refer to
page 57, 161.

22n
Indicator and warning lampsOrange: For the nearest BMW
center
Automatic transmission
*
Because of a malfunction, the
automatic transmission shifts
only in the emergency program. Please
consult the nearest authorized BMW
center.
For additional information: Refer to
page 68.
Yellow: Check as soon as possible
Antilock Brake System (ABS) l
ABS has been deactivated in re-
sponse to system malfunction.
Conventional braking efficiency is avail-
able without limitations. Please have
the system inspected by your autho-
rized BMW center.
For additional information: Refer to
page 107.
ABS warning lamp for Canadian
models.
Engine oil level
Comes on after the engine has
been turned off: Check the en-
gine oil level.
For additional information: Refer to
page 123.
Brake pads l
Have the brake pads checked.
For additional information:
Refer to page 10 9.
Tire Pressure Control (RDC)
* l
Check the tire pressure. Refer to
page 27, 82.
Dynamic Stability Control
(DSC) l
The DSC has been switched off
or has been deactivated because of a
malfunction. In the event of a malfunc-
tion, have the system checked by your
authorized BMW center.
For additional information: Refer to
page 81.
Add washer fluid
The washer fluid is too low. Top
off the fluid at the earliest op-
portunity.
For additional information: Refer to
page 122.
Service engine soon l
There is a defect in the Engine
Management system. It is im-
portant to note that an illuminated lamp
is intended to inform the driver of the
need for service, not of the need to
stop the vehicle!
It can also be an indication that the filler
cap was not properly tightened after
refueling. Please have the system in-
spected by your authorized BMW
center.
For additional information: Refer to
page 137.
Engine Management warning
lamp for Canadian models.
