2000 AUDI A4 Instrument Cluster Location Diagram Through Model Year 2000 Workshop Manual

90-33


17 - High beam
18 - Left turn signal
19 - not occupied
20 - Terminal 58s
21 - Driver door contact
22 - Low coolant
23 - Terminal 30
24 - Terminal 31 (load Ground (GND))
25 - Consumption signal
26 - Right parking light
27 - Left parking light
28 - Tachometer input
29 - Brake
30 - S-contact
31 - Tachometer output 2
32 - ESP/ASR
Pa
ge 9 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-34


Green 32-pin multi-pin connector for auxiliary functions
1 - Door contact (all doors)
2 - Transponder 1
3 - not occupied
4 - not occupied
5 - W-wire
6 - Tailgate
7 - Right turn signal
8 - External buzzer
9 - External gong
10 - Airbag
11 - Stand-still time output
12 - Terminal 61
13 - Parking brake/BRAKE
14 - CHECK
15 - Oil level/oil temperature
16 - not occupied
Pa
ge 10 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-35


17 - Transponder 2
18 - CAN high speed (powertrain) (high +)
19 - CAN high speed (powertrain) (low -)
20 - CAN high speed (powertrain) (screen)
21 - ABS
22 - CAN low speed (comfort) (high +)
23 - CAN low speed (comfort) (low -)
24 - CAN low speed (comfort) (screen)
25 - Engine lid
26 - not occupied
27 - Belt buckle
28 - K-wire
29 - Outside temperature -input
30 - not occupied
31 - Selector range display
32 - not occupied
Pa
ge 11 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-36


Gray 32-pin multi-pin connector for multi-function display
1 - Menu selection switch (menu)
2 - Menu selection switch (out A)
3 - Menu selection switch (out B)
4 - Menu selection switch (Enter)
5 - CAN high speed display (high +)
6 - CAN high speed display (low -)
7 - CAN high speed display (screen)
8 - Passenger door contact
9 - Right rear door contact
10 - Left rear door contact
11 - Enable
12 - Clock
13 - Data
14 - Brake light
15 - Windshield washer fluid level
16 - Rear lights/low beams
Pa
ge 12 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-37


17 - Left board computer
18 - Right board computer
19 - Board computer, reset
20 - not occupied
21 - not occupied
22 - not occupied
23 - Button branch 1 navigation
24 - Button branch 2 navigation
25 - Button branch Telematic
26 - not occupied
27 - not occupied
28 - not occupied
29 - not occupied
30 - not occupied
31 - not occupied
32 - not occupied
Pa
ge 13 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-38

Engine speed signal, checking

If a malfunction of the RPM display at tachometer
is detected, signal at the tachometer must be
checked.

- Connect VAS5051 tester or VAG1551 scan tool
Page 01
-241
.

- Read Measuring Value Block Page 01
-
114
.

- Select display group number 001 and perform a
road test.
If the speed appears on the VAG1551 Scan Tool
display but not via the speedometer in instrument
cluster, the instrument cluster is faulty and must
be replaced.
If no speed is indicated on the VAG1551 Scan
Tool display either, the signal must be checked
at multi-function connection at instrument
cluster.

- Remove instrument cluster Page 90
-27
.
Pa
ge 14 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-39

- Connect VAG1598 tester with VAG1598/25
adapter to the blue 32-pin connector.

- Perform an acoustic continuity check of the
sensor and wire using the VAG1526 multimeter
between terminal 28 and socket 9 (load Ground
(GND))
Test
The beep signal of the resistance tester must
switch on and off several times while the vehicle
is rolled slightly forward and backward (approx.
1m)
If the test is not OK, the wire connection to speed
sender must be checked.

- Check wire connection according to wiring
diagram.

Electrical Wiring Diagrams, Troubleshooting &
Component Locations If the wire connection is OK, the speed sender
must be replaced.
Pa
ge 15 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-40

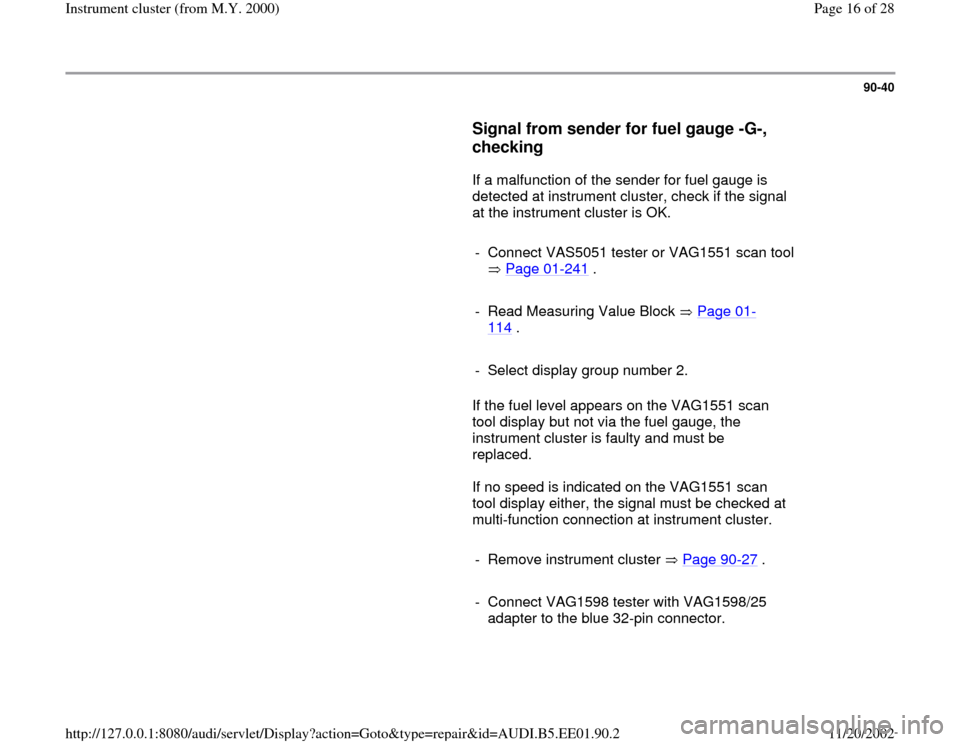

Signal from sender for fuel gauge -G-,
checking

If a malfunction of the sender for fuel gauge is
detected at instrument cluster, check if the signal
at the instrument cluster is OK.

- Connect VAS5051 tester or VAG1551 scan tool
Page 01
-241
.

- Read Measuring Value Block Page 01
-
114
.

- Select display group number 2.
If the fuel level appears on the VAG1551 scan
tool display but not via the fuel gauge, the
instrument cluster is faulty and must be
replaced.
If no speed is indicated on the VAG1551 scan
tool display either, the signal must be checked at
multi-function connection at instrument cluster.

- Remove instrument cluster Page 90
-27
.

- Connect VAG1598 tester with VAG1598/25
adapter to the blue 32-pin connector.
