2000 AUDI A4 light

90-33


17 - High beam
18 - Left turn signal
19 - not occupied
20 - Terminal 58s
21 - Driver door contact
22 - Low coolant
23 - Terminal 30
24 - Terminal 31 (load Ground (GND))
25 - Consumption signal
26 - Right parking light
27 - Left parking light
28 - Tachometer input
29 - Brake
30 - S-contact
31 - Tachometer output 2
32 - ESP/ASR
Pa
ge 9 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-36

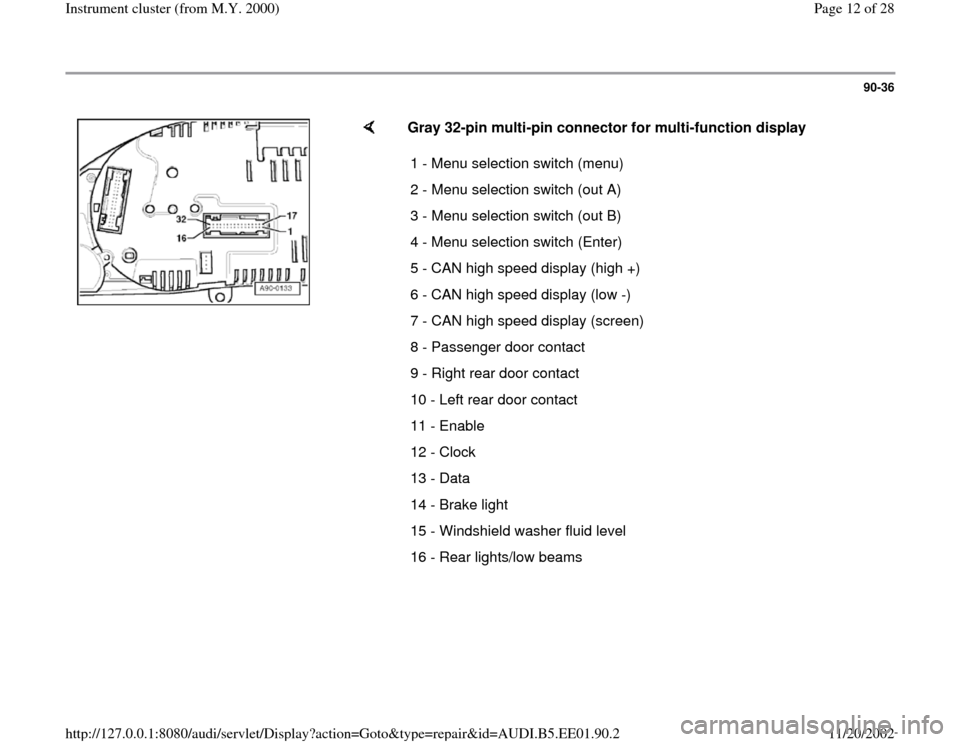

Gray 32-pin multi-pin connector for multi-function display
1 - Menu selection switch (menu)
2 - Menu selection switch (out A)
3 - Menu selection switch (out B)
4 - Menu selection switch (Enter)
5 - CAN high speed display (high +)
6 - CAN high speed display (low -)
7 - CAN high speed display (screen)
8 - Passenger door contact
9 - Right rear door contact
10 - Left rear door contact
11 - Enable
12 - Clock
13 - Data
14 - Brake light
15 - Windshield washer fluid level
16 - Rear lights/low beams
Pa
ge 12 of 28 Instrument cluster
(from M.Y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.2

90-39

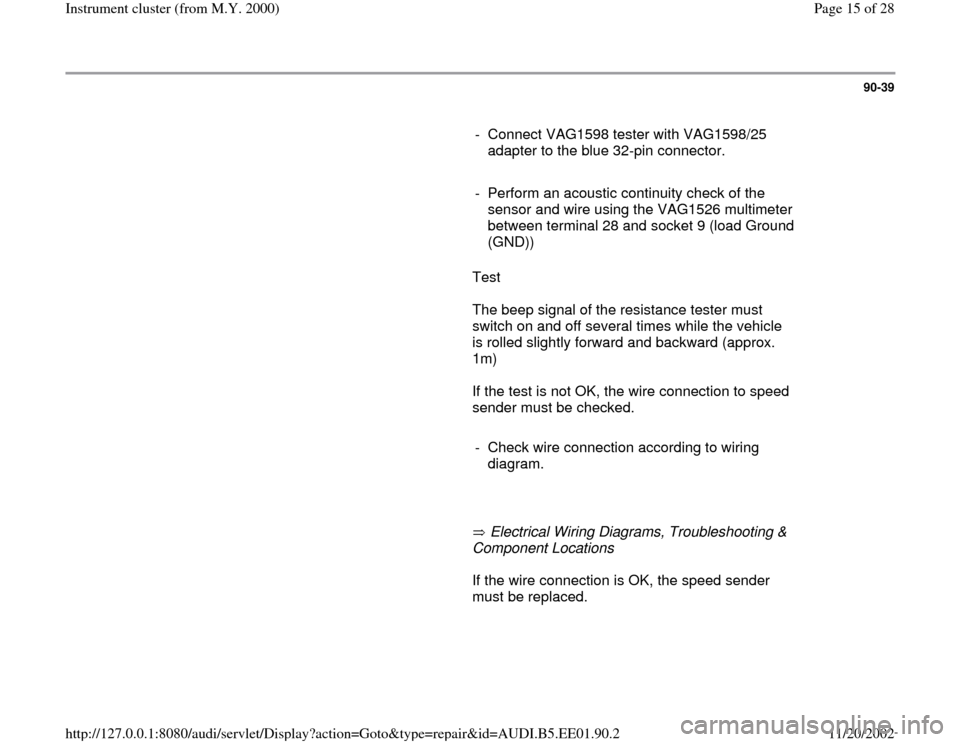

- Connect VAG1598 tester with VAG1598/25
adapter to the blue 32-pin connector.

- Perform an acoustic continuity check of the
sensor and wire using the VAG1526 multimeter
between terminal 28 and socket 9 (load Ground
(GND))
Test
The beep signal of the resistance tester must
switch on and off several times while the vehicle
is rolled slightly forward and backward (approx.
1m)
If the test is not OK, the wire connection to speed
sender must be checked.

- Check wire connection according to wiring
diagram.

Electrical Wiring Diagrams, Troubleshooting &
Component Locations If the wire connection is OK, the speed sender
must be replaced.
