1999 CHEVROLET TRACKER Owners Manual

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-39
Interior Lamps
Instrument Panel Brightness Control
JE±12±0015±X
The thumbwheel controls
the brightness of your
instrument panel lights.
Rotate the wheel upward to
brighten the lights or
downward to dim them.
Dome Lamp
The dome lamp has a three-position switch.
OFF: This position is to the left when you are sitting in
the driver's seat. The lamp stays off even when a door
is open.
Center: This is the center position. The lamp comes on
when a door is opened.
ON: This position is to the right when you are sitting in
the driver's seat. The dome lamp turns on and stays on
whether or not a door is open.
Battery Rundown Protection
Your vehicle is equipped with a battery saver feature
designed to protect your vehicle's battery.
When the dome lamp is left on and the ignition is turned
off and the key is removed, the battery saver system will
automatically turn the lamp off after about 15 minutes.
This will avoid draining the battery. This system does
not protect against leaving on the headlamps or
parking lamps.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-40
Mirrors
Inside Day/Night Rearview Mirror
An inside rearview mirror is attached to your
windshield. The mirror has pivots so that you can adjust
it up and down or side to side.
You can adjust the mirror for day or night driving. Pull
the tab for night driving to reduce glare. Push the tab for
daytime driving.
Outside Manual Adjust Mirrors
Adjust these mirrors by hand so that you can just
see the side of your vehicle when you are sitting in a
comfortable driving position.
Power Remote Control Mirrors
(If Equipped)
JE±12±0018±X
The switch to control the
power mirrors is located on
the lower left side of the
instrument panel.
You can only adjust the mirrors when the ignition switch
is in the ON or ACC position.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-41
To adjust the mirrors:
1. Move the selector switch to the L (left) or R (right)
to select the mirror you wish to adjust.
2. Press the outer part of the pad that matches the
direction you want to move the mirror.
3. Return the selector switch to the center position to
help prevent moving the mirror accidentally.
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open the glove box, pull the latch toward you.
Use your key to lock and unlock the glove box.
The glove box has a two
-position detent for opening the
door. Lower the door to the first detent for access to the
glove box. Pull it to the next detent for further access.
Door Storage
Each door has a storage compartment.
Coinholder
Your instrument panel has a coinholder located to the
left of the steering wheel.
Cupholder
Two cupholders are on the center console next to the
parking brake lever.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-42 Lockable Storage Compartment and
Cargo Cover (Option)
If your two-door vehicle has the optional lockable
storage compartment, you can use it to cover and secure
items in the cargo area of your vehicle. The closeout
panel can be removed to allow for extra cargo space.
To remove the close
-out panel, do the following:
JE±16±0034±X
1. Remove the two
attaching screws from
each lower corner of the
cargo area.
JE±12±0037±X
2. Loosen the lower rear corners of the convertible top.
3. Remove the rear window. See ªRemoving and
Installing Your Rear Windowº later in this section.
4. Release the tension bows on both sides of the
convertible top. See ªConvertible Topº later in this
section for more information.
5. Carefully lift the panel out of the cargo area.
6. Put the screws back into the mounting holes for
storage while the panel is out of the vehicle.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-43

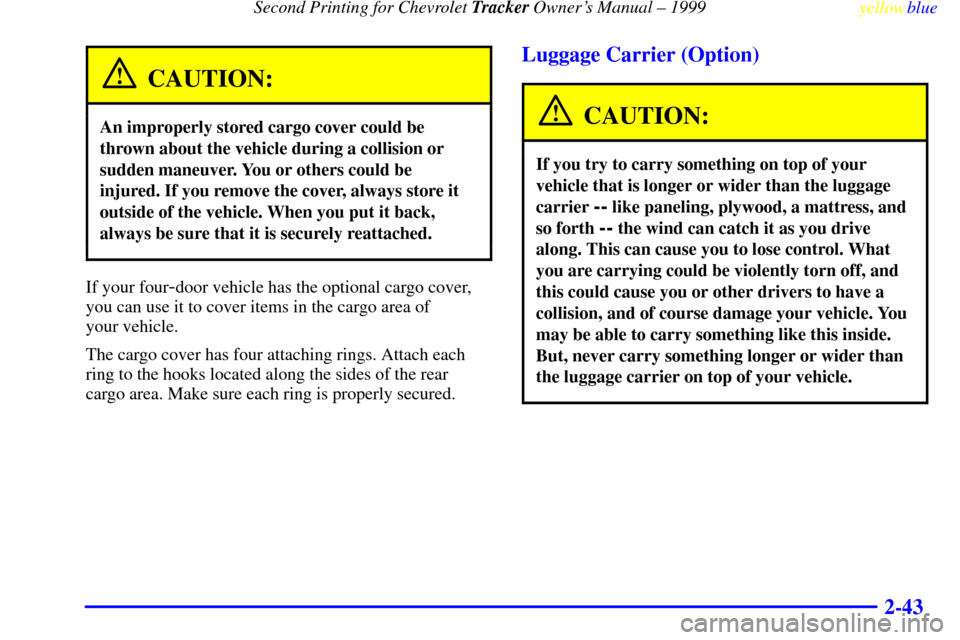

CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.
If your four-door vehicle has the optional cargo cover,
you can use it to cover items in the cargo area of
your vehicle.
The cargo cover has four attaching rings. Attach each
ring to the hooks located along the sides of the rear
cargo area. Make sure each ring is properly secured.
Luggage Carrier (Option)
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth
-- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top of your vehicle.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-44
The luggage carrier has side rails and crossrails attached
to the roof to secure cargo. To install the crossrails,
follow these steps:
JE±12±0070±X
1. Turn the screw cover
lock to the unlocked
position and lower
the cover.JE±12±0071±X
2. Turn the screw counterclockwise to loosen the
mounting attachment so it can fit over the side rails.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-45
JE±12±0072±X
3. Mount the crossrails onto the side rails and adjust
their position so the cargo can be mounted properly.
Make sure the crossrails are not slanted.
JE±12±0073±X
4. Tighten the screws securely, taking care not to
overtighten them. Then raise and lock the
screw covers.

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
2-46
Be sure the cargo is properly loaded.
Follow these guidelines:

Carrying small, heavy loads on the roof is
not recommended.

Do not load cargo directly on the roof panel.

If you need to carry long items, move the crossrails
as far apart as possible. Tie the load to the tie downs
provided. Also tie the load to the bumpers. Do not tie
the load so tightly that the crossrails or side rails
are damaged.
NOTICE:
Loading cargo that weighs more than 100 lbs.
(45 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear or the sides of
your vehicle.
NOTICE: (Continued)
NOTICE: (Continued)
Put the cargo against the side rails and fasten it
securely to the luggage carrier. Put the main
weight as far forward as possible to keep the load
from shifting.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
