1999 CHEVROLET MALIBU Owners Manual

yellowblue
6-53
GM Vehicle Care/Appearance Materials
PART NUMBERSIZEDESCRIPTIONUSAGE
99495423 in. x 25 in.Polishing Cloth ± Wax TreatedExterior polishing cloth
105017216 oz. (0.473 L)Tar and Road Oil RemoverRemoves tar, road oil and asphalt
105017316 oz. (0.473 L)Chrome Cleaner and PolishUse on chrome, stainless steel, nickel, copper and brass
105017416 oz. (0.473 L)White Sidewall Tire CleanerRemoves soil and black marks from whitewalls
105021432 oz. (0.946 L)Vinyl CleanerCleans vinyl tops, upholstery and convertible tops
105042723 oz. (0.680 L)Glass CleanerRemoves dirt, grime, smoke and fingerprints
1052918**8 oz. (0.237 L)Armor All
ProtectantProtects leather, wood, acrylics, Plexiglas
, plastic,
rubber and vinyl
105292516 oz. (0.473 L)Multi-Purpose Interior
CleanerCleans carpets, seats, interior trim, door panels
and floor mats
105292916 oz. (0.473 L)Wheel CleanerSpray on and rinse with water
10529308 oz. (0.237 L)Capture Dry Spot RemoverAttracts, absorbs and removes soils on fabric
123457212.5 sq. ft.Synthetic ChamoisShines vehicle without scratching
1234572512 oz. (0.354 L)Silicone Tire ShineSpray on tire shine
12377964*16 oz. (0.473 L)Finish EnhancerRemoves dust, fingerprints and surface contaminants
12377966*16 oz. (0.473 L)Cleaner WaxRemoves light scratches and oxidation and protects finish
12377984*16 oz. (0.473 L)Surface CleanerRemoves contaminants, blemishes and swirl marks
See your General Motors Parts Department for these products. * For exterior use only.
See ªRecommended Fluids and Lubricantsº in the Index. ** Not recommended for use on instrument panels.

yellowblue
6-54
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on your spare tire cover. It's very
helpful if you ever need to order parts. On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

yellowblue
6-55

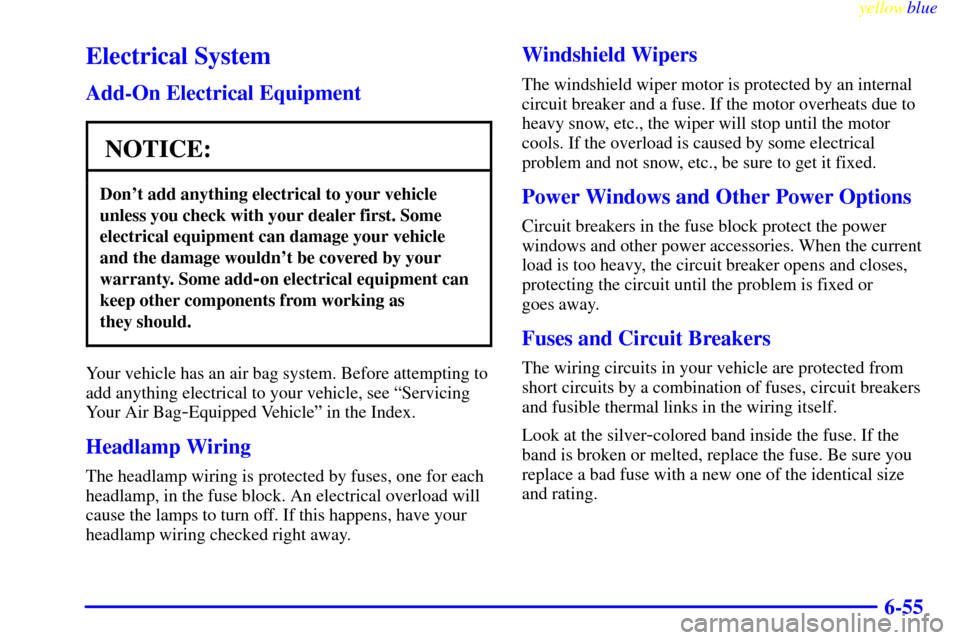

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for each
headlamp, in the fuse block. An electrical overload will
cause the lamps to turn off. If this happens, have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem and not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.

yellowblue
6-56
If you ever have a problem on the road and don't have a spare
fuse, you can borrow one that has the same amperage. Just
pick a feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use its fuse,
if it is the correct amperage. Replace it as soon as you can.
There are three fuse blocks in your vehicle: two
instrument panel fuse blocks and the engine
compartment fuse block.

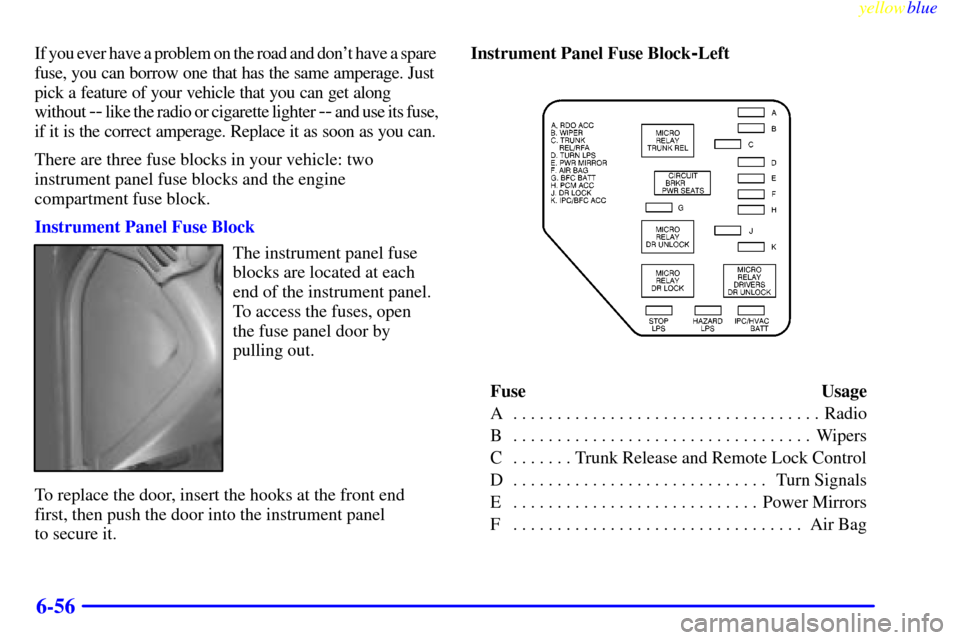

Instrument Panel Fuse Block
The instrument panel fuse
blocks are located at each
end of the instrument panel.
To access the fuses, open
the fuse panel door by
pulling out.
To replace the door, insert the hooks at the front end
first, then push the door into the instrument panel
to secure it.Instrument Panel Fuse Block
-Left
Fuse Usage
A Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B Wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C Trunk Release and Remote Lock Control. . . . . . .
D Turn Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E Power Mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . .
F Air Bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

yellowblue
6-57
Fuse Usage
G Body Function Control Module. . . . . . . . . . . . . .
H Powertrain Control Module. . . . . . . . . . . . . . . . .
J Door Locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
K Body Function Control Module, Cluster. . . . . . .
STOP LPS Stoplamps. . . . . . . . . . . . . . . . . . . . . . . .
HAZARD LPS Hazard Lamps. . . . . . . . . . . . . . . . .
IPC/HVAC BATT Cluster, Climate Control. . . . . . .
MICRO RELAY
TRUNK REL Remote Trunk Release. . . . . . . . . . .
CIRCUIT BRKR PWR SEATS Power Seats. . . . . .
MICRO RELAY DR UNLOCK Door Locks. . . . . .
MICRO RELAY DR LOCK Door Locks. . . . . . . . .
MICRO RELAY DRIVERS DR UNLOCK Not UsedInstrument Panel Fuse Block-Right
P90±16±6907±X
Fuse Usage
A Instrument Panel Lights, Dimmer. . . . . . . . . . . .
B Cruise Control. . . . . . . . . . . . . . . . . . . . . . . . . . . .
C Climate Control System. . . . . . . . . . . . . . . . . . . .
D Cruise Control. . . . . . . . . . . . . . . . . . . . . . . . . . . .
E Fog Lamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

yellowblue
6-58
Fuse Usage
F Interior Lamps, Body Function Control Module.
G Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT BRKR PWR WNDWS Power Windows. .

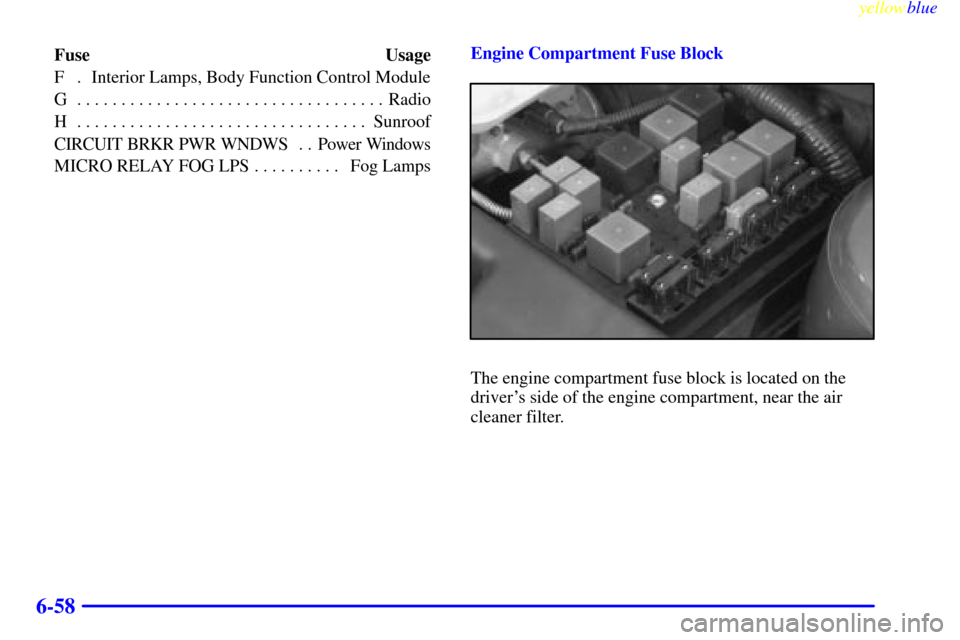

MICRO RELAY FOG LPS Fog Lamps. . . . . . . . . . Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver's side of the engine compartment, near the air
cleaner filter.

yellowblue
6-59
Fuse Usage
Maxi
-Fuses
1 Ignition Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Left
-Hand Electrical Center-Power Seats, . . . . . .
Power Mirrors, Door Locks, Trunk Release and
Remote Lock Control
3 Left
-Hand Electrical Center-Stoplamps, . . . . . . . .
Hazard Lamps, Body Function Control Module,
Cluster, Climate Control SystemFuse Usage
Maxi
-Fuses
4 Right
-Hand Electrical Center-Fog Lamps, . . . . . .
Radio, Body Function Control Module,
Interior Lamps
5 Ignition Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Not Used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Anti
-Lock Brakes . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Cooling Fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mini
-Relays
9 Rear Defog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 Not Used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Anti
-Lock Brakes . . . . . . . . . . . . . . . . . . . . . . . . .
12 Cooling Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 HVAC Blower (Climate Control). . . . . . . . . . . . .
14 Cooling Fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 Cooling Fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Micro
-Relays
16 Air Conditioning Compressor. . . . . . . . . . . . . . . .
17 Not Used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Fuel Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Automatic Light Control. . . . . . . . . . . . . . . . . . .
20 Automatic Light Control. . . . . . . . . . . . . . . . . . .

yellowblue
6-60
Fuse Usage
21 Horn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Daytime Running Lamps. . . . . . . . . . . . . . . . . . .
Mini
-Fuses
23
- 32 Spare Fuse Holder. . . . . . . . . . . . . . . . . . . . .
33 Rear Defog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34 Accessory Power Outlets, Cigar Lighter. . . . . . .
35 Anti
-Lock Brakes . . . . . . . . . . . . . . . . . . . . . . . . .
36 Anti
-Lock Brakes . . . . . . . . . . . . . . . . . . . . . . . . .
37 Air Conditioning Compressor, . . . . . . . . . . . . . . .
Body Function Control Module
38 Automatic Transaxle. . . . . . . . . . . . . . . . . . . . . . .
39 Powertrain Control Module, Ignition. . . . . . . . . .
40 Anti
-Lock Brakes . . . . . . . . . . . . . . . . . . . . . . . . .
41 Ignition System. . . . . . . . . . . . . . . . . . . . . . . . . . .
42 Back
-Up Lamps, Brake Transaxle . . . . . . . . . . . .
Shift Interlock
43 Horn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44 Powertrain Control Module. . . . . . . . . . . . . . . . .
45 Parking Lamps. . . . . . . . . . . . . . . . . . . . . . . . . . .
46 Rear Defog, Daytime Running Lamps, . . . . . . . .
Climate Control System
47 Canister Purge Valve, . . . . . . . . . . . . . . . . . . . . . .
Powertrain Control Module, Exhaust Gas
Recirculation, Heated O
2 SensorFuse Usage
Mini
-Fuses
48 Fuel Pump, Injectors. . . . . . . . . . . . . . . . . . . . . . .
49 Generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50 Right
-Hand Headlamp . . . . . . . . . . . . . . . . . . . . .
51 Left
-Hand Headlamp . . . . . . . . . . . . . . . . . . . . . .
52 Cooling Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53 HVAC Blower (Climate Control ). . . . . . . . . . . .
54 Fuse Puller for Mini
-Fuses . . . . . . . . . . . . . . . . . .
55 Tach Test Point for Diagnostic Testing. . . . . . . . .
Replacement Bulbs
Exterior Lamps Bulb
High
-Beam Headlamp 9005. . . . . . . . . . . . . . . . . . . .
Low
-Beam Headlamp 9006. . . . . . . . . . . . . . . . . . . .
Front Park/Turn 3157 NA. . . . . . . . . . . . . . . . . . . . . .
Front Sidemarker 924. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up/Rear Turn 3156. . . . . . . . . . . . . . . . . . . . . .
Center
- Mounted High Level Stoplamp 912. . . . . . .
Tail/Stoplamp 3057. . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps Bulb
Dome 561. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
