1999 CHEVROLET MALIBU Owners Manual

yellowblue
5-19
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.

yellowblue
5-20 Removing the Spare Tire and Tools
The equipment you'll need
is in the trunk. Turn the
center retainer nut on the
compact spare cover
counterclockwise to
remove it.
Lift and remove the cover. (See ªCompact Spare Tireº
later in this section for more information about the
compact spare.) You will find the jacking instructions
label on the underside of the tire cover.
Turn the wing nut
counterclockwise and
remove it. Then lift off the
adapter and remove the
spare tire.
Remove the jack and jack handle from the trunk. Your
vehicle's jack and jack handle are stored in a foam tray.

yellowblue
5-21
The tools you'll be using include the jack (A) and the
jack handle (B).
Removing the Flat Tire and Installing the
Spare Tire
1. On vehicles equipped with plastic wheel covers,
completely loosen the wheel nut caps, but do not try
to remove the caps from the cover.
2. Give the cover a sharp pull or gently pry on the edge
of the cover to remove it from the wheel.

yellowblue
5-22
3. Some models are equipped with aluminum wheels.
Remove the cover plate to find the wheel nuts.
Carefully use the wedge end of the wheel wrench to
pry it off.4. Then use the jack handle to loosen all the wheel nuts.
Don't remove them yet.

yellowblue
5-23
5. Position the jack and raise the jack head until it fits
firmly into the notch in the vehicle's frame nearest
the flat tire. Put the compact spare tire near you.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.

yellowblue
5-24
6. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the spare
tire to fit.
7. Remove all of the wheel nuts.
8. Then take off the flat tire.
9. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.

yellowblue

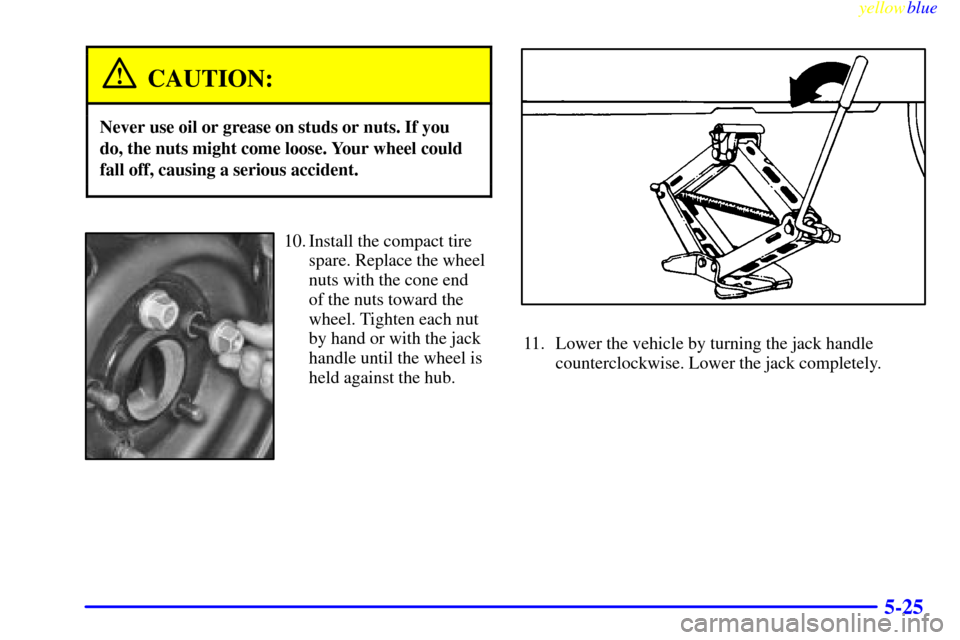

5-25
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
10. Install the compact tire
spare. Replace the wheel
nuts with the cone end
of the nuts toward the
wheel. Tighten each nut
by hand or with the jack
handle until the wheel is
held against the hub.
11. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.

yellowblue

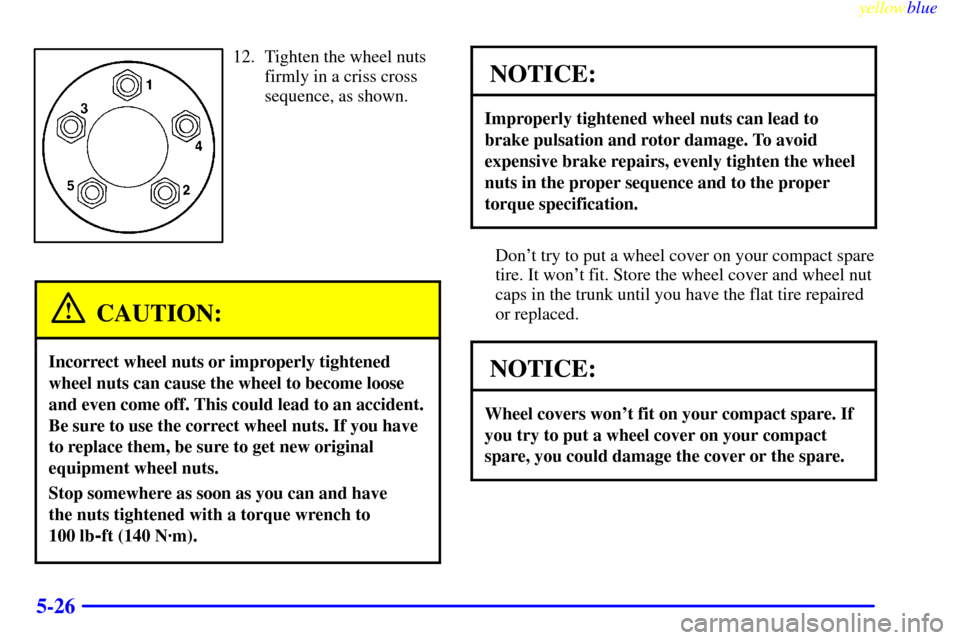

5-26
12. Tighten the wheel nuts
firmly in a criss cross
sequence, as shown.
CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be sure to get new original
equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to
100 lb
-ft (140 N´m).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Don't try to put a wheel cover on your compact spare
tire. It won't fit. Store the wheel cover and wheel nut
caps in the trunk until you have the flat tire repaired
or replaced.
NOTICE:
Wheel covers won't fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
