1999 CADILLAC SEVILLE dead battery

yellowblue
5-5

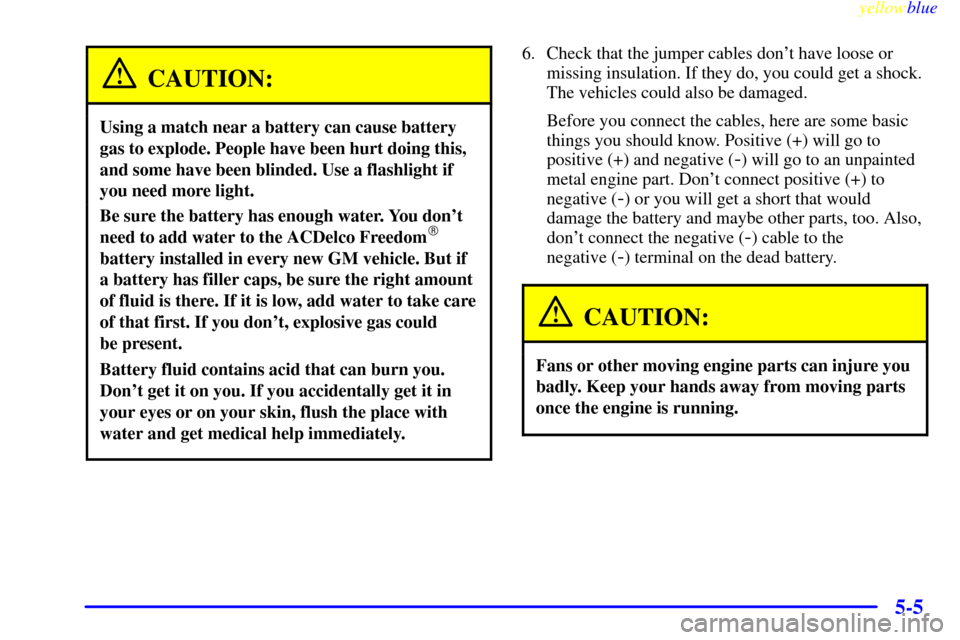

CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water. You don't
need to add water to the ACDelco Freedom

battery installed in every new GM vehicle. But if
a battery has filler caps, be sure the right amount
of fluid is there. If it is low, add water to take care
of that first. If you don't, explosive gas could
be present.
Battery fluid contains acid that can burn you.
Don't get it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.
6. Check that the jumper cables don't have loose or
missing insulation. If they do, you could get a shock.
The vehicles could also be damaged.
Before you connect the cables, here are some basic
things you should know. Positive (+) will go to
positive (+) and negative (
-) will go to an unpainted
metal engine part. Don't connect positive (+) to
negative (
-) or you will get a short that would
damage the battery and maybe other parts, too. Also,
don't connect the negative (
-) cable to the
negative (
-) terminal on the dead battery.
CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engine is running.

yellowblue
5-6

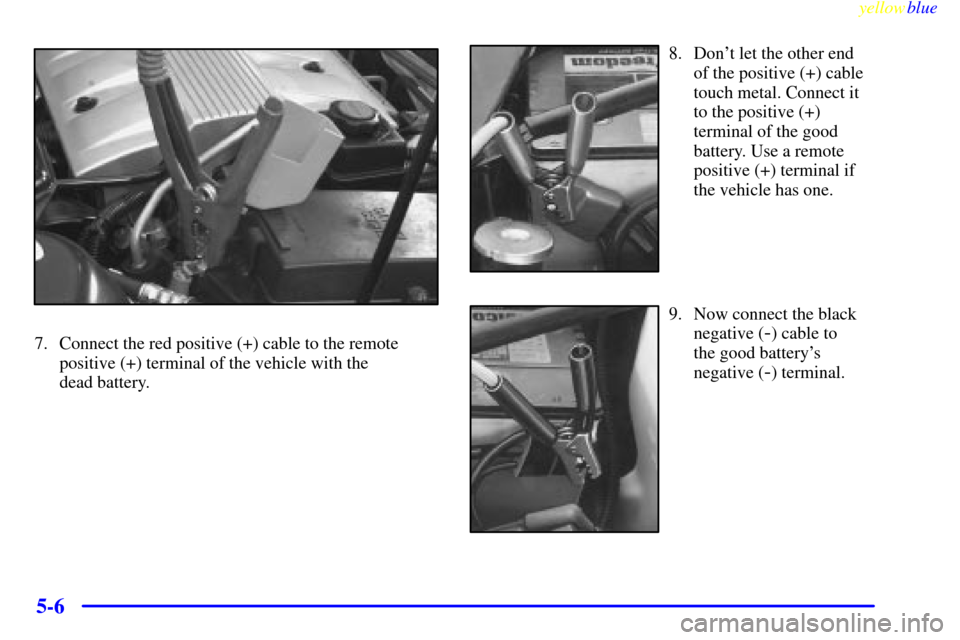

7. Connect the red positive (+) cable to the remote
positive (+) terminal of the vehicle with the
dead battery.
8. Don't let the other end
of the positive (+) cable
touch metal. Connect it
to the positive (+)
terminal of the good
battery. Use a remote
positive (+) terminal if
the vehicle has one.
9. Now connect the black
negative (
-) cable to
the good battery's
negative (
-) terminal.

yellowblue
5-7
Don't let the other end of the negative (-) cable touch
anything until the next step. The other end of the
negative (
-) cable doesn't go to the dead battery. It goes
to the windshield washer bottle attaching stud on the
passenger's upper strut tower. Don't allow the red and
black handles on the jumper cable to touch each other.
10. Attach the cable at
least 18 inches
(46 cm) away from
the dead battery, but
not near engine
parts that move. The
electrical connection
is just as good there,
but the chance of
sparks getting back
to the battery is
much less.
If the THEFT SYSTEM light flashes, wait until the light
stops flashing before starting the engine.
11. Now start the vehicle with the good battery and run
the engine for awhile.
12. Try to start the vehicle with the dead battery.
If it won't start after a few tries, it probably
needs service.13. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't
touch each other or any other metal. Replace
the red positive (+) remote terminal cover to its
original position.
A. Remote Positive (+) Terminal
B. Good Battery
C. Windshield Washer Bottle Stud (not shown in
--located on the passenger's side corner of the
engine compartment)

yellowblue
8-4
Cooling System 5-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cornering Lamps 2-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Courtesy Transportation 7-8 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control 2-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Light 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cupholders (in Storage Areas) 2-54 . . . . . . . . . . . . . . . . . . . . .
Curb View Assist Mirror 2-53, 2-90 . . . . . . . . . . . . . . . . . . . .
Curb View Assist Mirror Programming 2-90 . . . . . . . . . . . . . .
Customer Assistance
For Text Telephone Users 7
-3 . . . . . . . . . . . . . . . . . . . . . . .
Assistance Information 7-1 . . . . . . . . . . . . . . . . . . . . . . . . .
Assistance Offices 7-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Customer Satisfaction Procedure 7-2 . . . . . . . . . . . . . . . . . . . .
CVRSS 2-91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Damage, Finish 6-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Damage, Sheet Metal 6-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime Running Lamps 2-44 . . . . . . . . . . . . . . . . . . . . . . . . .
Dead Battery 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defects, Reporting Safety 7-10, 7-11 . . . . . . . . . . . . . . . . . . .
Defensive Driving 4-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defogger, Rear Window 3-7 . . . . . . . . . . . . . . . . . . . . . . . . . .
Defrosting and Defogging 3-7 . . . . . . . . . . . . . . . . . . . . . . . . .
DIC 2-78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIC Controls and Displays 2-78 . . . . . . . . . . . . . . . . . . . . . . .
DIC Messages 2-79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions, Vehicle 6-69 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display Mode 2-66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diversity Antenna 3-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dolby Noise Reduction 3-15, 3-25 . . . . . . . . . . . . . . . . . . . . . Door
Central Unlocking System 2
-4 . . . . . . . . . . . . . . . . . . . . . . .
Fuel Release 6-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locks 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map Pocket 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors Lock in Gear 2-89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors Unlock in Park
Doors Unlock Key Off 2
-89 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver
Door Ajar Message 2
-81 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Information Center (DIC) 2-78 . . . . . . . . . . . . . . . . . . . . . .
No. X (1 or 2) Message 2-81 . . . . . . . . . . . . . . . . . . . . . . . .
Position 1-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlock in Park 2-89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlock Key Off 2-89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver's Names Set/Recall 2-90 . . . . . . . . . . . . . . . . . . . . . . . .
Driver's Outside Auto-Dimming Rearview Mirror 2-52 . . . . .
Driving
City 4
-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defensive 4-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drunken 4-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freeway 4-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In a Blizzard 4-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In Foreign Countries 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
In the Rain and on Wet Roads 4-17 . . . . . . . . . . . . . . . . . . .
Night 4-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Curves 4-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Grades While Towing a Trailer 4-38 . . . . . . . . . . . . . . .
On Hill and Mountain Roads 4-23 . . . . . . . . . . . . . . . . . . . .
On Snow or Ice 4-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
