1999 BUICK PARK AVENUE Owners Manual

yellowblue
6-39
2. Turn the vertical aiming screw (C) until the level
bubble (D) is lined up with zero.
Front Turn Signal
The front turn signal bulbs can be accessed by removing
the headlamp assembly as described in the previous bulb
replacement procedure.
Once the headlamp
assembly has been removed,
reach down from the top of
the vehicle and, while
pressing the lock tab on the
socket, turn the socket
one
-quarter of a turn and
pull it out.
Remove the old bulb by pulling it straight out of the
socket. Replace the bulb and turn the bulb assembly
back into place.
ProCarManuals.com

yellowblue
6-40 Rear Turn Signal/Stoplamp
1. Open the trunk. On either side of the rear of the
trunk is a plastic retainer that holds the cargo net and
taillamp assembly in place.
2. Unhook the cargo net
from the cargo net
retainer and remove the
retainer by turning it
counterclockwise.
3. Remove the plastic
retaining screws on the
trunk's interior.
4. Pull back the trunk trim panel.
5. Beneath the trim panel are three nuts that secure the
taillamp assembly. Remove these nuts with a 10 mm
wrench. Remove the nuts from only the side you
want to access. The turn signal and a stoplamp can
now be accessed.
ProCarManuals.com

yellowblue
6-41
6. Pull the taillamp assembly away from the vehicle.
7. Remove the bulb socket
assembly by turning the
socket one
-quarter of a
turn counterclockwise
and pulling it out.
8. Once the socket has
been removed, pull
the bulb straight out
to remove it from
the socket.
9. Reverse the above steps to replace the
taillamp assembly.
ProCarManuals.com

yellowblue
6-42 Rear Turn Signals/Stoplamps/Back-Up
Lamps
Turn lamps, stoplamps and back-up bulbs are located
behind the taillamp assembly along the trunk lid. The
following instructions explain how to access these bulbs.
1. There are four studs
located at the edge of the
trunk lid. Remove the
protective vinyl caps
from the studs.
2. Use a 10 mm wrench to remove the nuts from
the studs.
ProCarManuals.com

yellowblue
6-43
3. Next, there are six fasteners along the top of the
trunk lid (three on each side), holding the trunk trim
in place. Remove these fasteners.4. Hold the trunk trim back to expose the three
remaining nuts holding the taillamp assembly
in place. Remove the protective vinyl caps from
the studs.
ProCarManuals.com

yellowblue
6-44
5. From inside the trunk compartment, use a 10 mm
wrench to remove the nuts from the studs.6. Pull the taillamp assembly away from the trunk lid.
The bulbs are located on the back side of
the assembly.
ProCarManuals.com

yellowblue
6-45
7. Turn the bulb socket
one
-quarter of a turn
counterclockwise and
pull it out. You can use
pliers to remove the bulb
socket if you are unable
to do it by hand.
8. Once the socket has
been removed, pull
the bulb straight out
to remove it from
the socket.
9. Reverse the above steps to replace the
taillamp assembly.
Windshield Wiper
Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See ªWiper Blade
Checkº in Section 7 of this manual under Part B ªOwner
Checks and Servicesº for more information.
Replacement blades come in different types and are
removed in different ways.
To replace the wiper blade assembly:
1. Position the wipers on the windshield in the ªmidº
wipe position.
2. Lift the windshield wiper arm away from the
windshield. Note: The windshield wiper does not
have a locking upright position feature.
ProCarManuals.com

yellowblue
6-46

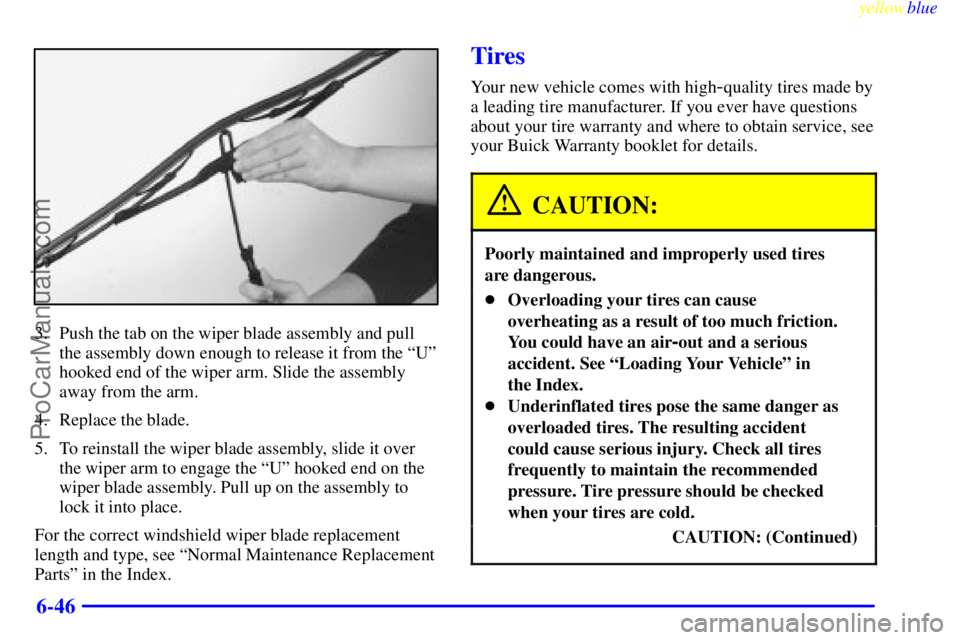

3. Push the tab on the wiper blade assembly and pull
the assembly down enough to release it from the ªUº
hooked end of the wiper arm. Slide the assembly
away from the arm.
4. Replace the blade.
5. To reinstall the wiper blade assembly, slide it over
the wiper arm to engage the ªUº hooked end on the
wiper blade assembly. Pull up on the assembly to
lock it into place.
For the correct windshield wiper blade replacement
length and type, see ªNormal Maintenance Replacement
Partsº in the Index.
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service, see
your Buick Warranty booklet for details.
CAUTION:
Poorly maintained and improperly used tires
are dangerous.

Overloading your tires can cause
overheating as a result of too much friction.
You could have an air
-out and a serious
accident. See ªLoading Your Vehicleº in
the Index.

Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
CAUTION: (Continued)
