Page 9 of 400
yellowblue
1-3 4-Way Power Lumbar Control (Option)
If you have this option, the
driver's and passenger's
seatback lumbar support
can be adjusted four ways
by moving the single
switch located on the
side of the seat.
To increase or decrease support, hold the switch forward
or rearward. To move the lumbar up or down, hold the
switch upward or downward.
Memory Seat and Mirrors (If Equipped)
If your vehicle has this
feature, the controls on the
driver's door panel are used
to program and recall
previous settings.
You can use this memory function to save your seat
cushion positions (minus the head restraint), optional
lumbar, mirror adjustment, window lockout, HVAC and
radio settings. Save your seat positions in memory by
using the following procedure:
1. You must first program the SEAT RECALL feature
to be active when the SEAT RECALL choice
appears on the DIC. See ªMemory Seat Recallº in
the Index for programming instructions.
ProCarManuals.com
Page 10 of 400

yellowblue
1-4
2. Adjust the driver's seat and lumbar position (if
equipped) to a safe and comfortable driving position.
Adjust both outside mirrors to suit you. See ªOutside
Mirrorsº in the Index.
3. Press one of the two MEMORY buttons
corresponding with your driver number, for longer
than three seconds. You will hear two beeps to
confirm that the mirror and seat positions have been
entered into memory.
4. Press UNLOCK on the transmitter within
five seconds.
When your vehicle is in PARK (P), push and release the
memory button you just stored. The seat and mirrors
will move to the set position. You will hear one beep.To set the seat and mirror positions for a second
driver, follow the previous steps, but use the other
MEMORY button.
If you press the wrong MEMORY button, or if there is a
third driver, use the seat adjuster.
The EXIT button allows for easy exit from the vehicle.
Press and release the EXIT button while in PARK (P)
and the seat will move all the way back. You will hear a
beep when the EXIT button is pressed.
You can also set unique exit positions by moving the
seat to the desired position, and then pressing and
holding the EXIT button for longer than three seconds.
You will hear two beeps to confirm the position has
been set. The exit position will be set for the previously
identified driver.
ProCarManuals.com
Page 11 of 400

yellowblue
1-5
If the ignition is not in RUN, automatic seat and mirror
movement will occur if the UNLOCK button on the
remote keyless entry transmitter is pressed. Automatic
seat and mirror movement is programmed through the
Driver Information Center (DIC) so that the driver can
select whether the seat moves to the programmed
driving position, the programmed exit position, or does
not move at all. For memory seat and mirror recall
programming instructions, see ªDIC Personal Choice
Programmingº in the Index.
Heated Seats (Option)
The heated seat controls are
located next to the climate
controls on the instrument
panel. Press this button to
turn on the heating element
in the seat.When the heated seat control is first pressed, the
HI setting is activated. Press the button again for the
LO setting. The third press of the button turns the
feature off.
The LO setting warms the seatback and cushion until the
seat nears body temperature. The HI setting heats the
seat to a slightly higher temperature.
A telltale light in the control reminds you that the
heating system is in use. When the ignition is turned off,
the heating element is also turned off.
ProCarManuals.com
Page 12 of 400
yellowblue

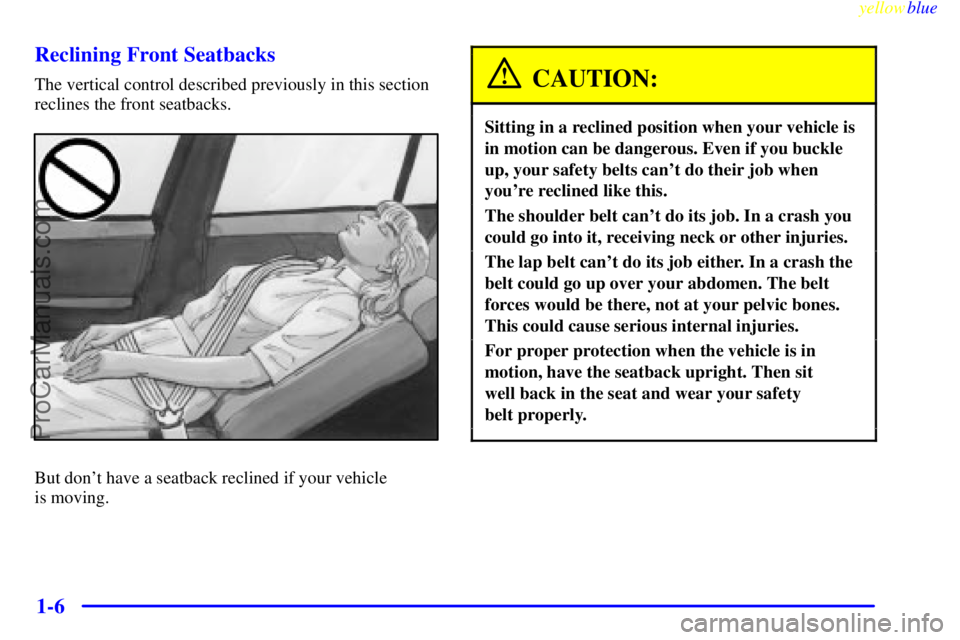

1-6 Reclining Front Seatbacks
The vertical control described previously in this section
reclines the front seatbacks.
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
ProCarManuals.com
Page 13 of 400

yellowblue
1-7 Head Restraints
Use this switch to move a front head restraint up or
down. Lift up on the switch to move the head restraint
up. Press down on the switch to move the head restraint
down. The top of the head restraint should be closest to
the top of your ears. This position helps reduce the
chance of a neck injury in a crash. When you move a
front seat head restraint up or down, the shoulder belt
height changes. On some models, the head restraints tilt
forward and rearward also.Some rear seats have adjustable head restraints. Slide an
adjustable head restraint up or down so that the top of
the restraint is closest to the top of your ears. This
position reduces the chance of a neck injury in a crash.
On some models, the rear seat head restraints tilt
forward and rearward also.
There are four different positions for the front seat head
restraints and three different positions for the rear seat
head restraints. Adjust either head restraint by grasping
the top of the restraint and moving it forward the way
you want it to go until you hear a click. It will then be
locked into that position until you need to move it again.
Pulling it forward past the last position will allow the
headrest to return to its full rear position.
ProCarManuals.com
Page 14 of 400

yellowblue
1-8

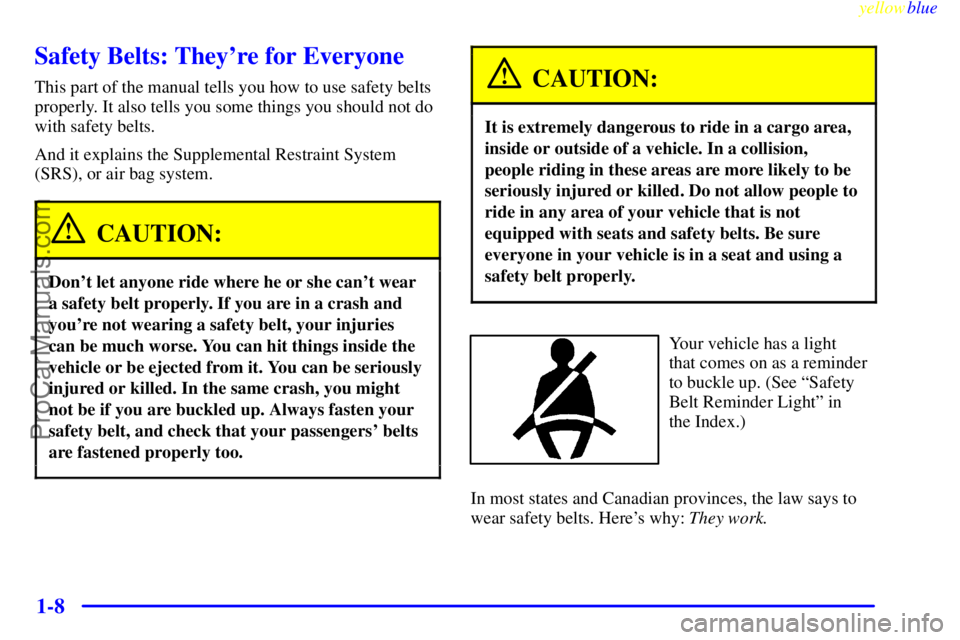

Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. (See ªSafety
Belt Reminder Lightº in
the Index.)
In most states and Canadian provinces, the law says to
wear safety belts. Here's why: They work.
ProCarManuals.com
Page 15 of 400
yellowblue
1-9
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter ... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it's just a seat
on wheels.
ProCarManuals.com
Page 16 of 400
yellowblue
1-10
Put someone on it.Get it up to speed. Then stop the vehicle. The rider
doesn't stop.
ProCarManuals.com
