69-35

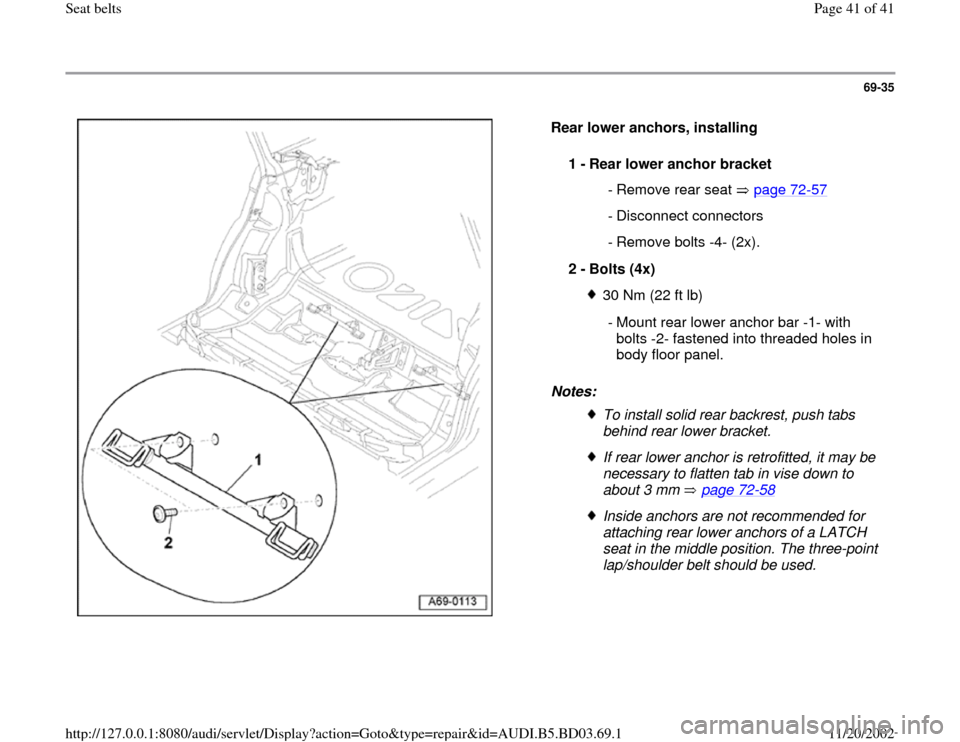

Rear lower anchors, installing
Notes: 1 -
Rear lower anchor bracket
- Remove rear seat page 72
-57
- Disconnect connectors
- Remove bolts -4- (2x).
2 -
Bolts (4x)
30 Nm (22 ft lb)
- Mount rear lower anchor bar -1- with
bolts -2- fastened into threaded holes in
body floor panel. To install solid rear backrest, push tabs
behind rear lower bracket. If rear lower anchor is retrofitted, it may be
necessary to flatten tab in vise down to
about 3 mm page 72
-58
Inside anchors are not recommended for
attaching rear lower anchors of a LATCH
seat in the middle position. The three-point
lap/shoulder belt should be used.
