69-29

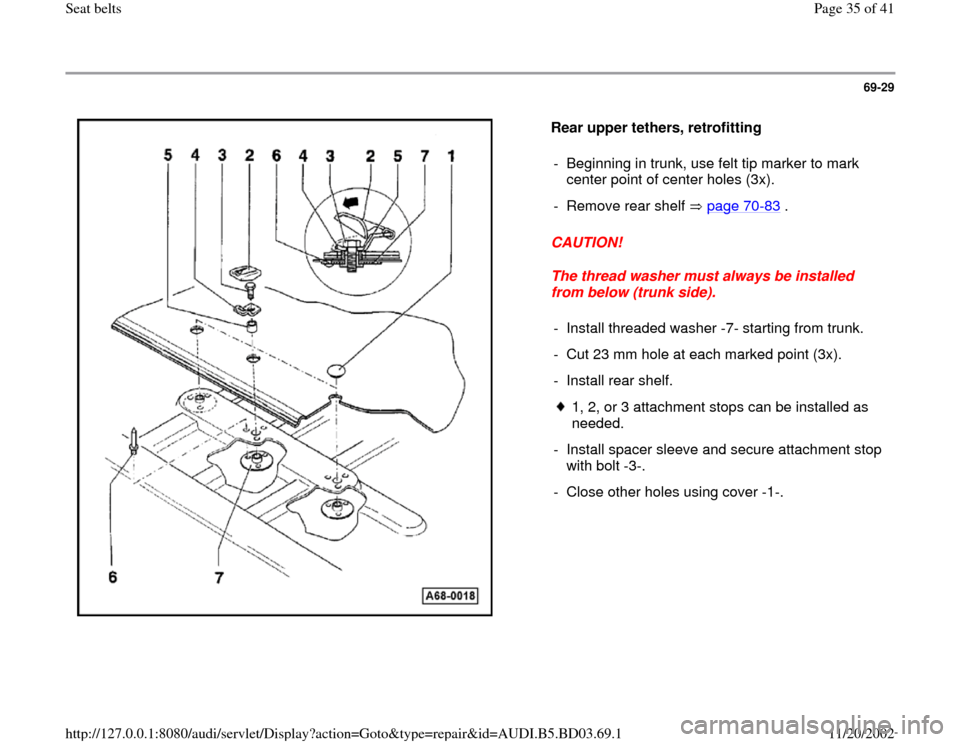

Rear upper tethers, retrofitting
CAUTION!
The thread washer must always be installed
from below (trunk side). - Beginning in trunk, use felt tip marker to mark
center point of center holes (3x).
- Remove rear shelf page 70
-83
.
- Install threaded washer -7- starting from trunk.
- Cut 23 mm hole at each marked point (3x).
- Install rear shelf.
1, 2, or 3 attachment stops can be installed as
needed.
- Install spacer sleeve and secure attachment stop
with bolt -3-.
- Close other holes using cover -1-.
