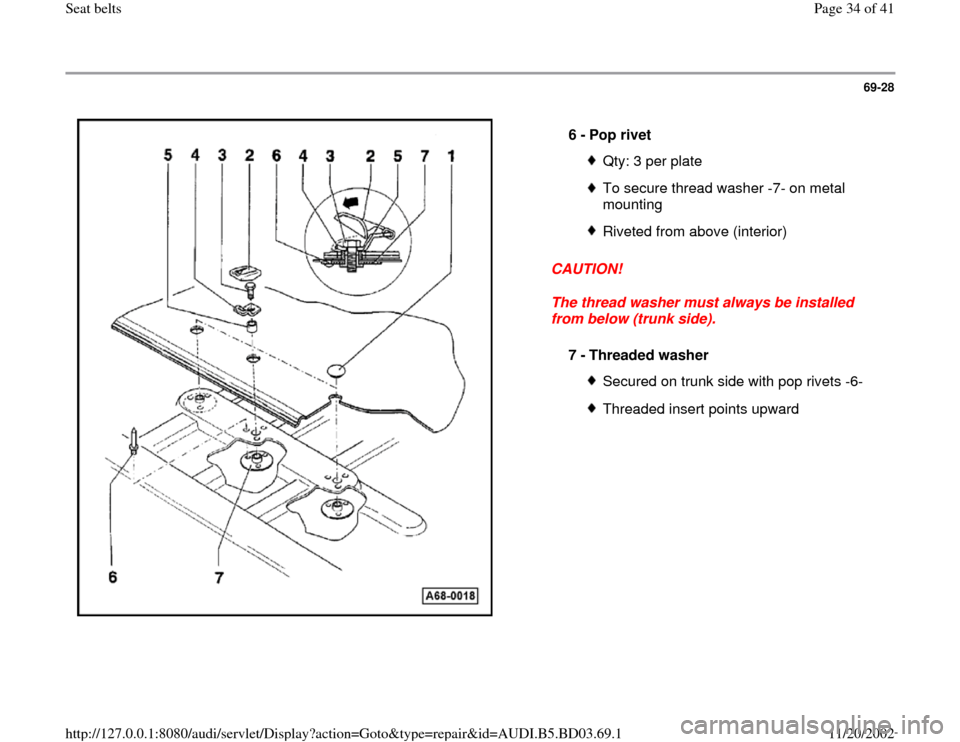

69-28
CAUTION!
The thread washer must always be installed
from below (trunk side). 6 -
Pop rivet
Qty: 3 per plateTo secure thread washer -7- on metal
mounting Riveted from above (interior)
7 -
Threaded washer Secured on trunk side with pop rivets -6-Threaded insert points upward
Pa
ge 34 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1
69-29
Rear upper tethers, retrofitting
CAUTION!
The thread washer must always be installed
from below (trunk side). - Beginning in trunk, use felt tip marker to mark
center point of center holes (3x).
- Remove rear shelf page 70
-83
.
- Install threaded washer -7- starting from trunk.
- Cut 23 mm hole at each marked point (3x).
- Install rear shelf.
1, 2, or 3 attachment stops can be installed as
needed.
- Install spacer sleeve and secure attachment stop
with bolt -3-.
- Close other holes using cover -1-.
