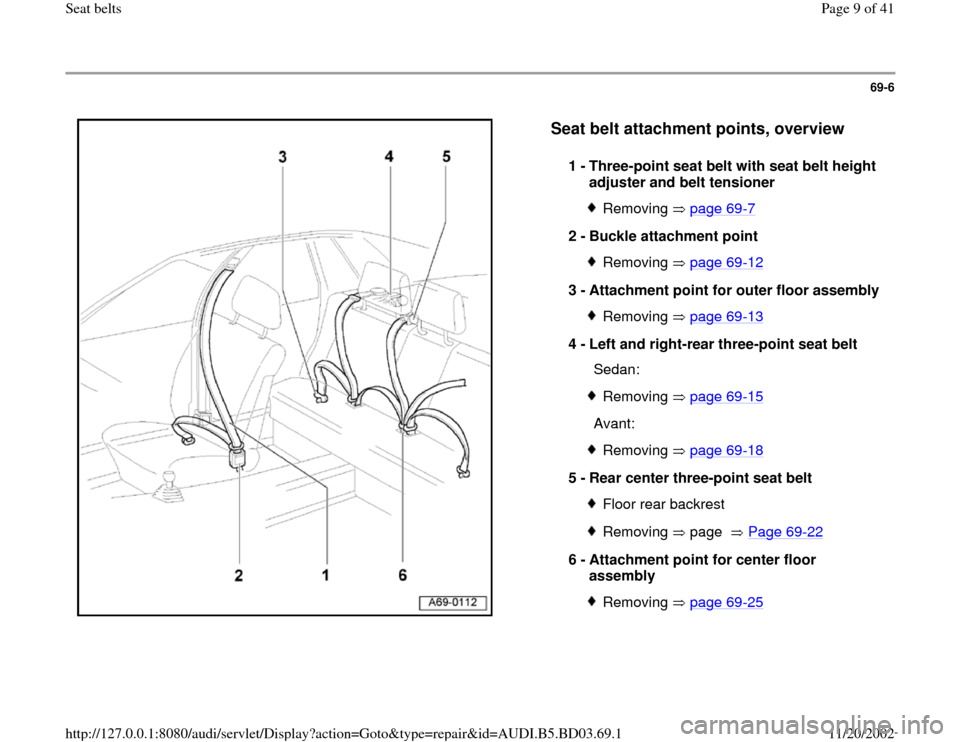

Seat belt attachment points, overview

1 -
Three-point seat belt with seat belt height
adjuster and belt tensioner
Removing page 69
-7
2 -
Buckle attachment point
Removing page 69
-12
3 -
Attachment point for outer floor assembly
Removing page 69
-13
4 -
Left and right-rear three-point seat belt
Sedan:
Removing page 69
-15
Avant:
Removing page 69
-18
5 -
Rear center three-point seat belt
Floor rear backrestRemoving page Page 69
-22
6 -
Attachment point for center floor
assembly
Removing page 69
-25
Pa
ge 9 of 41 Seat belts
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

69-7

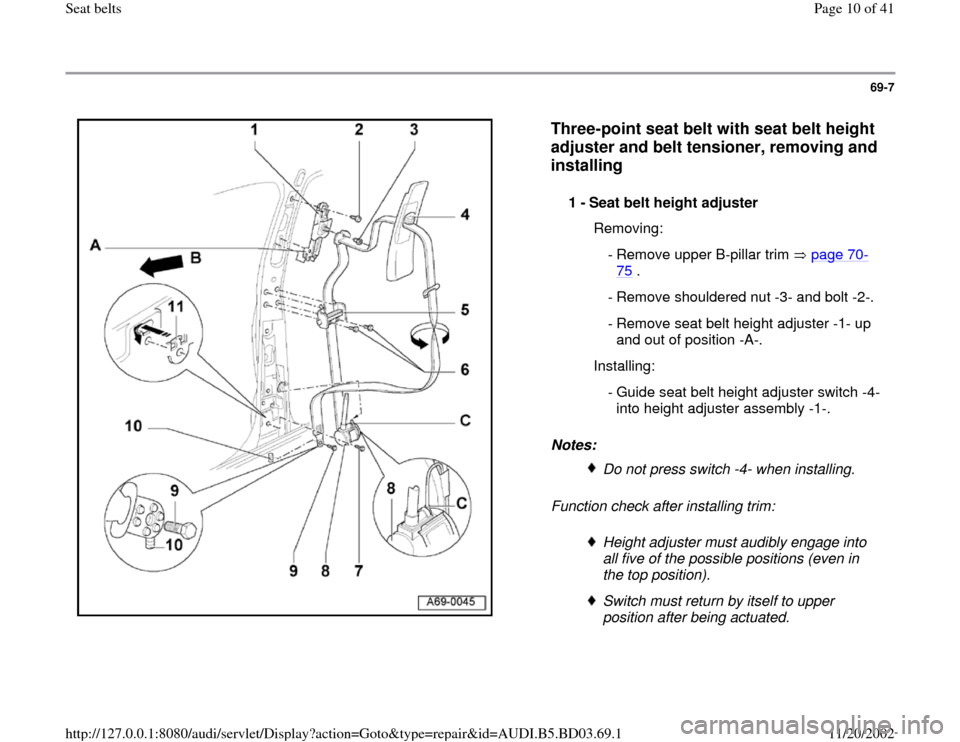

Three-point seat belt with seat belt height
adjuster and belt tensioner, removing and
installing

Notes:
Function check after installing trim: 1 -
Seat belt height adjuster
Removing:
- Remove upper B-pillar trim page 70
-
75
.
- Remove shouldered nut -3- and bolt -2-.
- Remove seat belt height adjuster -1- up
and out of position -A-.
Installing:
- Guide seat belt height adjuster switch -4-
into height adjuster assembly -1-.
Do not press switch -4- when installing.Height adjuster must audibly engage into
all five of the possible positions (even in
the top position). Switch must return by itself to upper
position after being actuated.
Pa
ge 10 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

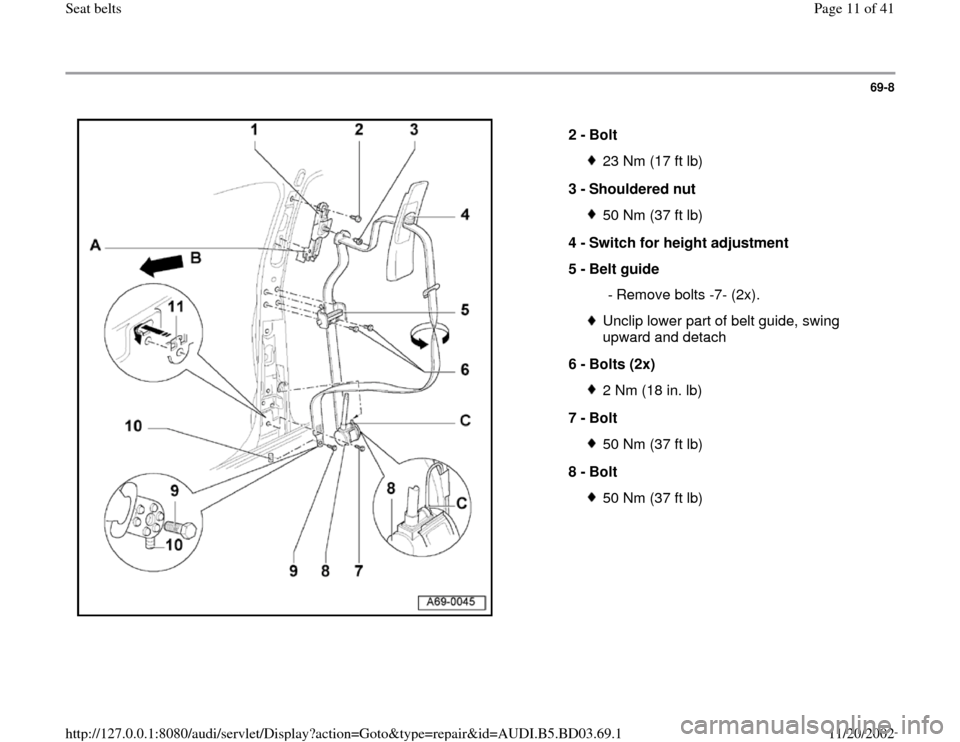

69-8


2 -
Bolt
23 Nm (17 ft lb)
3 -
Shouldered nut 50 Nm (37 ft lb)
4 -
Switch for height adjustment
5 -
Belt guide
- Remove bolts -7- (2x).Unclip lower part of belt guide, swing
upward and detach
6 -
Bolts (2x) 2 Nm (18 in. lb)
7 -
Bolt 50 Nm (37 ft lb)
8 -
Bolt 50 Nm (37 ft lb)
Pa
ge 11 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

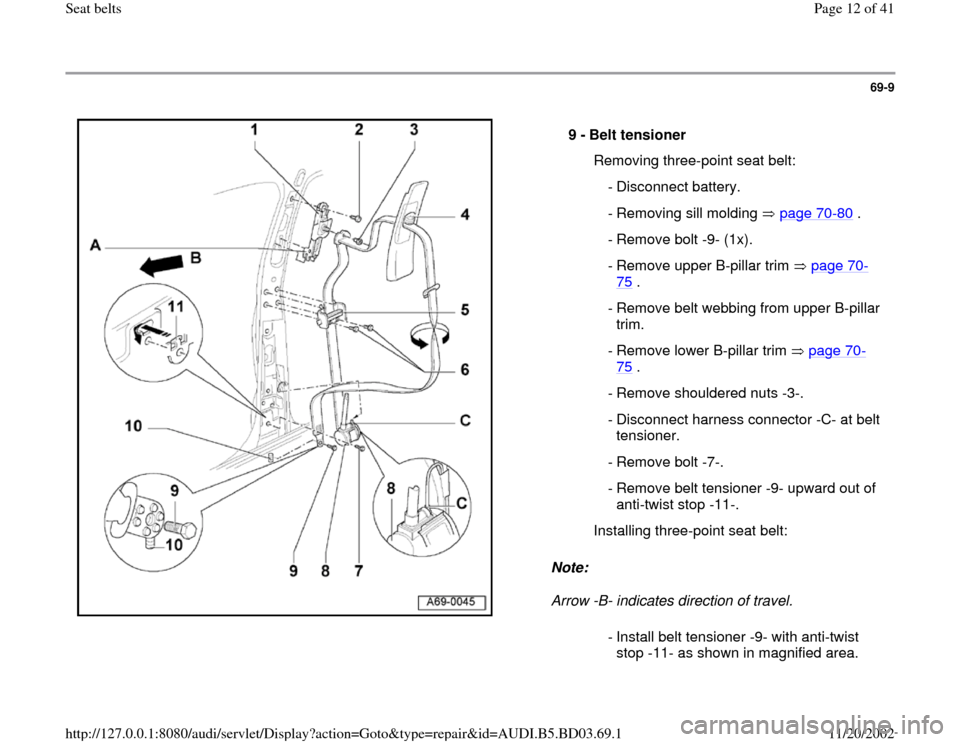

69-9


Note:
Arrow -B- indicates direction of travel. 9 -
Belt tensioner
Removing three-point seat belt:
- Disconnect battery.
- Removing sill molding page 70
-80
.
- Remove bolt -9- (1x).
- Remove upper B-pillar trim page 70
-
75
.
- Remove belt webbing from upper B-pillar
trim.
- Remove lower B-pillar trim page 70
-
75
.
- Remove shouldered nuts -3-.
- Disconnect harness connector -C- at belt
tensioner.
- Remove bolt -7-.
- Remove belt tensioner -9- upward out of
anti-twist stop -11-.
Installing three-point seat belt:
- Install belt tensioner -9- with anti-twist
stop -11- as shown in magnified area.
Pa
ge 12 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

-

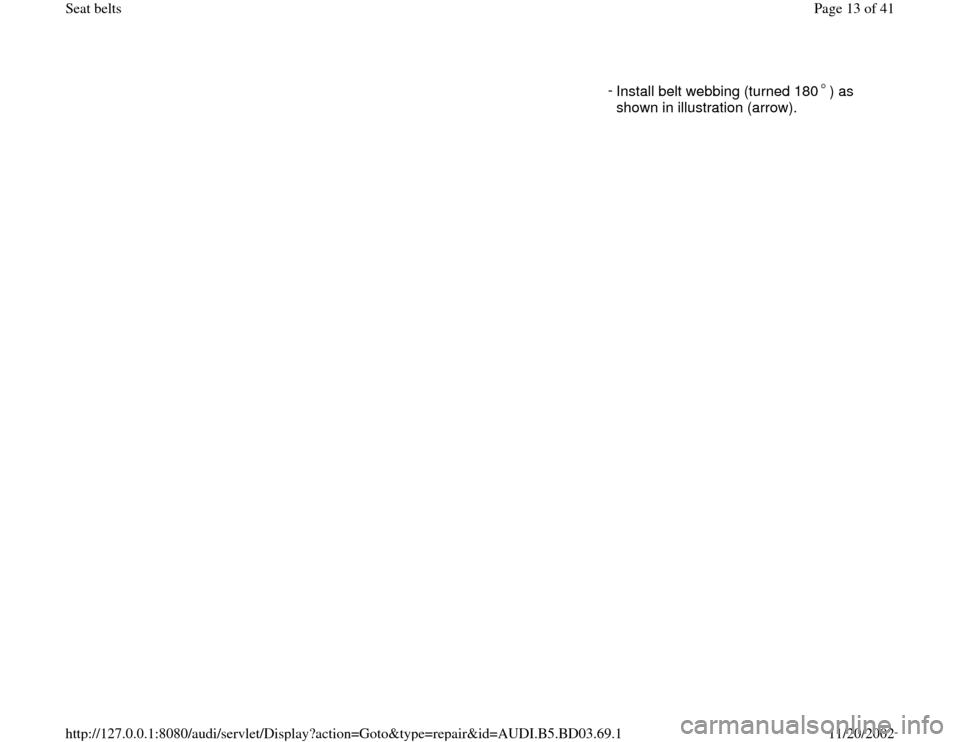

Install belt webbing (turned 180 ) as
shown in illustration (arrow).
Pa
ge 13 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

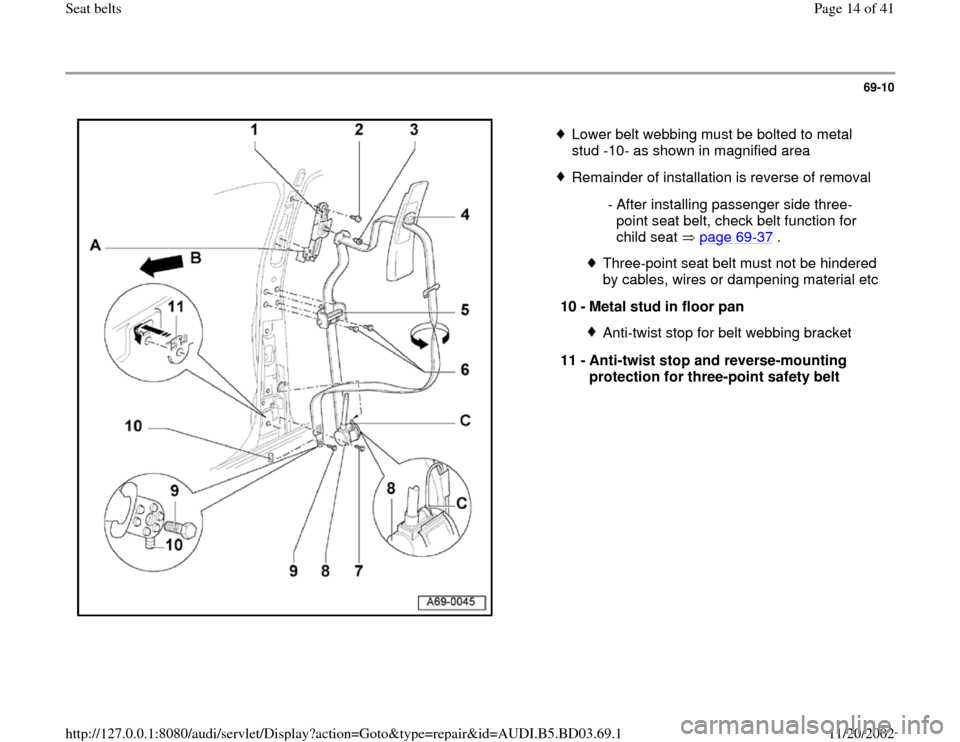

69-10



Lower belt webbing must be bolted to metal
stud -10- as shown in magnified area
Remainder of installation is reverse of removal
- After installing passenger side three-
point seat belt, check belt function for
child seat page 69
-37
.
Three-point seat belt must not be hindered
by cables, wires or dampening material etc
10 -
Metal stud in floor pan Anti-twist stop for belt webbing bracket
11 -
Anti-twist stop and reverse-mounting
protection for three-point safety belt
Pa
ge 14 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

69-11

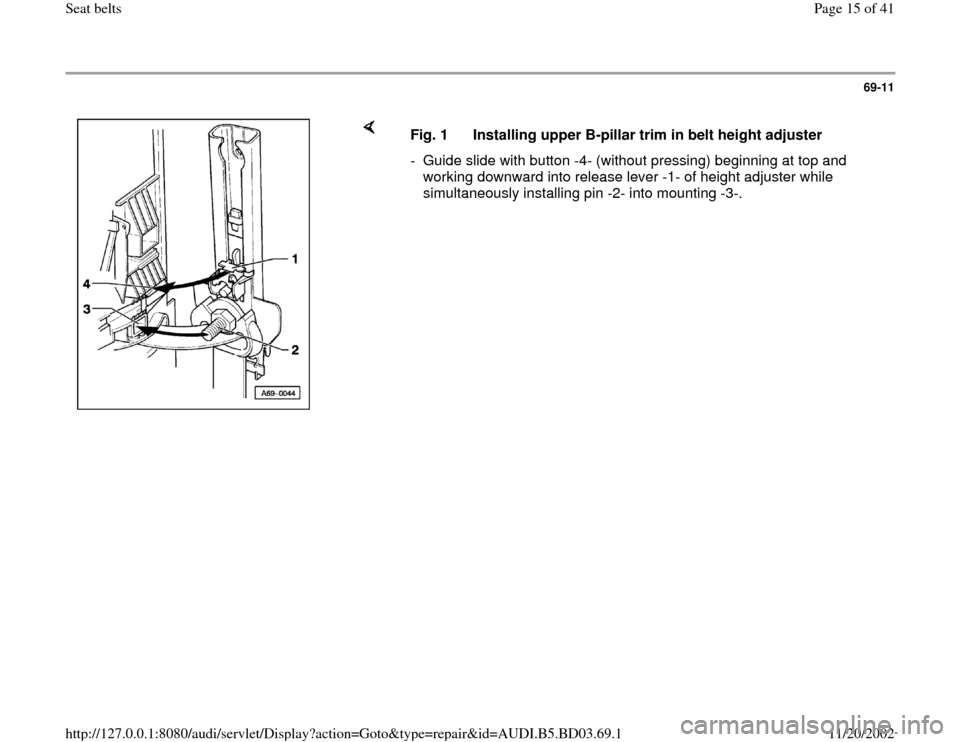

Fig. 1 Installing upper B-pillar trim in belt height adjuster
- Guide slide with button -4- (without pressing) beginning at top and
working downward into release lever -1- of height adjuster while
simultaneously installing pin -2- into mounting -3-.
Pa
ge 15 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1

69-12

Belt buckle attachment point


- Remove seat page 72
-2 .
1 - Buckle
4 - Spring washer
- Remove bolt -3-.
Tightening torque: 60 Nm (44 ft lb)
- If necessary, disconnect harness connector -2- for belt warning.
Pa
ge 16 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
