1998 TOYOTA COROLLA Owners Manual

1998 COROLLA(U)
201

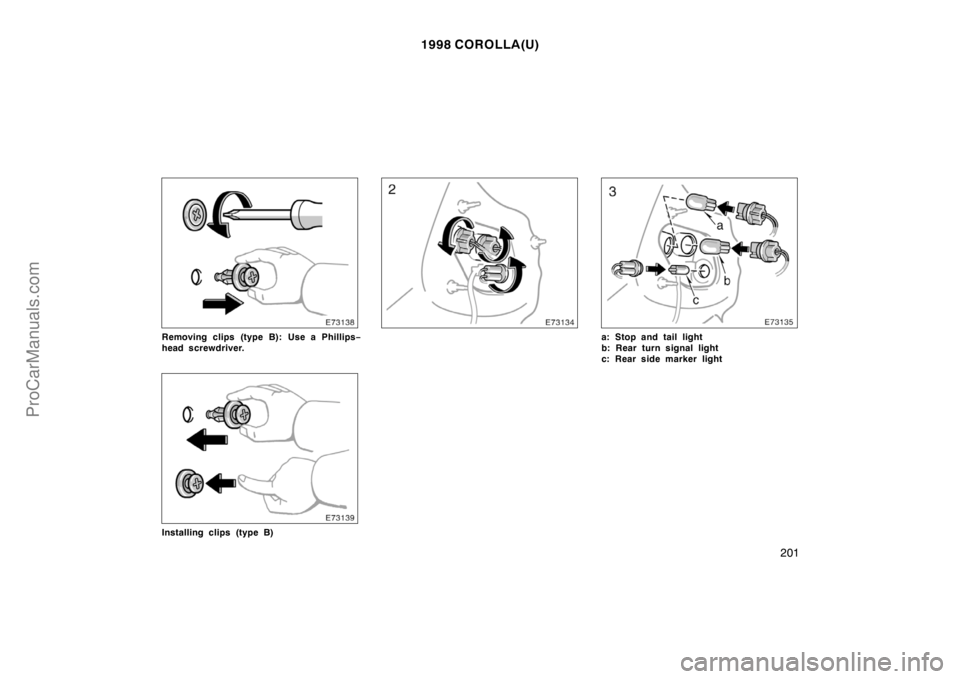

Removing clips (type B): Use a Phillips−
head screwdriver.
Installing clips (type B)
a: Stop and tail light
b: Rear turn signal light
c: Rear side marker light
ProCarManuals.com

1998 COROLLA(U)
202

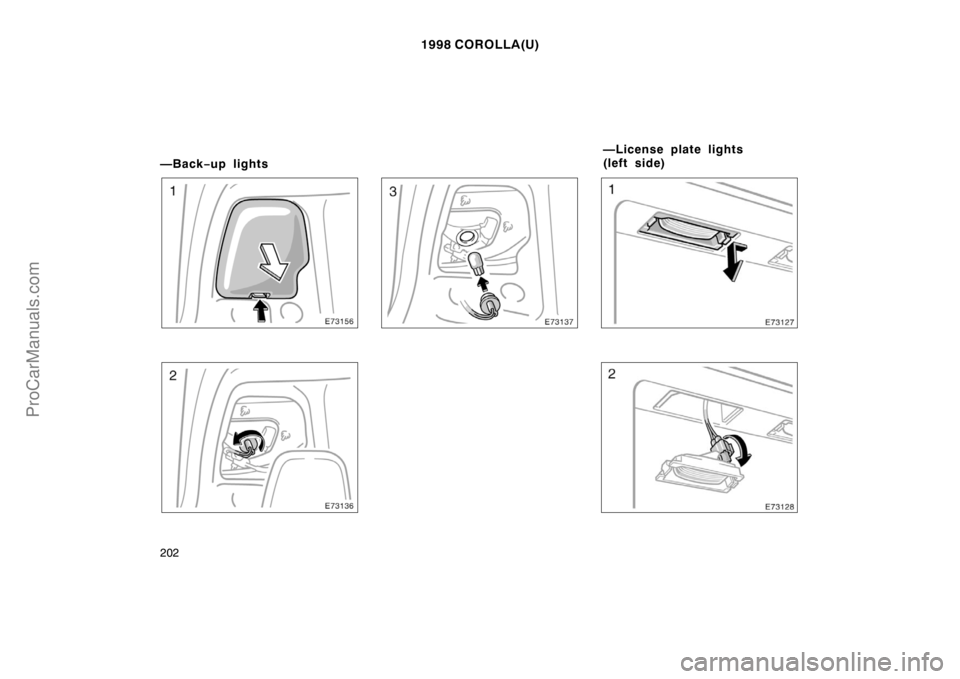

—Back−up lights
—License plate lights
( lef t sid e)
ProCarManuals.com

1998 COROLLA(U)
203

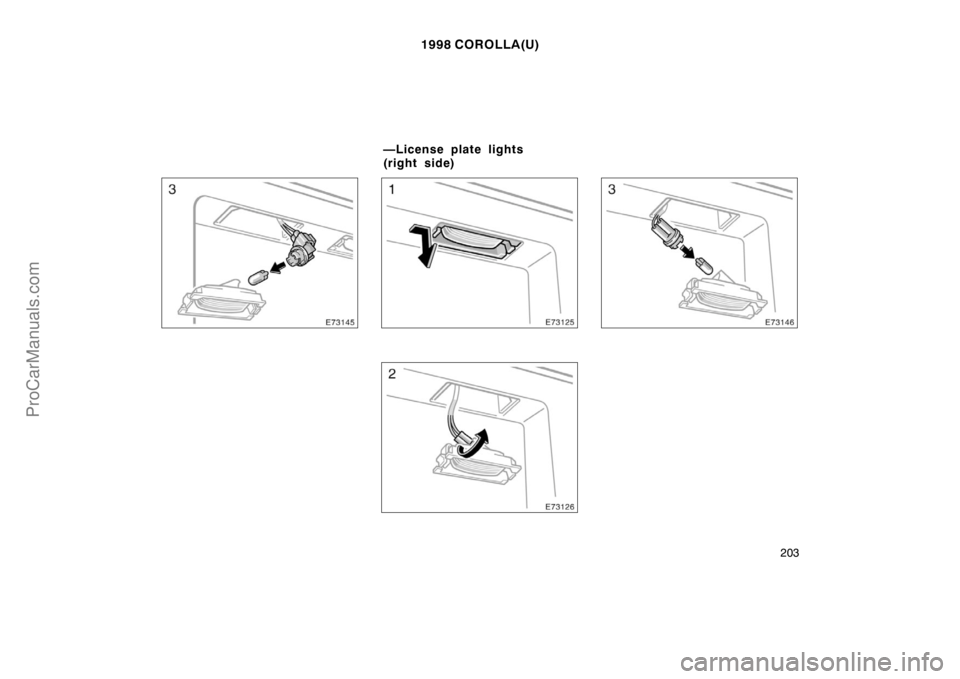

—License plate lights
(right side)
ProCarManuals.com

1998 COROLLA(U)
204

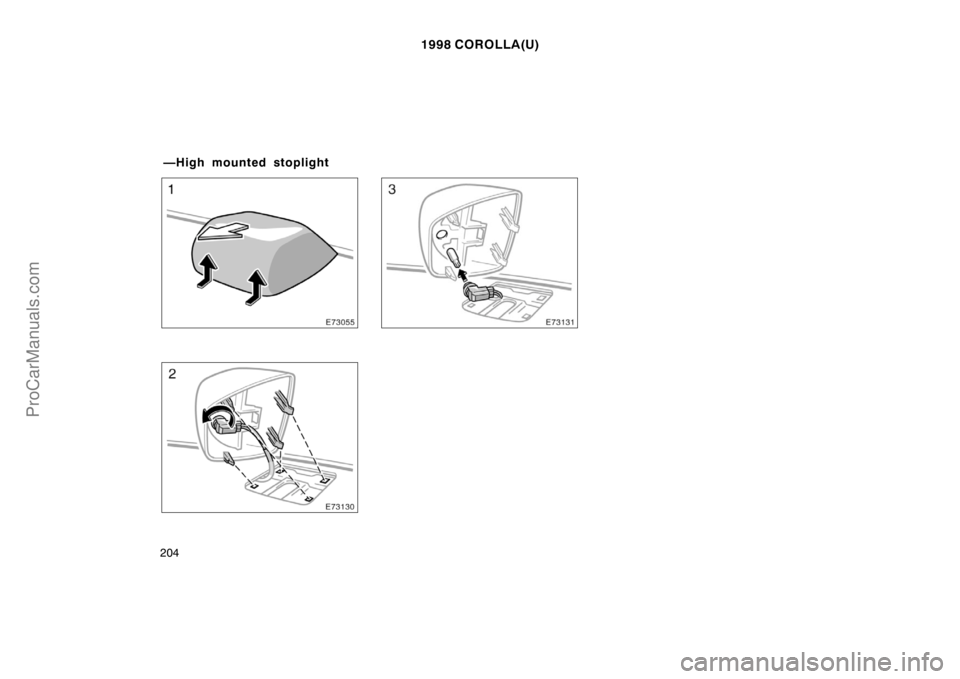

—High mounted stoplight
ProCarManuals.com

1998 COROLLA(U)
205
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
Overall length mm (in):
4420 (174.0)
Overall width mm (in):
1695 (66.7)
Overall height mm (in):
1385 (54.5)
∗
Wheelbase mm (in):
2465 (97.0)
Front tread mm (in):
1460(57.5)
Rear tread mm (in):
1450(57.1)
Vehicle capacity weight
(occupants+luggage)
kg(lb): 385 (850)
∗:Unladen vehicle
Engine
Model:
1ZZ−FE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
79.0 x 91.5 (3.11 x 3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
ProCarManuals.com

1998 COROLLA(U)
206
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87 (Re-
search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
50 (13.2, 11.0)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO K16TR11
NGK BKR5EKB−11
Spark plug gap, mm(in.):
1.1 (0.043)ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade:
API grade SH, ”Energy−Conserving II”
or SJ, ”Energy−Conserving” multigrade
engine oil or ILSAC multigrade engine
oil is recommended.
Recommended oil viscosity (SAE):
ProCarManuals.com

1998 COROLLA(U)
207
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission
5.8 (6.1, 5.1)
Automatic transmission
5.7 (6.0, 5.0)
Coolant type:
With ethylene−glycol antifreeze
(Do not use alcohol type.)
BATTERY
Open voltage
∗ at 20C (68F):
12.6−12.8 V Fully charged
12.2−12.4 V Half charged
11 . 8−12.0 V Discharged
∗: Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal freeplay, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Four−speed type
Up to 3.1 (3.3, 2.7)
Three−speed type
2.5 (2.6,2.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIII (DEXRONII)
Differential (three−speed type only)
Fluid capacity L (qt., Imp. qt.):
1.4 (1.5, 1.2)
Fluid type:
Automatic transmission fluid D−II or
DEXRONIII (DEXRONII)BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
Vehicles with anti−lock brake system
90 (3.5)
Vehicles without anti−lock brake system
85 (3.3)
Pedal freeplay, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
4—7 clicks
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel freeplay:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
ProCarManuals.com

1998 COROLLA(U)
208
Tires
Tire size:
Compact spare tire
T115/70D14
T125/70D14
Except compact spare tire
P175/65SR14
P185/65SR14
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire 420 (4.2 60)
Except compact spare tire 2 1 0 ( 2 . 1 , 3 0 )
Wheel size:
Compact spare tire
14 x 4T
Except compact Spare tire
14 x 5.5JJ
Wheel nut torque, N·m (kgf·m, ft·lbf):
102.9 (10.5, 76)
Fuses
Engine compartment
Fuses (type A)
1. A/C 7.5 A: Air conditioning system,
electric cooling fan
2. SPARE 5 A: Spare fuse
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. DOME 15 A: Car audio system, interior
lights, personal lights, trunk lights,
clock, daytime running light system,
theft deterrent system
6. HAZARD 10 A: Turn signal lights,
emergency flashers
Engine compartment
7. AM2 15 A: Starter system, ”ST” and
”IGN” fuses
8. HEAD (LH) or HEAD (LH−UPR) 10 A:
Left−hand headlight
9. ALT−S 5 A: Charging system
10. HEAD (RH) or HEAD (RH−UPR) 10 A:
Right−hand headlight
11 . E F I o r F−HTR 15 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
12. HORN 10 A: Horn, theft deterrent sys-
tem
