1998 TOYOTA COROLLA Owners Manual

1998 COROLLA(U)
209

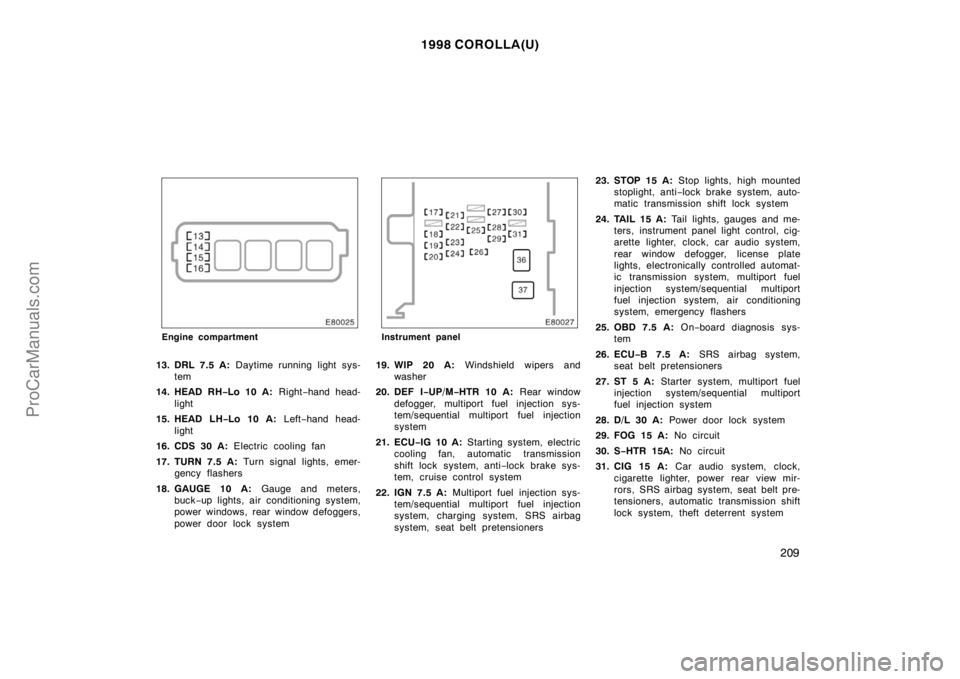

Engine compartment
13. DRL 7.5 A: Daytime running light sys-
tem
14. HEAD RH−Lo 10 A: Right−hand head-
light
15. HEAD LH−Lo 10 A: Left−hand head-
light
16. CDS 30 A: Electric cooling fan
17. TURN 7.5 A: Turn signal lights, emer-
gency flashers
18. GAUGE 10 A: Gauge and meters,
buck−up lights, air conditioning system,
power windows, rear window defoggers,
power door lock system
Instrument panel
19. WIP 20 A: Windshield wipers and
washer
20. DEF I−UP/M−HTR 10 A: Rear window
defogger, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ECU−IG 10 A: Starting system, electric
cooling fan, automatic transmission
shift lock system, anti−lock brake sys-
tem, cruise control system
22. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, SRS airbag
system, seat belt pretensioners23. STOP 15 A: Stop lights, high mounted
stoplight, anti−lock brake system, auto-
matic transmission shift lock system
24. TAIL 15 A: Tail lights, gauges and me-
ters, instrument panel light control, cig-
arette lighter, clock, car audio system,
rear window defogger, license plate
lights, electronically controlled automat-
ic transmission system, multiport fuel
injection system/sequential multiport
fuel injection system, air conditioning
system, emergency flashers
25. OBD 7.5 A: On−board diagnosis sys-
tem
26. ECU−B 7.5 A: SRS airbag system,
seat belt pretensioners
27. ST 5 A: Starter system, multiport fuel
injection system/sequential multiport
fuel injection system
28. D/L 30 A: Power door lock system
29. FOG 15 A: No circuit
30. S−HTR 15A: No circuit
31. CIG 15 A: Car audio system, clock,
cigarette lighter, power rear view mir-
rors, SRS airbag system, seat belt pre-
tensioners, automatic transmission shift
lock system, theft deterrent system
ProCarManuals.com

1998 COROLLA(U)
210
Fuses (type B)
32. HTR 50 A: Air conditioning system,
”A/C” fuse
33. MAIN 40 A: Starter system, ”HEAD
(LH) or HEAD (LH−UPR), ”HEAD (RH)
or HEAD (RH−UPR), ”HEAD LH−Lo”
and ”HEAD RH−Lo fuses
34. RDI 30 A: Electric cooling fan
35. AM1 50 A: ”CIG”, ”TURN”, ”GAUGE”,
”ECU−IG”, and ”WIP” fuses
36. DEF 40 A: Rear window defogger,
”DEF I−UP/M−HTR” fuse
37. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
38. FL ABS 50 A: Anti−lock brake system
39. FL ALT 100 A: ”RDI”, ”CDS”, ”AM1”,
”POWER”, ”D/L”, ”TAIL”, OBD, ”FOG”,
”ECU−B”, ”STOP” and ”DEF”, ”HTR”
fuses
ProCarManuals.com

’ 98COROLLA(U) 326
211
Part 9
REPORTING SAFETY
DEFECTS FOR U.S.
OWNERS AND
UNIFORM TIRE
QUALITY GRADING
Reporting safety defects for U.S.
owners
Uniform tire quality grading
If you believe that your vehicle has
a defect whi ch coul d cause a cr ash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc.
(Toll−free: 1−800−331−4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual prob-
lems between you, your dealer, or
Toyota Motor Sales, U.S.A., Inc.To contact NHTSA, you may either
call the Auto Safety Hotline toll−free
at 1−800−424−9393 (or 366−0123 in
Washington.D.C. area) or write to:
NHTSA. U.S.Department of Trans-
portation. Washington.D.C. 20590.
You can also obtain other information
about motor vehicle safety from the
Hotline.
Reporting safety defects for
U.S. owners
ProCarManuals.com

’ 98COROLLA(U) 326
212
Uniform tire quality grading
This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger ve-
hicle tires must conform to Federal
Safety Requirements in addition to
these grades. These quality grades are
molded on the sidewall.
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1−1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.Traction A, B, C—The traction grades,
from highest to lowest, are A, B, and C,
and they represent the tire’s ability to stop
on wet pavement as measured under con-
trolled conditions on specified government
test surfaces of asphalt and concrete. A
tire marked C may have poor traction per-
formance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C—The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades
B and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
