1998 OPEL FRONTERA belt

8J–18EXTERIOR/INTERIOR TRIM

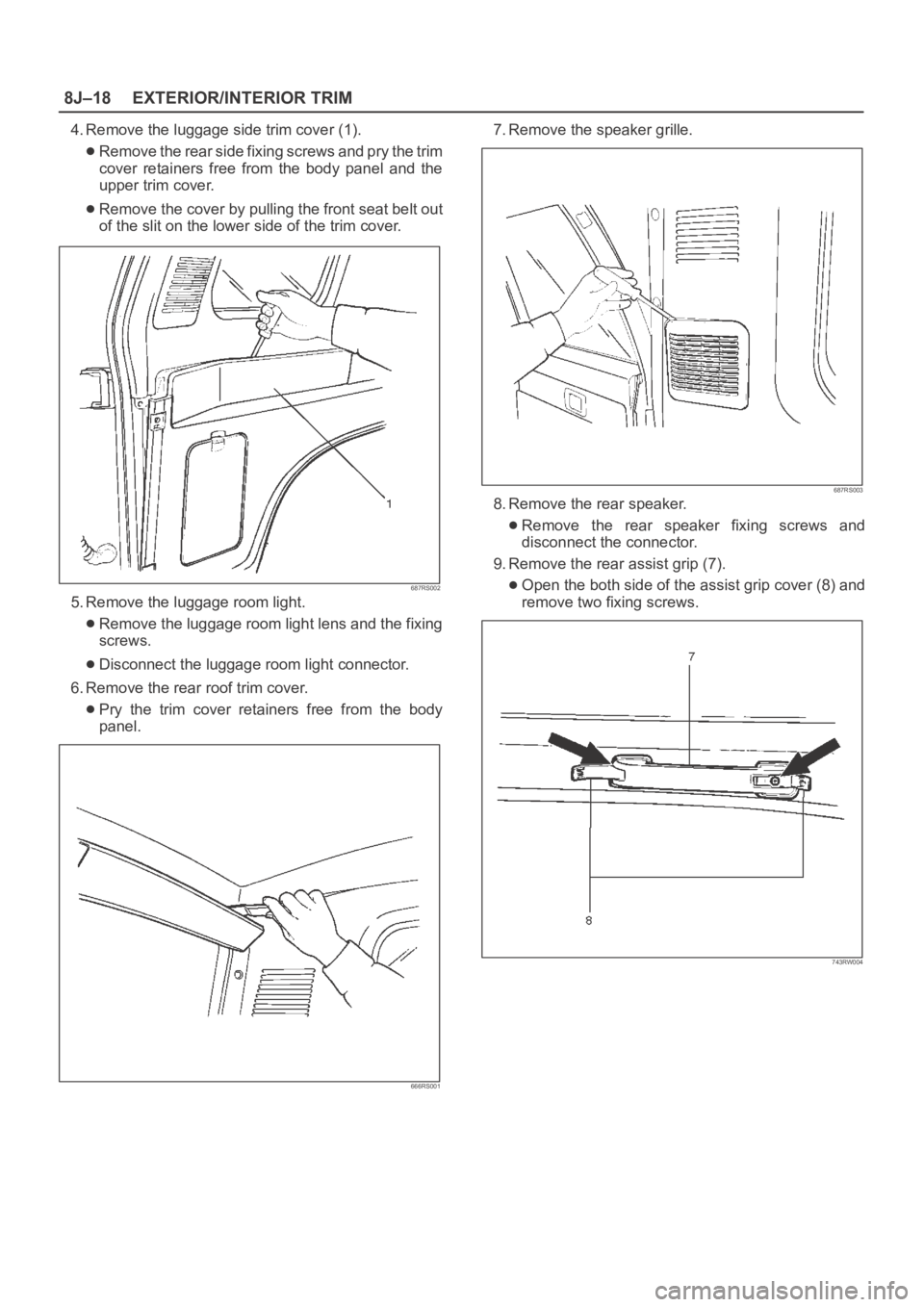

4. Remove the luggage side trim cover (1).
Remove the rear side fixing screws and pry the trim
cover retainers free from the body panel and the
upper trim cover.
Remove the cover by pulling the front seat belt out
of the slit on the lower side of the trim cover.
687RS002
5. Remove the luggage room light.
Remove the luggage room light lens and the fixing
screws.
Disconnect the luggage room light connector.
6. Remove the rear roof trim cover.
Pry the trim cover retainers free from the body
panel.
666RS001
7. Remove the speaker grille.
687RS003
8. Remove the rear speaker.
Remove the rear speaker fixing screws and
disconnect the connector.
9. Remove the rear assist grip (7).
Open the both side of the assist grip cover (8) and
remove two fixing screws.
743RW004

EXTERIOR/INTERIOR TRIM8J–19

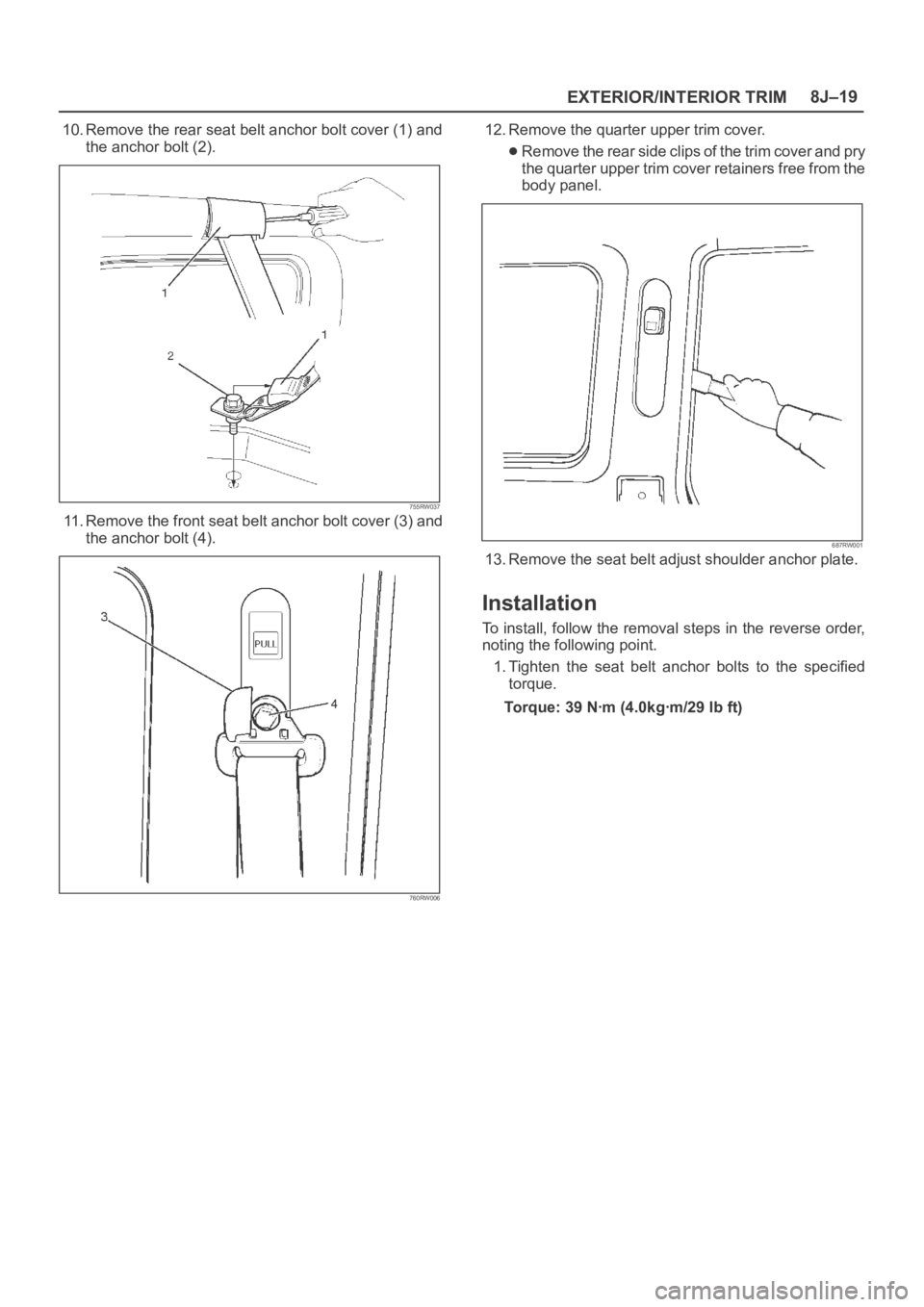

10. Remove the rear seat belt anchor bolt cover (1) and
the anchor bolt (2).
755RW037
11. Remove the front seat belt anchor bolt cover (3) and
the anchor bolt (4).
760RW006
12. Remove the quarter upper trim cover.
Remove the rear side clips of the trim cover and pry
the quarter upper trim cover retainers free from the
body panel.
687RW001
13. Remove the seat belt adjust shoulder anchor plate.
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the seat belt anchor bolts to the specified
torque.
Torque: 39 Nꞏm (4.0kgꞏm/29 lb ft)

8J–20EXTERIOR/INTERIOR TRIM
Center Pillar and Roof Side Trim Cover (Long Wheel Base)

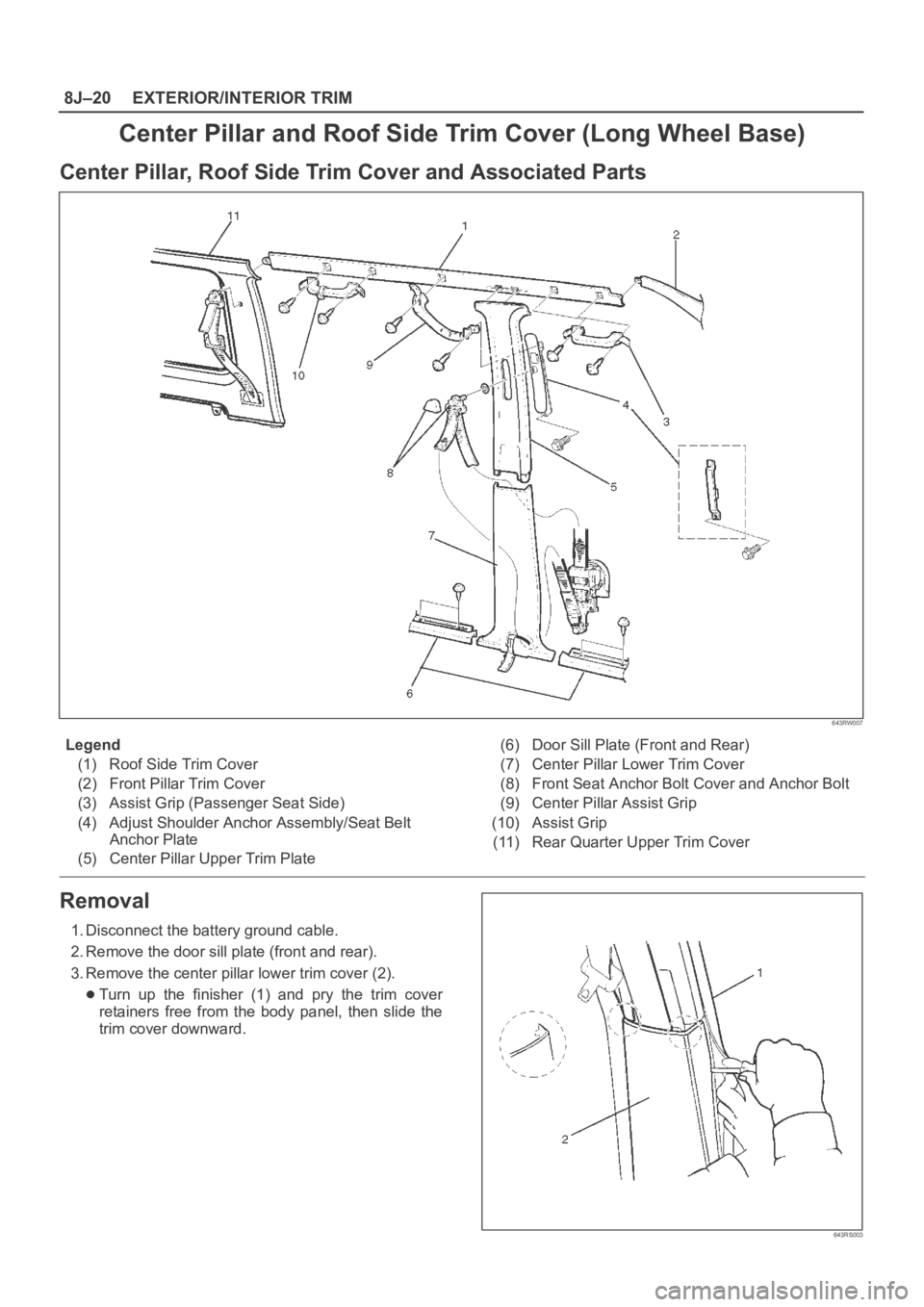

Center Pillar, Roof Side Trim Cover and Associated Parts
643RW007
Legend
(1) Roof Side Trim Cover
(2) Front Pillar Trim Cover
(3) Assist Grip (Passenger Seat Side)
(4) Adjust Shoulder Anchor Assembly/Seat Belt
Anchor Plate
(5) Center Pillar Upper Trim Plate(6) Door Sill Plate (Front and Rear)
(7) Center Pillar Lower Trim Cover
(8) Front Seat Anchor Bolt Cover and Anchor Bolt
(9) Center Pillar Assist Grip
(10) Assist Grip
(11) Rear Quarter Upper Trim Cover
Removal
1. Disconnect the battery ground cable.
2. Remove the door sill plate (front and rear).
3. Remove the center pillar lower trim cover (2).
Turn up the finisher (1) and pry the trim cover
retainers free from the body panel, then slide the
trim cover downward.
643RS003

EXTERIOR/INTERIOR TRIM8J–21
4. Remove the front seat belt anchor bolt cover (3) and
the anchor bolt (4).
760RW006
5. Remove the center pillar upper trim cover (6).
Turn up the finisher (5) and pry the trim cover
retainers free from the body panel.
643RS004
6. Remove the center pillar assist grip.
7. Remove the seat belt anchor plate/adjusut shoulder
anchor assembly.8. Remove the assist grip (7).
Open the both side of the assist grip cover (8) and
remove two fixing screws.
743RW004
9. Remove the roof side trim cover (9).
Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.
643RS005
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Install the seat belt anchor bolts to the specified
torque.
Torque: 39 Nꞏm (4.0kgꞏm/29 lb ft)

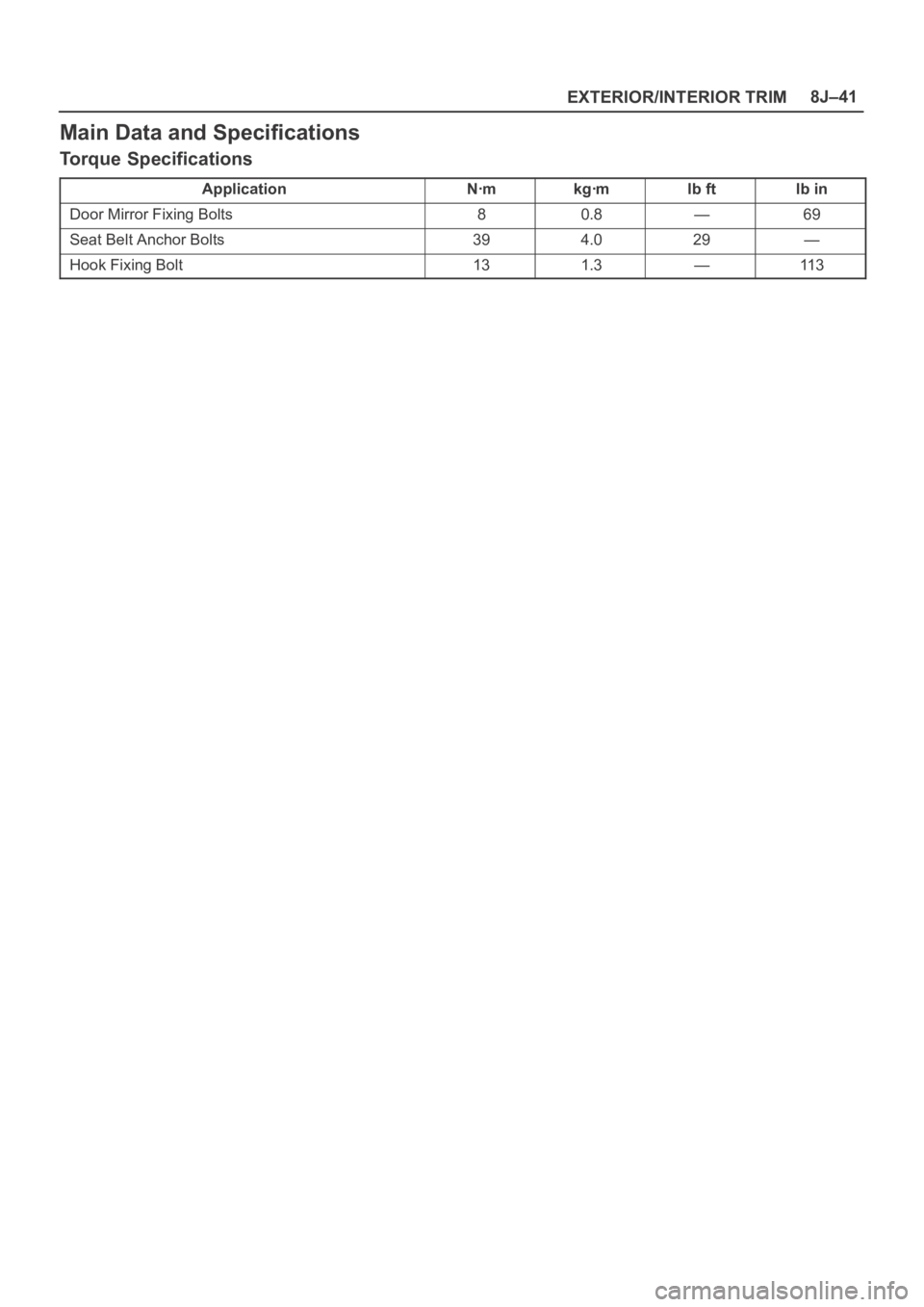

EXTERIOR/INTERIOR TRIM8J–41
Main Data and Specifications
Torque Specifications
ApplicationNꞏmkgꞏmlb ftlb in
Door Mirror Fixing Bolts80.8—69
Seat Belt Anchor Bolts394.029—
Hook Fixing Bolt131.3—11 3

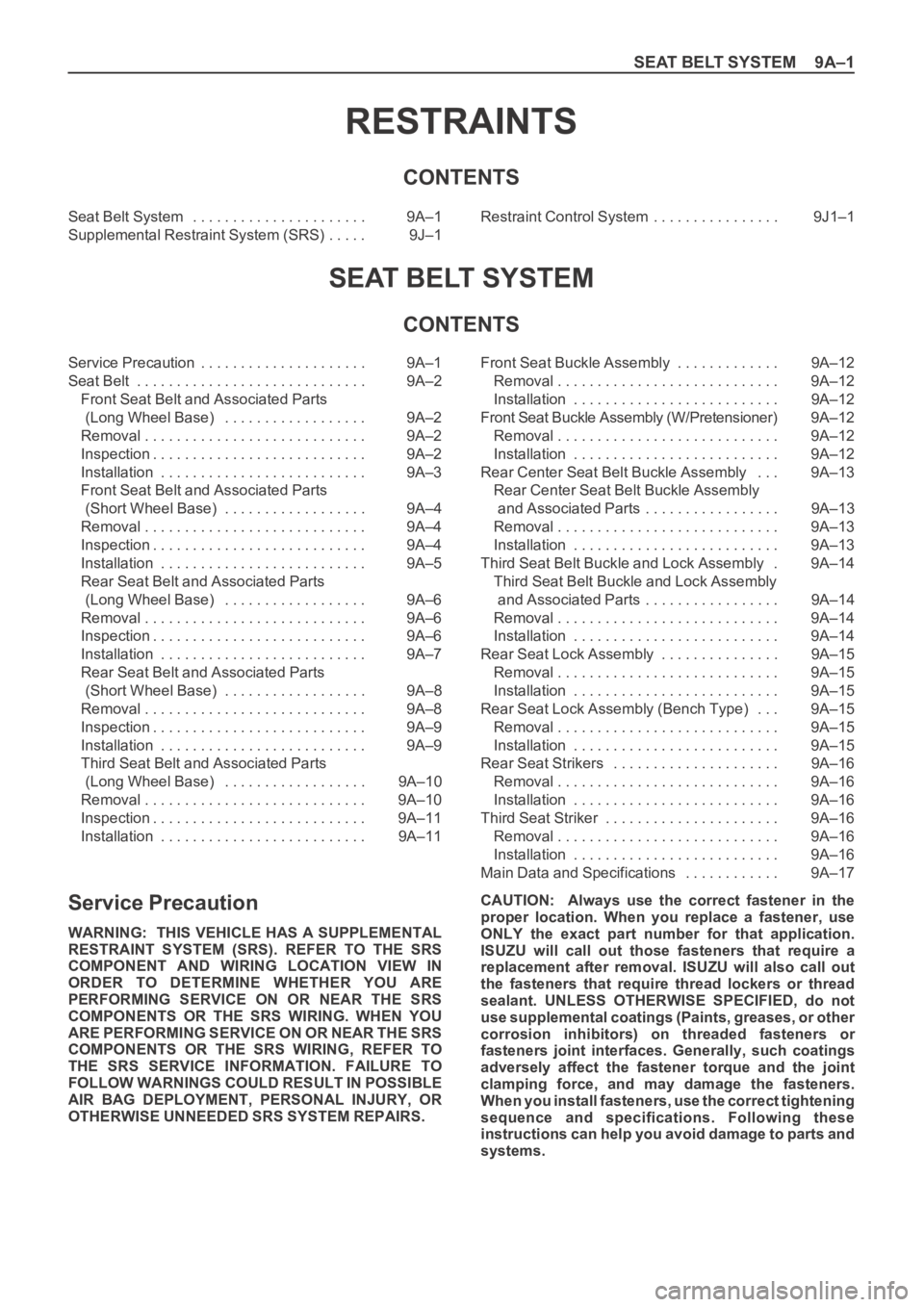

SEAT BELT SYSTEM 9A–1
RESTRAINTS
CONTENTS
SEAT BELT SYSTEM
CONTENTS
Seat Belt System . . . . . . . . . . . . . . . . . . . . . . 9A–1
Supplemental Restraint System (SRS) . . . . . 9J–1Restraint Control System . . . . . . . . . . . . . . . . 9J1–1
Service Precaution . . . . . . . . . . . . . . . . . . . . . 9A–1
Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–2
Front Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9A–2
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–2
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–3
Front Seat Belt and Associated Parts
(Short Wheel Base) . . . . . . . . . . . . . . . . . . 9A–4
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–4
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–5
Rear Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9A–6
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–6
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–7
Rear Seat Belt and Associated Parts
(Short Wheel Base) . . . . . . . . . . . . . . . . . . 9A–8
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–8
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–9
Third Seat Belt and Associated Parts
(Long Wheel Base) . . . . . . . . . . . . . . . . . . 9A–10
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–10
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–11Front Seat Buckle Assembly . . . . . . . . . . . . . 9A–12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–12
Front Seat Buckle Assembly (W/Pretensioner) 9A–12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–12
Rear Center Seat Belt Buckle Assembly . . . 9A–13
Rear Center Seat Belt Buckle Assembly
and Associated Parts . . . . . . . . . . . . . . . . . 9A–13
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–13
Third Seat Belt Buckle and Lock Assembly . 9A–14
Third Seat Belt Buckle and Lock Assembly
and Associated Parts . . . . . . . . . . . . . . . . . 9A–14
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–14
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–14
Rear Seat Lock Assembly . . . . . . . . . . . . . . . 9A–15
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–15
Rear Seat Lock Assembly (Bench Type) . . . 9A–15
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–15
Rear Seat Strikers . . . . . . . . . . . . . . . . . . . . . 9A–16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–16
Third Seat Striker . . . . . . . . . . . . . . . . . . . . . . 9A–16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9A–16
Main Data and Specifications . . . . . . . . . . . . 9A–17
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

9A–2 SEAT BELT SYSTEM
Legend
(1) Center Pillar Upper Trim Cover
(2) Adjust Shoulder Anchor Assembly/Seat Belt
Anchor Plate
(3) Center Pillar
(4) Dust Cover
(5) Retractor(6) Anchor Bolt (Lower)
(7) Door Sill Plate (Front & Rear)
(8) Center Pillar Lower Trim Cover
(9) Front Seat Belt Assembly
(10) Front Seat Belt Anchor Bolt Cover and Anchor
Bolt
Seat Belt
Front Seat Belt and Associated Parts (Long Wheel Base)
73
4
5
6 1
2
10
8
9
760RW022
Removal
1. Disconnect the battery ground cable.
2. Remove the door sill plate (Front & Rear).
3. Remove the center pillar lower trim cover.
4. Remove the front seat belt anchor bolt cover and
anchor bolt (Upper Side).
Refer to Center Pillar and Roof Side Trim Cover in
Exterior/Interior Trim section.
5. Remove the seat belt lower anchor bolt and screw,
and then remove the front seat belt.
6. Remove the adjust shoulder anchor assembly/seat
belt anchor plate.
Refer to Center Pillar and Roof Side Trim Cover in
Exterior/Interior Trim section.
Inspection
If any of the following abnormalities is found, replace on
an assembly basis;
Deform and malfunction of adjustable shoulder
anchor/seat belt anchor plate.
No smooth move of upper/lower anchors in the
circumferential direction.
Damaged and/or deformed through ring.
Damaged and/or deformed tongue.
Damaged and/or frayed of webbing.
Deformed retractor bracket.
Seat belt not rewound up.
Resistance or abnormal sound when seat belt is
wound out and rewound.
Retractor abnormality.

SEAT BELT SYSTEM 9A–3
Inspection of retractor
1. ELR (Emergency Locking Retractor) lock inclining
angle check.
When the retractor is moved gently from its installing
position, make sure it is not locked within 15° in any
directions, and it remains locked at 45° or larger.
2. ELR lock check.
When the seat belt is drawn slowly with the retractor
installed, make sure it is not locked. And when it is
drawn quickly, make sure it is locked.
3. ALR (Automatic Locking Retractor)/ELR check
(Except for driver’s seat).
When rewound after winding out the seat belt, make
sure the seat belt cannot be taken out. After
rewinding, make sure it has returned to its normal
operation.
CAUTION: Do not disassemble the retractor.
Installation
To install, follow the removal steps in the reverse order,
noting the following points;
1. Pass the seat belt through the lower trim cover hole,
and tighten the seat belt anchor bolts to the specified
torque.
Torque: 39 Nꞏm (4.0 kgꞏm/29 lb ft)
2. After installing the trim cover to the body panel
securely, close the lower trim cover.
