Page 281 of 326

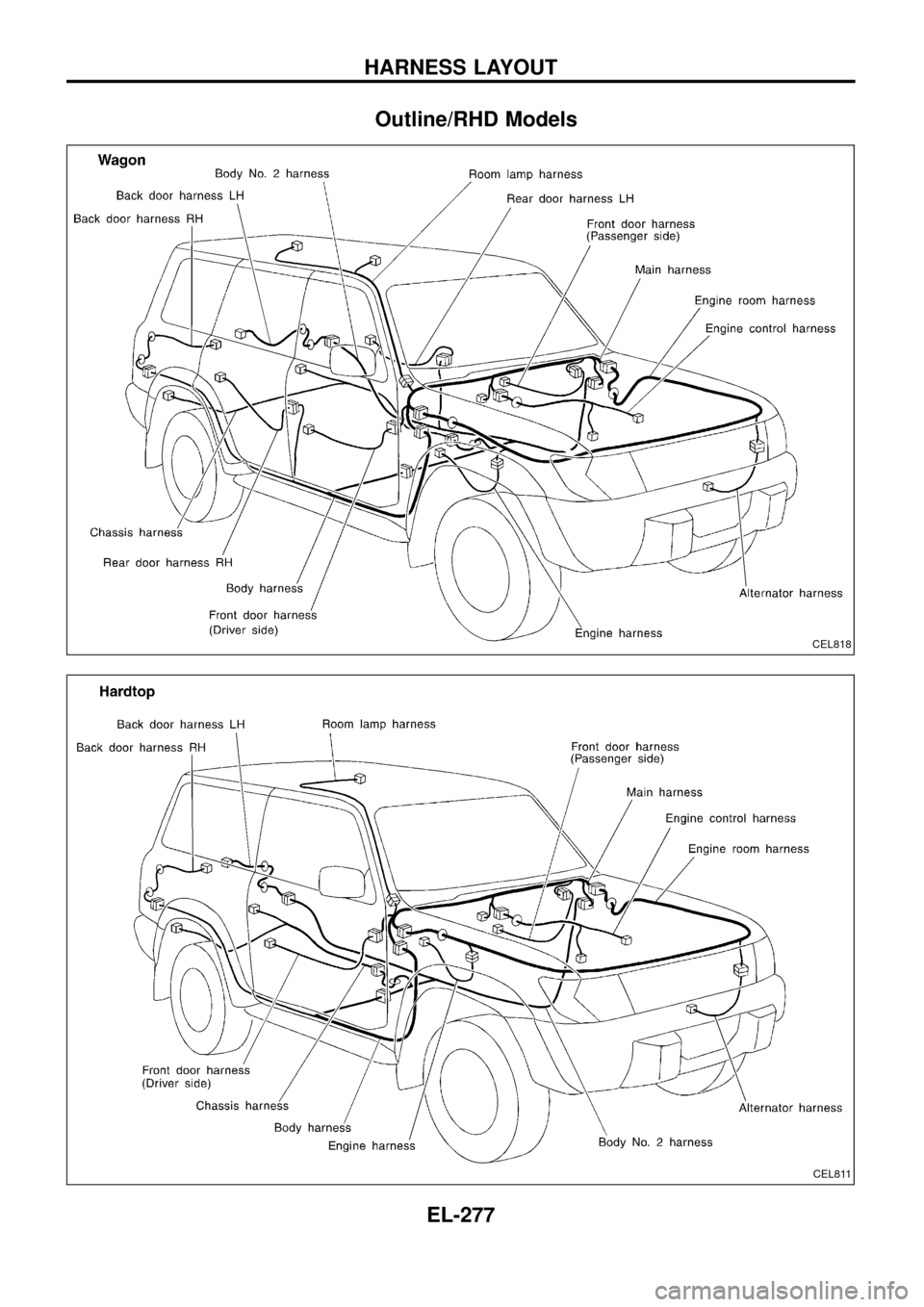

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual Outline/RHD Models CEL818 CEL811 HARNESS LAYOUT EL-277

Page 282 of 326

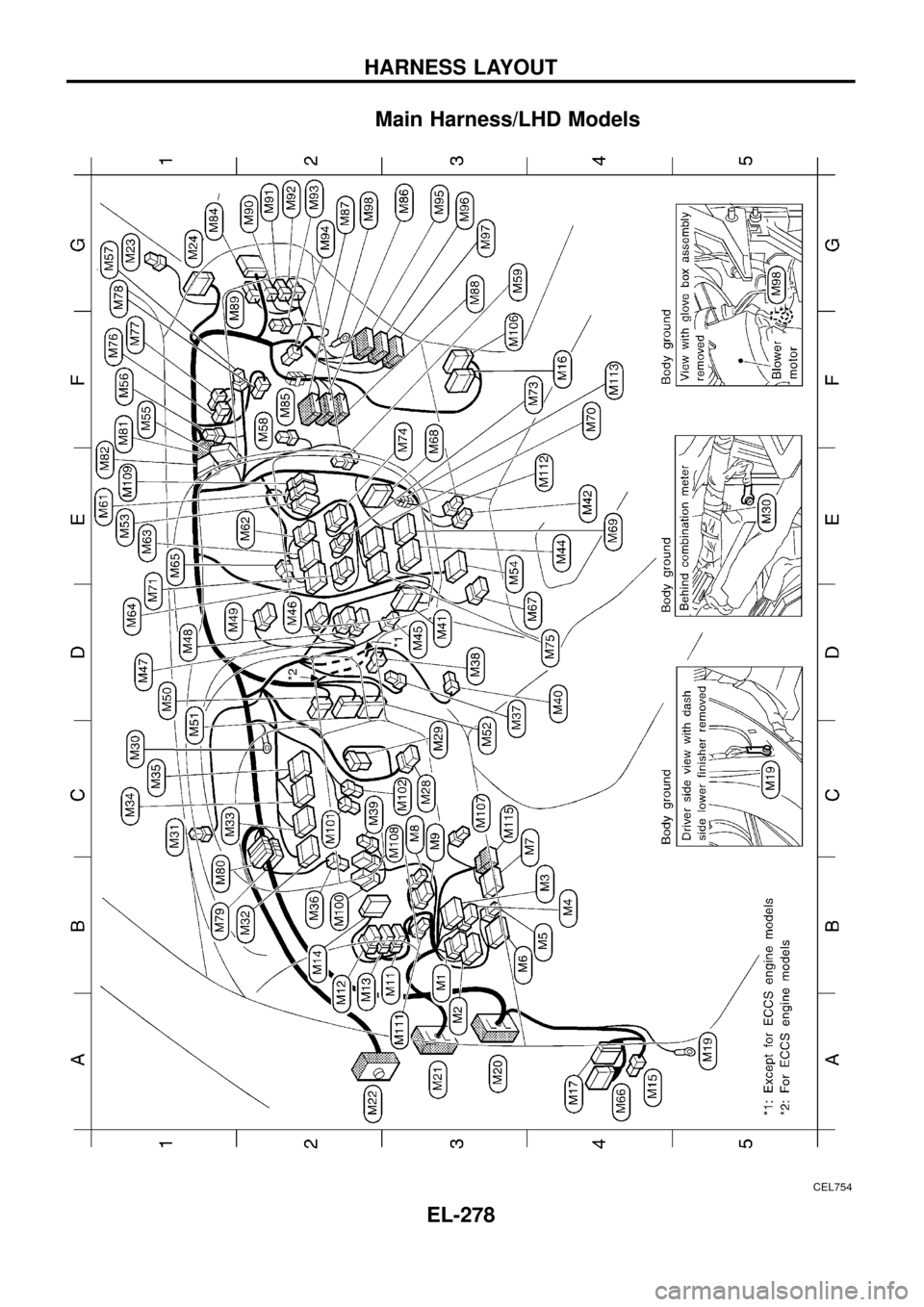

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual Main Harness/LHD Models CEL754 HARNESS LAYOUT EL-278

Page 283 of 326

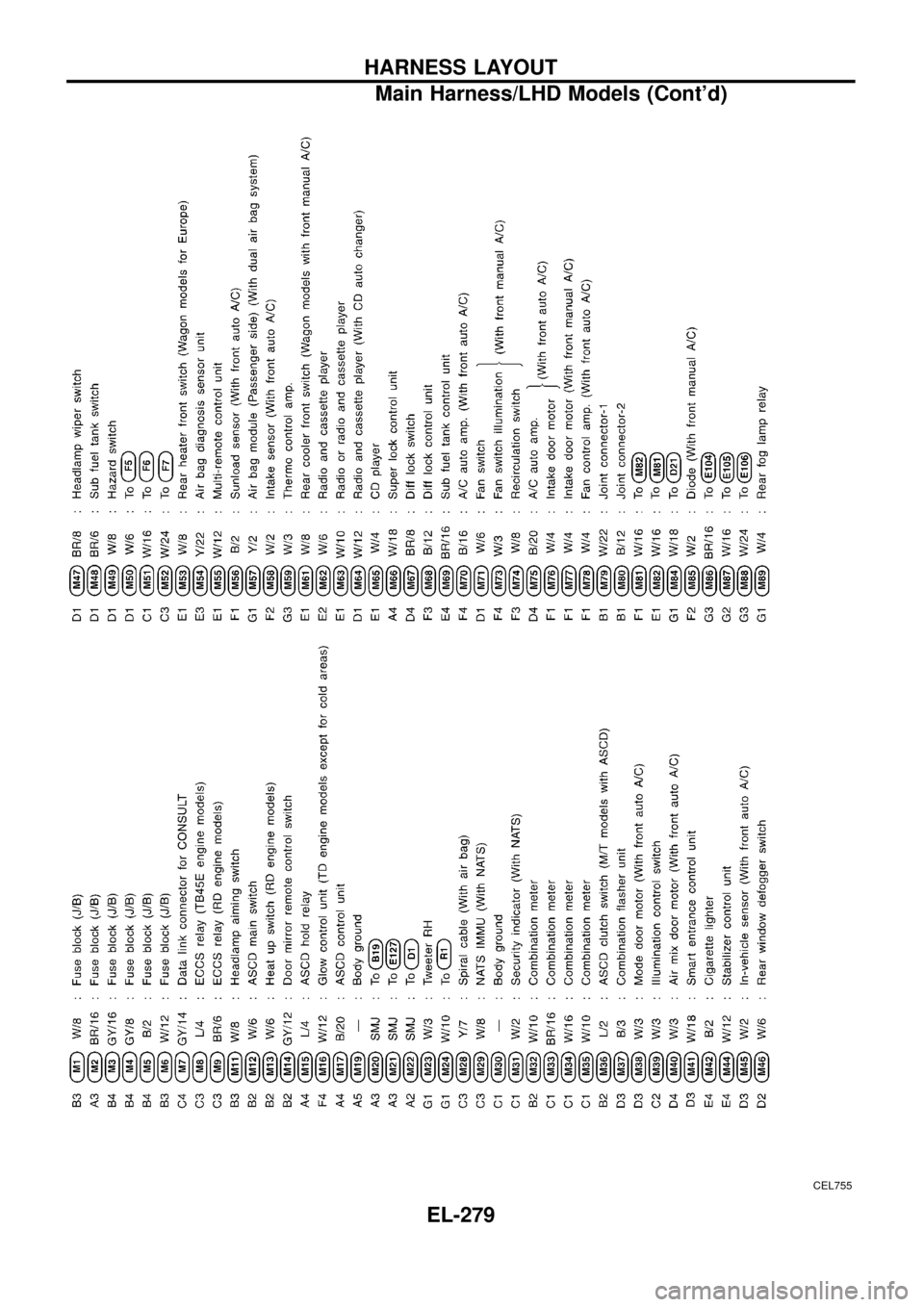

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual CEL755 HARNESS LAYOUT Main Harness/LHD Models (Contd) EL-279

Page 284 of 326

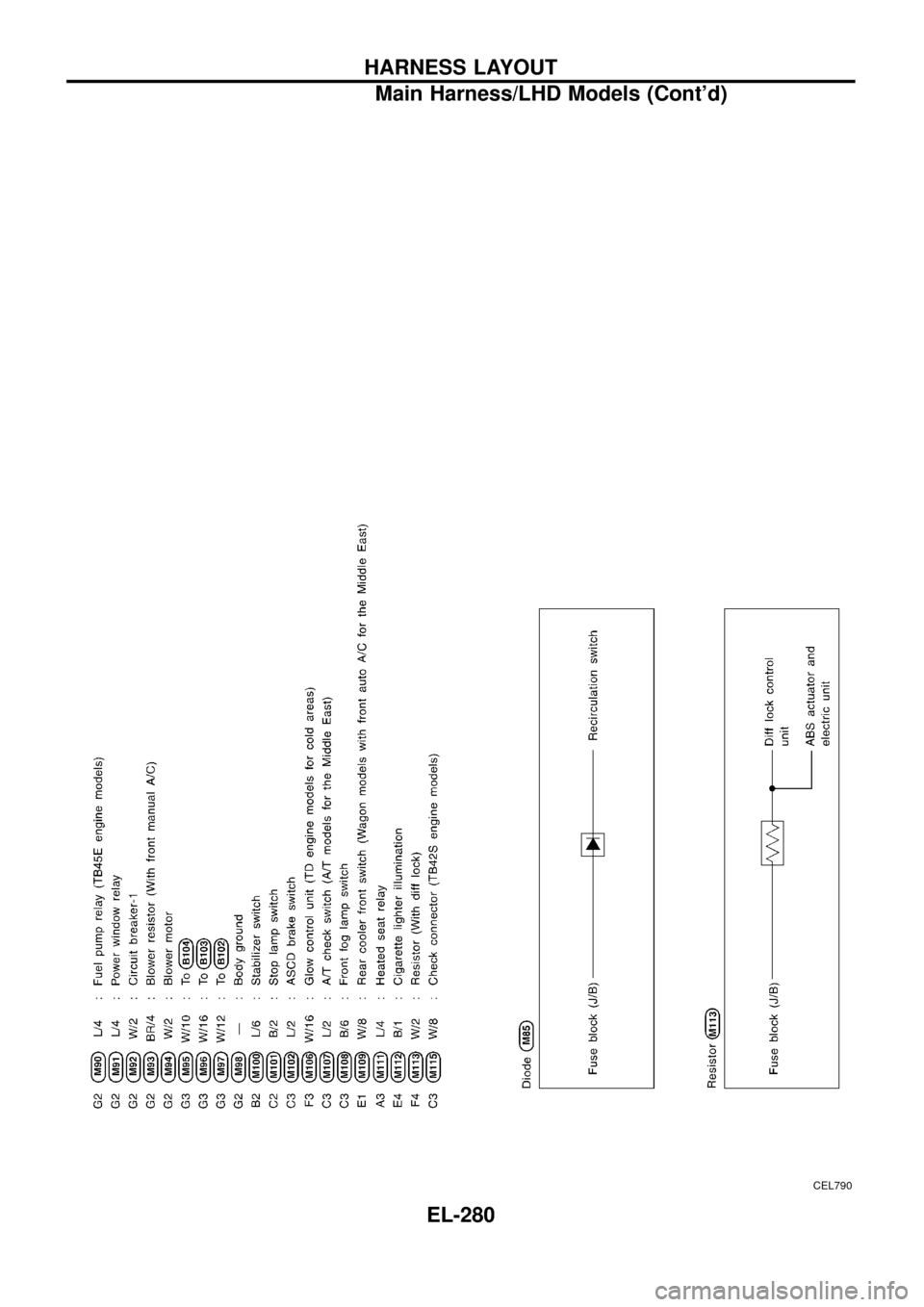

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual CEL790 HARNESS LAYOUT Main Harness/LHD Models (Contd) EL-280

Page 285 of 326

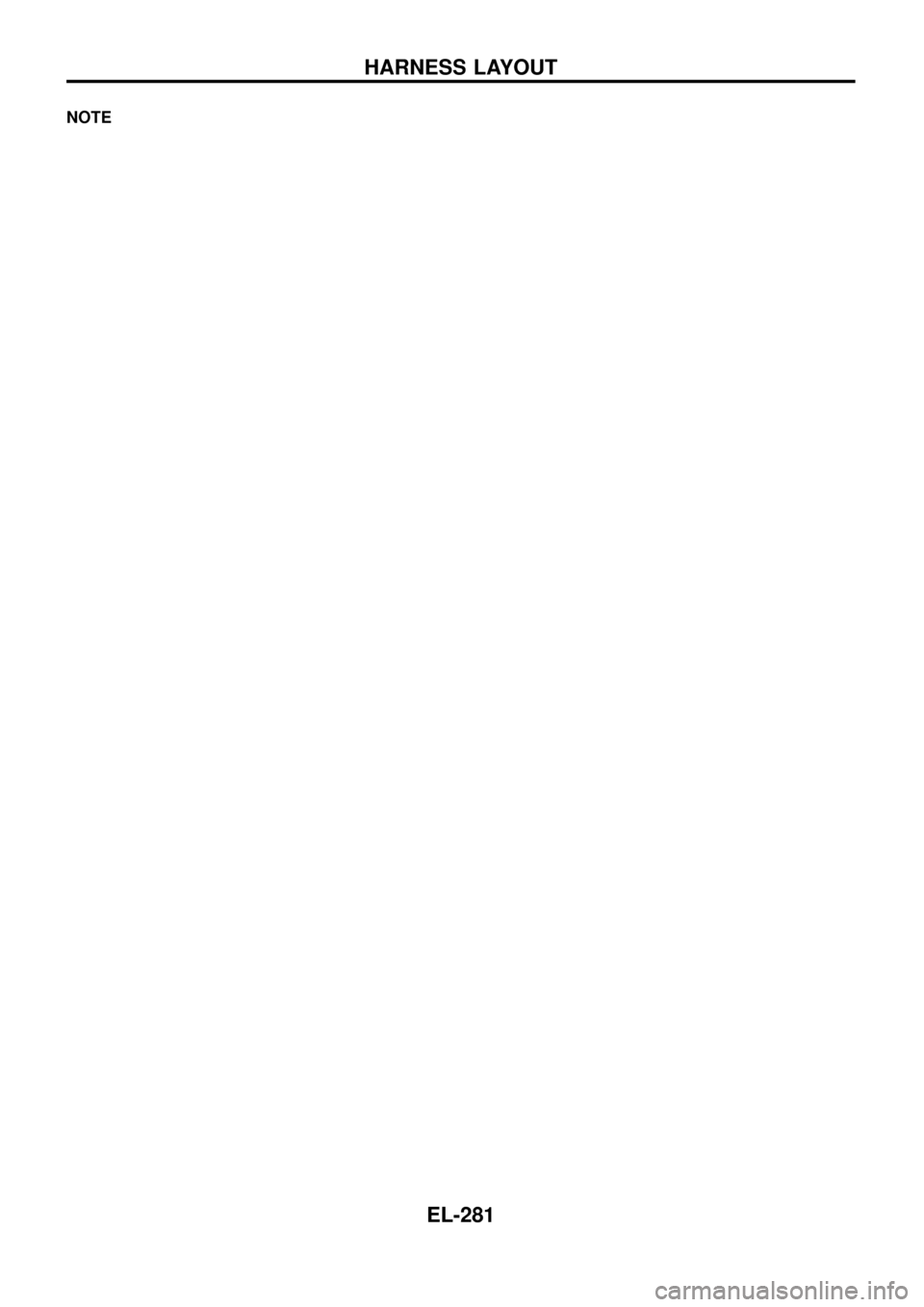

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual NOTE HARNESS LAYOUT EL-281

Page 286 of 326

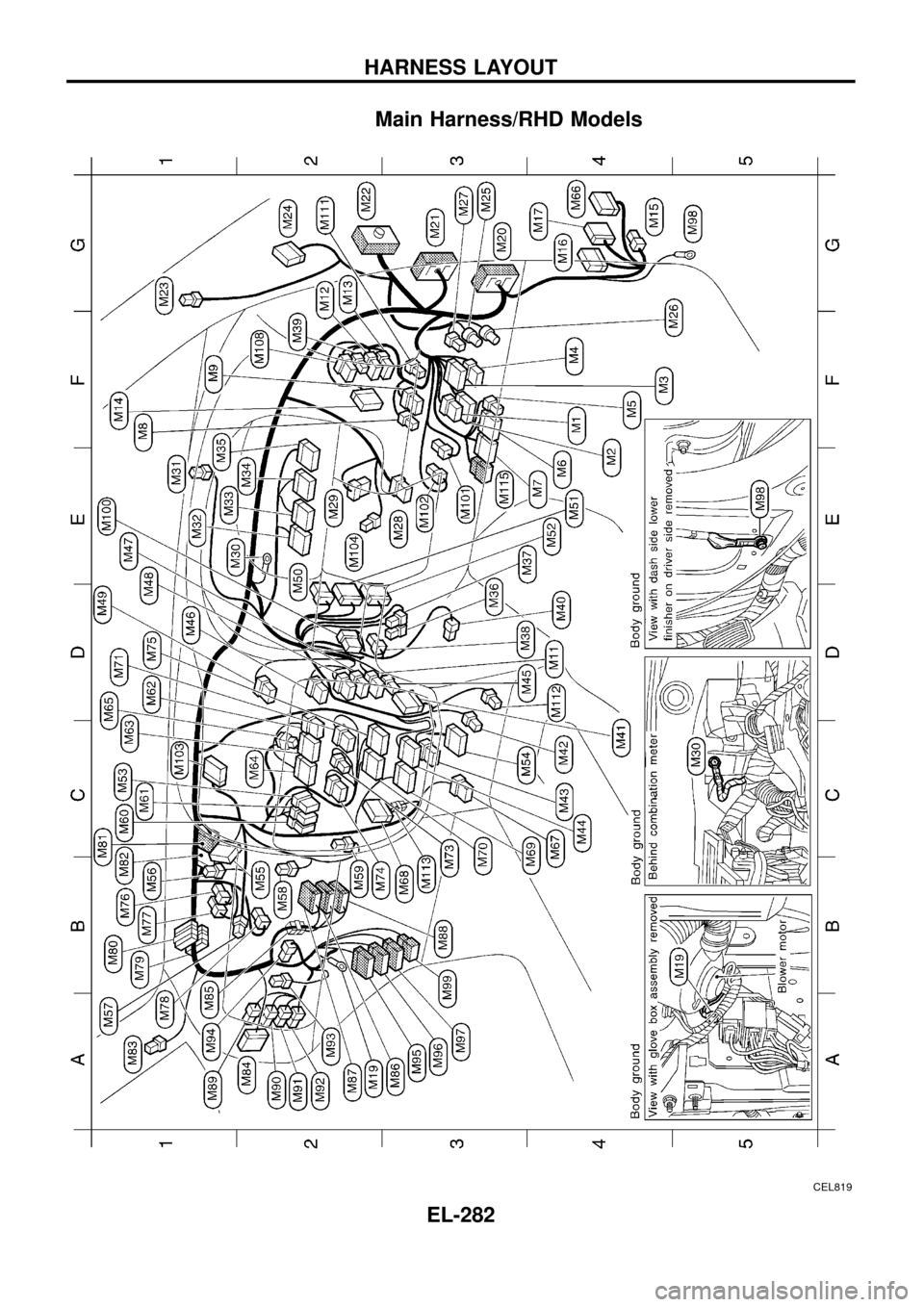

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual Main Harness/RHD Models CEL819 HARNESS LAYOUT EL-282

Page 287 of 326

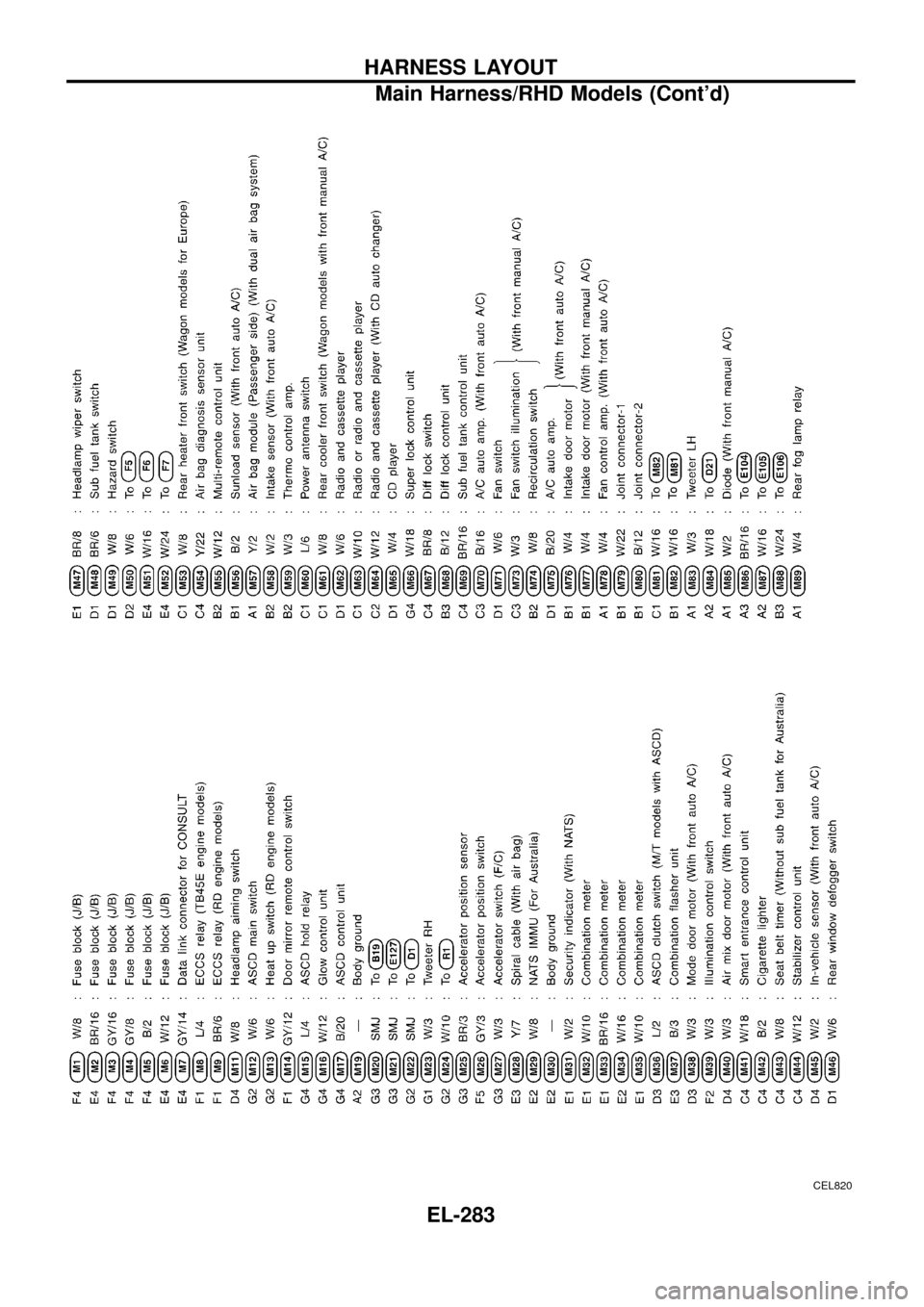

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual CEL820 HARNESS LAYOUT Main Harness/RHD Models (Contd) EL-283

Page 288 of 326

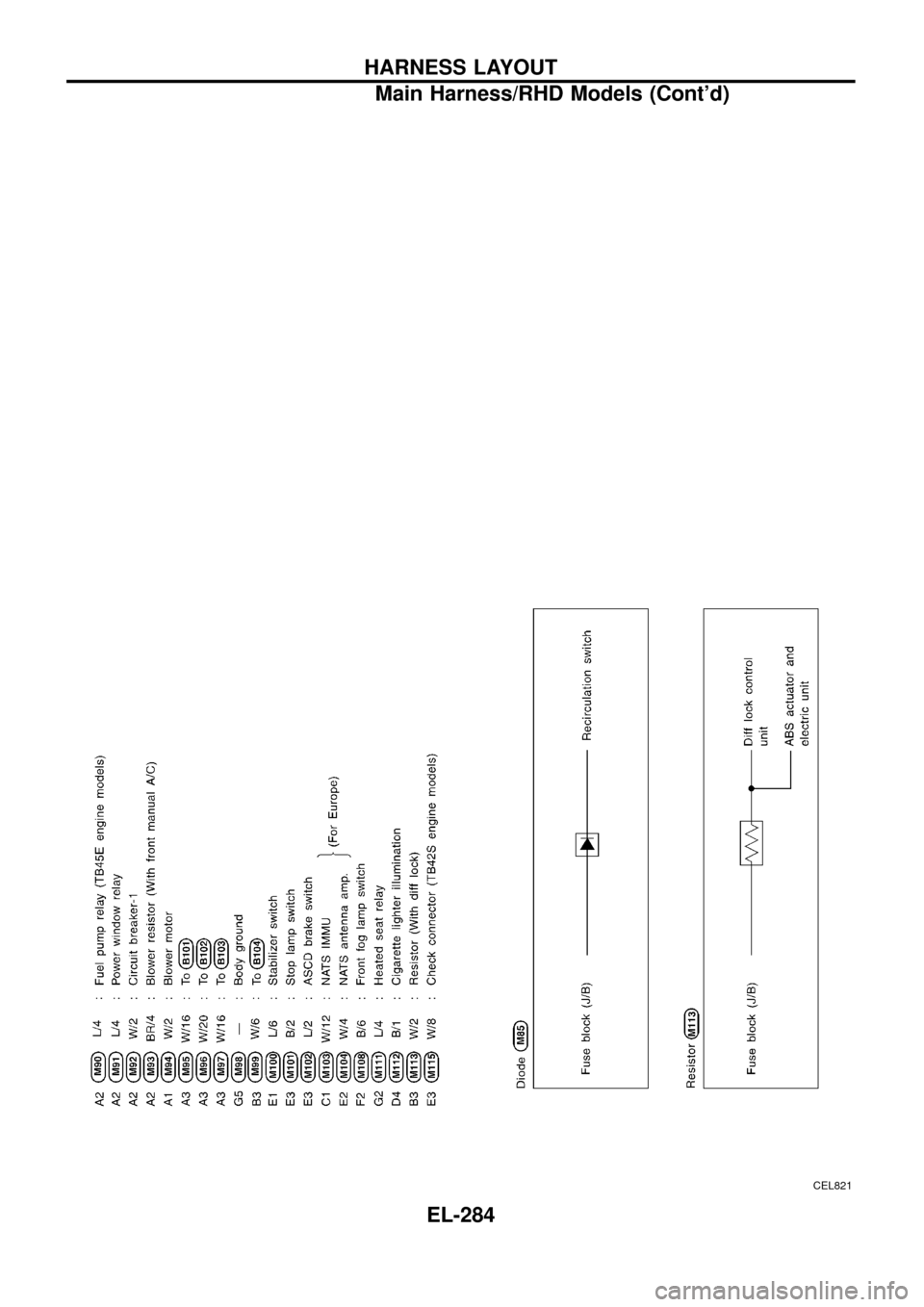

NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual CEL821 HARNESS LAYOUT Main Harness/RHD Models (Contd) EL-284
