1998 NISSAN PATROL Ya go

Power door lock/unlock operation by lock knob
+With lock knob on driver or passenger door setting to LOCK while all doors are closed will lock all doors.
When one or more door is opened, with lock knob on passenger door setting to LOCK will lock
passenger door only. (Power door lock system will not operate.)
+With lock knob on driver or passenger door setting to UNLOCK while all doors are closed will unlock all
doors.
Lock knob operation cannot control super lock.
Key reminder system
+If the ignition key is in the ignition key cylinder and any door is open, setting lock/unlock switch or lock
knob on driver or passenger door to ``LOCK'' locks the door once but then immediately unlocks all doors.
System initialisation
+System initialisation is required when battery cables are reconnected. Conduct one of the followings to
release super lock once;
Ð insert the key into ignition key cylinder and turn it to ON.
Ð LOCK/UNLOCK operation using door key cylinder.
POWER DOOR LOCK Ð Super Lock Ð
System Description (Cont'd)
EL-213

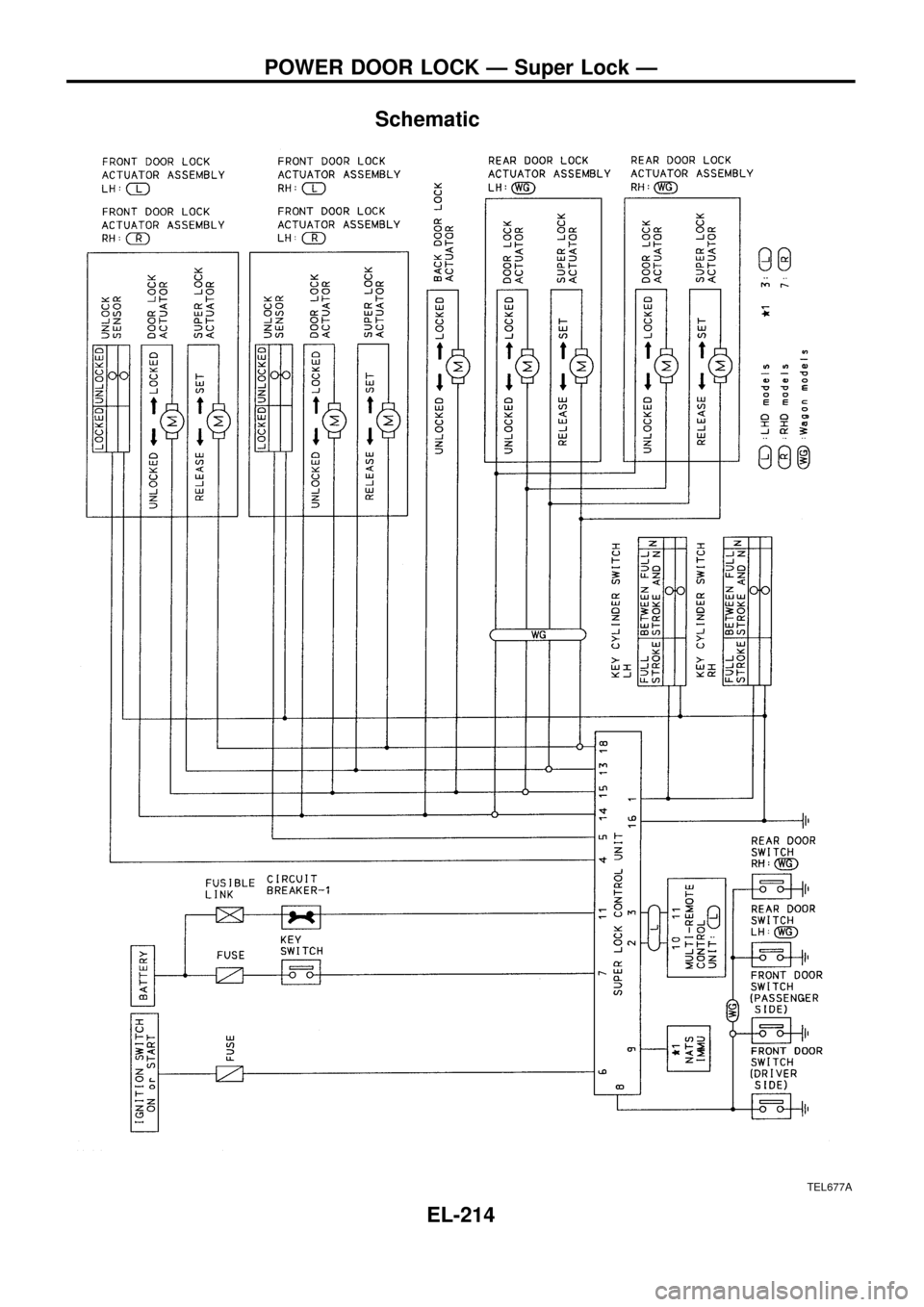

Schematic
TEL677A
POWER DOOR LOCK Ð Super Lock Ð
EL-214

Wiring Diagram Ð S/LOCK Ð/LHD Models
TEL678A
POWER DOOR LOCK Ð Super Lock Ð
EL-215

TEL679A
POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/LHD Models
(Cont'd)
EL-216

TEL680A

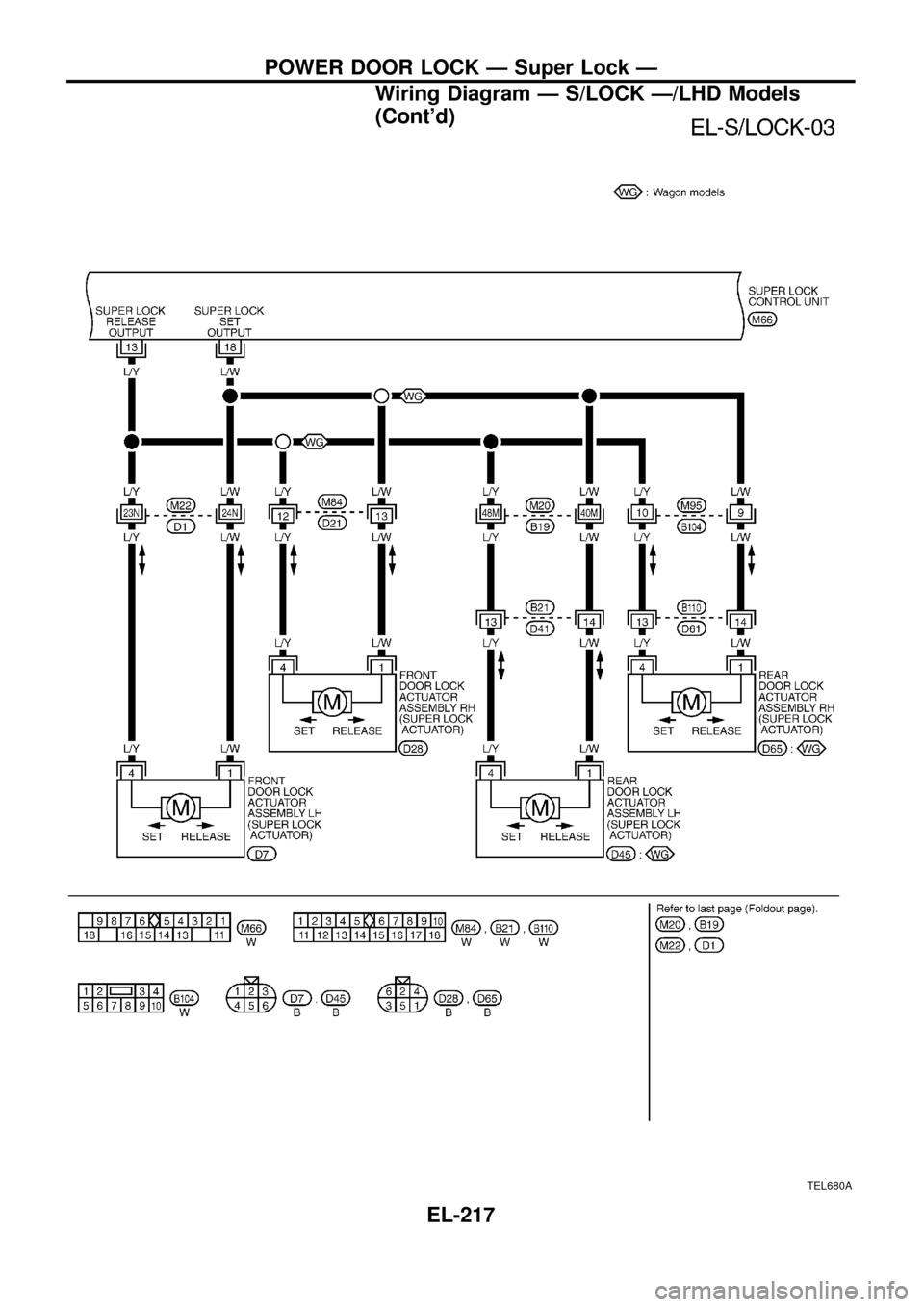

POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/LHD Models
(Cont'd)
EL-217

TEL681A

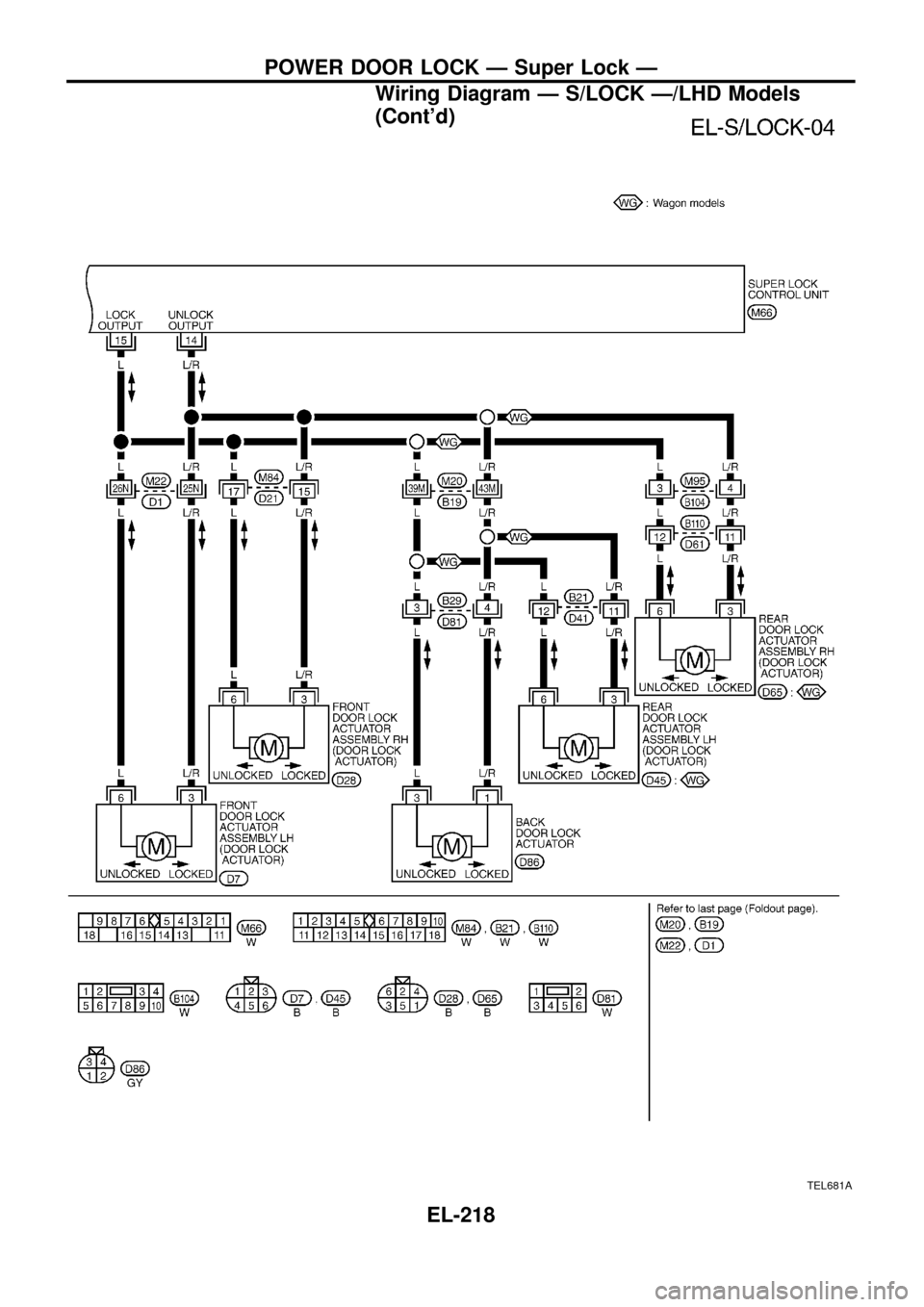

POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/LHD Models
(Cont'd)
EL-218

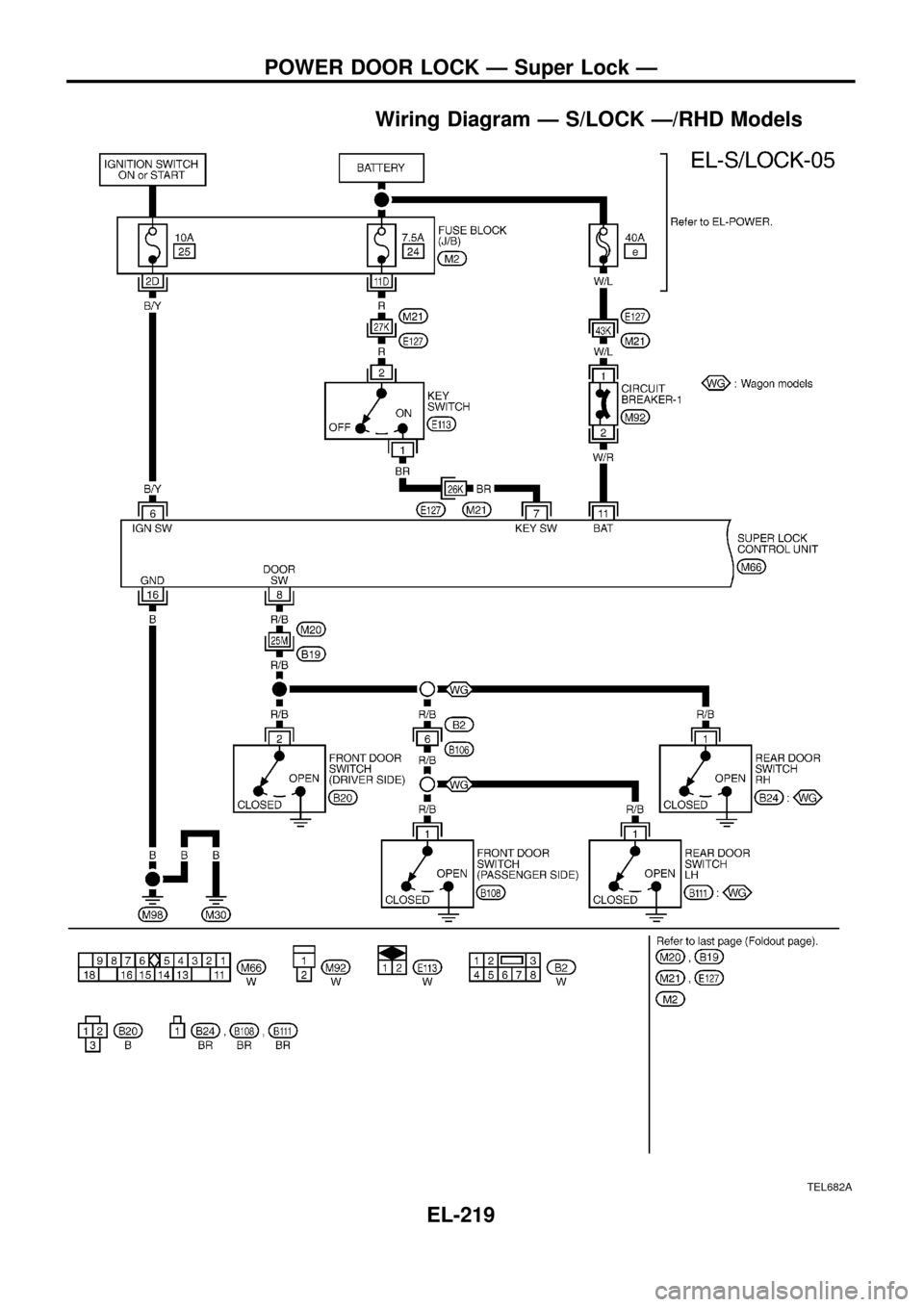

Wiring Diagram Ð S/LOCK Ð/RHD Models
TEL682A
POWER DOOR LOCK Ð Super Lock Ð
EL-219

TEL683A

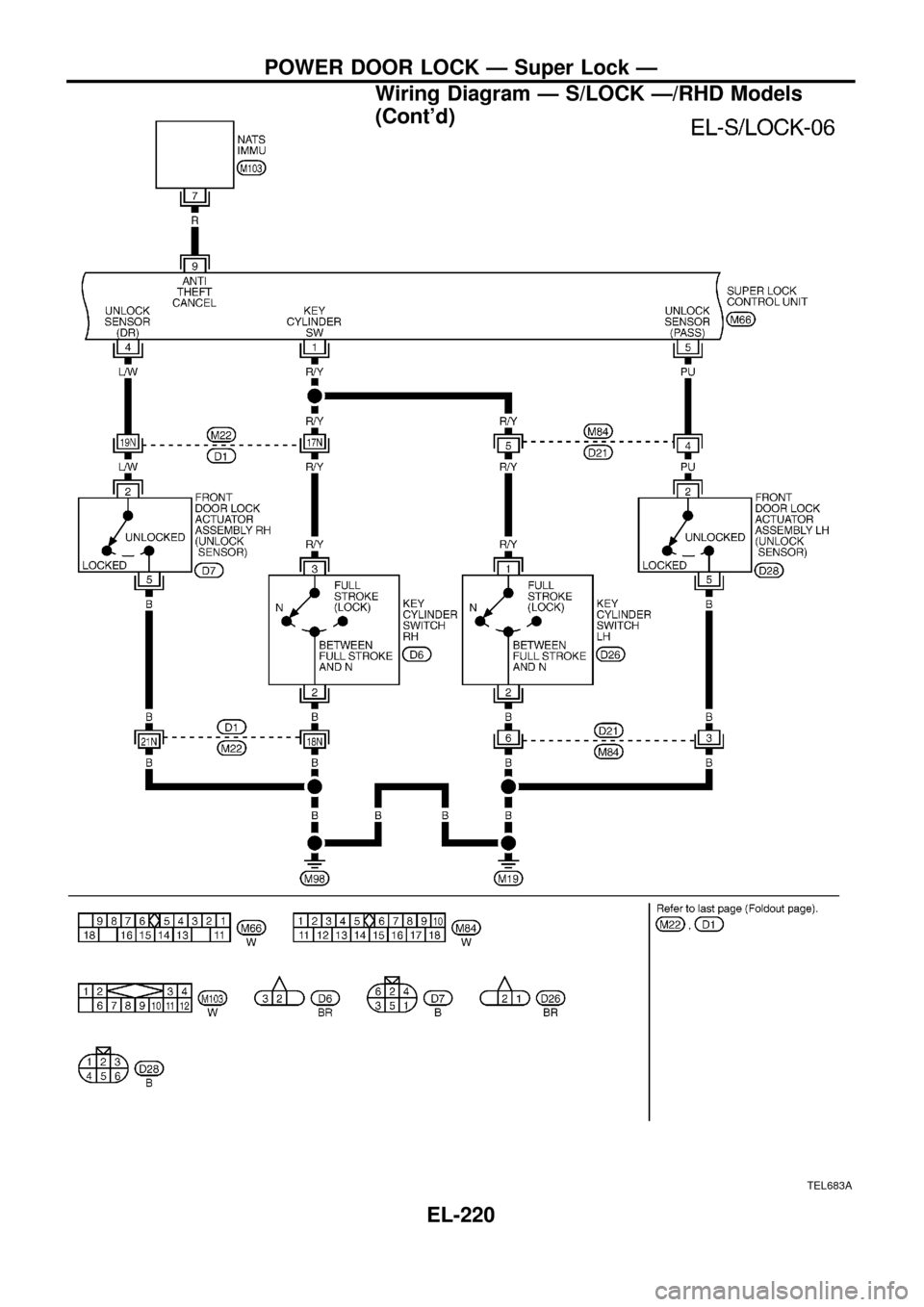

POWER DOOR LOCK Ð Super Lock Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models
(Cont'd)
EL-220
