1998 JAGUAR X308 AUTOMATIC

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Main Control Valve Body
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle for access.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.
4. Remove the fluid filter, (44.24.07).

5. Remove the input speed sensor.
• NOTE: M5 fixing.
1. Remove the screw from the input speed sensor securing bracket and pu ll the sensor clear.
Disconnect the harness multiplug.

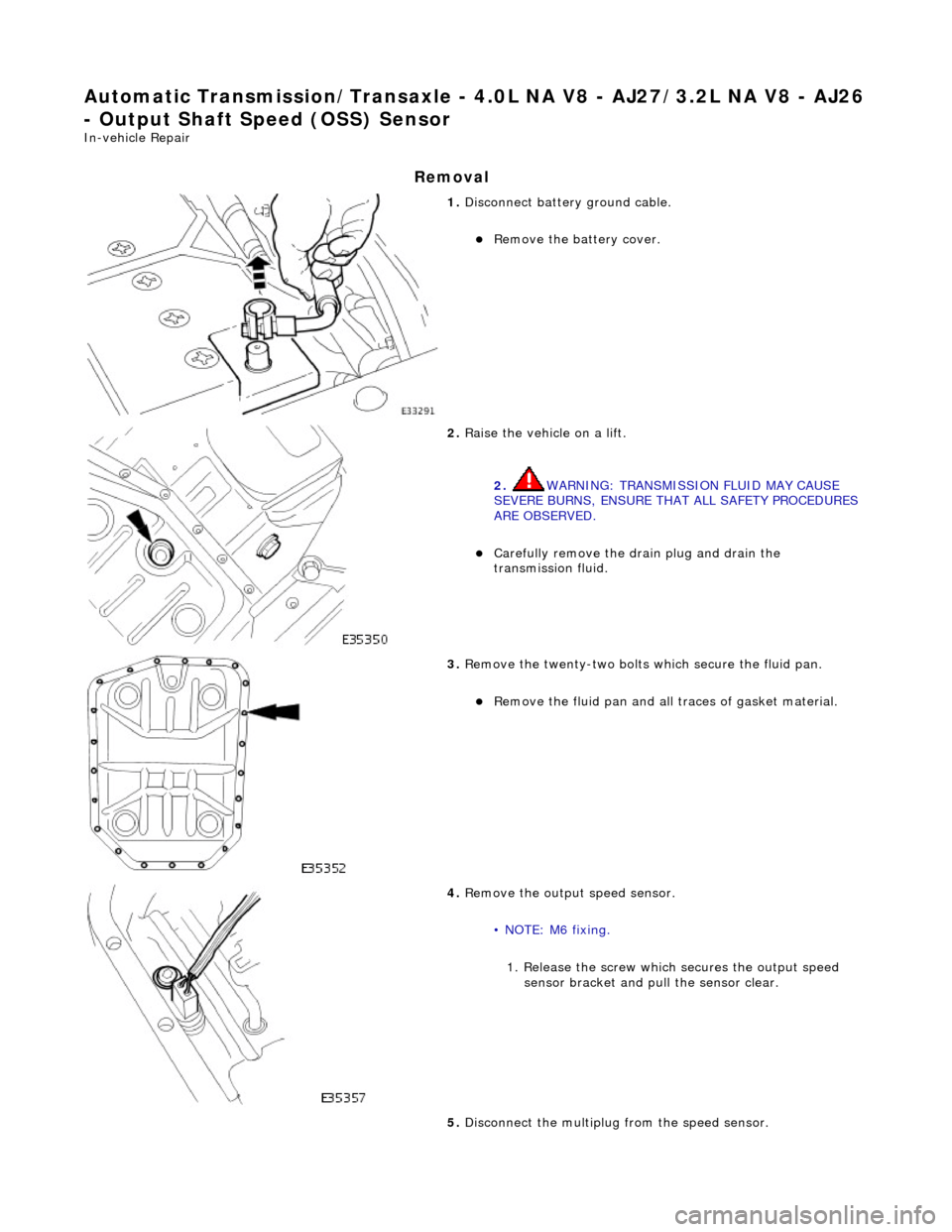

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Output Shaft Speed (OSS) Sensor
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle on a lift.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.

4. Remove the output speed sensor.
• NOTE: M6 fixing.
1. Release the screw which secures the output speed sensor bracket and pull the sensor clear.
5. Disconnect the multiplug from the speed sensor.

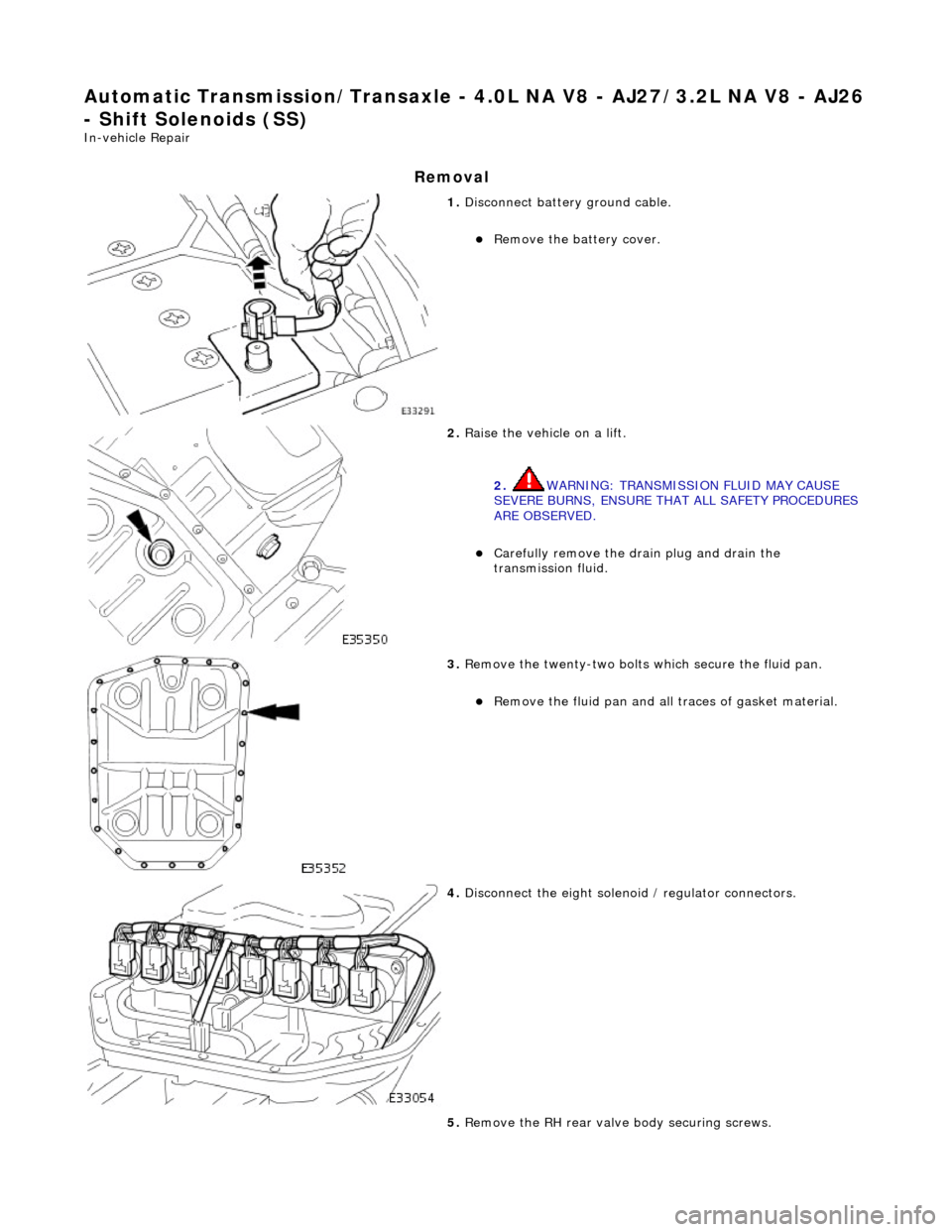

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Shift Solenoids (SS)
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle on a lift.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.

4. Disconnect the eight soleno id / regulator connectors.
5. Remove the RH rear valve body securing screws.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Control Module (TCM)
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Remove the trim panel from the engine compartment,
passenger side.
1. Remove the left hand side enclosure panel.
2. If necessary, remove the centre trim panel.

3. Release the fixings and remove the cover from the ECM / TCM
housing.

4. Disconnect the TCM harness multiplug EM007.
5. Lift the TCM from its housing.

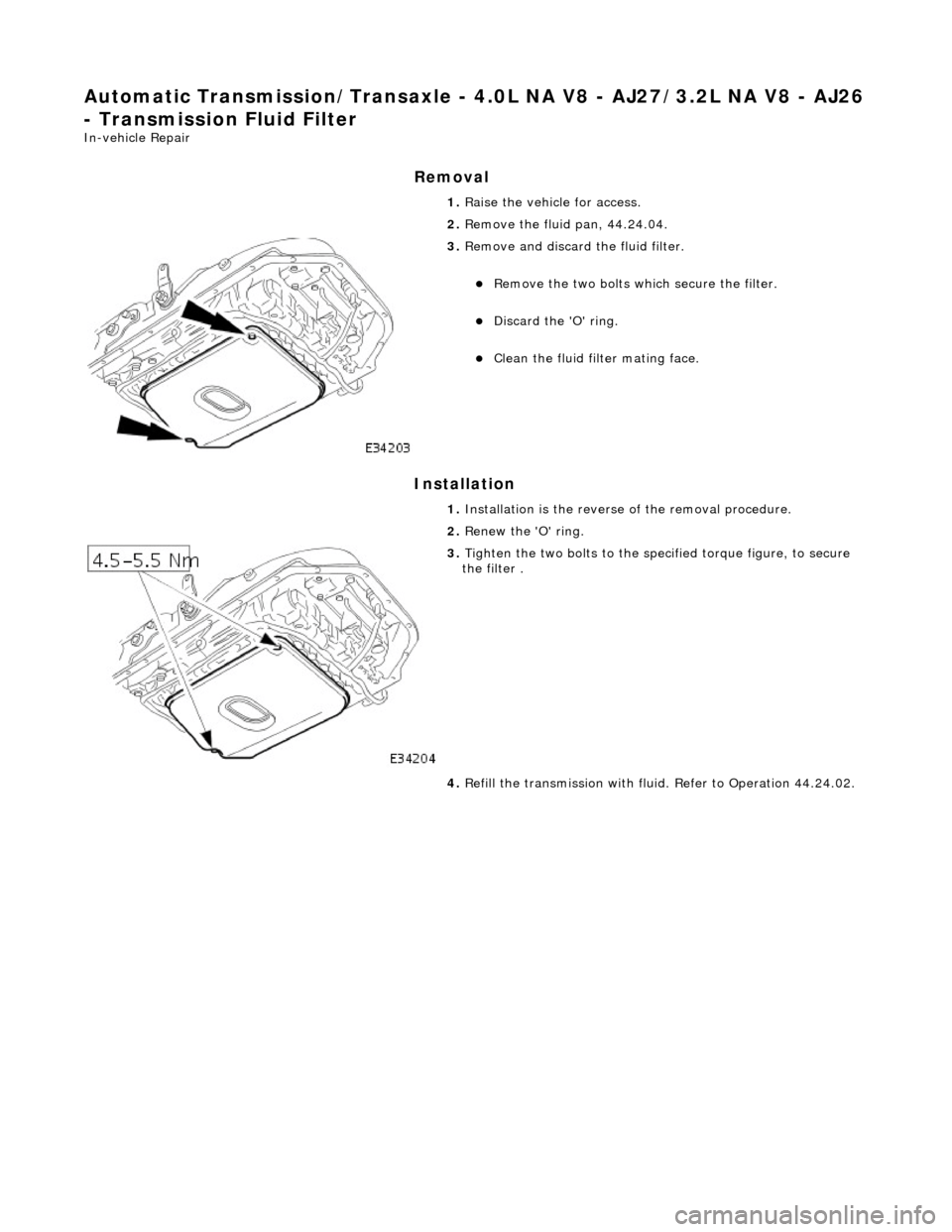

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Fluid Filter
In-vehicle Repair
Removal
Installation

1.
Raise the vehicle for access.
2. Remove the fluid pan, 44.24.04.

3. Remove and discard the fluid filter.
Remove the two bolts which secure the filter.
Discard the 'O' ring.
Clean the fluid filter mating face.
1. Installation is th e reverse of the re moval procedure.
2. Renew the 'O' ring.

3. Tighten the two bolts to the spec ified torque figure, to secure
the filter .
4. Refill the transmission with flui d. Refer to Operation 44.24.02.

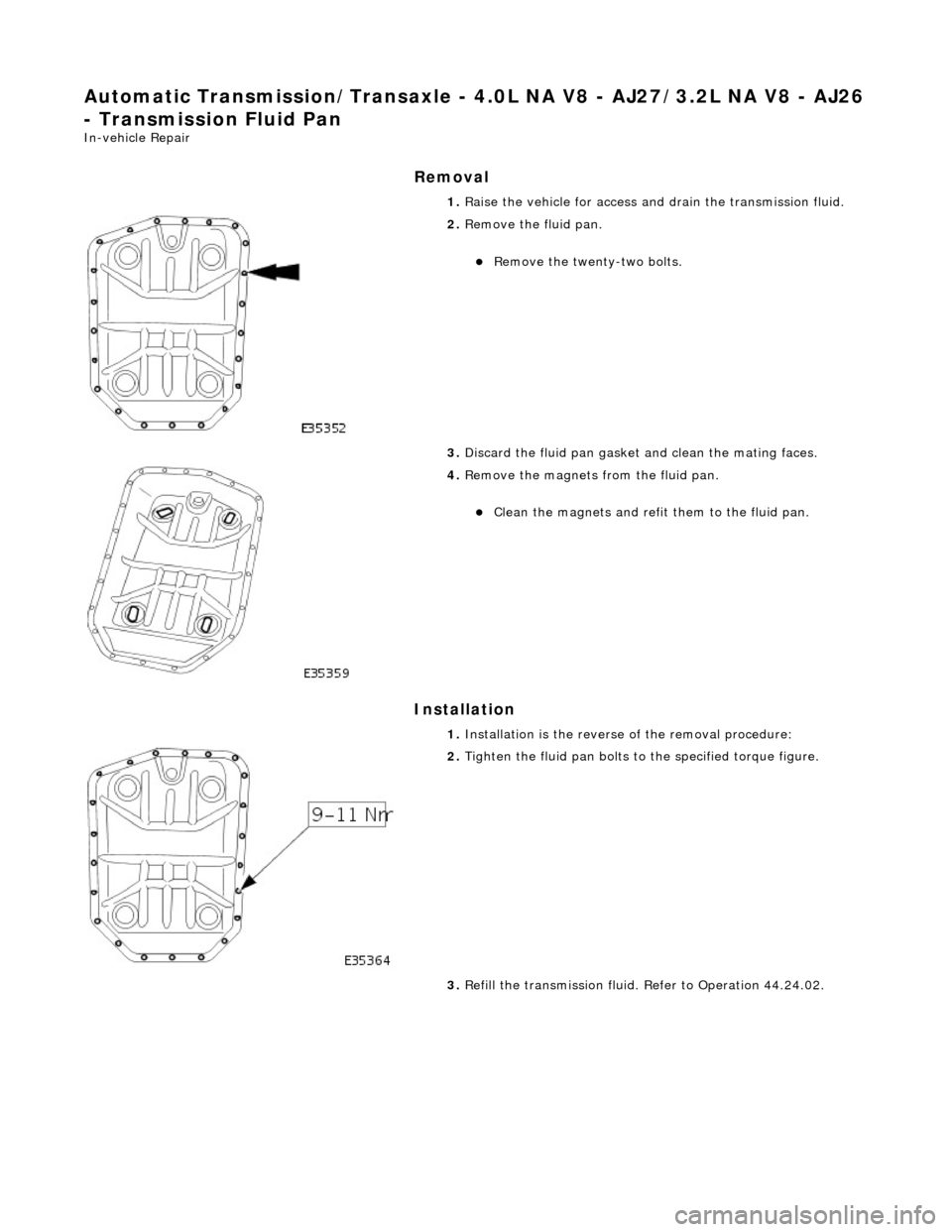

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Fluid Pan
In-vehicle Repair
Removal
Installation

1.
Raise the vehicle for access and drain the transmission fluid.

2. Remove the fluid pan.
Remove the twenty-two bolts.
3. Discard the fluid pan gasket and clean the mating faces.

4. Remove the magnets from the fluid pan.
Clean the magnets and refit them to the fluid pan.
1. Installation is th e reverse of the re moval procedure:

2. Tighten the fluid pan bolts to the specified torque figure.
3. Refill the transmission fluid. Refer to Operation 44.24.02.

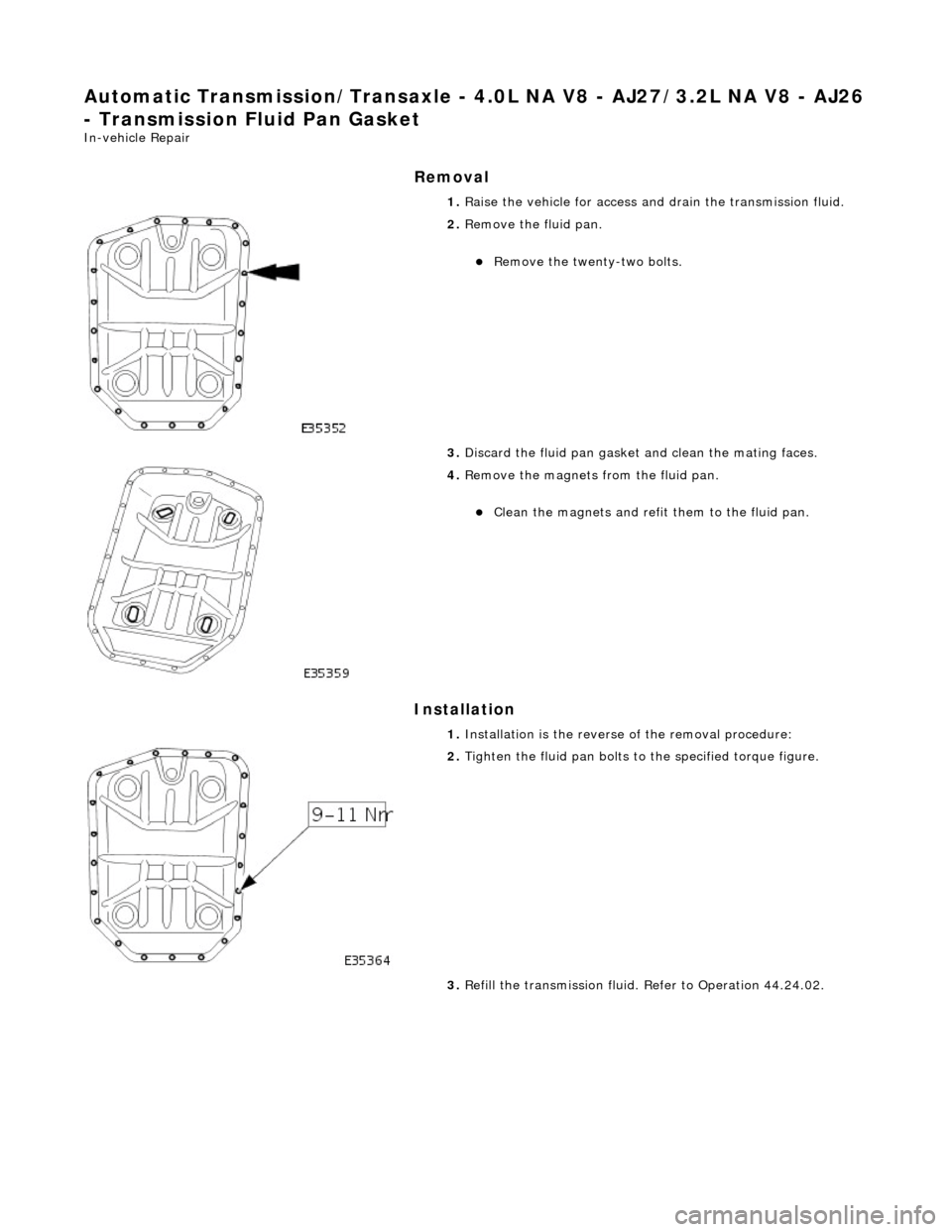

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Fluid Pan Gasket
In-vehicle Repair
Removal
Installation

1.
Raise the vehicle for access and drain the transmission fluid.

2. Remove the fluid pan.
Remove the twenty-two bolts.
3. Discard the fluid pan gasket and clean the mating faces.

4. Remove the magnets from the fluid pan.
Clean the magnets and refit them to the fluid pan.
1. Installation is th e reverse of the re moval procedure:

2. Tighten the fluid pan bolts to the specified torque figure.
3. Refill the transmission fluid. Refer to Operation 44.24.02.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Intern al Wiring Harness
In-vehicle Repair
Removal
• NOTE: The temperature sensor is integral with the internal harness.

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle on a lift.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.
4. Remove the input speed sensor.
• NOTE: M5 fixing. 1. Release the screw which secures the input speed sensor bracket and pull the sensor clear.
Disconnect harness multiplug.
