1998 JAGUAR X308 sensor

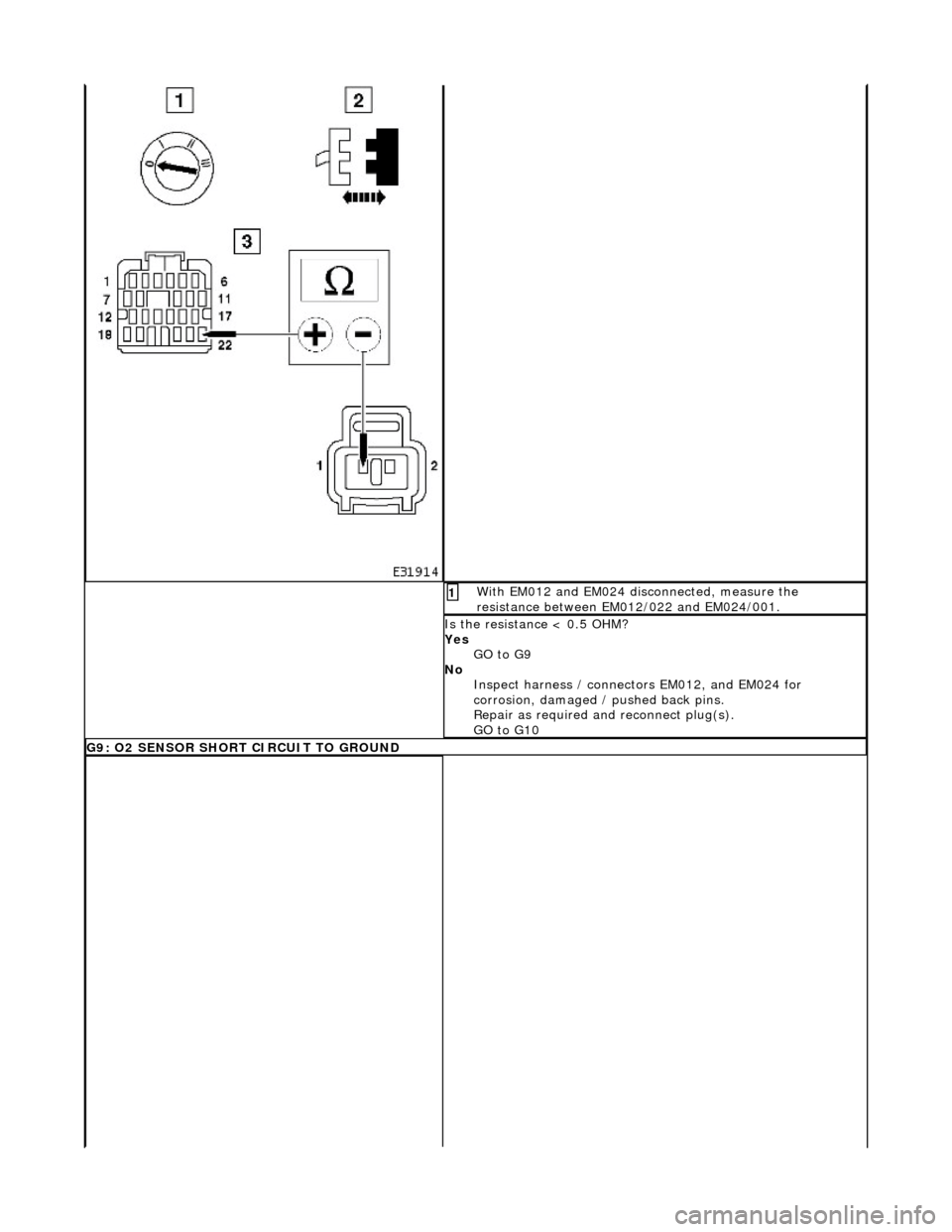

With EM012 and EM024 disconnected, measure the
resistance between EM012/022 and EM024/001. 1
Is the resistance < 0.5 OHM?
Yes GO to G9
No Inspect harness / connecto rs EM012, and EM024 for
corrosion, damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to G10
G9: O2 SENSOR SHORT CIRCUIT TO GROUND

With EM024 disconnected measure the insulation resistance
between sensor pin 001 and sensor body. 1
Repeat for pin 002 and sensor body. 2
Is the resistance > 10 MOHM?
Yes GO to G11
No Renew the O2 sensor and reconnect all plugs.
GO to G10
G10: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
G11: SIGNAL GROUND 1 CONTINUITY

With EM010 and EM014 disconnected, measure the
resistance between EM014/004 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to G14
No Inspect connector EM014 for co rrosion, damage, or pushed
back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness / spli ce EMS36 for damage.
Repair as required an d reconnect plug(s).
GO to G13
G13: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
G14: CHECK FOR O2 SENSOR CONTINUITY

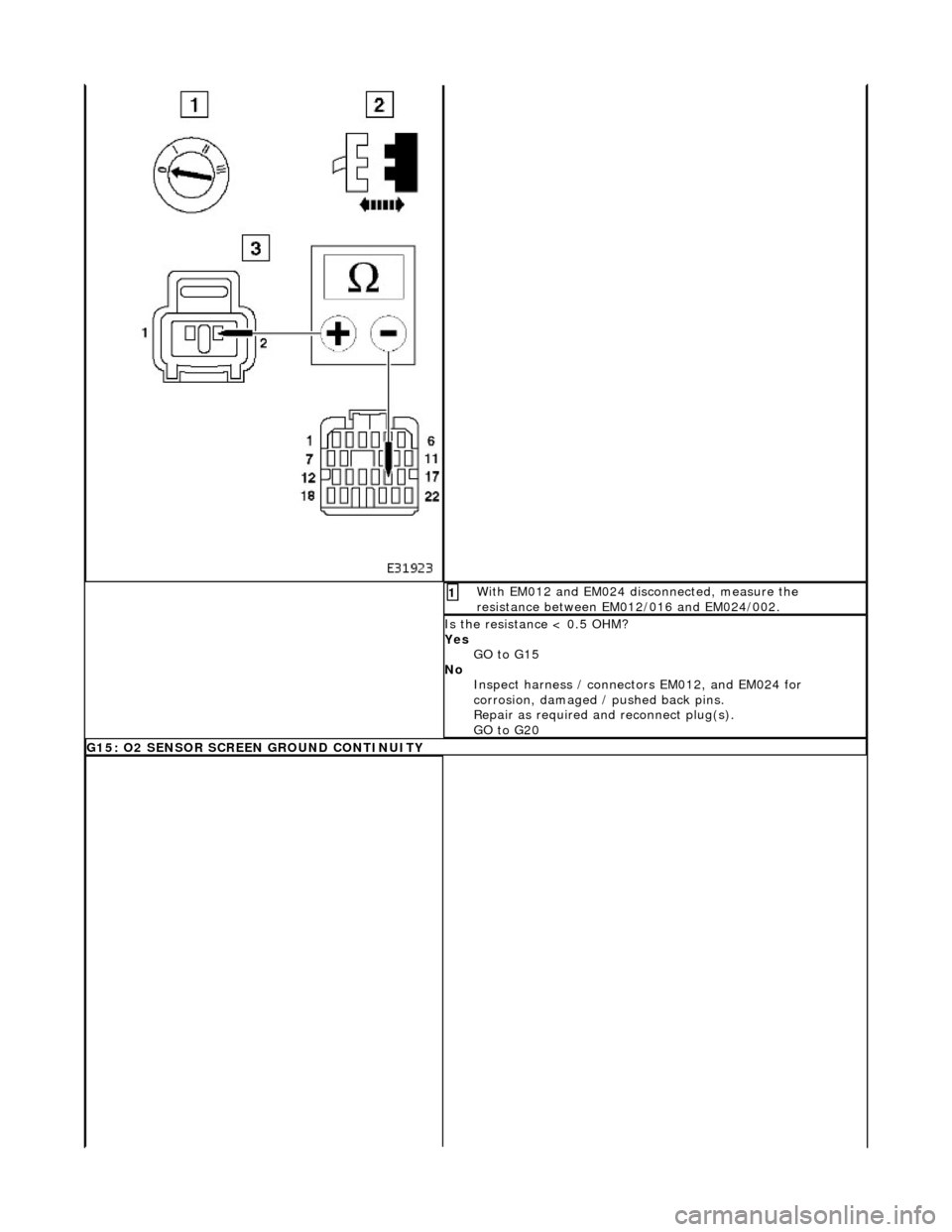

With EM012 and EM024 disconnected, measure the
resistance between EM012/016 and EM024/002. 1
Is the resistance < 0.5 OHM?
Yes GO to G15
No Inspect harness / connecto rs EM012, and EM024 for
corrosion, damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to G20
G15: O2 SENSOR SCREEN GROUND CONTINUITY

Conne
ct the scan tool
1
Have the DTC(s) and fr

eeze
frame data been recorded?
Yes GO to H2
H2: CHECK
FOR LOW EXHAUST TEMPERATURE
Chec

k the engine and exhaust
system for correct operation
and normal running temperature
1
Is th
e engine and exhaust system operating correctly and up to
normal running temperature?
Yes GO to H3
No Rectify leaking exhaust manifold / catalyst, general causes of
an over rich mixture and engine cooling system operation and
test the system for correct operation.
GO to H7
H
3: CHECK FOR O2 SENSOR FAILURE
I

gnition switch to position 0
1
Di

sconnect EM024
Bracket on top o

f gearbox or
Bulkhead rear of engine
2
R
un the engine for a period to
warm the sensor and then
maintain a steady speed of approximately 2500 rpm.
3
W
ith EM024 disconnected, measure the voltage between
EM024/001 and EM024/002.
4
Is
the voltage between 600mV and 1.0 Volt?
Yes GO to H4
No Renew O2 sensor. Reconnect plug(s).
GO to H7
H
4: CHECK FOR O2 SENSOR FAILURE

With
the conditions held as H3, suddenly decelerate to idle.
1
Has the voltage
d
ropped to 400mV or less ?
Yes Stop the engine
GO to H5
No Renew O2 sensor. Reconnect plug(s).
GO to H7
H5
: CHECK FOR O2 SENSOR FAILURE
Wi
th
the conditions held as H4, suddenly accelerate to
approximately 2500 rpm.
1
Has the
voltage risen to between 600mV and 1 volt?
Yes GO to H6
No Renew O2 sensor. Reconnect plug(s).
GO to H7
H6
: CHECK FOR O2 SENSOR FAILURE
W
i
th the conditions held as in H5, run the engine at 1500
rpm for approximately 3 minutes.
1
Does th e displayed voltage drop below 40
0mV and rise above 500
mV, cycling approximately every 180 seconds?
Yes

GO to H8
No

Renew O2 sensor. Reconnect plug(s)
GO to H7
H7
: STOP
Perform

appropriate service drive cycle and check for the
presence of DTC.
1
Has
the fault code cleared?
Yes STOP
No Contact Jaguar Service
H
8: CHECK FOR O2 SENSOR CONTINUITY
W

ith EM012 and EM024 disconnected, measure the
resistance between EM012/016 and EM024/002.
1
I
s the resistance < 0.5 OHM
Yes GO to H9
No Inspect harness / connectors EM012 and EM024 for corrosion,
damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to H11
H9: O2
SENSOR SCREEN GROUND CONTINUITY

Wi
th EM012 and EM024 disconnected, measure the
resistance between EM012/022 and EM024/001.
1
I s
the resistance < 0.5 OHM?
Yes GO to H10
No Inspect harness / connectors EM012 and EM024 for corrosion,
damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to H11
H 1
0: O2 SENSOR SHORT CIRCUIT TO GROUND
