1998 JAGUAR X308 lamp

Exterior Lighting - High Beam Headlamp
Removal and Installation
Removal
Installation
1. Remove headlamp assembly fo r access. Refer to 86.41.33.

2. Release bulb holder securing tangs and position holder for
access.

3. Rotate pilot bulb holder 1/4 turn and withdraw holder.
4. Invert headlamp assembly.

5. Release headlamp unit adju sting screws and pivot.
1. Install headlamp unit on adjusting screw and pivot seats.

2. Invert headlamp assembly.

3. Install pilot bulb holder in headla mp unit and rotate 1/4 turn to
secure.

4. Install headlamp assembly bulb holder.
5. Install headlamp assembly. Refer to 86.41.33.
6. Align headlamp beams.

Exterior Lighting - High Beam Headlamp Bulb
Removal and Installation
Removal
Installation

1.
Open hood and install fender cover.

2. Release headlamp bulb holder locking tangs and remove holder from headlamp.
3. CAUTION: If the bulb is to be re-fitted, the glass must
not be touched with the bare hand . Failure to observe this caution
will result in premature bulb failure
Position bulb holder for access and remove bulb.
1. CAUTION: Headlamp bulbs are of the halogen type and
must not be handled with bare hands. Failure to observe this
caution will result in premature bulb failure.
Install headlamp bulb in holder.
2. Install bulb holder in headlamp ensuring that securing tangs
are fully seated.
3. Remove fender cover and close hood.

Exterior Lighting - High Mounted Stoplamp
Removal and Installation
Removal
Installation

1. Remove lamp cover.
1. Depress two tangs at base of lamp carrier and withdraw cover.

2. Disconnect lamp harness connector.

3. Remove module.
1. Release spring clips at each end of lamp lens module and withdraw module from carrier.

4. Remove lamp carrier.
Release lamp carrier lower securing tangs.
Slide carrier upwards to release and remove carrier from
backlight.
1. Ensure that rubber insulating pads are installed on lamp
carrier.

2. Install lamp carrier on backligh t mountings, ensuring retaining
tangs seat correctly.

3. Install lamp module.
1. Slide lamp module into ca rrier ensuring retaining clips
seat correctly.

4. Connect harness connector to lamp assembly.
5. Install cover on lamp ensuring ta ngs locate correctly in carrier.

Exterior Lighting - High Mounted Stoplamp Bulb
Removal and Installation
Removal
Installation

1. Remove cover from stop lamp.
1. Depress two tangs at base of lamp cover and withdraw cover.

2. Remove lamp module.
1. Release spring clips at each end and remove lamp module from carrier.

3. CAUTION: Exercise care to avoid contact with reflective
surfaces.
Withdraw lens and remove re levant bulb from module.

1. CAUTION: Exercise care to avoid contact with reflective
surfaces.
Install new bulbs as nece ssary and install lens.
2. Install module.
1. Slide module into carrier and seat securing clip at

each end.

3. Install lamp cover.
1. Position cover over modu le and seat lower retaining
clips in carrier.

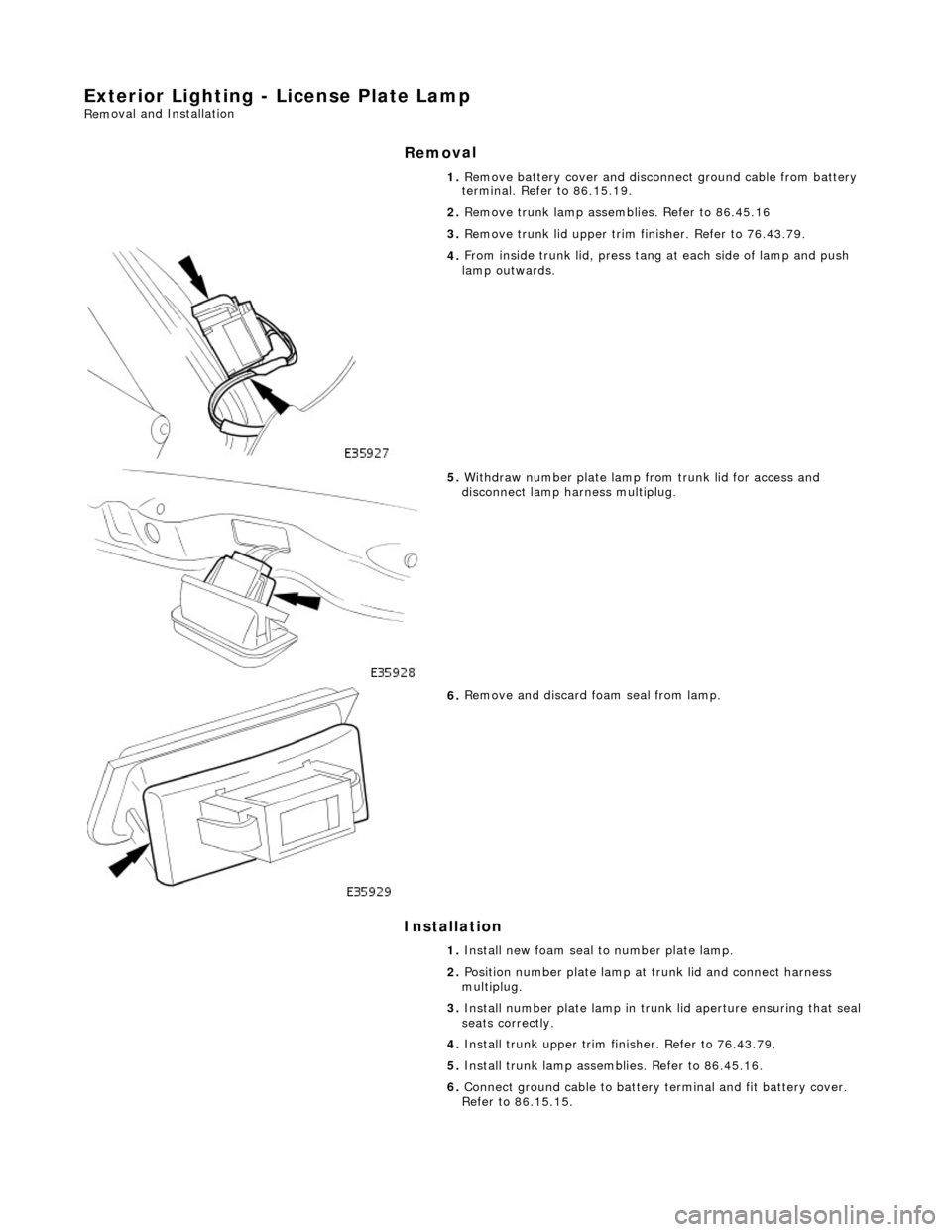

Exterior
Lighting - License Plate Lamp
Rem
oval and Installation
Remov

al
Installation
1.

Remove battery cover and disconnect ground cable from battery
terminal. Refer to 86.15.19.
2. Remove trunk lamp assemblies. Refer to 86.45.16
3. Remove trunk lid upper trim finisher. Refer to 76.43.79.

4.

From inside trunk lid, press tang at each side of lamp and push
lamp outwards.

5.

Withdraw number plate lamp from trunk lid for access and
disconnect lamp harness multiplug.

6.

Remove and discard foam seal from lamp.
1. Install new foam seal to number plate lamp.
2. Position number plate lamp at trunk lid and connect harness
multiplug.
3. Install number plate lamp in trunk lid aperture ensuring that seal
seats correctly.
4. Install trunk upper trim finisher. Refer to 76.43.79.
5. Install trunk lamp assemb lies. Refer to 86.45.16.
6. Connect ground cable to battery terminal and fit battery cover.
Refer to 86.15.15.
