SERVICE INFORMATION 00 Ð 35
Adjust the No. 1 or the No. 4 cylinder valve clearances while
their respective cylinders are at TDC on the compression
stroke.
0.4 (0.016)
mm(in) Valve Clearance (At Cold)
4. Loosen each valve clearance adjusting screw as shown
in the ilustration.
5. Insert a feeler gauge of the appropriate thickness be-
tween the rocker arm and the valve stem end.
6. Turn the valve clearance adjusting screw until a slight
drag can be felt on the feeler gauge.
7. Tighten the lock nut securely.
8. Rotate the crankshaft 360°.
9. Realign the crankshaft damper pulley TDC notched line
with the timing pointer.
10. Adjust the clearances for the remaining valves as shown
in the illustration.
INJECTION TIMING ADJUSTMENT
1. Set the No. 1 cylinder to Top Dead Center.
2. Remove injector pump distributor head plug.
3. Cancel Wax CSD with the handle of a screw driver.
4. Fit a dial gauge and set lift to 1 mm.
5. Set crankshaft damper pulley Top Dead Center mark
about 45° before Top Dead Center from the pointer.
6. Set dial gauge in the ÒOÓ position.
Measuring device : 5-8840-0145-0
7. Turn the crankshaft a little rightwise and leftwise and
see it the pointer is stable in the ÒOÓ position.
8. Turn the crankshaft in the normal direction and read the
measuring deviceÕs indication at TDC (4JG2-T) or 1°
ATDC (4JG2-NA).
9. If the injection timing is outside the specified range,
continue with the following steps.
10. Loosen the injection pump fixing nuts and bracket bolts.
11. Adjust the injection pump setting angle.
¥ If injection timing will be advanced, move the injec-
tion pump toward the engine.
¥ If injection timing will be retarded, move the injec-
tion pump away from the engine.
Tighten the pump fixing nut, adjust bolt and pump distribu-
tor head plug to the specified torque.
19(1.9/13)
N·m(Kg·m/lb·ft) Pump Fixing Bolt
0.5 (0.02)
mm(in) Starting Timing

SERVICE INFORMATION 00 Ð 47
SPECIAL TOOLS
ILLUSTRATIONTOOL NAME
5-8840-0200-0
9-8523-1423-0 (J-29760)
5-8840-2033-0
5-8840-9018-0
9-8523-1212-0
5-8840-2313-0
5-8840-2304-0
TOOL NO.
Oil Filter Wrench
Valve Spring Compressor
Valve Stem Oil Seal Installer
Piston Ring Compressor
Valve Guide Replacer
Cylinder Liner Installer
Cylinder Liner Remover Ankle
Cylinder Liner Remover 9-8523-1169-0
5-8840-2675-0
5-8840-2153-0
5-8531-7002-0Compression Gauge
Seal Cutter
Gauge Adapter
LHDN


6A Ð 40 ENGINE MECHANICAL
6. Piston Ring
·Install the piston rings with the piston ring expander.
The compression ring must be set with the 1N, 2N
mark facing up.
·Discrimination mark is painted as shown in the
illustration. ·Attach the piston to the connecting rod with the
piston front mark and the connecting rod ISUZU
mark on the same side.
·Install piston rings in the following sequence.
1) Oil ring
1Expander ring
2) 2nd compression ring
3) 1st compression ring
·The compression ring must be set with the 1N or
2N mark facing up.
·1st compression ring: N
·2nd compression ring: 2N
·After installation, apply engine oil to the entire
circumference of the piston rings.
Check to see that all the rings rotate smoothly.
·Insert the bearings into the connecting rods and
caps.
Apply new engine oil to the bearing faces.
Cap side bearings have no oil hole.
Conn rod side bearingÕs oil hole should be aligned
with oil hole on the conn rod.

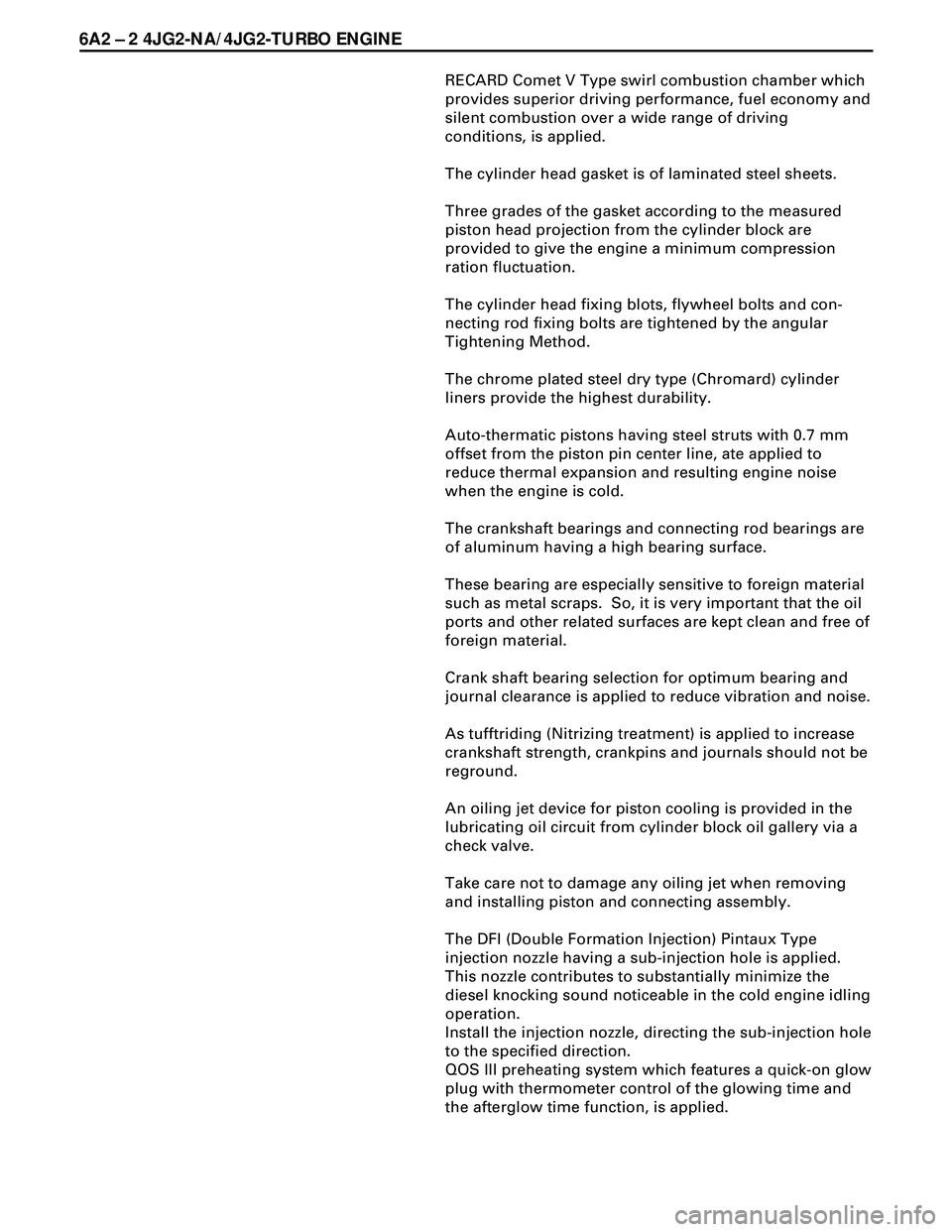

6A2 Ð 2 4JG2-NA/4JG2-TURBO ENGINE
RECARD Comet V Type swirl combustion chamber which
provides superior driving performance, fuel economy and
silent combustion over a wide range of driving
conditions, is applied.
The cylinder head gasket is of laminated steel sheets.
Three grades of the gasket according to the measured
piston head projection from the cylinder block are
provided to give the engine a minimum compression
ration fluctuation.
The cylinder head fixing blots, flywheel bolts and con-
necting rod fixing bolts are tightened by the angular
Tightening Method.
The chrome plated steel dry type (Chromard) cylinder
liners provide the highest durability.
Auto-thermatic pistons having steel struts with 0.7 mm
offset from the piston pin center line, ate applied to
reduce thermal expansion and resulting engine noise
when the engine is cold.
The crankshaft bearings and connecting rod bearings are
of aluminum having a high bearing surface.
These bearing are especially sensitive to foreign material
such as metal scraps. So, it is very important that the oil
ports and other related surfaces are kept clean and free of
foreign material.
Crank shaft bearing selection for optimum bearing and
journal clearance is applied to reduce vibration and noise.
As tufftriding (Nitrizing treatment) is applied to increase
crankshaft strength, crankpins and journals should not be
reground.
An oiling jet device for piston cooling is provided in the
lubricating oil circuit from cylinder block oil gallery via a
check valve.
Take care not to damage any oiling jet when removing
and installing piston and connecting assembly.
The DFI (Double Formation Injection) Pintaux Type
injection nozzle having a sub-injection hole is applied.
This nozzle contributes to substantially minimize the
diesel knocking sound noticeable in the cold engine idling
operation.
Install the injection nozzle, directing the sub-injection hole
to the specified direction.
QOS III preheating system which features a quick-on glow
plug with thermometer control of the glowing time and
the afterglow time function, is applied.

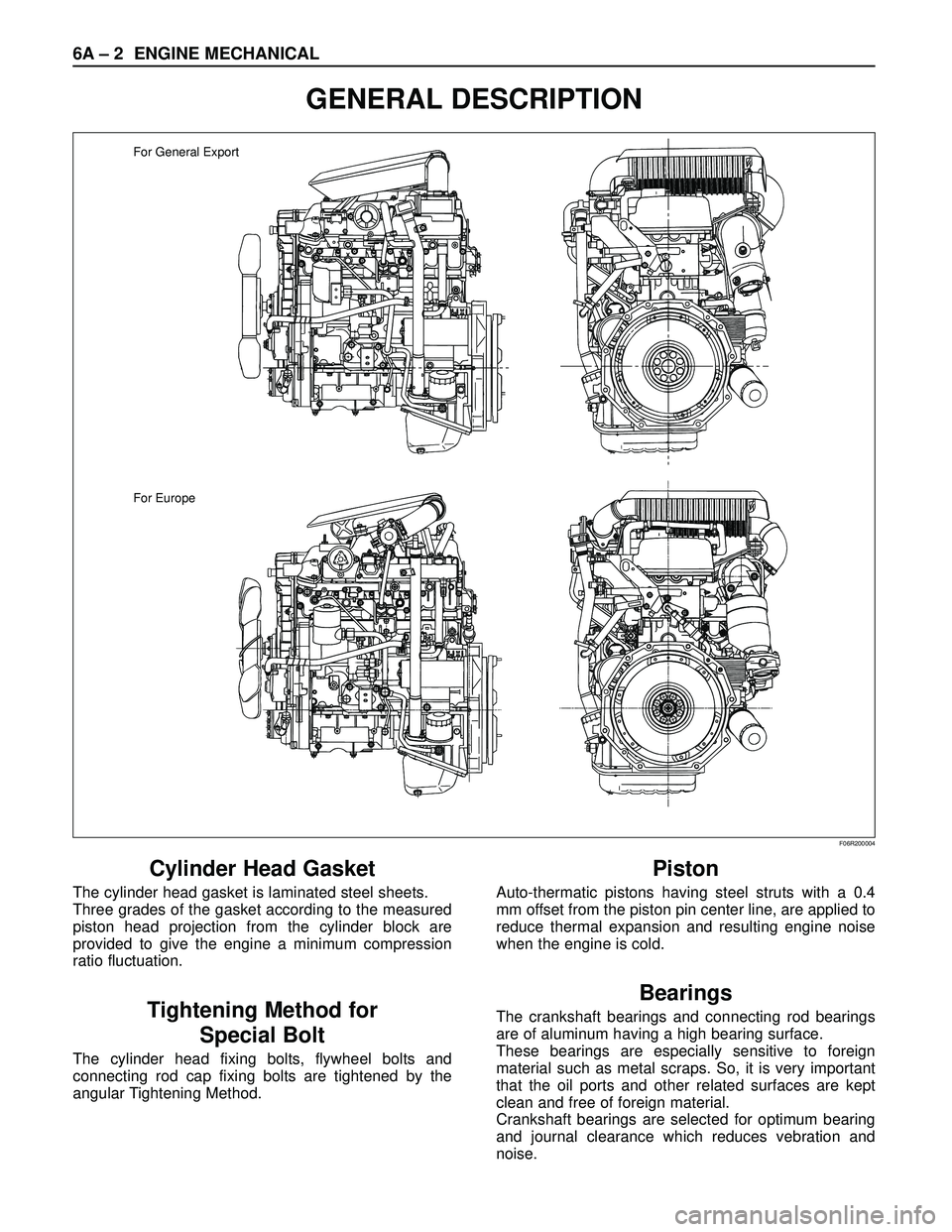

6A – 2 ENGINE MECHANICAL
GENERAL DESCRIPTION
Cylinder Head Gasket
The cylinder head gasket is laminated steel sheets.
Three grades of the gasket according to the measured
piston head projection from the cylinder block are
provided to give the engine a minimum compression
ratio fluctuation.
Tightening Method for
Special Bolt
The cylinder head fixing bolts, flywheel bolts and
connecting rod cap fixing bolts are tightened by the
angular Tightening Method.
Piston
Auto-thermatic pistons having steel struts with a 0.4
mm offset from the piston pin center line, are applied to
reduce thermal expansion and resulting engine noise
when the engine is cold.
Bearings
The crankshaft bearings and connecting rod bearings
are of aluminum having a high bearing surface.
These bearings are especially sensitive to foreign
material such as metal scraps. So, it is very important
that the oil ports and other related surfaces are kept
clean and free of foreign material.
Crankshaft bearings are selected for optimum bearing
and journal clearance which reduces vebration and
noise.
For General Export
For Europe
F06R200004

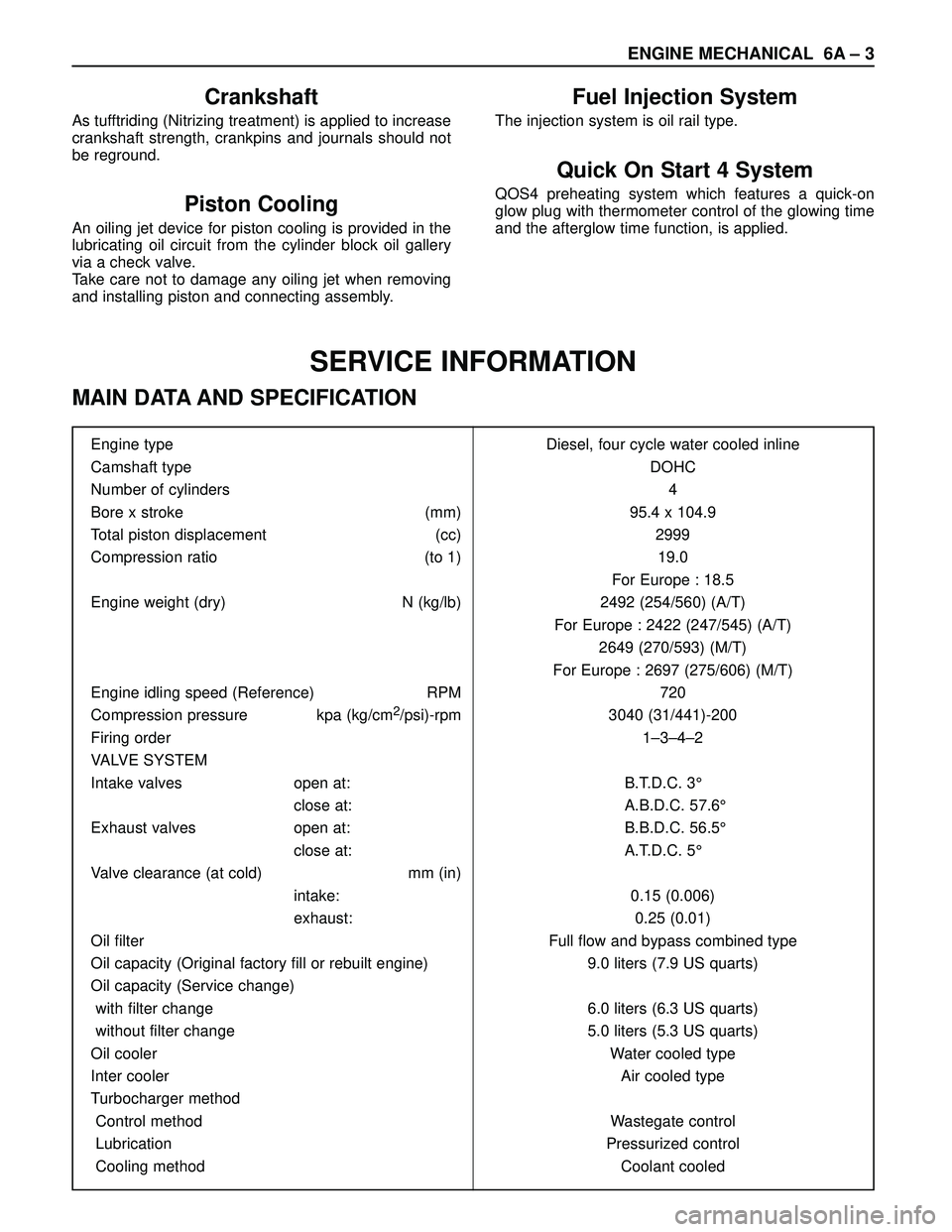

ENGINE MECHANICAL 6A – 3
SERVICE INFORMATION
MAIN DATA AND SPECIFICATION
Engine type Diesel, four cycle water cooled inline
Camshaft type DOHC
Number of cylinders 4
Bore x stroke (mm) 95.4 x 104.9
Total piston displacement (cc) 2999
Compression ratio (to 1) 19.0
For Europe : 18.5
Engine weight (dry) N (kg/lb) 2492 (254/560) (A/T)
For Europe : 2422 (247/545) (A/T)
2649 (270/593) (M/T)
For Europe : 2697 (275/606) (M/T)
Engine idling speed (Reference) RPM 720
Compression pressure kpa (kg/cm
2/psi)-rpm 3040 (31/441)-200
Firing order 1–3–4–2
VALVE SYSTEM
Intake valves open at: B.T.D.C. 3°
close at: A.B.D.C. 57.6°
Exhaust valves open at: B.B.D.C. 56.5°
close at: A.T.D.C. 5°
Valve clearance (at cold) mm (in)
intake: 0.15 (0.006)
exhaust: 0.25 (0.01)
Oil filter Full flow and bypass combined type
Oil capacity (Original factory fill or rebuilt engine) 9.0 liters (7.9 US quarts)
Oil capacity (Service change)
with filter change 6.0 liters (6.3 US quarts)
without filter change 5.0 liters (5.3 US quarts)
Oil cooler Water cooled type
Inter cooler Air cooled type
Turbocharger method
Control method Wastegate control
Lubrication Pressurized control
Cooling method Coolant cooled
Crankshaft
As tufftriding (Nitrizing treatment) is applied to increase
crankshaft strength, crankpins and journals should not
be reground.
Piston Cooling
An oiling jet device for piston cooling is provided in the
lubricating oil circuit from the cylinder block oil gallery
via a check valve.
Take care not to damage any oiling jet when removing
and installing piston and connecting assembly.
Fuel Injection System
The injection system is oil rail type.
Quick On Start 4 System
QOS4 preheating system which features a quick-on
glow plug with thermometer control of the glowing time
and the afterglow time function, is applied.

6A – 26 ENGINE MECHANICAL
Illustration Tool No. Tool Name
SPECIAL TOOLS
5-8840-2590-0 Valve Clearance Adjusting Tool
5-8840-2592-0 Camshaft Stopper
5-8840-2591-0 Camshaft Gear Tool
5-8840-2675-0
5-8531-7002-0Compression Gauge
Adapter: Compression Gauge
5-8840-2153-0 Seal Cutter
LHDN

F06RW056
F06RV037
901LX057
901LX056 F06RW057
901RT042

ENGINE MECHANICAL 6A – 67
VALVE CLEARANCE ADJUSTMENT
NOTE:
1. Valve clearance should be inspected and adjusted
while the engine is cool.
2. The tightening of the camshaft bearing cap and
camshaft carrier assembly should be checked
before inspecting and adjusting valve clearance.
INSPECTION
1. Remove cylinder head noise insulator cover and
cylinder head cover.
Refer to “Cylinder Head” in this manual.
2. Disconnect all harness connecters of the injector
and remove harness assembly.
3. Drain oil from oil rail assembly.
4. Remove injector clamp nuts and fixing bolts to take
out injector assembly.
5. Loosen oil rail bolts, remove oil rail assembly.
6. Set cylinder No.1 to the TDC at the compression
stroke. Make sure that there is play in cylinder No.1
tappets on inlet and exhaust sides and that there is
no play in cylinder No.4 tappets.
7. Measure valve clearance at No.1 TDC (Refer to the
black circles indicated in the illustration).
Standard Valve clearance:
Intake valve: 0.15 mm (0.0059 in) ± 0.05 mm (0.0020 in)
Exhaust valve: 0.25 mm (0.0098 in) ± 0.05 mm (0.0020 in)
8. Turn the crankshaft one turn to set No.4 cylinder
TDC at the compression stroke.
9. Measure valve clearance at No.4 TDC (Refer to the
black circles indicated in the illustration).
Standard Valve clearance:
Intake valve: 0.15 mm (0.0059 in) ± 0.05 mm (0.0020 in)
Exhaust valve: 0.25 mm (0.0098 in) ± 0.05 mm (0.0020 in)
10. If measured value is outside standard value,
readjust the valve clearance.
ADJUSTMENT
For valve clearance adjustment, follow the procedure
given below.
1. Set cylinder No.1 or No.4 to the TDC at the
compression stroke.
Set the valve clearance adjusting tool on the tappet
requiring adjustment.
After making sure of the correct setting of the
special tool, depress the tappet by turning the bolt.
Valve Clearance Adjusting Tool: 5-8840-2590-0
NOTE: Before depressing the tappet, set the tappet
notch in the direction where adjuster can be easily
taken out.
2. Take out the adjuster using a small screw driver and
finger magnet.
No.1
FtNo.2No.1 TDC
No.3 No.4EXH
IN
011RW045
No.1
FtNo.2No.4 TDC
No.3 No.4EXH
IN
011RW046
