1998 HONDA ODYSSEY Owners Manual

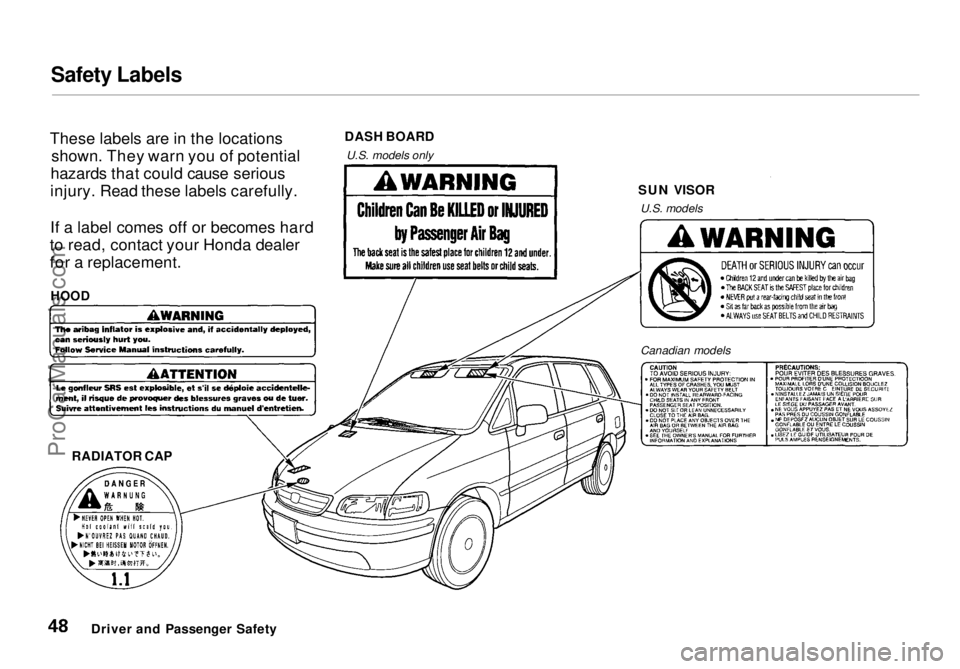

Safety Labels

These labels are in the locations shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Honda dealer
for a replacement. DASH BOARD
U.S. models only
Driver and Passenger Safety

HOOD

RADIATOR CAP SUN VISOR
U.S. models
Canadian modelsProCarManuals.comMain Menu Table of Contents s t

Instruments and Controls

This section gives information about
the controls and displays thatcontribute to the daily operation of

your Honda. All the essential
controls are within easy reach.

Control Locations............................ 50

Indicator Lights................................ 51

Gauges.............................................. 54
Tachometer.................................. 54

Trip Meter.................................... 54
Speedometer................................ 55

Odometer...................................... 55

Temperature Gauge.................... 55
Fuel Gauge................................... 55

Maintenance Required
Indicator.................................... 56

Controls Near the Steering

Wheel........................................ 57

Headlights.................................... 58
Daytime Running Lights............. 58
Instrument Panel Brightness..... 59
Turn Signals................................. 59

Windshield Wipers...................... 60

Windshield Washers................... 61

Rear Window Wiper and
Washer...................................... 61

Hazard Warning........................... 61

Rear Window Defogger.............. 62

Steering Wheel Adjustment....... 62

Steering Wheel Controls ................ 64
Cruise Control.............................. 64

Keys and Locks................................ 67
Keys............................................... 67

Immobilizer System..................... 68

Ignition Switch............................. 69

Power Door Locks....................... 70
Remote Transmitter.................... 71

Childproof Door Locks............... 72

Tailgate......................................... 72

Glove Box..................................... 73

Seats.................................................. 74
Passenger Seating....................... 74

Seat Adjustments......................... 74

Driver's Seat Power Height
Adjustment............................... 75

Armrests....................................... 76
Head Restraints........................... 76
Third Seat Access........................ 77

Removing the Second Seats
in the Six-Passenger Model.... 78

Folding the Second Seats
in the Seven-Passenger

Model.................................... 78

Reclining the Second Seat.......... 79
Folding the Third Seat
in All Models............................ 80

Power Windows............................... 82

Sunroof.............................................. 83

Mirrors.............................................. 84
Adjusting the Power Mirrors..... 84

Parking Brake.................................. 85

Digital Clock..................................... 86 Beverage Holder.............................. 86
Dashboard Compartment............... 88
Center Pocket.................................. 88
Vanity Mirror................................... 88
Cigarette Lighter............................. 89
Ashtrays............................................ 89 Interior Lights.................................. 90
Ceiling Lights............................... 90

Spotlights...................................... 90

Tailgate Light............................... 91 Courtesy Lights........................... 91

Instruments and ControlsProCarManuals.comMain Menu s t

Control Locations

Instruments and Controls
MIRROR
CONTROLS
(P.84)
DIGITAL CLOCK
(P.86)
HEATING/COOLING
CONTROLS
(P.94)

AUDIO SYSTEM

(P.
103)

DOOR LOCK
SWITCH
(P.70)
POWER WINDOW
SWITCH

(P.82)

FUEL FILL
DOOR RELEASE
(P.129)
HOOD RELEASEHANDLE

(P.
130)ProCarManuals.comMain Menu Table of Contents s t

Indicator Lights
The instrument panel has many indicators to give you important
information about your vehicle.
Lamp Check

These indicator lights come on when you turn the ignition switch ON (II), allowing you to see that they are

working:
SRS Indicator

Malfunction Indicator Lamp
Charging System Indicator
Low Oil Pressure Indicator
Anti-lock Brake System Indicator
Seat Belt Reminder Light

D4 Lamp

Door and Brake Lamp Monitor
Immobilizer System Indicator
If an indicator does not light during
this test, it cannot alert you if that system develops a problem. Have the
dealer check your vehicle for
burned-out bulbs or other problems.
* The U.S. instrument panel is shown. Differences for the Canadian model
are noted in the text.
Instruments and Controls
MALFUNCTION INDICATOR LAMP
ANTI-LOCK BRAKE SYSTEM INDICATOR* PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR*
IMMOBILIZER SYSTEM INDICATOR HIGH BEAM
INDICATOR SEAT BELT
REMINDERLIGHT
DOOR AND BRAKE
LAMP MONITOR
CHARGING SYSTEM INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR CRUISE CONTROL INDICATORLOW FUEL
INDICATORProCarManuals.comMain Menu Table of Contents s t

Indicator Lights

Seat Belt Reminder Light
This indicator lights when you turn the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by fastening
the seat belts. A beeper also sounds
if you have not fastened your seat

belt.

If you do not fasten your seat belt,
the beeper will stop after a fewseconds but the light stays on until
you do. Both the light and the beeper stay off if you fasten your seat belt
before turning on the ignition.
Malfunction Indicator
Lamp

See page 236.
Low Oil Pressure
Indicator

The engine can be severely damaged
if this light flashes or stays on when

the engine is running. For complete
information, see page 234 .

Charging System
Indicator
If this light comes on when the engine is running, the battery is not
being charged. For complete information, see page 235 .
Supplemental Restraint
System Indicator
This indicator lights when you turn the ignition switch ON (II). If itcomes on at any other time, it
indicates a problem in the supplemental restraint system. For
complete information, see page 45 . Parking Brake
and Brake

System

Indicator
This light has two functions:
1. It lights as a reminder that you have not released the parking
brake. Driving with the parking
brake applied can damage the
brakes and tires.
2. If it remains lit after you release the parking brake, or comes on
while driving, it can indicate a problem in the brake system. Forcomplete information, see page 237.

Instruments and Controls
SRS

BRAKE
U.S.

Canada
ProCarManuals.comMain Menu Table of Contents s t

Indicator Lights

U.S.

Anti-lock Brake System
(ABS) Indicator
This light normally comes on when you turn the ignition switch ON (II) and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the ABS. If this
happens, take the vehicle to your dealer to have it checked. With the
light on, your vehicle still has normal
braking ability but no anti-lock. Turn Signal and
Hazard Warning
Indicators
The left or right turn signal light blinks when you signal a lane changeor turn. If the light does not blink or
blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 207). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
When you turn on the Hazard
Warning switch, both turn signal lights blink. All turn signals on theoutside of the vehicle should flash. Door and Brake Lamp Monitor
The appropriate light comes on in this display if the tailgate or any dooris not closed tightly. If a brake lightdoes not work, the BRAKE LAMP
indicator comes on when you push
the brake pedal with the ignition switch ON (II).
A burned out brake light is a hazard when drivers behind you cannot tell
you are braking. Have your brakelights repaired right away.
All the lights in the monitor display come on for a few seconds when you
turn the ignition switch ON (II).
Instruments and Controls
BRAKE LAMP
INDICATOR

ABS

CanadaProCarManuals.comMain Menu Table of Contents s t

Indicator Lights, Gauges

"Daytime Running
Lights" Indicator

Canadian models only

This indicator lights when you turn the ignition switch to ON (II) with
the headlight switch off and the
parking brake set. It should go off if
you turn on the headlights or release
the parking brake. If it comes on at any other time, it means there is a
problem with the DRL. There may also be a problem with the high
beam headlights.
Cruise Control Indicator
This lights when you set the cruise control. See page 64 for informationon operating the cruise control. High Beam Indicator
This light comes on with the high beam headlights. See page 40 for
information on the headlightcontrols.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights (DRL) are on (see page 58).
Immobilizer SystemIndicator
This indicator comes on for a few seconds when you turn the ignition
switch ON (II). It will then go off if
you have inserted a properly-coded ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page 68).
This indicator also blinks several times when you turn the ignitionswitch from ON (II) to ACCESSORY (I) or LOCK (0).
Tachometer The tachometer shows the enginespeed in revolutions per minute (rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone.

Trip Meter

This meter shows the number of miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters, Trip A and Trip B. Each trip meter works
independently, so you can keep trackof two different distances.
To reset a trip meter, display it and then press the Reset button for morethan two seconds. Both trip meters
will reset if the vehicle's battery goes dead or is disconnected.
Instruments and Controls
DRL

CRUISE
CONTROL
ProCarManuals.comMain Menu Table of Contents s t

Gauges

TACHOMETER

Speedometer
U.S. Models

This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers

per hour (km/h).

Canadian Models
This shows your speed in kilometers per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph). Odometer
The odometer shows the total dis- tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models. It is illegal under federal law (in the
U.S.) and provincial regulations (inCanada) to disconnect, reset, or alter
the odometer with the intent to change the number of miles or
kilometers indicated. Temperature Gauge
This shows the temperature of the engine's coolant. During normal
operation, the pointer should rise
from the bottom white mark to about the middle white mark. In severedriving conditions, such as very hot
weather or a long period of uphill driving, the pointer may rise to the
upper white mark. If it reaches the
red (Hot) mark, pull safely to the side of the road. Turn to page 204 for
instructions and precautions on
checking the engine's cooling
system.

Fuel Gauge
This shows how much fuel you have. It is most accurate when the vehicle
is on level ground. It may show slightly more or less than the actual
amount when you are driving on
curvy or hilly roads.

CONTINUED

Instruments and Controls

SPEEDOMETER

TRIP METER MAINTENANCE
REQUIRED
INDICATOR

ODOMETER
SELECT AND RESET BUTTON

FUEL

GAUGE
TEMPERATURE

GAUGEProCarManuals.comMain Menu Table of Contents s t
