1998 HONDA INTEGRA Cylinder

Doors
Outer Handle Replacement (cont'dlLatch Replacement
NOTEr Raise the glass fully.
'1. Remove:
a Door panel (see page 20 4)
a Plastic cover lsee page 20-4)
a Outer handle (see page 20 7)
2. Disconnect the inner handle rod and lock rod from
the latch.
Detach the inner handle rod and lock rod, then
remove the inner handle.
NOTE: Take care not to bend the rods.
>: Screw locations, 2
@t" ,
J
INNER HANDLEROD
INNER I{ANDLE
-1"'-
\
\LOCK ROD
)
INNER HANDLEROD
6.
8.
Disconnect the cylinder rod as shown.
NOTE: Take care not to damage the lock cylinder
joint.
OUTERHANDLECYLINDERROD
7.
V
SHOP TOWEL
Remove the cylinder switch lrom the outer handle.
: Scrsw location, 1
OUTERHANDLE
i4) cYLtNDERswtTcH
Pull out the retainer clip, then
cylinder and cylinder protector.
LOCK CYLINDER
li) clrPReplace
S*-.o"* .YLTNDER
CYLINDERPROTECTOR
RETAINERCLIP
Installation is the reverse of the removal procedure.
NOIE:
a Make sure the outer handle rod and connector are
connected securely.
a Make sure the wire harness is routed properly.
a Make sure the door locks and opens properly.
20-8

3. Loosen the bolt, then move the center channel
outward.
>: Bolt location, 1
6 x 1.0 mm8Nm {0.8kglm, I"*'l____)
CENTERCHANNEL
4.Disconnect the connector, and detach the harness
clip from the door.
Remove the screw,
>: Screw locations, 3
6x1.0mm IfiNrrlr
nr 6 N m (0.6 kgfm '
law iw.r,i )
CONNECTORDetach the connector.
5. Remove the latch through the hole in the door.
NOTE: Take care not to bend lhe outer handle rod
and cylinder rod.
CYLINDERROD
6. lnstallalion is the reverse of the removal procedure.
NOTEI
a Make sure the inner handle rod, lockrodandcon-
nector are connected properly.
a Make sure the door locks and opens properly.
20-9

GLASSFeplacement, page 20'26Adjustment, page 20-40
POWER MIRRORReplacement, page 20-49
oooRAdjustment,page 20-48
FBONT SASHReplacement, page 20 25
"oura---f\PANEL \.IJGLASSSTOPPER
@
REGULATORReplacement,page 20 26
ROLLER
LOCK CYLINDENReplacement, Page 20'23
GLASS GUIDEReplacement, page 20-26
OUIER HANDLE
STOPPEBPLATE
@6r-.6f@J
dll
CYLINDERPNOTECTOR
INNER HANDLEROD
Replacement. page 20'23
INNER HANDLETRIM
_. cYLINDER SWITCH
-,y' Replacement. page 20 23
"q
@<€
INNER6\,
tp
)rw
STRIKERAdiustment,page 20-48
%
LATCHReplacement,page 20'24
@
d
LOCK ROD
PROTECTOR RoDPRoTEcToR
20-19

Doors
Outer HandleReplacement (cont'd)
irl
lii
,l
r
LatchReplacement
NOTE: Raise the glass fully.
1. Remove:
a Door panel (see page 20 20)
a Plastic cover (see page 20 20)
a Outer handle (see page 20'23)
2- Remove the screws and disconnect the connector,
then remove the inner handle and latch.
NOTEr Take care not to bend the rods.
> | Screw locations, 2
6bD l
:)CYLINDER ROO
>: Clip locaiions, 2
3.Installation is the reverse of the removal procedure.
NOTE: Make sure the inner handle rod, lock rod and
connector are connected properly.
6.
7.
v:
Disconnect the cylinder rod as shown.
NOTE: Take care not to damage the lock cylinder
Jornt.
OUTERHANDLE
SHOP TOWEL
Remove the cylindef switch from the outer handle.
Pull out the retainer clip, then remove the lock
cylinder and cylinder protector.
8.
L
g--.-.o"*
cYLTNDER
lnstallation is the reverse of the removal procedure.
NOTE:
a Make sure the outer handle rod and connector are
connected securely.
a Make sure the wire harness is routed properly.
a Make sure the door locks and opens properly.
LOCK CYLINOEB

5. Remove the bolt, then remove the seat cushion.
i -,: Hook locations, 2v: Boli location, 1
6.
6 x l.0 mm9.8Nm{1.0 kg{ m,7.2 tbf {r)
6 x 1.0 mm
F s.sN.Fl t1 .o ksl m.
cR 7.2 rbf.frr l./\---l
Remove the bolts, then remove the seat back side
bolsters by lilting them upward.
: Soft locations, 2 r '1: Hook locations, 2
iSIDEBOLSTER
r,1F=
8V: Screw, 2
4x0.7mm4 N.m
{0.4 kgf m, Is ttt.ttl ,/
SEAT LOCKCOVER
Rea, seat pivot bracket removal:
NOTE: When installing the pivot bolt, apply grease
to it.
TOOTHED
BUSHTNG LOCK WASHER
7. lf necessary, remove the rear seat latch, lock cylinder
and rear seat pivot bracket.
Reai seat latch/Lock cylinder femoval:
Pry the rear shelf up after removing the rear shelf
trim panel (see page 20 95) and seal lock cover.
NOTE: Take care not to bend the lock rod.
V: Bolt, screw locations
AV: Bolt, 2
6x1.0mm I9.8 N.m I
!l' {1.0 kgf m, Iv 7.2tbt4l] //
SEAT LOCKcovER\>#\
wr'\[FIJB.
REAR SEATPIVOT BRACKET
PIVOT BOLT
22 N.m 12.2 kgf.m.16 tbf.Ir)
LOCKCYLINDER
REAR SEATLATCH
Pry here.
WASHER
20-113

NOTE: Take care not to bend the opener cables.
Trunk Lid/Fuel Lid Opener lSedan):
<: Bolt, screw locations
A<:Bolt,2
OPENER LOCKCYLINDER
6 x 1.0 mm9.8 N m 11.o kgf m,
TRUNK LID/FUELLID
OPENER CABLE{see page 20-1
OPENERCOVER
z
tat-
7.2 tbt.trl /
B V: Screw, 1
rql.b.rz
rs? IY)
FUEL LID
TRUNK UDOPENER CABI.I(see page 20'155)
Pry the lid.
ta
Fuel Lid Latch:
: Bolt, locaiions, 2
6 x 1.O mm9.8 N.m 11.0 kgt m,7.2 tbl.trl J/)
FUEL LID OPEiIERCABLE(see page 20-154, 155)
FUEL LID LATCHRemove the fuel lid latchby turning it 90'.
FUEL LIO
Installation is the reverse of the removal procedure.
NOTEI
a Make sure each opener cable is connected properly.
a Make sure the fuel lid fits flush with the body.
a Make sure the tuel lid locks securely.
a Make sure the trunk lid and fuel lid open properly.
FUEL LID LATCHHatchbsck: Remove the rear shell and rear trim oanel,then pull the 196r edge of the left sidetrim panel back (see page 20-91).Sedan: Remove the rear trim panel,then pull the rear edge ol the left trunk sidepanel back (s€e page 20-97.
20-157

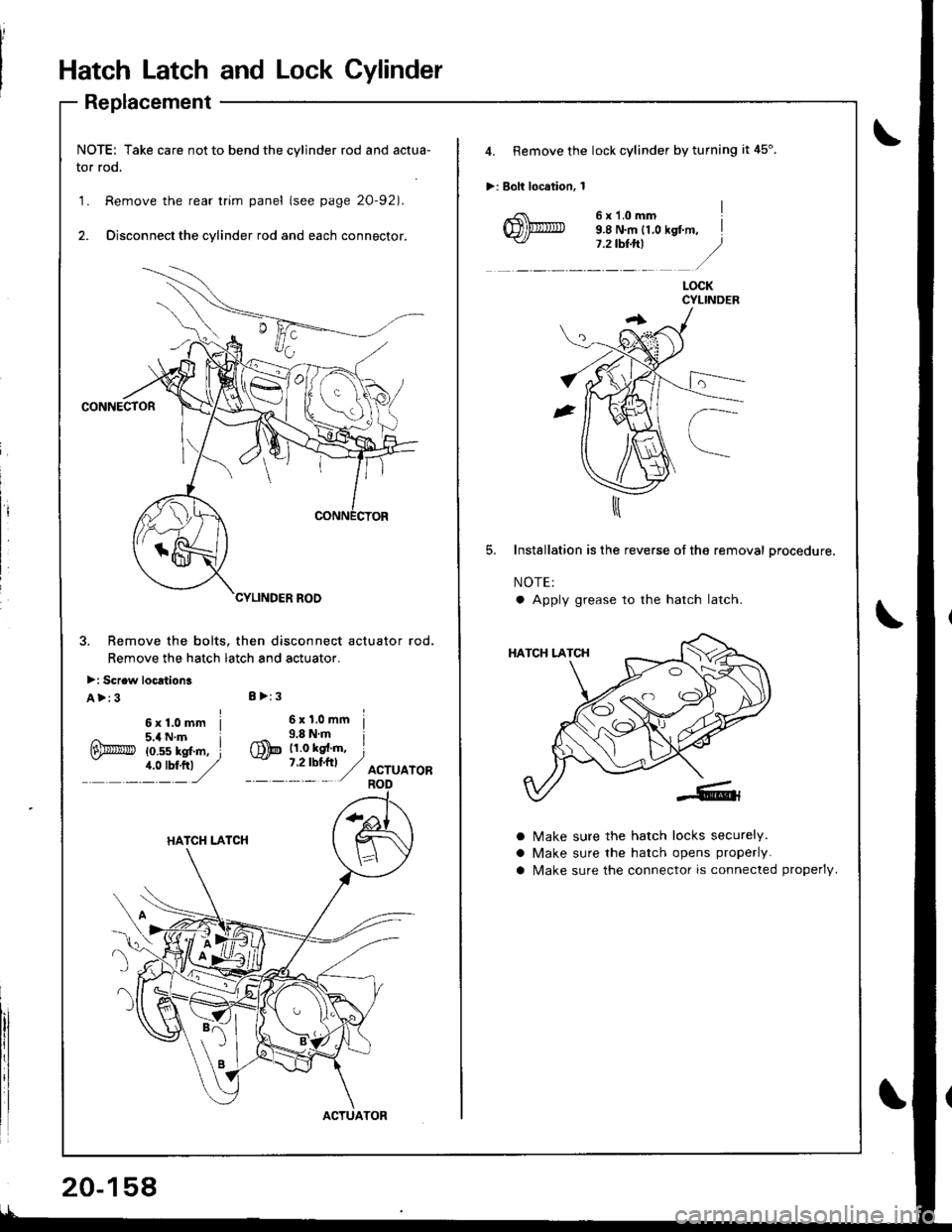

Hatch Latch and Lock Cylinder
Replacement
NOTE: Take care not to bend the cylinder rod and actua-
tor rod.
1. Remove the rear trim panel (see page 20-921.
2. Disconnect the cylinder rod and each connector.
CONNECTOR
3. Remove the bolts. then disconnect actuator rod.
Remove the hatch latch and actuator.
>: Screw loc6tion3
A>:3I >:3
ACTUATOR
20-158
4. Remove the lock cylinder by turning it 45".
>: Bolt location, 1
6x1.omm I9.8 N.m 11,0 kst m, il.ztb$ft| .)
lt: /
LOCKCYLINDEB
Installation is the reverse of the removal procedure.
NOTE:
a Apply grease to the hatch latch
a
a
a
Make sure the hatch locks securely.
Make sure the hatch opens properly.
N4ake sure the connector is connected properlV.

Trunk Lid Latch and Lock Cylinder
Replacement
JNOTE: Take care not to bend the cylinder rod and trunk
lid opener cable.
1. Disconnect the connector and trunk lid opener cable.
4. Remove the bolt, then pull the lock cylinder out. Re
move the lock cylinder {rom the cylinder rod, then
take them out.
: Bolt location, 1
CONNECIOR
LOCKCYLINDER
r>'
2. Disconnect the cylinder rod.
CYLINDERROD
CYLINOER ROD
5. lnstallation is the reverse of the removal procedure.
NOTE:
a Apply grease to the trunk lid latch.
Remove the bolts, then remove the trunk lid


: Boli locations, 3
TRUNK LIDLATCH
3.latch.
6x1.0mm ILOCK CYLINDER
9.8 N.m 11.0 kgf m, I
:t"r': -/
a
a
a
Make sure the trunk lid locks securely.
N/ake sure the trunk lid opens properly.
Make sure the connector is connected properly.
