1998 GMC ENVOY Owners Manual

Follow this diagram to store the underbody-mounted spare.
Retainer Valve Stem
(Pointed Down)
Spare or Flat Tire
Spring
Wheel Wrench
“3 -1- b
E Lower
G. Raise
I BJ I H. Hoist Arm
1. Put the tire on the ground at the rear of the vehicle,
with the valve stem pointed down and to the rear.
2. Pull the retainer through the wheel.
3. Put the chisel end of the wheel wrench, on an angle,
through
the hole in the rear bumper and into the hoist
shaft. Turn the wheel wrench to the right until the
tire is raised against the underside
of the vehicle.
You will hear two “clicks” when the tire is secure,
but pull on
the tire to make sure.
Return the jack, wheel wrench and wheel blocks
to the
proper location
in your vehicle’s rear area. Secure the
items and replace the jack cover.
5-30
ProCarManuals.com

L
A. Retainer
B. Rubber Band (Some Models)
C. Work Gloves
D. Ground Mat
E. Jack Storage Cover
E Wheel Blocks
G. Wheel Wrench
H. Jack
1. Jacking Instructions
-
/I CAUTION:
Make sure the tire and carrier are secure.
Driving with the tire or carrier unlatched could
injure pedestrians
or damage the vehicle.
5-31
ProCarManuals.com

If You’re Stuck: In Sand, Mud,
Ice or Snow
What you don’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help
you get out when you’re stuck, but
you must use caution.
A CAUTION:
If you let your tires spin at high speed, they can
explode, and you or others could be injured. And,
the transmission or other parts
of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the wheels as little as possible. Don’t
spin the wheels above
35 mph (55 km/h) as shown
on the speedometer.
I
NOTICE:
Spinning your wheels can destroy parts of your
vehicle as well as the tires. If you spin the wheels
too fast while shifting your transmission back
and forth, you can destroy your transmission.
For information about using tire chains on your vehicle,
see “Tire Chains”
in the Index.
5-32
ProCarManuals.com

Rocking Your Vehicle To Get It Out
First, turn your steering wheel left and right. That will
clear
the area around your front wheels. Shift the transfer
case into
4HI. Then shift back and forth between
REVERSE
(R) and a forward gear, spinning the wheels as
little as possible. Release the accelerator pedal while you shift, and press lightly
on the accelerator pedal when the
transmission is in gear.
If that doesn’t get you out after a
few tries,
you may need to be towed out. Or, you can use
your recovery
hooks. If you do need to be towed out, see
“Towing Your Vehicle”
in the Index.
Using the Recovery Hooks
Your vehicle is equipped with recovery hooks. The
recovery hooks are provided at the front
of your vehicle.
You may need
to use them if you’re stuck off-road
and need
to be pulled to some place where you can
continue driving.
5-33
ProCarManuals.com

A CAUTION:
I
The recovery hooks, when used, are under a lot of
force. Always pull the vehicle straight out. Never
pull on the hooks at a sideways angle. The hooks
could break
off and you or others could be
injured
from the chain or cable snappine back.
I NOTICE:
Never use the recovery hooks to tow the vehicle.
Your vehicle could be damaged and it would not
be covered by warranty.
5-34
ProCarManuals.com

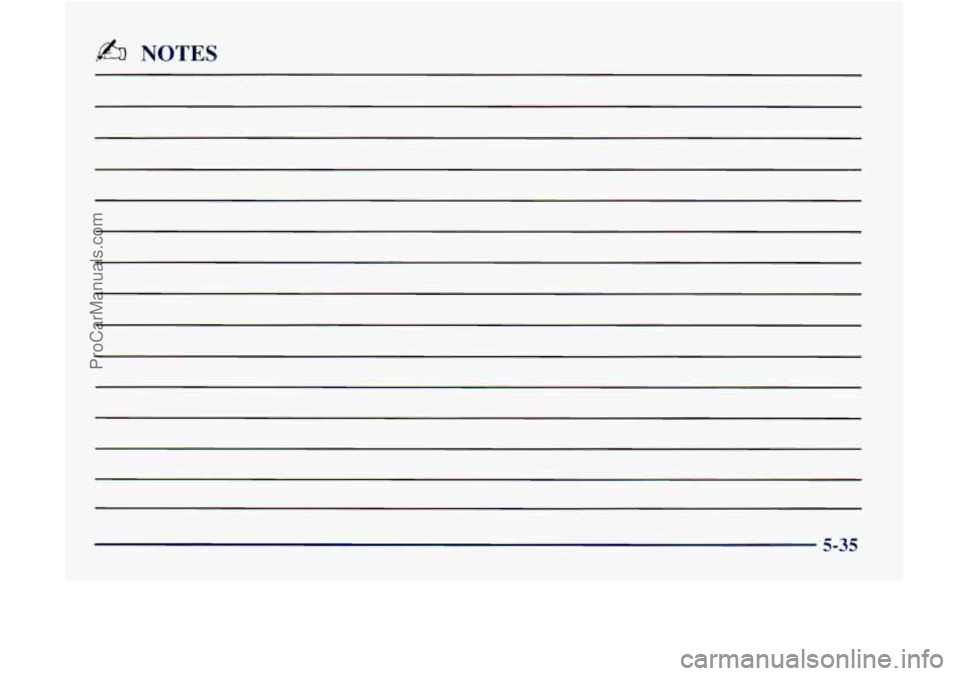

fi NOTES
5-35
ProCarManuals.com

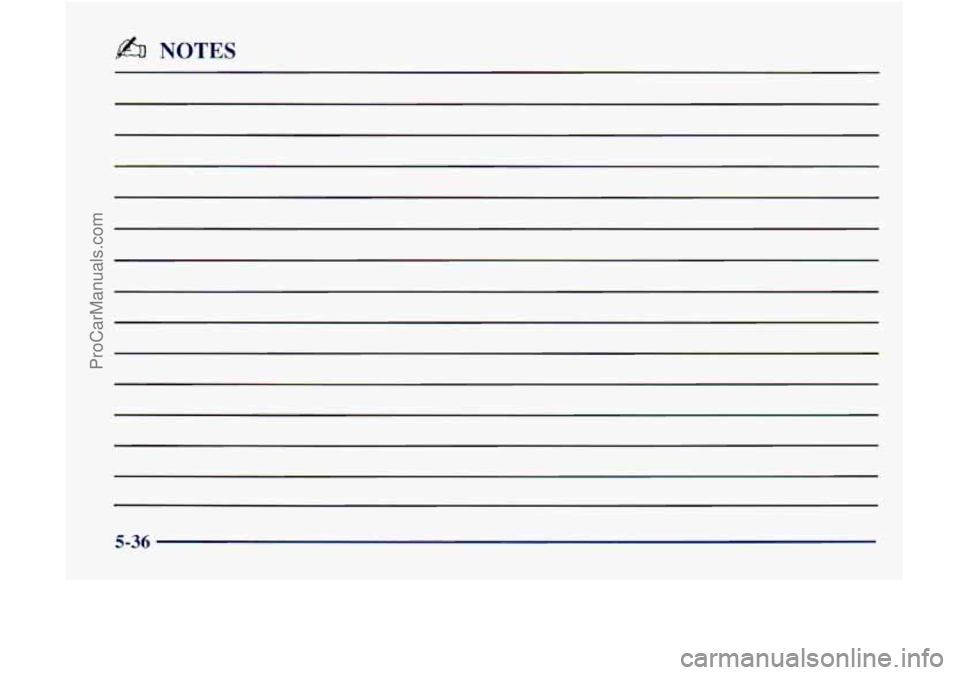

NOTES
5-36
ProCarManuals.com

Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then
it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted
to its appearance care.
6-2
6-3
6-5
6-5
6-7
6-8
6-
10
6-14
6- 15
6-19
6-20
6-2
1
6- 24
6-25
6-25
6-26
6-
2’7
Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Filling a Portable
Fuel Container
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transmission Fluid
Rear Axle
Four- Wheel Drive
Engine Coolant
Radiator Pressure Cap
Thermostat
Power Steering Fluid
Windshield Washer Fluid
Brakes Battery
Bulb Replacement
Windshield Wiper Blade Replacement
Tires
Appearance Care
Cleaning the Inside
of Your Vehicle
Care of Safety Belts
Cleaning the Outside of Your Vehicle
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Service Parts Identification Label
Electrical System
Replacement Bulbs
Capacities and Specifications
Air Conditioning Refrigerants
6-30
6-3
1
6-34
6-36
6-45
6-46
6-48
6-50
6-53
6-54
6-54
6-54
6- 60
6- 60
6-62
6-1
