1998 GMC ENVOY Owners Manual

Removing the Spare Tire and Tools
The jacking equipment you’ll need is stored along the
driver’s side inner rear quarter panel. Your vehicle is
also equipped with work gloves and a plastic ground
mat to assist in the changing
of a flat tire.
To remove your jack
cover, pull up on the latches
on the cover. Remove the
wheel blocks, jack and
wheel wrench.
NOTICE:
Never remove or restow a tire frodto a stowage
position under the vehicle while the vehicle is
supported by a jack. Always tighten the tire
fully against the underside of the vehicle
when restowing.
5-22
ProCarManuals.com

Before you can lower the spare tire, you must remove
the access hole cover on the passenger’s side
of the rear
bumper. Insert your index finger into the indentation
near the lamp and pull to remove the cover.
To remove the spare, insert the chisel end of the wheel
wrench, on an angle, into the hole in the rear bumper. Be
sure the chisel end of the wheel wrench connects into
the hoist shaft.
5-23
--
ProCarManuals.com

Turn the wheel wrench to the left to lower the spare tire.
Keep turning the wheel wrench until
the spare tire can
be pulled out from under the vehicle.
When the tire has
been completely lowered, tilt the
retainer at the end of the cable and pull it through the
wheel opening. Pull the tire out from under the vehicle.
NOTICE:
To help avoid vehicle damage, do not drive the
vehicle before the cable
is properly stored.
P the mare tire near the flat tire.
The tools you'll be using include the jack (A) and wheel
wrench
(B).
5 -24
ProCarManuals.com

Position the chisel end of your wheel wrench in the
notch
of the hub cap and pry off the hub cap.
Removing the Flat Tire and Installing the
Spare Tire
1. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them yet.
2. Turn the jack handle to the right to raise the jack
lift head.
3. Fit the jack into the appropriate hole nearest the
flat tire.
5-25
ProCarManuals.com

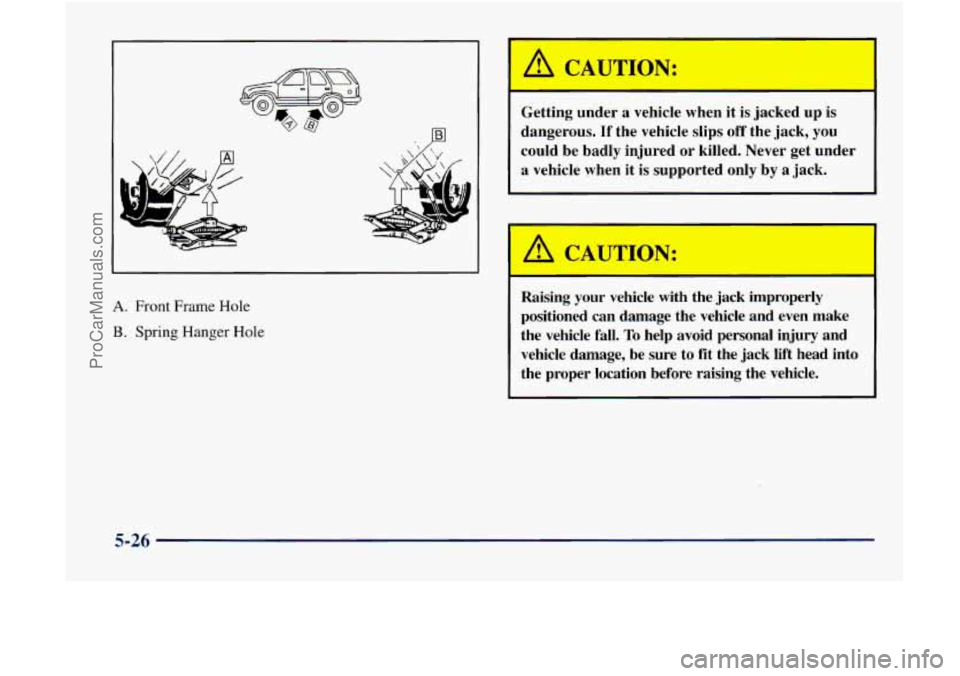

A. Front Frame Hole
B. Spring Hanger Hole
A CAUTION:
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
I
A CAUTION:
Raising your vehicle with the jack improF,,,ly
positioned can damage the vehicle and even make
the vehicle fall.
To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head into
the proper location before raising the vehicle.
I
5-26
ProCarManuals.com

I
4. Raise the vehicle by turning the jack handle to the
right. Raise the vehicle
far enough off the ground so
there is enough room for the spare tire to fit.
5. Remove all the wheel nuts and take off the flat tire.
6. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change
a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth
or a paper towel
to do this; but be sure to use
a scraper or wire
brush later, if you need to, to get all the rust or
dirt
off.
I
5-27
ProCarManuals.com

/I CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
7. Place the spare on the wheel mounting surface.
8. Put the nuts on by hand.
Make sure the
cone-shaped end is
toward the wheel.
Tighten each
nut by hand
until the wheel is held against the hub.
If a nut
can’t be turned by hand,
use the wheel wrench and
see your dealer as soon
as possible.
9. Lower the vehicle by turning the jack handle to the
left. Lower the jack completely.
5-28
ProCarManuals.com

10. Use the wrench to
tighten the wheel nuts
firmly in
a crisscross
sequence
as shown.
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Storing a Flat or Spare Tire and Tools
A CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere as soon as
you can and have the
nuts tightened with a torque wrench to
100 lb-ft
(140 Nom). Storing
a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury.
In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
5-29
