1998 FORD WINDSTAR ESP

188infant seats should be secured in the rear seat whenever
possible. Forward-facing child seats used in the front seat must
have the passenger seat moved as far back from the instrument
panel as possible.
*
[SS28600(ALL)05/96]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
%*
[SS28700(ALL)07/96]
RWARNING
When installing forward-facing child seats in the front
seat, always move the passenger seat as far back from the
instrument panel as possible. Never install rear-facing
child seats or rear-facing infant seats in the front seat.
*
[SS28800(ALL)05/96]
The force of the rapidly inflating passenger air bag could push
the top of the rear-facing seat against the vehicle seatback,
armrests or console. Rear-facing infant seats must always be
secured in the rear seat.
*
[SS28900(ALL)05/96]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
*
[SS29000(ALL)03/96]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

208
%*
[TO03500(ALL)01/96]
Using the Engine Block Heater (If equipped)
[TO03600(ALL)12/95]
Using your engine block heater is strongly recommended if you
live in a region where temperatures consistently reachs20ÊF
(s29ÊC) orbelow during the winter months. An engine block
heater warms the engine coolant which improves starting,
warms up the engine faster, and allows the heater-defrost
system to respond more quickly.
*
[TO03700(ALL)01/96]
RWARNING
To prevent electrical shock, do not use your heater with
ungrounded electrical systems or two-pronged (cheater)
adapters.
*
[TO03800(ALL)01/96]
For best results, plug the heater in at least three hours before
you start your vehicle. Using the heater for longer than three
hours will not damage the engine, so you can leave it plugged
in all night to start your vehicle the following morning.
*
[TO03900(ALL)12/95]
Guarding Against Exhaust Fumes
[TO04000(ALL)12/95]
Carbon monoxide, although colorless and odorless, is present in
exhaust fumes.
*
[TO04100(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO04200(ALL)01/96]
RWARNING
If you ever smell exhaust fumes of any kind inside your
vehicle, have your dealer inspect and fix your vehicle
immediately. Do not drive if you smell exhaust fumes.
These fumes are harmful and could kill you.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

226
[GF13900(ALL)04/96]
Trailer brakes
*
[GF14000(ALL)01/96]
Separate trailer brakes are required on most trailers weighing
over 1,500 lbs. (680 kg).
*
[GF14100(ALL)05/96]
RWARNING
Do not connect a trailer's hydraulic brake system directly
to your vehicle's brake system. Your vehicle may not
have enough braking power and your chances of having
a collision greatly increase.
%*
[GF14200(ALL)01/96]
Trailer Lamps
*
[GF14300(ALL)01/96]
Make sure your trailer lamps conform to federal and local
regulations.
*
[GF14400(ALL)01/96]
Class I Trailer Tow electrical wiring provides two circuits (right
hand and left hand) to operate trailer stop/turn tail lamps. Each
stop/turn circuit will operate one combination stop/turn light
bulb (# 1157, 3157, 2357, or 3357) on the trailer. Never add more
than one trailer light bulb to one circuit.
*
[GF14500(ALL)01/96]
RWARNING
Always replace a fuse with one that has the specified
amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a
fire.
%*
[GF14600(ALL)05/96]
Driving While You Tow
[GF14700(ALL)09/96]
Be especially careful when driving while you tow a trailer.
Never drive faster than 45 mph (72 km/h) when you tow in
hilly country on hot days. Also, anticipate stops so that you can
brake gradually.
*
[GF14800(ALL)01/96]
If you use the speed control while you are towing on very long,
steep grades, the speed control may shut off automatically.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

230
[GF17600(ALL)12/95]
10-1/2 pica
art:0050032-B

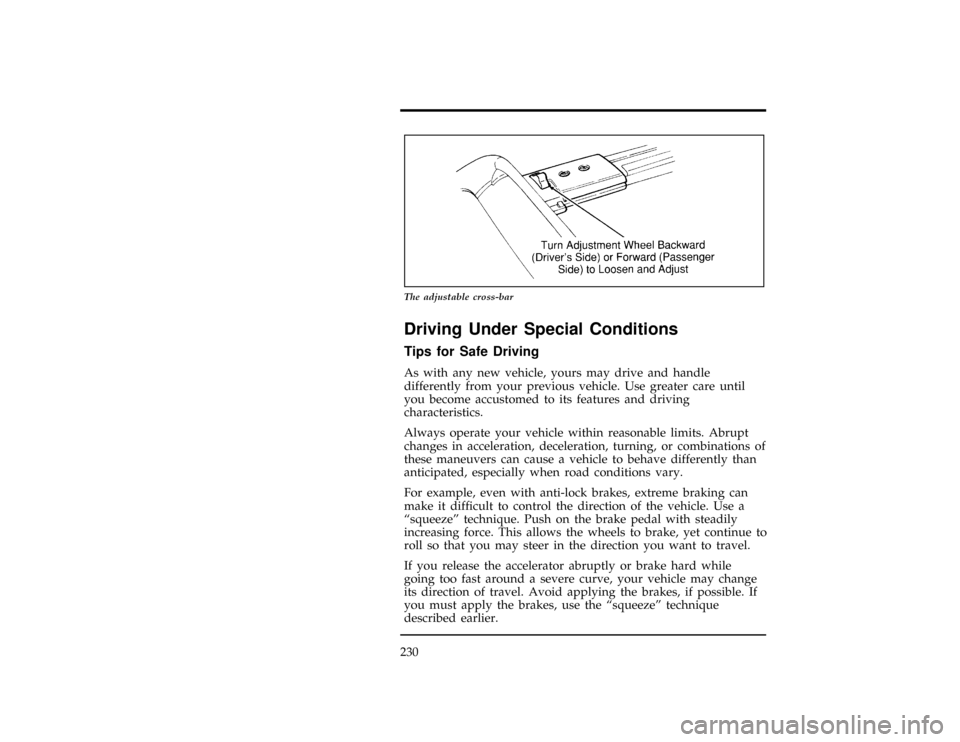

The adjustable cross-bar
%*
[GF17700(ALL)01/96]
Driving Under Special Conditions
%*
[GF17800(ALL)01/96]
Tips for Safe Driving
[GF17900(ALL)04/96]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use greater care until
you become accustomed to its features and driving
characteristics.
[GF18000(ALL)04/96]
Always operate your vehicle within reasonable limits. Abrupt
changes in acceleration, deceleration, turning, or combinations of
these maneuvers can cause a vehicle to behave differently than
anticipated, especially when road conditions vary.
[GF18100(ALL)04/96]
For example, even with anti-lock brakes, extreme braking can
make it difficult to control the direction of the vehicle. Use a
ªsqueezeº technique. Push on the brake pedal with steadily
increasing force. This allows the wheels to brake, yet continue to
roll so that you may steer in the direction you want to travel.
[GF18200(ALL)04/96]
If you release the accelerator abruptly or brake hard while
going too fast around a severe curve, your vehicle may change
its direction of travel. Avoid applying the brakes, if possible. If
you must apply the brakes, use the ªsqueezeº technique
described earlier.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

Driving
233
[GF20800(ALL)04/96]
Do not rock the vehicle for more than a few minutes. This may
overheat the engine, damage the transaxle, or damage the tires.
%*
[GF20900(ALL)01/96]
Driving With a Heavy Load
*
[GF21000(ALL)01/96]
The Safety Compliance Certification Label, located on the
driver's door pillar, provides important information regarding
the weight limits your vehicle can safely carry or tow. The total
weight of your vehicle, including the weight of the passengers
and cargo, should never be more than the Gross Vehicle Weight
Rating (GVWR). Also, the weight that your vehicle carries on
the front axle and rear axle should never be more than the
Gross Axle Weight Rating (GAWR) for the respective axle.
*
[GF21100(ALL)01/96]
The load capacities of your vehicle's tires affect the GVWR or
GAWR limitations. Using replacement tires with a higher weight
limit than the originals does not increase GVWR or GAWR.
Using lower capacity replacement tires may lower GVWR and
GAWR limitations.
*
[GF21200(ALL)01/96]
RWARNING
Do not exceed the GVWR or the GAWR specified on the
Safety Compliance Certification Label.
*
[GF21300(ALL)03/96]
Vehicle/Trailer Loads
[GF21400(ALL)01/96]
Your vehicle may tow a Class I trailer up to 2,000 lbs. (907 kgs)
or 3,500 lbs. (1,587 kgs) with Trailer Tow Package provided the
Gross Vehicle Weight (GVW) is less than the GVWR shown on
the Safety Compliance Certification Label.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

269
Maintenance and Care
*
[MC00200(ALL)01/96]
How Ford Makes Servicing Your Vehicle
Easy
*
[MC00300(ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00400(ALL)01/96]1.
When we can, we design parts that do not need to be
serviced.
*
[MC00500(ALL)01/96]2.
We want to make servicing your vehicle as easy as possible.
To help you:
*
[MC00600(ALL)01/96]
n
We highlight do-it-yourself items in yellow in your engine
compartment so that you can find them easily.
*
[MC00700(ALL)03/96]
n
When possible, we design parts that can be replaced without
tools.
[MC00800(ALL)07/96]
n
We give you aMaintenance Schedulebooklet that makes
tracking routine service for your vehicle easy.
*
[MC00900(ALL)01/96]
This chapter tells you about the basic parts that you need to
check and service regularly.
[MC01000(ALL)01/96]
If you need professional servicing, see the chapter onCustomer
Assistancein this Owner Guide.
[MC01100(ALL)01/96]
Check yourWarranty InformationBooklet to find out which parts
are covered.
%*
[MC01200(ALL)01/96]
Precautions When Servicing Your Vehicle
*
[MC01300(ALL)01/96]
Be especially careful when inspecting or servicing your vehicle.
Here are some general precautions for your safety:
[MC01400(ALL)04/96]
n
If you must work with the engine running, avoid wearing
loose clothing or jewelry that could get caught in moving
parts.
*
[MC01500(ALL)01/96]
n
Do not work on a vehicle in an enclosed space with the
engine running, unless you are sure you have enough
ventilation.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

278
[MC05900(ALL)01/96]
7-1/2 pica art:0050073-D
Engine oil dipstick
*
[MC06000(ALL)01/96]6.
Carefully, pull the dipstick out again. If the oil level is below
the ªADD 1 QT.º line, add engine oil as necessary. If the oil
level is beyond the letter ªFº in FULL, engine damage or
high oil consumption may occur and some oil must be
removed from the engine.
*
[MC06100(ALL)01/96]7.
Put the dipstick back in and make sure it is fully seated.
*
[MC06200(ALL)01/96]
It may be necessary to add some oil between oil changes. Make
sure you use a CERTIFIED engine oil of the preferred viscosity.
Your vehicle's warranty coverage may not apply if engine
damage is caused by the use of improper engine oil.
*
[MC06300(ALL)09/96]
Add engine oil through the oil filler cap highlighted in yellow.
To add oil, remove the filler cap and use a funnel to pour oil
into the opening. Be careful not to overfill the engine. Recheck
the oil level after you finish adding oil.
%*
[MC06400(ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC06500(ALL)05/96]
Refer to theMaintenance Schedulebooklet for additional
information.
%*
[MC06600(ALL)05/96
]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
285
*
[MC10700(ALL)05/96]
Ford Premium Cooling System Fluid is an optimized formula
that will protect all metals and rubber elastomers used in Ford
engines for four years or 50,000 miles (80,000 km). It is not
necessary and not recommended to use supplemental coolant
additives in your gasoline powered vehicle. These additives may
harm your engine cooling system. Follow the recommended
service interval for changing your engine coolant.
*
[MC10800(ALL)05/96]
NOTE: When adding to or changing your engine coolant, it is
important to maintain a coolant concentration between
40% (s11ÊF [s24ÊC]) and 60% (s62ÊF [s52ÊC])
depending on your local climate conditions. When
coolant concentration falls below 40%, you will lose
freeze protection; above 60%, your engine may
overheat on a warm day. If coolant concentration is
outside this range, you may lose corrosion and rust
protection for the metals in your engine cooling
system.
[MC10900(ALL)01/96]
NOTE: Do not use an engine coolant that does not meet all
14 requirements of Ford specification ESE-M97B44-A.
The use of a coolant that does not meet the 14
requirements may void your warranty for the engine
cooling system. Use only a premium, nationally
recognized brand name engine coolant.
*
[MC11000(ALL)05/96]
Ford Motor Company expressly authorizes the Ford Rotunda
engine coolant recycling process and chemicals. Use only Ford
Rotunda recycled engine coolant or an equivalent non-Ford
Rotunda recycled engine coolant that is certified by the supplier
to meet Ford specification ESE-M97B44-A.
%*
[MC11100(ALL)05/96
]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996
