1998 FORD WINDSTAR engine

22
%*
[IS11400(ALL)08/96]
Engine Coolant Temperature Gauge
*
[IS11500(ALL)02/96]
This gauge indicates the temperature of the engine coolant, not
the coolant level. If the coolant is not at its proper level or
mixture, the gauge indication will not be accurate.
[IS11600(ALL)01/96]
10-1/2 pica
art:0050236-A
Engine coolant temperature gauge Ð base cluster
[IS11700(ALL)01/96]
The pointer moves from the C (cold) mark into the NORMAL
band as the engine coolant warms up. It is acceptable for the
pointer to fluctuate within the normal band under normal
driving conditions. Under certain driving conditions such as
heavy stop and go traffic, or driving up hills in hot weather, the
pointer may indicate at the top of the NORMAL band. This is
also acceptable.
*
[IS11800(ALL)04/96]
If, under any circumstances, the pointer moves above the
NORMAL band, the engine is overheating and continued
operation may cause engine damage.
*
[IS11900(ALL)08/96]
If your engine overheats:
*
[IS12000(ALL)08/96]1.
Pull off the road as soon as it is safely possible.
*
[IS12100(ALL)08/96]2.
Turn off the engine. If you do not stop the engine as soon as
safely possible, severe engine damage could result.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
23
*
[IS12200(ALL)08/96]3.
Let the engine cool.DO NOT REMOVE COOLANT
SYSTEM FILL CAP UNTIL THE ENGINE IS COOL.
[IS12300(ALL)08/96]4.
Check the coolant level following the instructions on
checking and adding coolant to your engine in this Owner
Guide. Seeengine coolantin the index. If you do not follow
these instructions, you or others could be injured.
*
[IS12400(ALL)08/96]
If the coolant continues to overheat, have the coolant system
serviced as soon as possible.
%*
[IS13600(ALL)08/96]
Speedometer
*
[IS13700(ALL)03/96]
The speedometer tells you how many miles (kilometers) per
hour your vehicle is moving.
%*
[IS14200(ALL)08/96]
Odometer
*
[IS14300(ALL)01/96]
The odometer records the total distance the vehicle has been
driven.
%*
[IS14700(ALL)01/96]
Trip Odometer
%*
[IS14800(ALL)05/96]
The trip odometer records the distance of individual trips.
Before each trip, set the trip odometer to zero by pushing the
reset control.
[IS14900(ALL)01/96]
10-1/2 pica
art:0050155-C
The speedometer, odometer and trip odometer
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

24
% [IS15000(ALL)04/96]
Tachometer (If equipped)
*
[IS15100(ALL)03/96]
The tachometer will show you the engine's speed measured in
revolutions per minute (RPM).
*
[IS15200(ALL)03/96]
The tachometer may move slightly when the key is placed in
the ACC or ON position, with the engine off. This is normal
and does not affect the performance of the tachometer when the
engine is running.
[IS15300(ALL)01/96]
Some vehicles are equipped with an engine speed (RPM)
limiting device that is contained within the Electronic Engine
Control Module. The purpose of this device is to maintain peak
engine speed (RPM) below a specified limit. (Engine speed
limits may vary based on engine size.)
*
[IS15400(ALL)03/96]
If you are experiencing an ªengine cut-outº condition at high
speeds, it may be the result of this limiting device. It is a
normal condition and can be avoided by reducing
vehicle/engine speed.
[IS15500(ALL)01/96]
10-1/2 pica
art:0050168-B
The tachometer
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
25
% [IS19200(ALL)01/96]

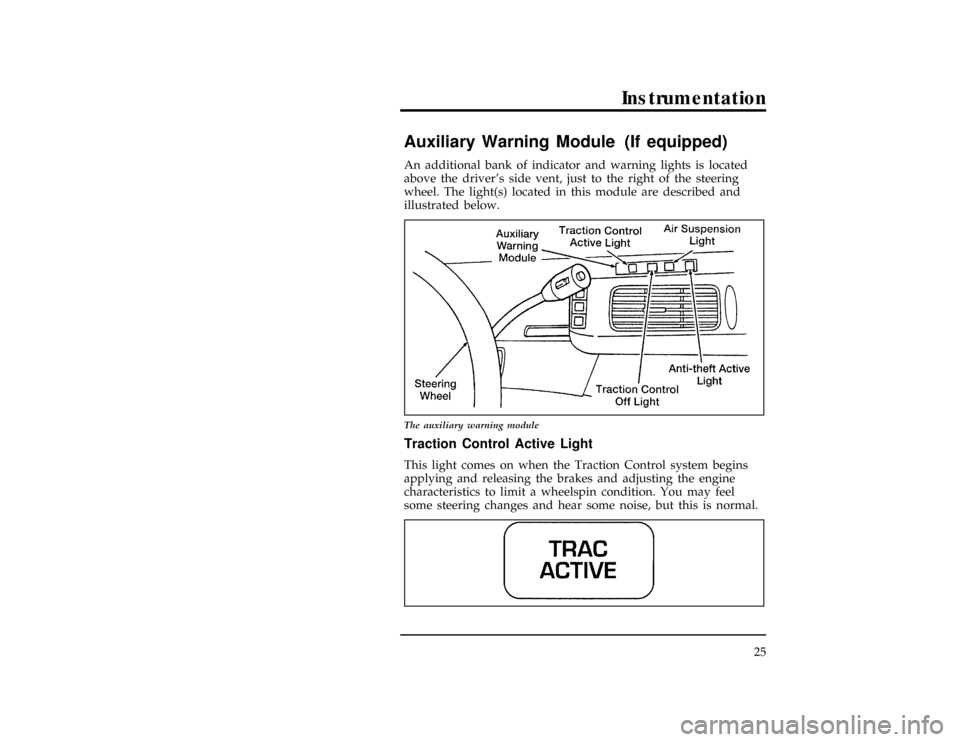

Auxiliary Warning Module (If equipped)
[IS19300(ALL)01/96]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[IS19400(ALL)08/96]
13-1/2 pica
art:0050122-H
The auxiliary warning module
% [IS19500(ALL)01/96]
Traction Control Active Light
[IS19600(ALL)01/96]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[IS19700(ALL)01/96]
one inch art:0050274-AFile:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Controls and Features
77
*
[CF03500(ALL)04/96]
Turning On the Heat
[CF03600(ALL)01/96]
Heat will not be available until the engine has been running for
sufficient time as indicated by the engine coolant temperature
gauge.
*
[CF03700(ALL)01/96]
To heat the inside of your vehicle:
[CF03800(ALL)01/96]1.
Turn the Function Selector Knob toR(FLOOR). Outside
air is drawn in and directed into the passenger compartment
through the floor outlets. Small quantities of air are also
directed to the defrost and side window demist outlets.
[CF03900(ALL)01/96]2.
Turn the Temperature Control Knob toward the WARM
(red) area.
[CF04000(ALL)01/96]3.
Turn the Fan Speed Knob to the speed of your choice. When
your vehicle warms up, you may want to set the Fan Speed
Knob to a lower speed, or adjust the Temperature Control
Knob to a lower setting to maintain a comfortable
temperature.
*
[CF04100(ALL)01/96]
To defrost the windshield and side windows:
[CF04200(ALL)01/96]
n
Turn the Function Selector Knob toV(DEFROST), turn the
Temperature Control Knob to the WARM (red) area and turn
the Fan Speed Knob to the position of your choice.
*
[CF04300(ALL)01/96]
To heat and defrost at the same time:
[CF04400(ALL)01/96]
n
Turn the Function Selector Knob toP
(DEFROST/FLOOR),turn the Temperature Control Knob and
the Fan Speed Knob to provide the temperature and fan
speed you prefer.
[CF04500(ALL)01/96]
Do not place objects under the front seats unless your vehicle is
equipped with an under seat storage tray. Improperly stored
objects will interfere with the flow of air to the back seats.
[CF04600(ALL)01/96]
Remove any snow, ice, or leaves from the area below the
windshield on the outside of your vehicle. They could block the
air intake.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
81
[CF06700(ALL)01/96]3.
Turn the Fan Speed Knob to the position of your choice.
[CF06800(ALL)01/96]4.
Make sure that the registers in the instrument panel are open
and adjusted to the positions of your choice.
[CF06900(ALL)01/96]
During periods of high humidity, vapor may be emitted from
the air outlets when using the A/C with outside air. Correct
this by switching the Function Control Knob to MAX A/C.
*
[CF07000(ALL)01/96]
Improving fuel economy
[CF07100(ALL)01/96]
Whenever you turn on the air conditioning, your vehicle uses
more fuel because the air conditioning compressor is running.
To get better fuel economy while cooling your vehicle, do not
use the air conditioner on mild days. Instead, set the function
control knob toQ(PANEL) and turn the temperature control
knob to COOL.
*
[CF07200(ALL)01/96]
Operating tips
[CF07300(ALL)01/96]
To vary the temperature inside your vehicle, move the
Temperature Control Knob toward WARM (red) for warmer
temperatures and toward COOL (blue) for cooler temperatures.
The Temperature Control Knob setting determines the
temperature of the air being discharged from the system in all
operating modes (heating or A/C).
[CF07400(ALL)01/96]
When stopped in traffic for long periods of time in hot weather,
place the automatic transaxle gearshift selector lever in Park (P)
or in Neutral (N). This aids in engine cooling and air
conditioner efficiency. (If the engine overheats, turn the
Function Selector Knob toQ(PANEL) and turn the
Temperature Control Knob to WARM.)
*
[CF07500(ALL)01/96]
When your vehicle's engine is operated at full throttle, the air
conditioner compressor will automatically be turned off to allow
maximum engine power. This may occur during passing or
when climbing steep grades. The compressor will return to
normal operation within a few seconds after full throttle is no
longer needed.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

84
[CF09000(ALL)01/96]
10-1/2 pica
art:0050036-B

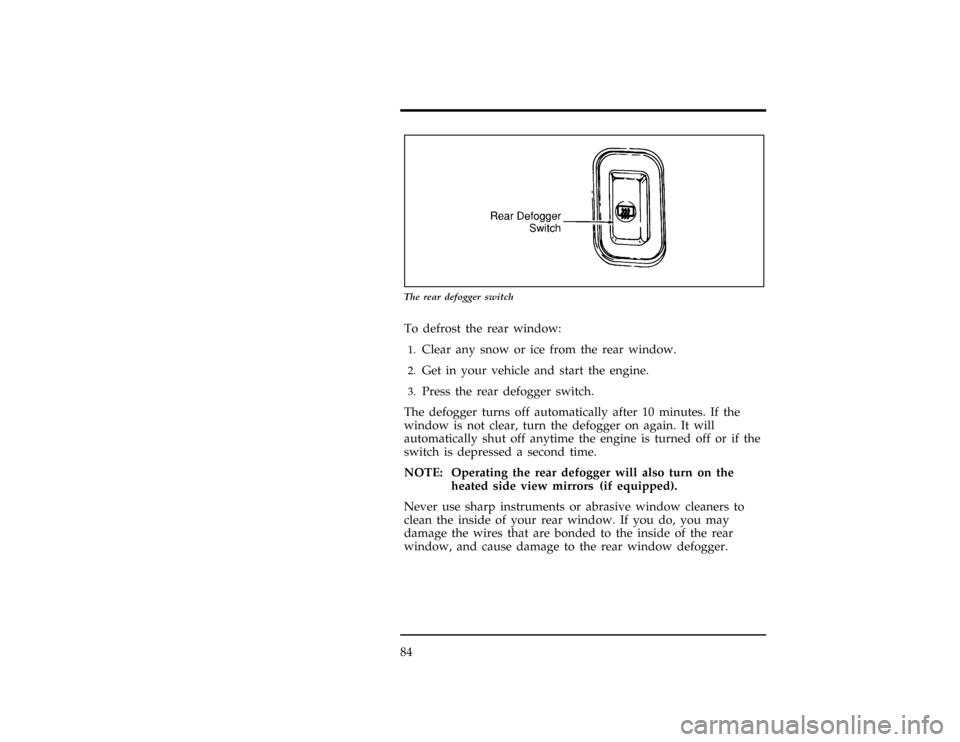

The rear defogger switch
*
[CF09100(ALL)03/96]
To defrost the rear window:
*
[CF09200(ALL)03/96]1.
Clear any snow or ice from the rear window.
*
[CF09300(ALL)03/96]2.
Get in your vehicle and start the engine.
[CF09400(ALL)01/96]3.
Press the rear defogger switch.
[CF09500(ALL)01/96]
The defogger turns off automatically after 10 minutes. If the
window is not clear, turn the defogger on again. It will
automatically shut off anytime the engine is turned off or if the
switch is depressed a second time.
[CF09600(ALL)01/96]
NOTE: Operating the rear defogger will also turn on the
heated side view mirrors (if equipped).
*
[CF09700(ALL)01/96]
Never use sharp instruments or abrasive window cleaners to
clean the inside of your rear window. If you do, you may
damage the wires that are bonded to the inside of the rear
window, and cause damage to the rear window defogger.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

86
%*
[CF10325(ALL)08/96]
Traction Control (If equipped)
[CF10350(ALL)08/96]
Traction Control can help improve your traction on slippery
surfaces, but always operate your vehicle within reasonable
limits. Abrupt changes in acceleration, deceleration, turning, or
combinations of these maneuvers can cause your vehicle to
behave differently than anticipated, especially when road
conditions vary.
[CF10375(ALL)08/96]
To turn Traction Control off, press the button located in the
center of the instrument panel.
[CF10380(ALL)08/96]
Traction Control can be turned back on by pressing the button
again or by restarting the engine.
% [CF10700(ALL)01/96]
Exterior Lamps
*
[CF10800(ALL)05/96]
To turn on the headlamps, parking lamps, marker lamps, tail
lamps, license plate lamps and instrument panel lamps, use the
headlamp knob, to the left of the instrument cluster.
*
[CF10900(ALL)05/96]1.
Turn the headlamp knob to the first position to turn on the
parking lamps, tail lamps, license plate lamps, marker lamps
and instrument panel lamps.
*
[CF11000(ALL)05/96]2.
Turn the headlamp knob to the second position to turn on
the headlamps in addition to the parking lamps, tail lamps,
license plate lamps, marker lamps and instrument panel
lamps.
