1998 FORD WINDSTAR warning

Maintenance and Care
297
*
[MC19400(ALL)03/96]
RWARNING
Do not replace your tires with ºhigh performanceª tires
or larger size tires.
*
[MC19500(ALL)03/96]
RWARNING
Use of aftermarket wheel assemblies may damage your
vehicle or cause accidents resulting in serious injuries.
*
[MC19600(ALL)03/96]
RWARNING
Failure to follow these precautions may adversely affect
the handling of the vehicle and make it easier to lose
control and roll over.
*
[MC19700(ALL)01/96]
Tires that are larger or smaller than your vehicle's original tires
may affect the accuracy of your speedometer and odometer.
%*
[MC19800(ALL)01/96]
Information About Tire Quality Grades
*
[MC19900(ALL)01/96]
New vehicles are fitted with tires that have their Tire Quality
Grade (described below) molded into the tire's sidewall. These
Tire Quality Grades are determined by standards that the
United States Department of Transportation has set.
*
[MC20000(ALL)01/96]
Tire Quality Grades apply to new pneumatic tires for use on
this vehicle. They do not apply to deep tread, winter-type snow
tires, space-saver or temporary use spare tires, tires with
nominal rim diameters of 10 to 12 inches (254-305 mm) or
limited production tires as defined in Title 49 Code of Federal
Regulations Part 575.104(c)(2).
*
[MC20100(ALL)01/96]
U.S. Department of Transportation Ð Tire quality grades:The
U.S. Department of Transportation requires Ford to give you the
following information about tire grades exactly as the
government has written it.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

298
%*
[MC20200(ALL)01/96]
Treadwear
*
[MC20300(ALL)01/96]
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences
in road characteristics and climate.
*
[MC20400(ALL)01/96]
Traction A B C
*
[MC20500(ALL)01/96]
The traction grades, from highest to lowest, are A, B, and C,
and they represent the tire's ability to stop on wet pavement as
measured under controlled conditions on specified government
test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance. Warning: The traction grade assigned
to this tire is based on braking (straight ahead) traction tests
and does not include cornering (turning) traction.
*
[MC20600(ALL)01/96]
Temperature A B C
[MC20700(ALL)01/96]
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and
its ability to dissipate heat when tested under controlled
conditions on a specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can
lead to sudden tire failure. The grade C corresponds to a level
of performance which all passenger car tires must meet under
the Federal Motor Vehicle Safety Stadard No. 109. Grades B and
A represent higher levels of performance on the laboratory test
wheel than the minimum required by law. Warning: The
temperature grade for this tire is established for a tire that is
properly inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

300
% [MC22400(ALL)08/96]
Filling Your Fuel Tank
[MC22500(ALL)08/96]1.
Turn the engine off. After opening the fuel door (located on
the driver side of the vehicle), remove the cap carefully and
slowly by turning it counterclockwise 1/4 turn until it stops.
Pull to remove the cap. A tether attaches the cap to the fuel
filler pipe.
[MC22600(ALL)09/96]
one inch art:0051020-A[MC22700(ALL)08/96]
RWARNING
The fuel system may be under pressure. If the fuel cap is
venting vapor or if you hear a hissing sound, wait until
it stops before completely removing the cap. Otherwise,
fuel may spray out and injure you or others.
*
[MC22800(ALL)08/96]2.
Make sure that you pump unleaded fuel and put the nozzle
all the way inside the fuel filler pipe.
[MC22900(ALL)08/96]
NOTE: To help reduce early nozzle shutoffs and fuel spillage,
park your vehicle so that the fuel filler door is not
downhill. Do not tilt or turn the nozzle upside down
when filling. Avoid excessively fast fuel dispensing
rates (over 10 gallons [38 liters] per minute).
*
[MC23000(ALL)08/96]
NOTE: If you spill any fuel on the body of your vehicle,
clean it off immediately. The fuel may dull or soften
the paint if you do not wash it off.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
301
[MC23100(ALL)08/96]3.
To replace the fuel cap, align the tabs on the cap with the
notches on the filler pipe. Turn it clockwise until it stops.
*
[MC23200(ALL)08/96]4.
Push the fuel door closed.
[MC23250(ALL)08/96]
If the Service Engine Soon warning light comes on and stays on
when you start the engine, the fuel cap may not be properly
seated. Turn off the engine, remove the fuel cap and replace it,
being careful to align the cap properly. For more information,
seeWarning lightsin the Index.
*
[MC23300(ALL)01/96]
If you lose the fuel cap, replace it with an authorized Motorcraft
or equivalent part.
%*
[MC23400(ALL)01/96
]
RWARNING
If you do not use the proper fuel cap, the pressure in the
fuel tank can damage the fuel system or cause it to work
improperly in a collision.
*
[MC23500(ALL)01/96]
NOTE: If you replace your fuel cap with an aftermarket fuel
filler cap, the customer warranty may be void for any
damage to the fuel tank and/or fuel system.
[MC24100(ALL)08/96]
Choosing the Right Fuel
*
[MC24200(ALL)08/96]
Use only UNLEADED FUEL. Using leaded fuel is prohibited by
federal law. Any vehicle damage may not be covered by your
warranty.
[MC24300(ALL)08/96]
Your vehicle was not designed to use fuel containing
manganese-based additives such as MMT. Additionally, vehicles
certified to California emission standards (indicated on the
underhood Vehicle Emissions Control Information label) are
designed to operate on California reformulated gasolines. If
California reformulated gasoline is not available when you
refuel, your vehicle can be operated on non-California fuels.
However, even though your engine will perform adequately on
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
303
*
[MC25200(ALL)08/96]
It should not be necessary to add any aftermarket products to
your fuel tank if you continue to use a high-quality fuel.
*
[MC25300(ALL)08/96]
Cleaner air
*
[MC25400(ALL)08/96]
Ford approves the use of gasolines to improve air quality,
including reformulated gasolines, that contain oxygenates such
as a maximum of 10% ethanol or 15% MTBE. There should be
no more than 5% methanol with cosolvents and additives to
protect the fuel system.
%*
[MC26300(ALL)01/96]
Safety Information Relating to Automotive Fuels
*
[MC26400(ALL)01/96]
RWARNING
Automotive fuels can cause serious injury or death if
misused or mishandled.
*
[MC26500(ALL)01/96]
Gasoline and other automotive fuels are extremely flammable.
Turn your vehicle off and do not smoke while refueling your
vehicle. Keep sparks and other sources of ignition away from
fuels.
[MC26600(ALL)01/96]
Automotive fuels can be harmful or fatal if swallowed. Never
attempt to siphon any fuel by mouth.
[MC26700(ALL)01/96]
If any fuel is swallowed, call a physician or poison control
center immediately.Do not delay calling a physician merely
because no adverse effects are noticed at first; the toxic effects
of fuels may not become apparent for many hours.
*
[MC26800(ALL)01/96]
If gasoline is swallowed, do not induce vomiting. If a
gasoline-methanol blend is swallowed, induce vomiting under
the direction of a physician or poison control center.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

308
*
[MC30500(ALL)01/96]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
*
[MC30600(ALL)01/96]
RWARNING
Do not remove the floor carpet in your vehicle. Emission
controls cause high exhaust temperatures under the floor.
*
[MC30700(ALL)05/96]
RWARNING
Exhaust leaks may result in the entry of harmful and
potentially lethal fumes into the passenger compartment.
Under extreme conditions excessive exhaust temperatures
could damage the fuel system, the interior floor covering,
or other vehicle components, possibly causing a fire.
*
[MC30900(ALL)01/96]
Watch for fluid leaks, strange odors, smoke and loss of oil
pressure. Also watch for the charge warning light, the check
engine light, or the temperature warning light. These sometimes
indicate that the emission system is not working properly.
*
[MC31000(ALL)01/96]
Do not make any unauthorized changes to your vehicle or
engine. Changes that cause more unburned fuel to reach the
exhaust system can increase the temperature of the engine or
exhaust system.
*
[MC31100(ALL)01/96]
By law, anyone who manufactures, repairs, services, sells, leases
vehicles, trades vehicles, or supervises a fleet of vehicles is not
permitted to intentionally remove an emission control device or
prevent it from working. In some of the United States and in
Canada, vehicle owners may be liable if their emission control
device is removed or is prevented from working.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
311
%*
[MC34100(ALL)01/96]
The alignment of your headlamps should be checked if:
*
[MC34200(ALL)01/96]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[MC34300(ALL)01/96]
n
the headlamps do not seem to give you enough light to see
clearly at night
*
[MC34400(ALL)01/96]
n
the headlamp beams are not pointed slightly down and to
the right
% [MC34500(ALL)04/96]
Replacing the Headlamp Bulb
*
[MC34600(ALL)03/96]
The headlamps on your vehicle use replaceable bulbs. When the
lamp burns out, simply replace the bulb, rather than the whole
lamp.
*
[MC34700(ALL)01/96]
RWARNING
Handle a halogen headlamp bulb carefully and keep out
of children's reach. Grasp the bulb only by its plastic
base and do not touch the glass. The oil from your hand
could cause the bulb to break the next time the
headlamps are operated.
*
[MC34800(ALL)01/96]
Do not remove the burned out bulb unless you can immediately
replace it with a new one. If a bulb is removed for an extended
period of time, contaminants may enter the headlamp and affect
its performance.
[MC34900(ALL)04/96]
To remove the headlamp bulb:
*
[MC35000(ALL)01/96]1.
Make sure that the engine is off and the headlamp switch on
the instrument panel is in the OFF position.
[MC35100(ALL)01/96]2.
Lift the hood and locate the headlamp bulb installed in the
rear of the headlamp. Remove the electrical connector from
the bulb by pulling the connector away from the bulb
assembly.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

349
[QI01000(ALL)07/95]
full page art:0050273-A

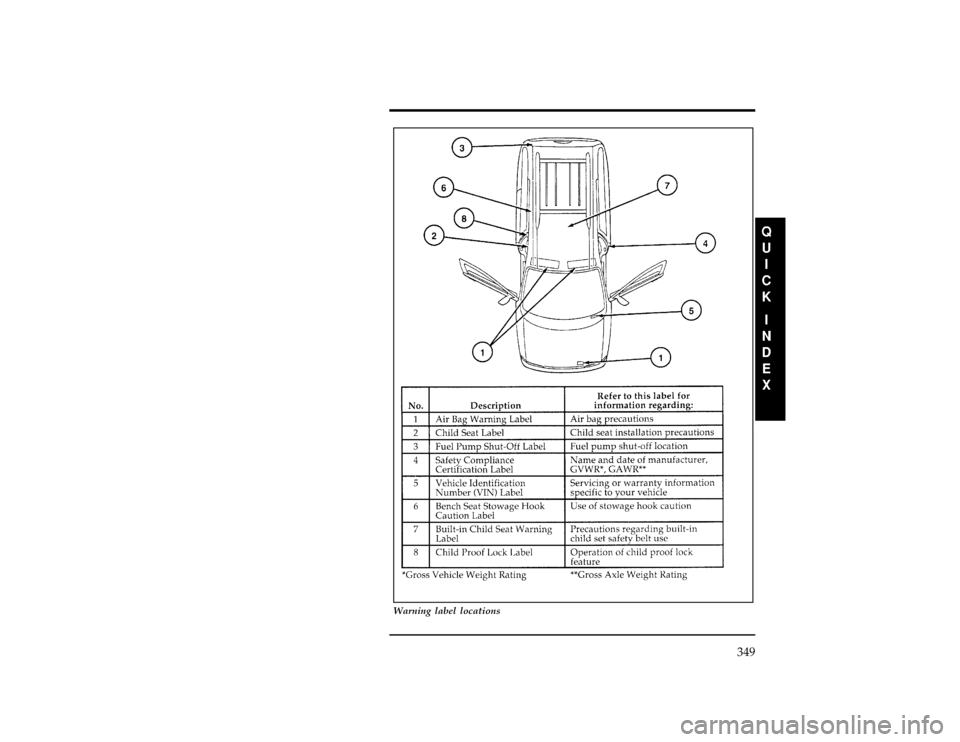

Warning label locations
File:16wnqis.ex
Update:Mon Oct 14 09:19:28 1996
