1998 CHEVROLET VENTURE brake fluid

There are only two reasons why the brake fluid level
in the reservoir might
go down. The first is that the
brake fluid goes down to
an acceptable level during
normal brake lining wear. When new linings are put
in,
the fluid level goes back up. The other reason is that
fluid is leaking out of the brake system. If it is, you
should have your brake system fixed, since a leak means
that sooner or later your brakes won’t work well, or
won’t work at all.
So, it isn’t a good idea to “top off’ your brake fluid.
Adding brake fluid won’t correct a leak. If you add fluid
when your linings are worn, then you’ll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work
is
done on the brake hydraulic system.
I A CAUTAN:
If you have too much brake fluid, it can spill
on the engine. The fluid will burn
if the engine
is hot enough.
You or others could be burned,
and your vehicle
could be damaged. Add brake
fluid only when work
is done on the brake
hydraulic system.
BRAKE
United States Canadian
When your brake fluid falls to a low level, your brake
warning light will come on. See “Brake System Warning
Light” in the Index.
6-27
ProCarManuals.com

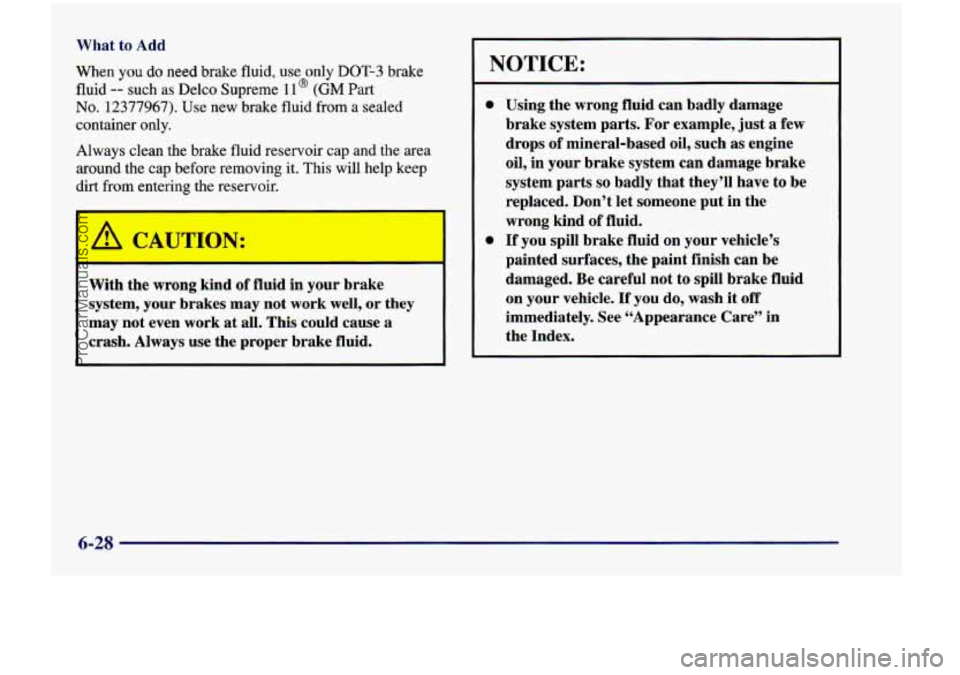

What to Add
When you do need brake fluid, use only
DOT-3 brake
fluid
-- such as Delco Supreme 11 (GM Part
No. 12377967). Use new brake fluid from a sealed
container only.
Always clean the brake fluid reservoir
cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
With the wrong kind
of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause
a
crash. Always use the proper brake fluid.
NOTICE:
0
0
Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops
of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong kind
of fluid.
If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be
damaged. Be careful not
to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See “Appearance Care” in
the Index.
6-28
ProCarManuals.com

Fuses
RR WPR WSHR Rear Window Wiper Motor,
Rear Window Wipermasher
and Multifunction Switch (Rear
Window Wipermasher Switch)
LH HEADLP LOW Not Used
LH HEADLP HIGH Not Used ABS/TCS IGN Electronic Brake Control ModuleElectronic Brake
Traction Control Module
(EBCMEBTCM)
ABS
SOL
HVACDRL LH and
RH Front Brake
Solenoid Valve
Air Inlet Actuator, DRL Control
Module, Heater-A/C Control,
Temperature Door Actuator (Front) and Rear Window
Defogger Relay
BCM PRGRM Body Control Module (BCM)
RH HEADLP LOW Not Used
RH HEADLP HIGH Not Used
PCM
IGN MAIN Relay and PCM
Underhood Fuse and Relay Center
This fuse and relay center is located in the engine
compartment, in front of the windshield washer
fluid reservoir.
The fuses marked spare are available if
a replacement
fuse is needed.
6-61
ProCarManuals.com

Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your dealer.
USAGE FLUIDLUBRICANT
Engine Oil Engine Oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst” symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
Engine Coolant
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@
DEX-COOL@
or Havoline@ DEX-COOL@
Coolant. See “Engine Coolant” in
the Index.
USAGE
Hydraulic Brake
System
Parking Brake
Cable Guides
Power Steering
System Automatic
Transaxle
Key Lock
Cylinders
FLUIDLUBRICANT
Delco Supreme ll@ Brake Fluid
(GM Part
No. 12377967 or
equivalent DOT-3 Brake Fluid).
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of
NLGI # 2, Category LB or
GC-LB.
GM Power Steering Fluid (GM
Part
No. 1052884 - 1 pint,
1050017
- 1 quart, or equivalent).
DEXRON@-111 Automatic
Transmission fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 1234624 1 or equivalent).
7-34
ProCarManuals.com

0 Section 9 Index
Accessory Inflator System ....................... 2-78
Accessory Power Outlet
.......................... 2-80
Adding Equipment to the Outside Of Your Vehicle
...... 6-3
Adjusting the Bucket Seats
....................... 1-27
Adjusting the Split Bench Seat
.................... 1- 19
Air Bag
....................................... 1-50
How Does it Restrain
.......................... 1-55
Howitworks
................................ 1-52
Location
.................................... 1-52
Readiness Light
......................... 1.52. 2.87
Servicing
................................... 1-58
System
..................................... 1-50
What Makes it Inflate
.......................... 1-55
What Will You See After
it Inflates ............... 1-56
When Should
it Inflate ......................... 1-54
Aircleaner
.................................... 6-15
Air Conditioning
................................ 3-3
Air Conditioning Refrigerants
..................... 6-66
Air Filter Replacement. Passenger Compartment ...... 6-16
AirInflator
.................................... 2-78
Alignment and Balance. Tire
...................... 6-46
Aluminum Wheels. Cleaning
...................... 6-53
Antenna. Integrated Windshield
.................... 3-32
Antifreeze
..................................... 6-21
Anti-Lock Brakes
...................................... 4-7
Brake System Warning Light
................ 2-89, 4-7 Appearance Care
............................... 6-48
Appearance Care Materials
....................... 6-55
Ashtray
....................................... 2-77
Audio Systems
.................................. 3-9
Automatic Door Locks
............................ 2-6
Automatic Overdrive
............................ 2-32
Automatic Transaxle Check
....................... 7-30
Automatic Transaxle Fluid
........................ 6-18
Howtocheck
............................... 6-18
When to Check and Change
..................... 6-18
Automatic Transaxle Operation
.................... 2-30
Shifting
..................................... 2-30
Automatic Transaxle Park Mechanism Check
......... 7-32
Battery
...................................... 6-30
Jump Starting
................................. 5-3
Warnings
................................ 5.3. 5.5
BatterySaver .................................. 2-65
BBB Auto Line
................................. 8-9
Before Leaving on a Long Trip
.................... 4-23
Better Business Bureau Mediation
................... 8-9
Blizzard
...................................... 4-28
HOW to
Add
................................. 6-20
9-1
ProCarManuals.com

1
Brake Adjustment
.................................. 6-30
Fluid
....................................... 6-26
Master Cylinder
.............................. 6-26
Parking
..................................... 2-34
PedalTravel
................................. 6-30
Replacing System Parts
........................ 6-30
System Warning Light
.................... 2-87. 6-27
Trailer
...................................... 4-37
Transaxle Shift Interlock
....................... 2-37
Transaxle Shift Interlock Check
.................. 7-3 1
Wear ....................................... 6-29
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking in Emergencies
.......................... 4-10
Break-In, New Vehicle
.......................... 2-25
BTSI
......................................... 2-37
BTSICheck
................................... 7-31
Bucketseats
................................... 1-26
Adjusting
................................... 1-27
Folding or Reclining the Seatbacks
............... 1-26
Removing
................................... 1-28
Bulb Replacement
.............................. 6-3 1
Replacing
................................... 1-30
Canadian Roadside Assistance
.................... 8-7
Capacities and Specifications
...................... 6-65
Captain’s Chairs
................................ 1-33
Removing
................................... 1-33
Replacing
................................... 1-34
Carbon Monoxide
.................... 2.38.4.29. 4.37
CargoNet
..................................... 2-72 Cassette Deck Service
........................... 7-29
Cassette Tape Player
....................... 3-12. 3-15
Cassette Tape Player Care
........................ 3-30
CD Adapter Kits
.......................... 3-14. 3-19
CD Player Theft-Deterrent Feature
................. 3-26
Center Dome Lamp
............................. 2-64
Center Rear Passenger Position (Bench Seat)
......... 1-64
Center Rear Passenger Position (Bucket Seat)
......... 1-66
Certificatioflire Label
.......................... 4-30
Chains. Safety
................................. 4-37
Chains. Tire
................................... 6-47
Changing a Flat Tire
............................. 5-24
Charging System Indicator Light
................... 2-87
Checking Your Restraint Systems
................. 1-101
Chemical Paint Spotting
.......................... 6-54
Children
...................................... 1-68
Child Restraints
................................ 1-82
Built-in
..................................... 1-71
Cleaning Built-in
............................. 6-50
Securing in a Rear Outside Seat Position
........... 1-89
(Bucketseat)
............................... 1-93
(Third Row Bench Seat)
...................... 1-91
Securing in the Right Front Seat Position
.......... 1-95
TopStrap
................................... 1-88
Where to Put
........................... 1-86. 1-87
Cigarette Lighter
............................... 2-77
Circuit Breakers and Fuses
....................... 6-58
Cleaner. Air
................................... 6-15
Cleaning Aluminum Wheels
............................ 6-53
Built-in Child Restraint
........................ 6-50
Fabric
...................................... 6-49
Securing in the Center Rear Seat Position
Securing in the Center Rear Seat Position
9-2
ProCarManuals.com

Taillamp Bulb Replacement ...................... 6-37
TapePlayerCare
............................... 3-30
Temperature Knob. Climate Control System
........... 3-2
Theft
......................................... 2-22
Theft-Deterrent Feature. CD Player
................ 3-26
THEFTLOCK
................................. 3-26
Thermostat
.................................... 6-24
Third Gear
.................................... 2-32
Third Row Solid Bench Seat
...................... 1 - 13
Adjusting ................................... 1-13
Folding the Seatback
.......................... 1 - 13
Removing
................................... 1-14
Replacing
................................... 1 - 16
Tilt Steering Wheel
............................. 2-52
Time. Setting the
................................ 3-9
Tirechains
.................................... 6-47
Tire Loading
................................... 4-30
Tire-Loading Information Label
................... 4-30
Tires
......................................... 6-40
Alignment and Balance
........................ 6-46
BuyingNew
................................. 6-43
Chains
..................................... 6-47
ChangingaFlat
.............................. 5-24
Cleaning
.................................... 6-53
Compact Spare ............................... 5-34
Inflation
.................................... 6-41
Inflation Check ............................... 7-29
Inspection and Rotation
........................ 6-42
Loading
.................................... 4-30
Pressure
.................................... 6-41
Storing
a Flat or Spare ......................... 5-33
TemDerature ................................. 6-45 Treadwe ar
................................... 6-45
Uniform Quality Grading
....................... 6-44
Used Wheel Replacement
...................... 6-47
Wear Indicators
.............................. 6-43
Wheel Replacement
........................... 6-46
When It’s Time for New
....................... 6-43
TopStrap
..................................... 1-88
TorqueLock ................................... 2-37
Torque, Wheel Nut
......................... 5-32, 6-65
Towing a Trailer
................................ 4-33
Towing Your Vehicle
............................. 5-8
Traction Control System .......................... 4-9
Traction Control System Warning Light
........ 2-90, 4-10
Trailer Brakes
..................................... 4-37
Driving on Grades
............................ 4-40
Drivingwith
................................. 4-37
Hitches
..................................... 4-36
Maintenance When Towing
..................... 4-41
ParkingonHills
.............................. 4-40
Safety Chains
................................ 4-37
Tongue Weight
............................... 4-35
Total Weight on Tires
.......................... 4-36
Turnsignals
................................. 4-39
Weight
..................................... 4-34
Towing
..................................... 4-33
Transaxle Fluid, Automatic
....................... 6-18
Transmitters, Keyless Entry
........................ 2-8
Transportation, Courtesy
.......................... 8-8
Trip Computer ................................ 2- 100
Trip Odometer ................................. 2-85
TTYUsers ..................................... 8-4
Turn Signal and Lane Change Signals ............... 2-53 Traciion .................................... 6-45 . 1 .
9-11
_. .
ProCarManuals.com
