1998 CHEVROLET EXPRESS Owners Manual

Downloaded from www.Manualslib.com manuals search engine NAME
RH-HIBM
ECM-I
HORN
LH-HDLP
LH-HIBM
FUEL
SOL
IGN-E
ECM-B
CIRCUITS PROTECTED
Right-hand High-beam Headlamp
(Export only)
Ignition Coil, Camshaft Position
Sensor, VCM, Fuel Injectors, Coil
Driver
Horn Relay, Underhood Lamp(s)
Left-hand Headlamp (Export only)
Left-hand High-beam Headlamp
(Export only)
PCM, Fuel Solenoid Driver, Engine
Shutoff Solenoid
Air Conditioning Clutch Relay
Fuel Pump Relay, VCM, PCM, Fuel
Pump and Engine Oil Pressure
Switch
Replacement Bulbs
LAMP OR BULB
Sealed Beam Headlamps
Composite Low-Beam
Headlamps
Composite High-Beam
Headlamps
Front Sidemarker Lamp
Front Parking and Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back-up Lamp
Back-up Lamp
Rear Parking, Stop, and
Turn Lamp
CHMSL
License Plate Lamp
Underhood Lamp
Reel Lamp
Reading Lamps
Sunshade Vanity Mirror
QTY NUMBER
2
H6054
2 6052
2
2
4
2
2
6
4
9005
194
2357NA 3057
3057
3 156
1156
1157
921 194
232 232
211-2
74

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed in this manual is not the same as the part used
in your vehicle when it was
built, or
if you have any questions, please contact your GM dealer.
These specifications are for information only. If you have any questions, see the service manual for the chassis or
refer to the body manufacturer’s publications.

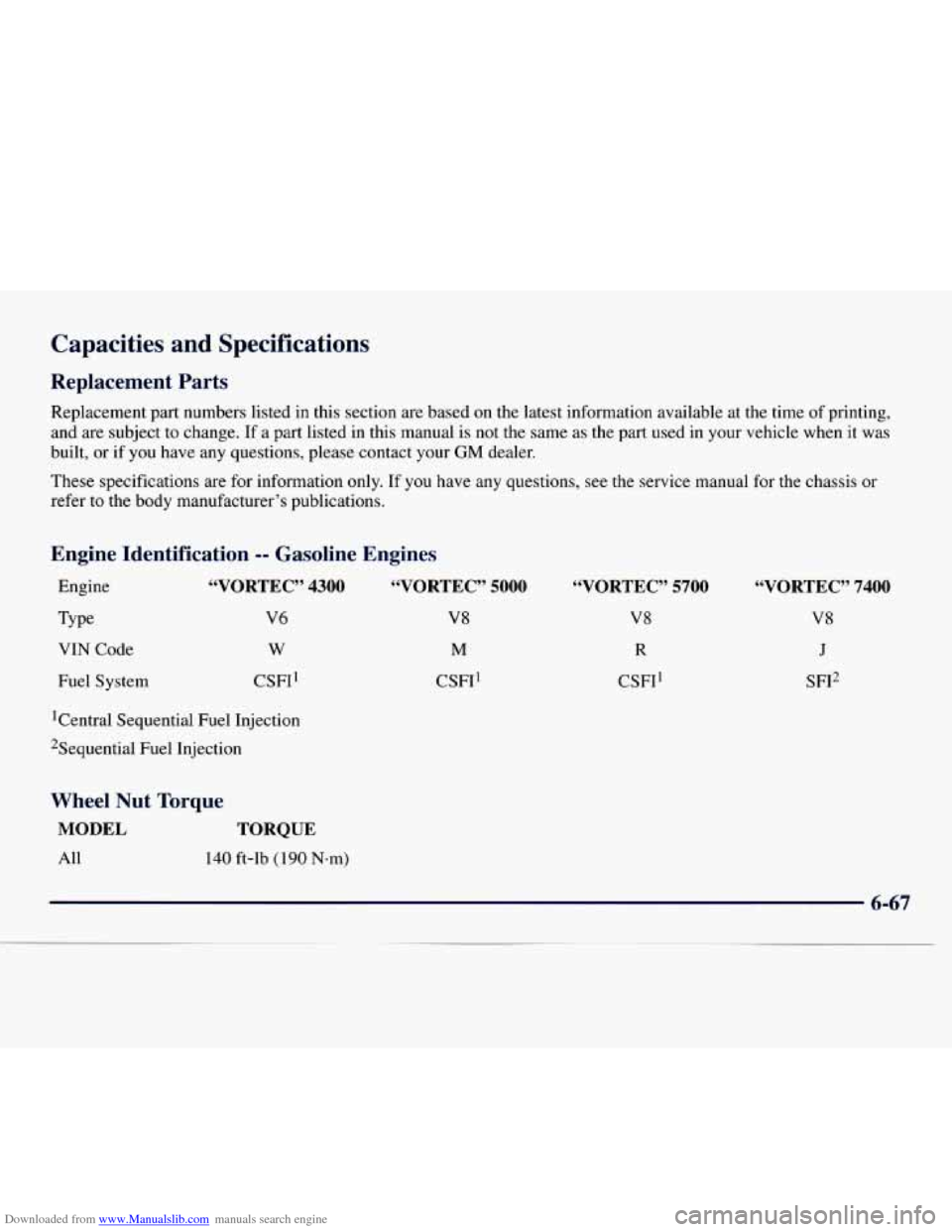

Engine Identification -- Gasoline Engines
Engine “VORTEC” 4300 “VORTEC” 5000
Type V6 V8
VIN Code w M
Fuel System CSFI’ CSFI 1
lCentra1 Sequential Fuel Injection
2Sequential Fuel Injection
Wheel Nut Torque
MODEL TORQUE
All 140 ft-lb (190 Nem)
“VORTEC” 5700
V8
R
CSFI’
“VORTEC” 7400
V8
J
SFI~

Downloaded from www.Manualslib.com manuals search engine Cooling System Capacity (Approximate)
ENGINE VIN QTY Without Rear Heater
“VORTEC”4300 W 1 1 Quarts ( 10.4 L)
“VORTEC”5000 M 17 Quarts (16 L)
“VORTEC”5700 R 17 Quarts (1 6 L)
“VORTEC”7400 J 23 Quarts (2 1.8 L)
QTY With Rear Heater
14 Quarts (13.2 L)
20 Quarts (18.9 L)
20 Quarts (18.9 L)
26 Quarts (24.6 L)
After refill, the level MUST be checked as outlined under “Engine Cooling System” in Section 5.
Crankcase Capacity (Approximate)
ENGINE VIN Quantity With Filter
“VORTEC”4300 W 4.5 Quarts (4.3 L)
“VORTEC”5000 M 5 Quarts (4.8 L)
“VORTEC”5700 R 5 Quarts (4.8 L)
“VORTEC”7400 J 6.6 Quarts (6.24 L)
After refill, the level MUST be rechecked. Add enough engine oil so that the fluid is within the proper operating
range. See “Engine Oil” in the Index.
*Add one additional quart for RPO 5Z1 and
RPO KL5 Models.
6-68

Downloaded from www.Manualslib.com manuals search engine Fuel Tank Capacity (Approximate)
TYPE QUANTITY
Standard Tank 31 Gallons (117.33 L)
Standard Tank 33 Gallons (124.90 L)
Optional Tank* 55 Gallons (208.18 L)
** 159”, 177” Wheelbase Vehicles Only.
MODEL TYPE
Passenger and Cargo
Cab and Chassis
Cab and Chassis
Normal Maintenance Replacement Parts
Engine “VORTEC”4300 “VORTEC”5000
VIN W M
Oil Filter PF52 PF1218
Air Cleaner Filter
* A917C A9 17C
PCV Valve CV789C cv774c
Spark
Plugs 4 1-932 4 1-932
Fuel Filter GF48
1 GF48 1
Radiator Cap RC36 RC36
“VORTEC”5700
R
PF1218
A917C
cv774c 4 1-932
GF48
1
RC36
“VORTEC”7400
J
PF1218 A917C
cv774c 4 1-932
GF48
1
RC36
* Replace with AC Air Filter, Part No. A917C and for severe dusty conditions, use AC Air Filter, Part No. 1236C.

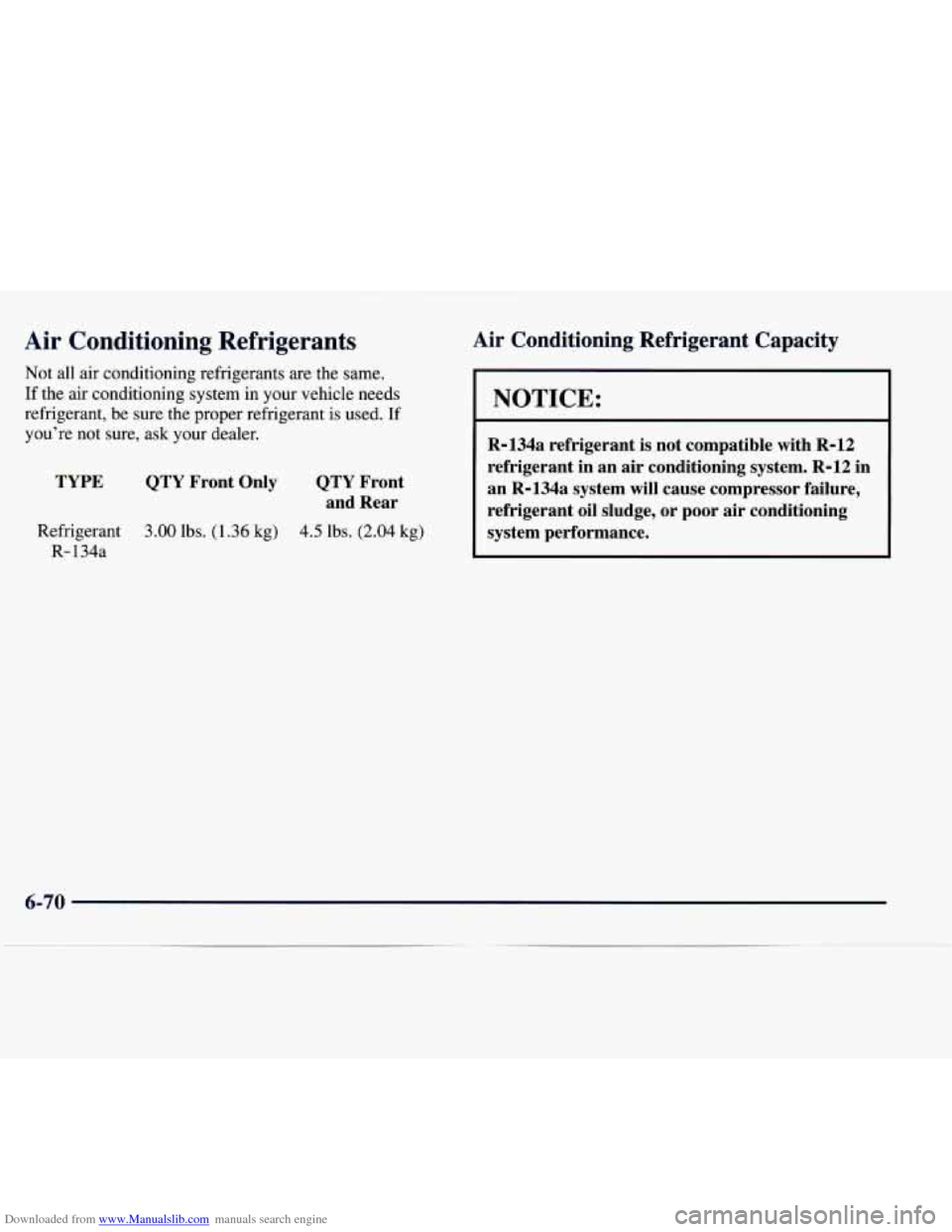

Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your dealer.
TYPE QTY Front Only QTY Front
and Rear
Refrigerant 3.00 lbs. (1.36 kg) 4.5 lbs. (2.04 kg)
R- 134a
Air Conditioning Refrigerant Capacity
NOTICE:
R-134a refrigerant is not compatible with R-12
refrigerant in an air conditioning system. R-12 in
an R-134a system will cause compressor failure,
refrigerant
oil sludge, or poor air conditioning
system performance.
6-70

Downloaded from www.Manualslib.com manuals search engine fi NOTES
6-71

Downloaded from www.Manualslib.com manuals search engine @b NOTES
6-72

Downloaded from www.Manualslib.com manuals search engine Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2 7-4
7-5
7-5
7-6
7-7 Introduction
Part
A: Scheduled
Maintenance Services
Short Trip/City Definition
Short TripKity Intervals
Long Trip/Highway Definition
Long Trip/Highway Intervals 7-a
7-27
7-38
7 -42
7-44
7-46
Short Trip/City Maintenance Schedule
Long TripMighway Maintenance Schedule
Part
B: Owner Checks at Each Fuel Fill-up
Part C: Periodic Maintenance Inspections
Part D: Recommended Fluids and Lubricants
Part
E: Maintenance Record
