1998 CHEVROLET CORVETTE turn signal

Downloaded from www.Manualslib.com manuals search engine Front nrn Signal Lamps Rear nrn Signal and Taillamps
1. Remove the front fascia close out panel
attaching bolts.
2. Remove the front fascia close out panel.
3. Grasp the cooling duct and pull to release it from the
front fascia, then reposition
it. This will give you
better access to the bulb.
4. Squeeze the tab on the socket and turn it to the
left (counterclockwise) to remove the socket with
the bulb.
5. Remove the bulb from the socket.
6. Reverse the steps with a new bulb.
Front Sidemarker Lamps
1. Follow Steps 1 through 3 in “Front Turn Signal
Lamps” described previously.
2. Turn the socket one-quarter of a turn to the left and
pull it out.
3. Pull the bulb straight out of the socket.
4. Reverse the steps with a new bulb.
A. Back-up Lamp
B. Inboard Taillamp
C. Outboard Taillamp
6-35

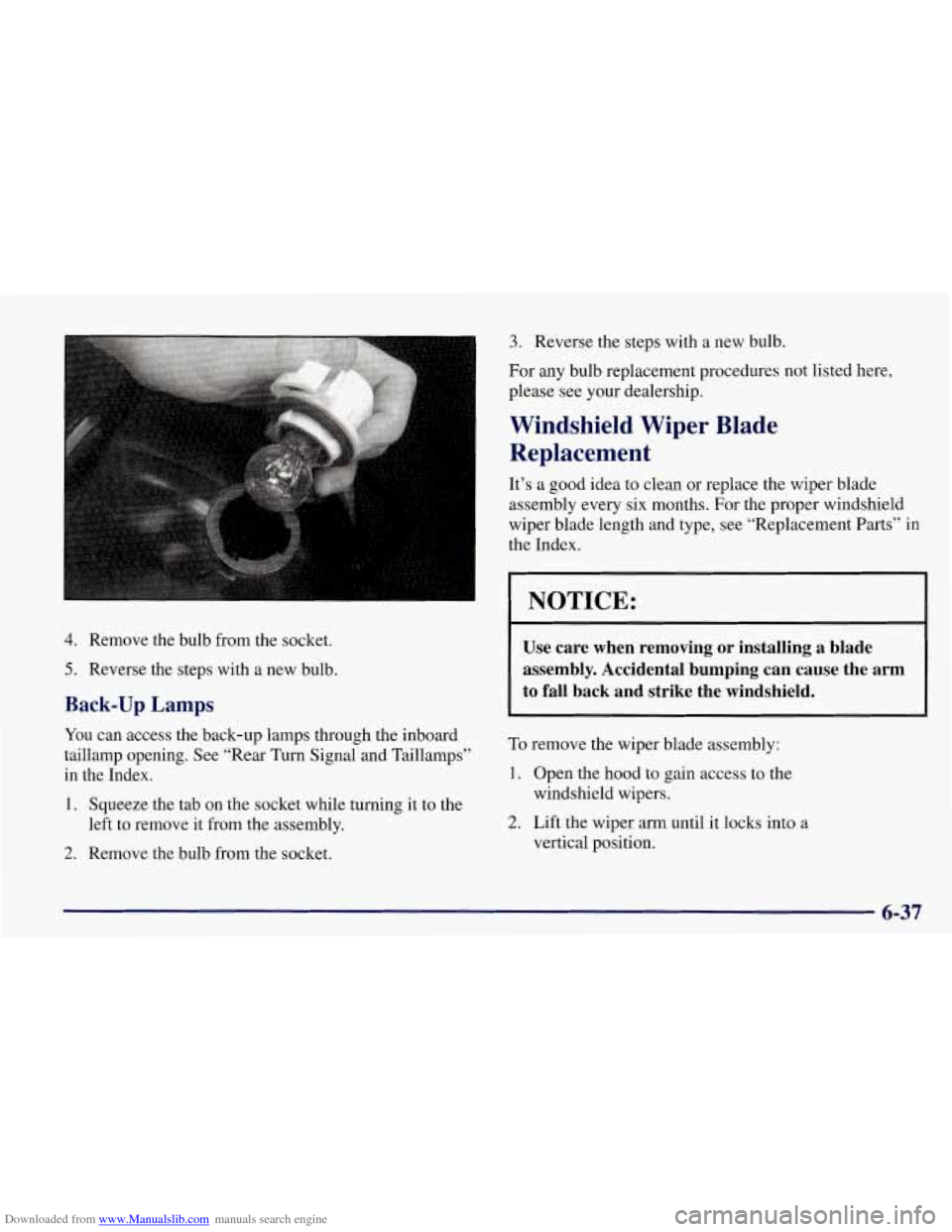

Downloaded from www.Manualslib.com manuals search engine 4. Remove the bulb from the socket.
5. Reverse the steps with a new bulb.
Back-up Lamps
You can access the back-up lamps through the inboard
taillamp opening. See “Rear Turn Signal and Taillamps”
in the Index.
1. Squeeze the tab on the socket while turning it to the
2. Remove the bulb from the socket.
left to remove
it from the assembly.
3. Reverse the steps with a new bulb.
For any bulb replacement procedures not listed here,
please see your dealership.
Windshield Wiper Blade
Replacement
It’s a good idea to clean or replace the wiper blade
assembly every six months. For the proper windshield
wiper blade length and type, see “Replacement Parts” in
the Index.
NOTICE:
Use care when removing or installing a blade
assembly. Accidental bumping can cause the arm
to fall back and strike the windshield.
To remove the wiper blade assembly:
1. Open the hood to gain access to the
windshield wipers.
2. Lift the wiper arm until it locks into a
vertical position.
6-37

Downloaded from www.Manualslib.com manuals search engine Fuse
1
2
3
4
5
Usage
Console Cigarette Lighter
Monitored (Inadvertent) Load Control
Lumbar Seat
Driver Seat Control Module
Radio
Fuse
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 Usage
Parking Lamps,
Taillamps
Cigarette Lighter
Stop Hazard Flashers
Body Control Module
Windshield Wipermasher
Accessory Power
Blank
Body Control Module
Crank
HazardPTurn Signal
Air Bag
TONN REL (Convertible Only)
HVAC Controls
Instrument Panel Control
Cruise Control
Brake-Transmission Shift Interlock
Body Control Module
- Ignition 3
6-65

Downloaded from www.Manualslib.com manuals search engine 42
43
44
45
46
47
48
49
50 51
52
53
Fuse Usage
40 Micro Relay . AIR Solenoid
41 Micro Relay
. Selective Real
Time Damping
Mini Relay
. Ignition
Mini Relay
. Cooling Fan 2
Mini Relay . Cooling Fan 3
Mini Relay . Cooling Fan 1
Maxi-Fuse
. Cooling Fan 2
Blank
Blank
Maxi-Fuse
. Cooling Fan 1
Maxi-Fuse
. Air Pump
Blank
54 Maxi-Fuse
. Anti-Lock
Brakes
Anti-Lock Brakes and Selective Real
Time
Damping Electronics
Fuse Puller
Replacement Bulbs
Console Compartment Flood ................ LED
Glove Box Lamp
......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Automatic
Transmission Indicator
............ 194
Underhood
............................... 1-2
IP Courtesy Lamps ........................ 194
Rear Courtesy
.......................... PC168
Headlamp High-Beam .................... 9005
Headlamp Low-Beam
.................... 9006
Front ParkingKurn Signal
............. 3 157 NAK
Back-up ............................... 2057
Fog
.................................... 893
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopmail Turn Signal
..................... 3057
License
................................. 194
Center High-Mounted Stoplamp
............. LED
6-69

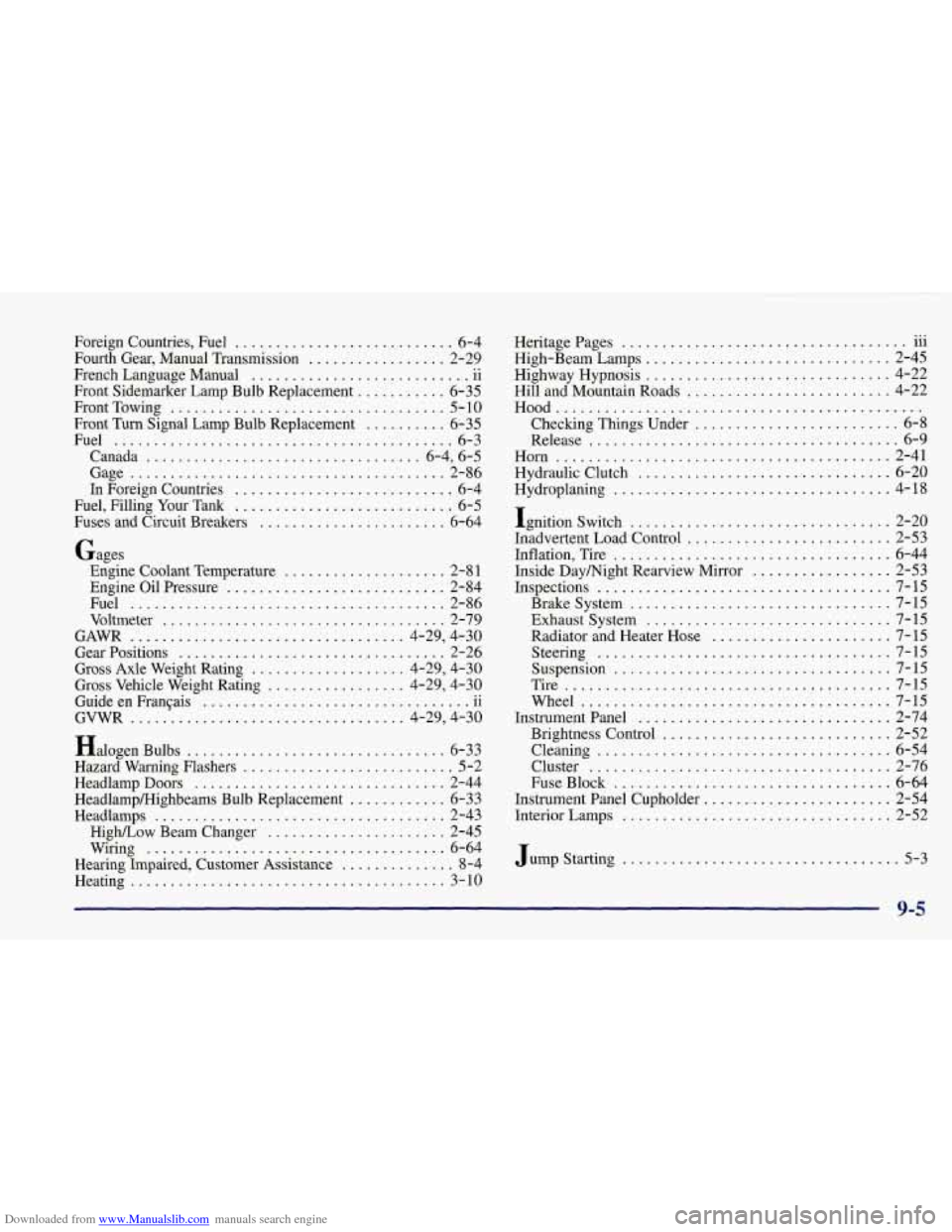

Downloaded from www.Manualslib.com manuals search engine Foreign Countries. Fuel ........................... 6-4
Fourth Gear. Manual Transmission
................. 2-29
French Language Manual
11
Front Sidemarker Lamp Bulb Replacement ........... 6-35
FrontTowing
.................................. 5-10
Front
Turn Signal Lamp Bulb Replacement .......... 6-35
Fuel
.......................................... 6-3
Canada
.................................. 6-4. 6-5
Gage
....................................... 2-86
In Foreign Countries ........................... 6-4
Fuel. Filling Your Tank
........................... 6-5
Fuses and Circuit Breakers
....................... 6-64
.. ...........................
Gages Engine Coolant Temperature
.................... 2-8 1
Engine Oil Pressure ........................... 2-84
Fuel
....................................... 2-86
Voltmeter
................................... 2-79
GAWR
.................................. 4.29. 4.30
Gear Positions
.................................. 2-26
Gross Axle Weight Rating ................... 4.29. 4.30
Guide en Fransais
................................. ii
GVWR
.................................. 4.29. 4.30
Gross Vehicle Weight Rating
................. 4.29. 4.30
Halogen Bulbs
................................ 6-33
Hazard Warning Flashers
.......................... 5-2
Headlamp Doors
............................... 2-44
HeadlampMighbeams Bulb Replacement
............ 6-33
Headlamps
.................................... 2-43
High/Low Beam Changer
...................... 2-45
Wiring
..................................... 6-64
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
....................................... 3-10
... Heritagepages ................................... n1
Highway Hypnosis .............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hood
.............................................
Checking Things Under ......................... 6-8
Release
...................................... 6-9
Horn
......................................... 2-41
Hydraulic Clutch
............................... 6-20
Ignition Switch
................................ 2-20
Inadvertent Load Control
......................... 2-53
Inside DayNight Rearview Mirror
................. 2-53
Brakesystem
................................ 7-15
Exhaust System
.............................. 7-15
Radiator and Heater Hose
...................... 7-15
Steering
.................................... 7-15
Tire
........................................ 7-15
Wheel
...................................... 7-15
Instrumentpanel
............................... 2-74
Brightness Control
............................ 2-52
Cleaning
.................................... 6-54
Cluster
..................................... 2-76
FuseBlock
.................................. 6-64
Instrument Panel Cupholder
....................... 2-54
Interior Lamps
................................. 2-52
Jump Starting
.................................. 5-3
High-BeamLamps
.............................. 2-45
Hydroplaning
.................................. 4-18
Inflation. Tire
.................................. 6-44
Inspections
.................................... 7-15
Suspension
.................................. 7-15
......... 9-5

Downloaded from www.Manualslib.com manuals search engine Neutral Automatic Transmission
....................... 2-27
Manual Transmission
.......................... 2-29
Neutral. Manual Transmission
..................... 2-29
New Vehicle Break-In
........................... 2-20
Nightvision
................................... 4-15
Off-Road Recovery
............................ 4- 12
Oil. Engine
.................................... 6-12
One to Four Light
............................... 2-30
Outlet. Accessory
............................... 2-59
Overdrive. Automatic Transmission
................ 2-28
Overheated Engine Protection Operating Mode
....... 5- 13
Overheating Engine
............................. 5 - 13
Owner Checks and Services
....................... 7-11
Owner Publications. Ordering
..................... 8- 12
InCanada
................................... 8-11
Paint Spotting. Chemical
........................ 6-60
Park Automatic Transmission
....................... 2-26
Shifting Into
................................. 2-34
Shifting Out of
............................... 2-36 .
Parking AtNight
.................................... 2-17
Brake
...................................... 2-32 ... Lots ....................................... 2-1'1
Your Vehicle. Manual Transmission .............. 2-36
Parking Brake Mechanism Check
.................. 7- 14
Over Things That Burn
........................ 2-37
Passenger Position
.............................. 1 - 18
Passing
....................................... 4- 12 Pass-Key@
.................................... 2-18
Periodic Maintenance Inspections
.................. 7-15
Portable Fuel Container. Filling a
................... 6-8
Door Locks
................................... 2-5
Remote Control Mirrors
........................ 2-54
Seat
......................................... 1-2
Steering
.................................... 4-10
Steering Fluid
................................ 6-26
Windows
................................... 2-40
Plug
....................................... 6-63
Powerseat
..................................... 1-2
Pregnancy, Use
of Safety Belts .................... 1-17
Problems on the Road
............................ 5-1
Publications, Service and Owner
................... 8-12
InCanada
................................... 8-11
Power
Racing or Other Competitive Driving
.............. 2-24
Radio Reception
................................ 3-27
Radios
....................................... 3-12
Rain. Driving
In ................................ 4-17
Reading Lamps
................................ 2-53
Axle
....................................... 6-21
Axle Service
................................. 7-15
Storage
..................................... 2-56
Towing
..................................... 5-11
Window Defogger
............................ 3-11
Reclining Seatbacks
.............................. 1-3
Rear
Turn Signal and Taillamp Bulb Replacement
....... 6-35
Rearview Mirror, Inside Daymight
................. 2-53
Recommended Fluids
and Lubricants ............... 7-16
9-7

Downloaded from www.Manualslib.com manuals search engine Service Bulletins. Ordering
............................ 8-12
Manuals. Ordering
............................ 8- 12
Parts Identification Label
....................... 6-62
Publications. Ordering
......................... 8- 12
Work. Doing Your Own
......................... 6-2
Service and Appearance Care
...................... 6-1
Service and Owner Publications
................... 8-12
InCanada
................................... 8-11
Servicing Your Air Bag-Equipped Vehicle
........... 1-24
Shiftspeeds
................................... 2-30
Shifting
....................................... 2-26
IntoPark
.................................... 2-34
Out
of Park .................................. 2-36
Signaling Turns
................................ 2-42
Sixth Gear, Manual Transmission
.................. 2-29
Skidding
...................................... 4-14
Sound Equipment, Adding
........................ 3-27
Specifications and Capacities
...................... 6-70
Specifications, Engine
........................... 6-70
Speech Impaired, Customer Assistance
............... 8-4
Sportseat
...................................... l-3
Springs, Fiberglass .............................. 6-59
Stains, Cleaning
................................ 6-53
Starter Switch Check
............................ 7- 13
Starting Your Engine
............................ 2-22
Steering
...................................... 4-10
In Emergencies
............................... 4- 11
Power ...................................... 4-10
Tips
........................................ 4-10
Wheel, Tilt
.................................. 2-41
Storage Compartments
........................... 2-54
Speedometer
................................... 2-77
Steam
................................... 5-14, 5-15 Storage.
Vehicle
................................ 6-32
Stuck: In Sand. Mud. Ice or Snow
.................. 5-22
Sunvisors
.................................... 2-58
Surge Tank. Coolant
............................. 5-18
Symbols. Vehicle
.................................. x
System Controls. Comfort Control System
........ 3-2. 3-4
Tachometer
.................................. 2-77
TapePlayerCare
............................... 3-28
Temperature Controls
..... ................... 3-2. 3-4
Theft ......................................... 2-16
Theft-Deterrent Radio
........................... 3-25
Thermostat
.................................... 6-26
Third Gear, Automatic Transmission
................ 2-28
Third Gear, Manual Transmission
.................. 2-29
Tilt Steering Wheel
............................. 2-41
Time, Setting the
............................... 3-12
Tirechains
.................................... 6-51
Tire-Loading Information Label
................... 4-29
Tires
......................................... 6-40
Alignment and Balance
........................ 6-48
Buying New
................................. 6-45
Cleaning
.................................... 6-58
Extended Mobility
............................ 6-41
If One Goes Flat .............................. 5-22
Inflation
.................................... 6-44
Inflation Check
............................... 7-11
Inspection and Rotation
........................ 6-45
Loading
.................................... 4-29
Pressure
.................................... 6-44
Temperature
................................. 6-48
Traction
.................................... 6-47
Treadwe
ar ................................... 6-47
9-9

Downloaded from www.Manualslib.com manuals search engine Tires (Continued) Uniform Quality Grading ....................... 6-47
Wear Indicators
.............................. 6-45
Wheel Replacement
........................... 6-48
When It’s Time for New
....................... 6-45
TorqueLock
................................... 2-35
Torque, Wheel Nut .............................. 6-71
Towing a Trailer
................................ 4-30
Towing
Your Vehicle ............................. 5-8
Traction Control System
.......................... 4-8
Traction Control System (TCS) Light
............... 2-81
..................................... Top Strap 1-31
TrailerTowing
................................. 4-30
Transmission Fluid
Automatic 6- 18
...................................
Manual ..................................... 6-19
Transmission, Ignition Lock Check ................. 7-14
Transmitters, Remote Function Actuation System
...... 2-6
Transportation, Courtesy
.......................... 8-8
Turn Signal and Lane Change Indicator
............. 2-42
Turn Signal/Multifunction Lever
................... 2-42
TTYUsers
...................................... 8-4
Underbody Flushing Service
..................... 7-14
Universal Theft-Deterrent System
.................. 2- 17
Vehicle Adding Equipment to the Outside of
Your ........... 6-3
Control
...................................... 4-5
Damage Warnings .............................. ix
Dimensions ................................. 6-71 Identification Number
......................... 6-62
Ventilation System
.............................. 3-11
Visor Vanity Mirrors ............................ 2-58
Loading
.................................... 4-29
Storage
..................................... 6-32
Visors, Sun
.................................... 2-58
Voltmeter
..................................... 2-79
warning Devices
............................... 5-3
Warning Lights. Gages and Messages ............... 2-77
Warranty Information
............................ 8-10
Washer Fluid. Windshield
........................ 6-27
Washing Your Vehicle
........................... 6-56
Weatherstrips
.................................. 6-55
Alignment
.................................. 6-48
NutTorque
.................................. 6-71
Wheel
Replacement ................................. 6-48
Using the Wheel Lock Key
..................... 6-50
Express-Down
............................... 2-41
Power
...................................... 2-40
Windshield Washer ............................. 2-46
Fluid Level Check
............................ 7-11
Windshield Wipers
.............................. 2-45
Blade Replacement
........................... 6-37
Winter Driving
................................. 4-24
Wrecker Towing
................................. 5-8
Windows
..................................... 2-40
Fluid
....................................... 6-27
Fuses
...................................... 6-64
WiperBladeCheck
............................. 7-12
Wiring, Headlamp
.............................. 6-64
9-10
.
